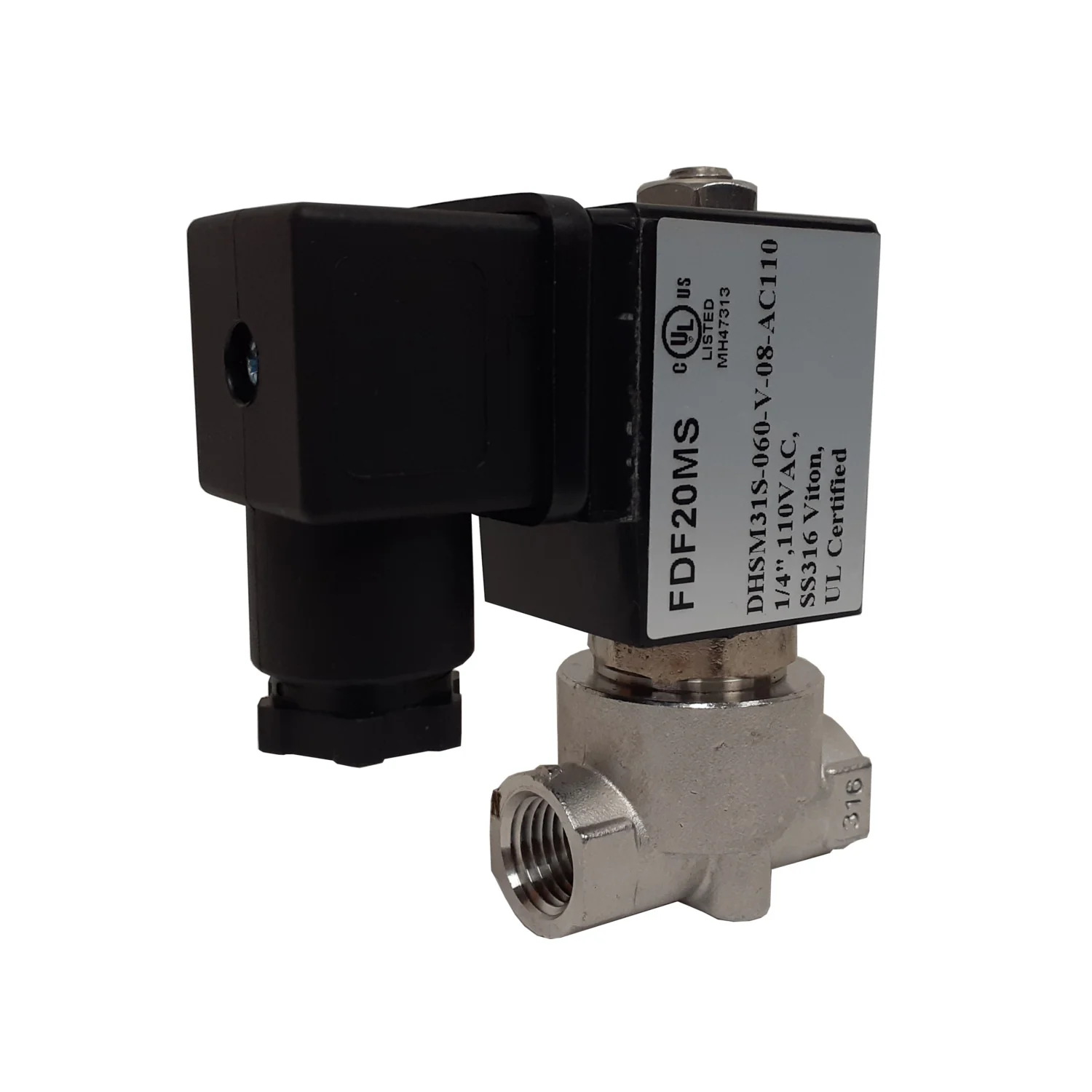

Minature Solenoid Valve, 1/4 Inch NPT, 316 Stainless Steel, 110 VAC Coil, Viton Seal

PRM Solenoid Valves are designed to handle the most demanding fluid control applications. Solenoid valves operate on electricity to automatically start and stop flow. The actuator is directly mounted to the valve body to minimize movement and reduce wear.

Miniature Solenoid Valves Datasheet

Normally closed valves are closed unless actuated.

Stainless steel valves are more corrosion resistant than brass valves.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Specifications:

• PRM Part # SV025DHSM31S060V08110X
• Size: 1/4” NPT
• Power: 110 VAC
• Direct Acting, Miniature Construction
• Open from 0 psi for low pressure system use
• Medium: Water, Air, Steam, Oil
• Temperature: 14°F to 300°F (Viton)
• Pressure: up to 130 psi
• Orifice: 4.0, Cv 0.5
• Coil: IP65
• Continuous Duty, 100% ED
• Tolerance: ±10%
• ISO 9001:2000, UL/C-UL-CSA approved

Materials:

• Body: 316 Stainless Steel
• Seal: Viton, FKM
• Armature Tube: 304 Stainless Steel
• Plunger: 430F Stainless Steel
• Stop: 430F Stainless Steel
• Springs: 316 Stainless Steel
• Shading Rings: 316 Stainless Steel
