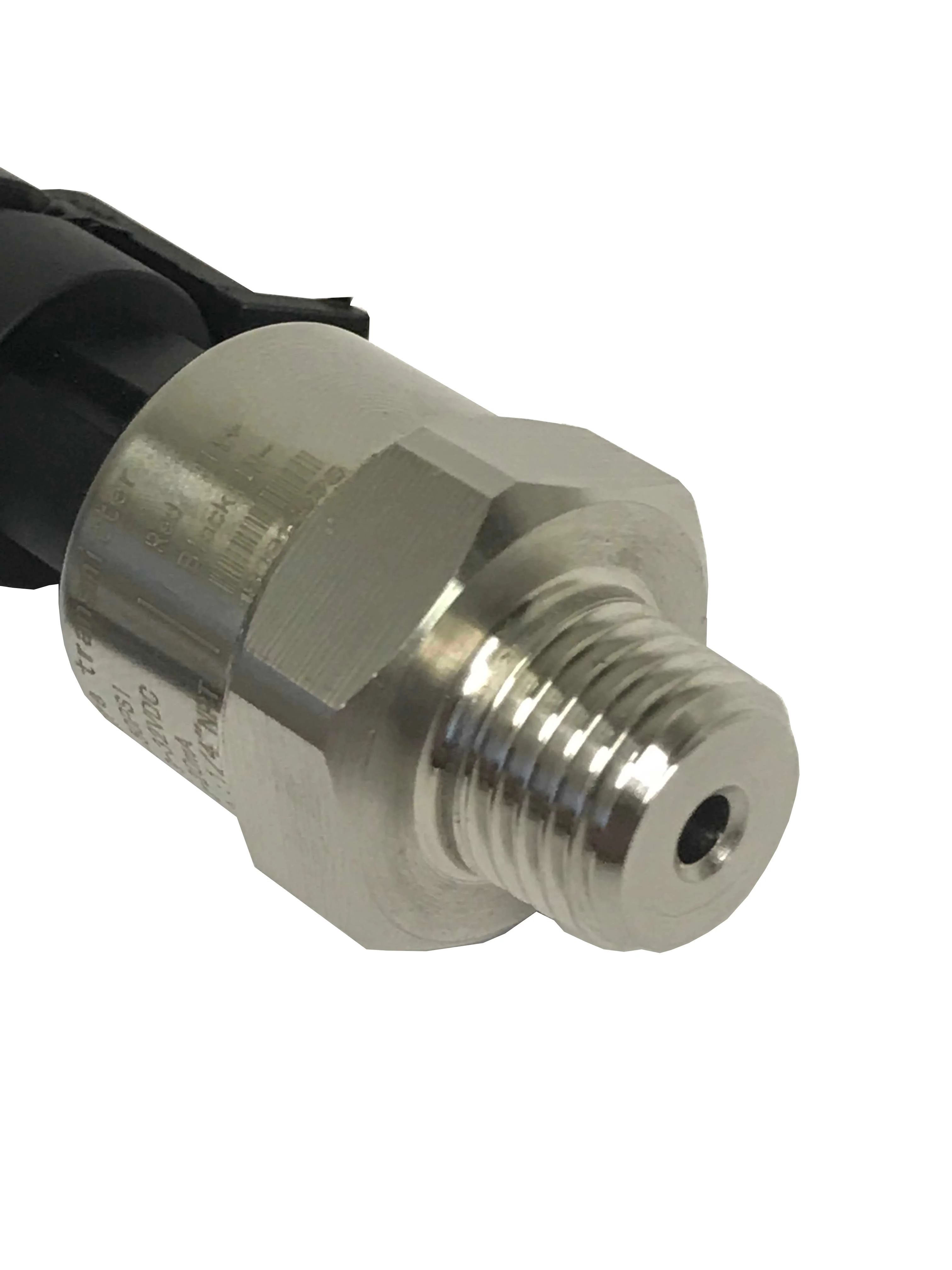

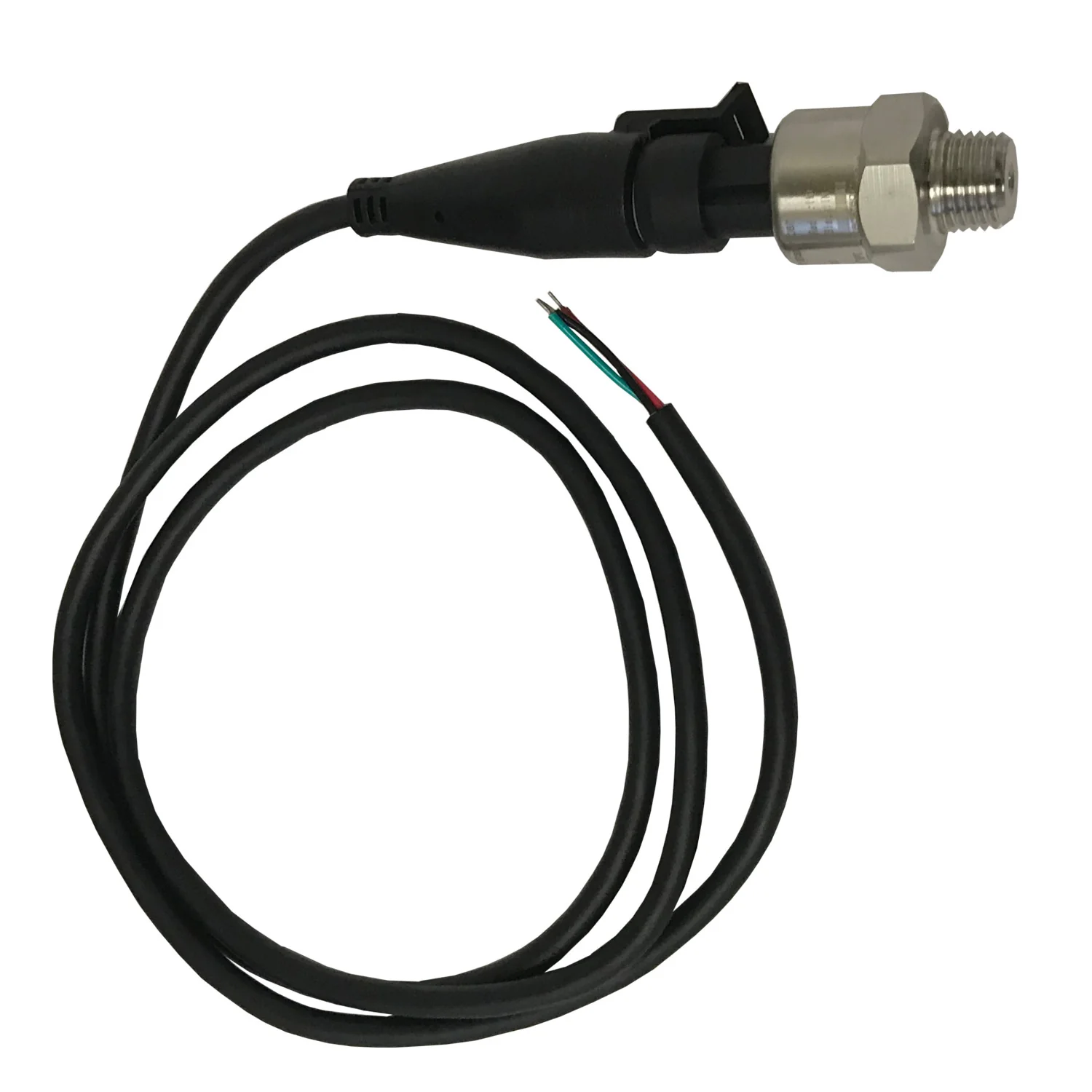

PRM Pressure Transmitter, 0-50 PSI, 304 SS Case, 1/4 Inch NPT Connection, 24 VDC, 4~20mA

PRM 1/4" MNPT PRESSURE TRANSMITTER 304 SS, 24 VDC, 4~20 mA

PRM Pressure Transmitters are built to withstand the harsh environments of the remediation industry.

Features:

• Range: 0-50 psi
• Power: 24 VDC
• 4~20 mA Output
• Cable Length: 3 Ft.
• May be wired as 2-wire or 3-wire loop

• Accuracy of ± 0.25% full-scale
• Temperature Range: 14-176°F
• Sensor Materials: Diffused Silicone, 316 Stainless Steel
• Case Material: 304 Stainless Steel
• Enclosure: IP65
• Connection: 1/4” NPT

 Pressure Transmitter Datasheet
