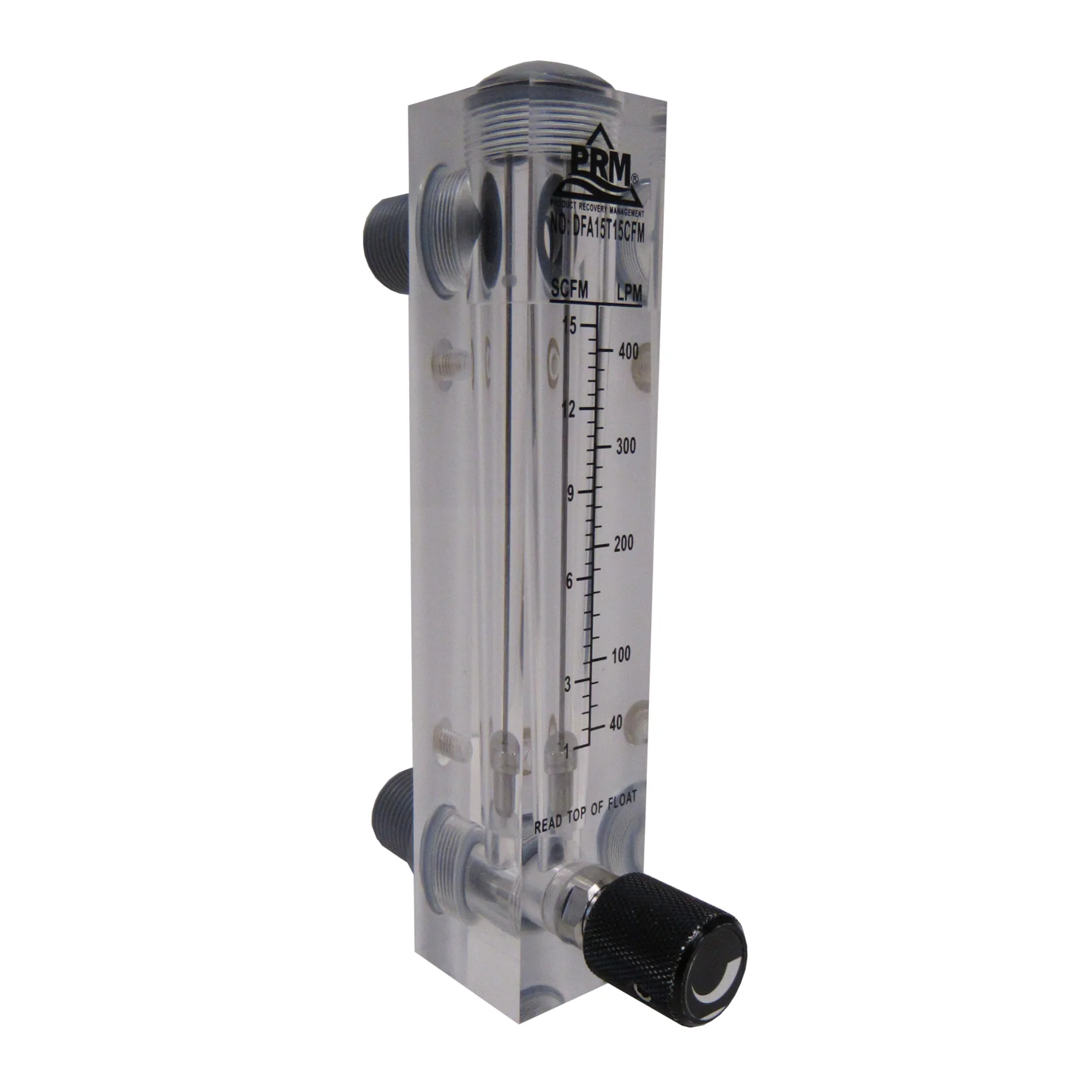

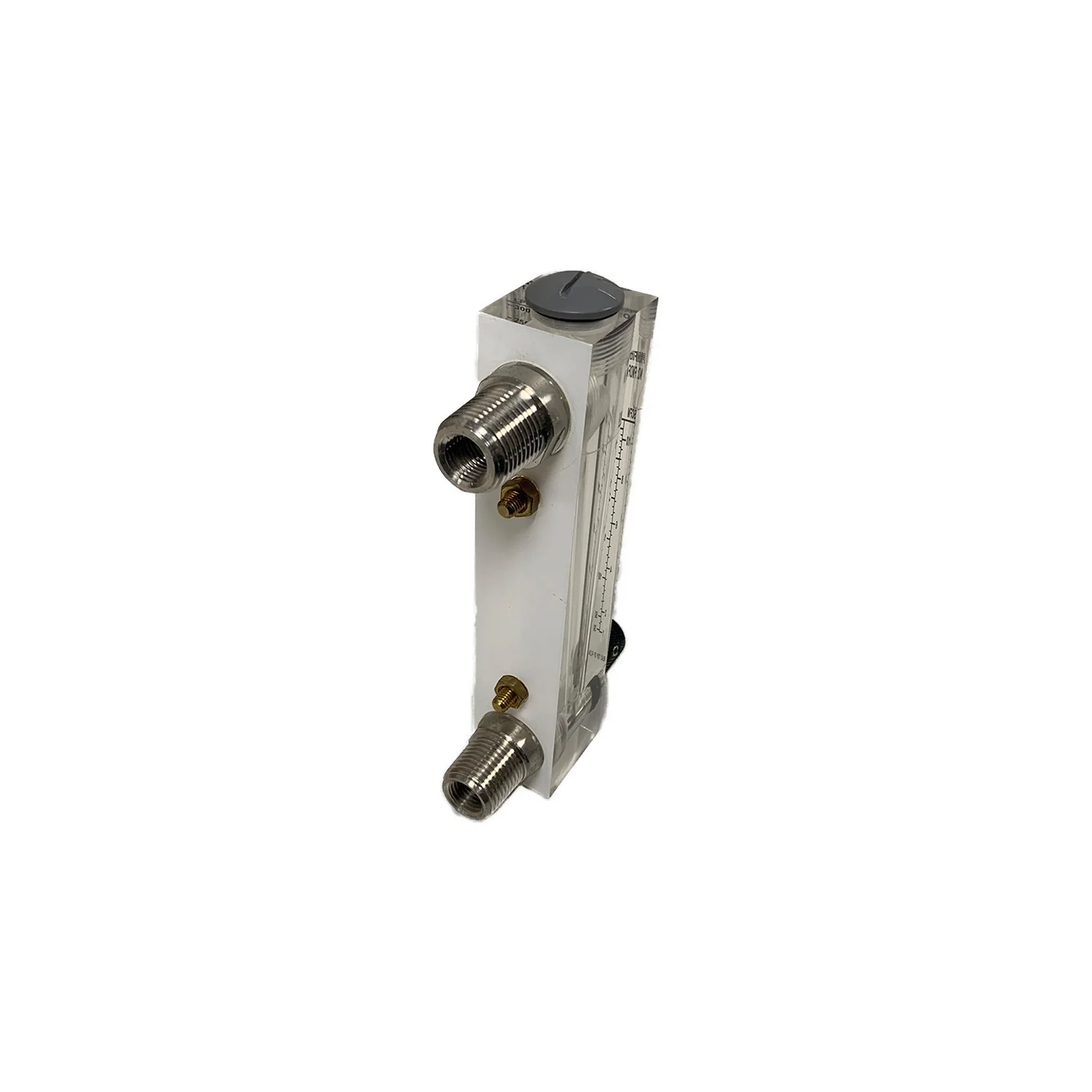

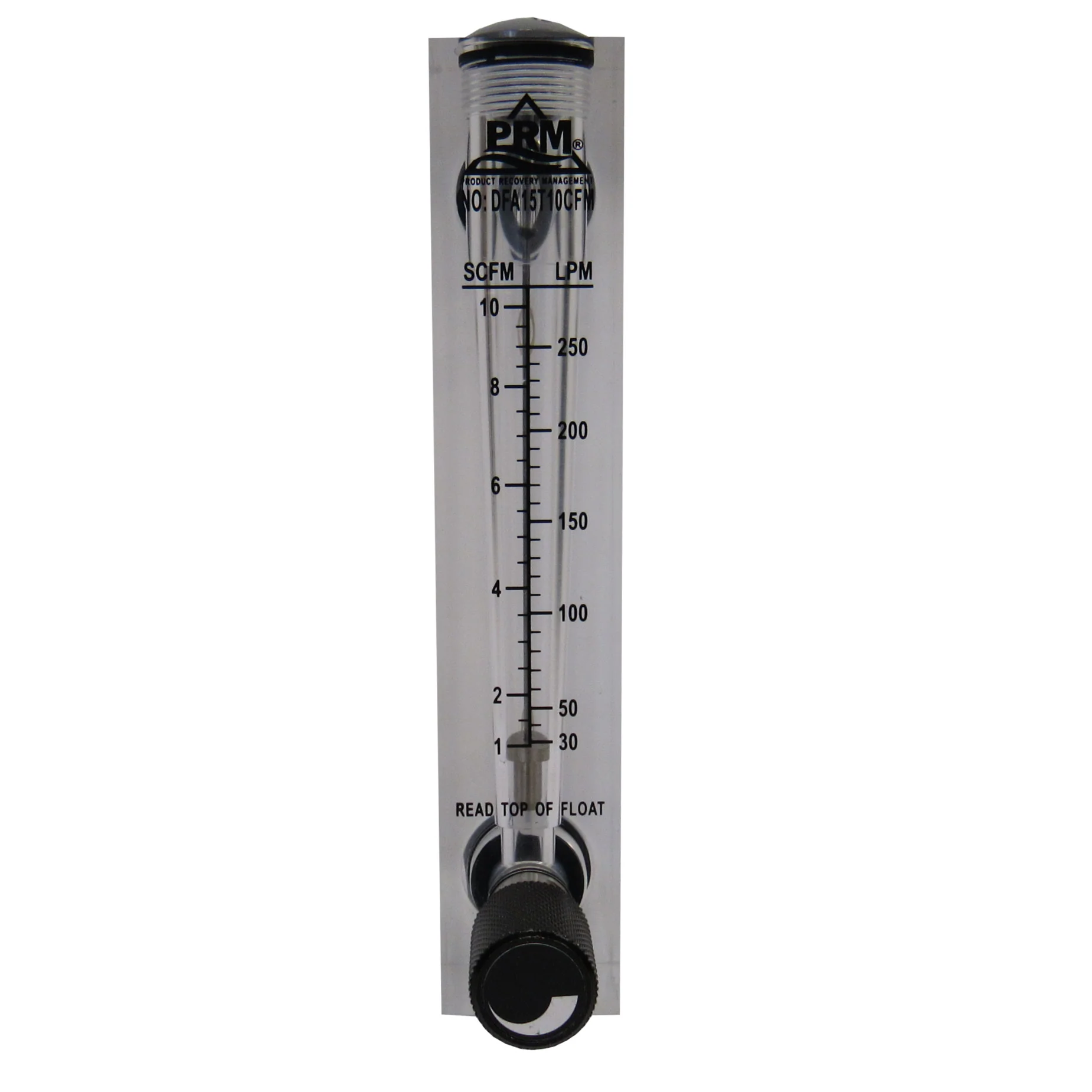

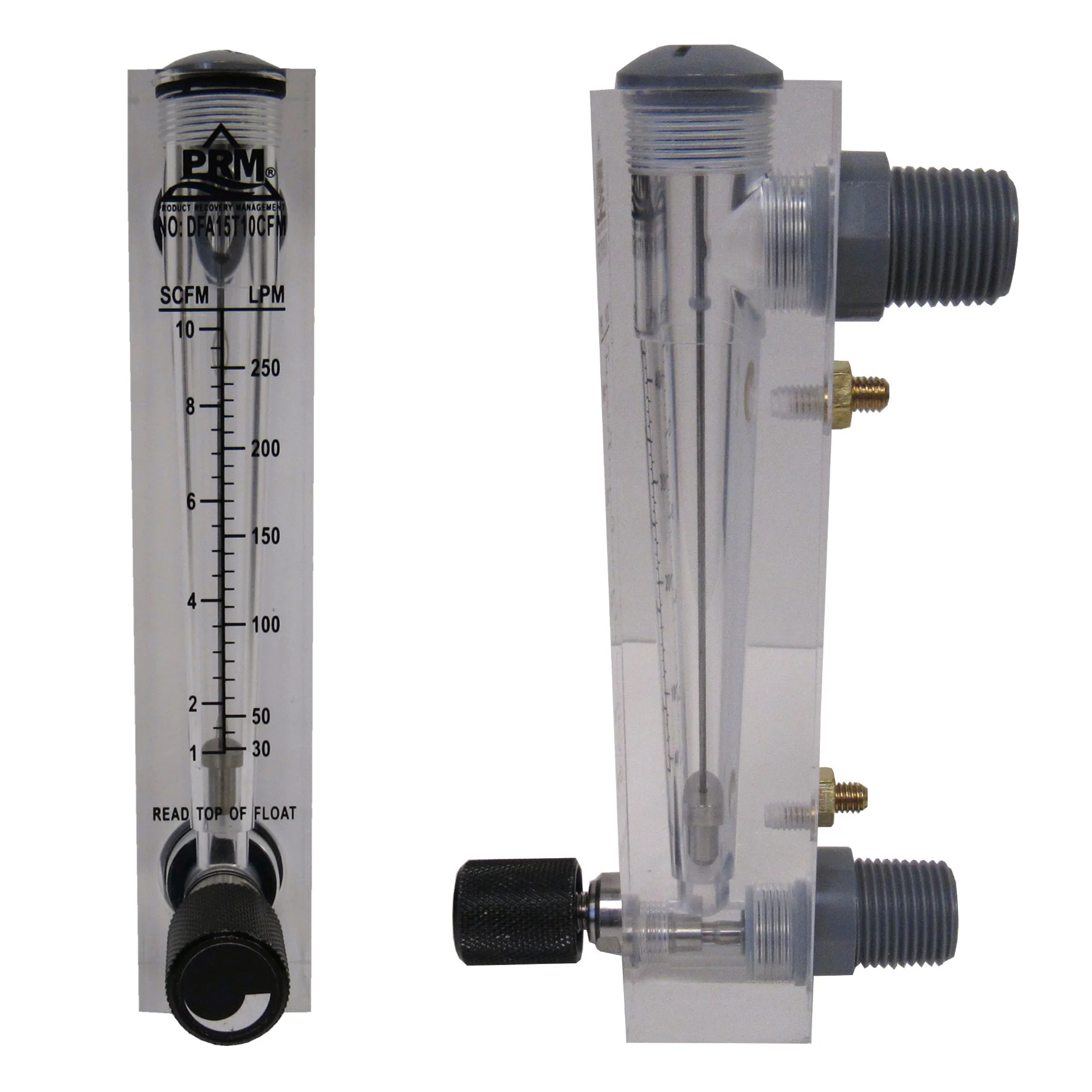

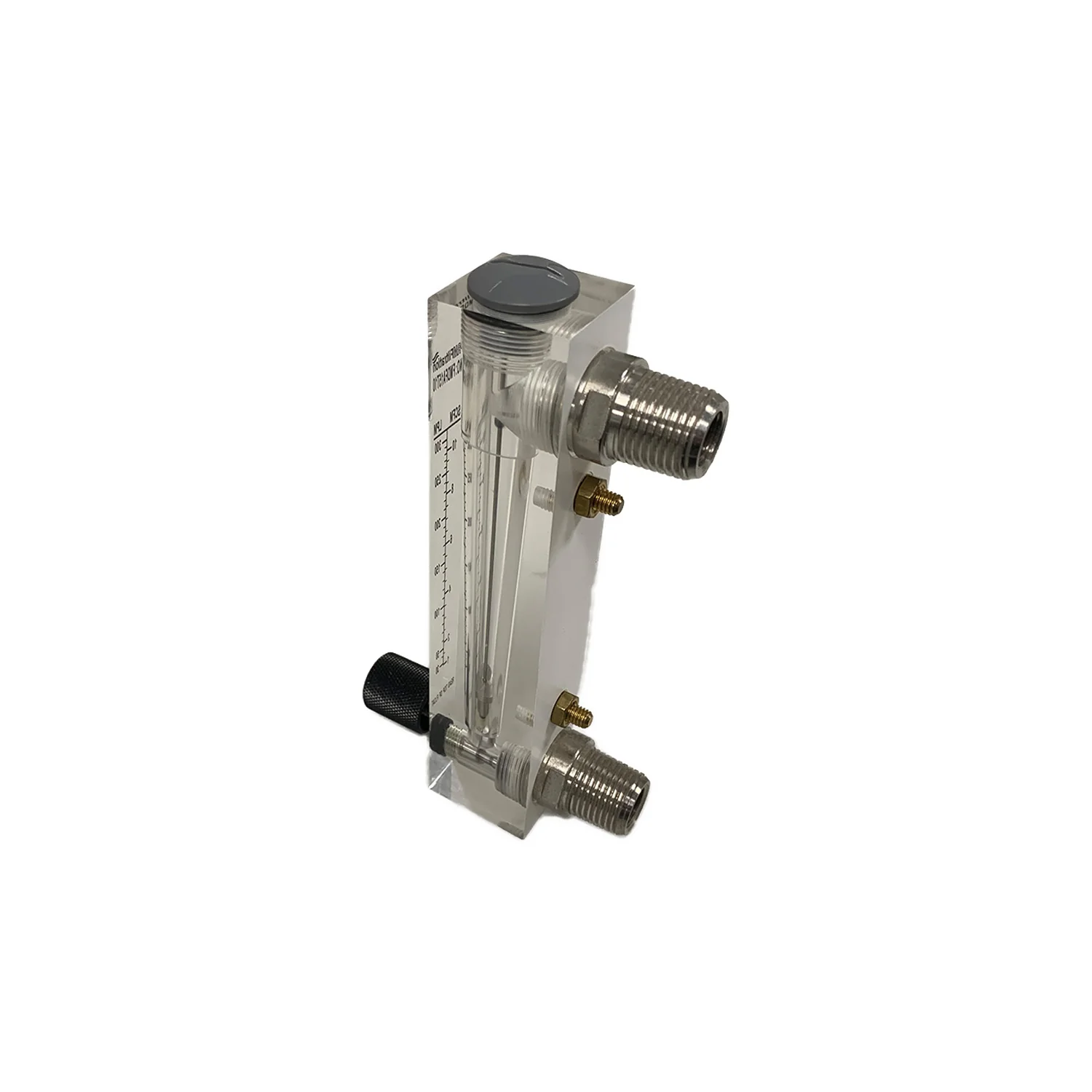

AIR INJECTION / AIR SPARGE ROTAMETER WITH INTEGRATED FLOW CONTROL VALVE

The PRM DFA-15T Rotameters are designed for heavy duty service in the environmental remediation and industrial process markets. PRM has found through experience that other brands of rotameters break, leak, and fail in the harsh conditions of the remediation industry, so PRM manufactures these standard flow control rotameters with a heavier duty body and mounting bosses to make the rotameters stationary and prohibit flexing. PRM rotameters uses a Stainless Steel valve assembly where others use brass, which is a typical failure point in harsh conditions. White background allows for better visibility of the float increasing reading accuracy.

• FMDFA15T10: 1-10 CFM / 30-300 LPM
• Maximum Pressure: 100 psi
• Maximum Temperature: 145° F
• Connection: 1/2” Male NPT or 1/4" Female NPT Thread
• Accuracy: +/-4%

Materials :

• Body: Acrylic
• Float: 304 Stainless Steel
• Valve: 304 Stainless Steel
• O-Ring: Buna-N
• Mounting: Brass hardware
• Fitting: ABS Plastic (option) or 304 Stainless Steel (standard)

Datasheet
