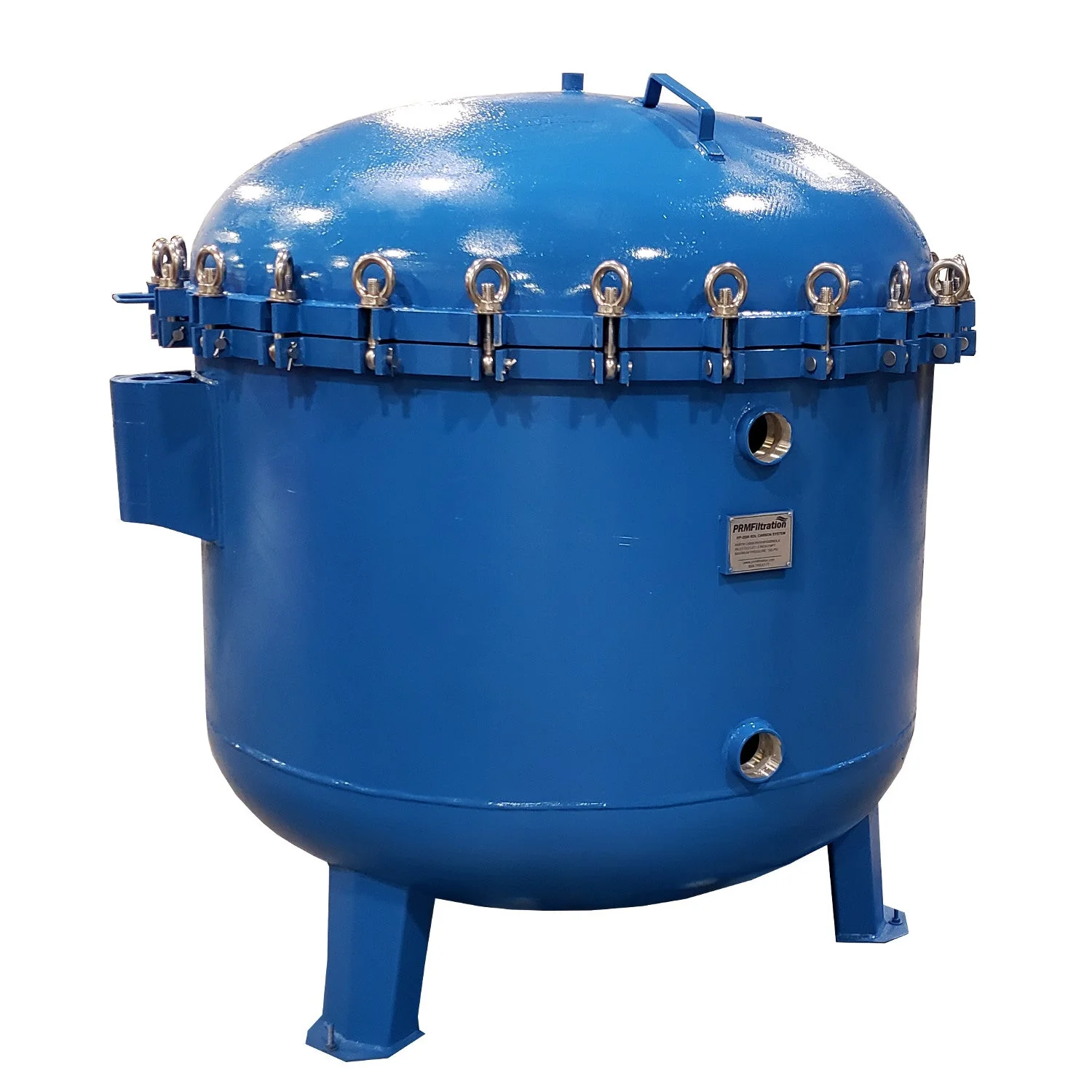

PRM Filtration HP2000RDL High Pressure Liquid Phase Carbon Vessel, 150 PSI
PRE-ENGINEERED CARBON SYSTEMS - LIQUID PHASE
The HP Series Carbon units are used on remediation systems where standard flow volumes are required with minimal backpressure. These units offer a 25%
freeboard area for excellent backwash ratios. Typical applications are groundwater remediation for VOCs or industrial sites with similar applications. Several media types are available for removal of more specific compounds such as metals and other contaminants. Aggregate media specifically designed to be backwashed is also available.
The higher pressure unit can be used up to 150 psig (standard unit is max 80 psig.)
APPLICATIONS:
- Remediation of contaminated water streams
- Carbon filtration is a recognized method for the treatment of PFAS contaminated water
STANDARD SPECIFICATIONS:
- 60”D x 73”H Tank Vessel With Removable Lid for easy access for changing your carbon media without affecting efficiency or performance
- Heavy Duty Carbon Steel (12MM)
- Epoxy Coated interior
- 3 Inch FNPT Inlet/Outlet
- Pressure: Max 150 psig
- High Flow Distributor Manifold
- Heavy Duty Welded Legs
- Price is for empty vessel, uses approx. 2000 lbs. of GAC media based on a packed density bed of 30lbs/cubic foot
Manufactured item, please allow 2-4 weeks lead time for construction and shipping.
Carbon Vessels must be shipped by LTL Freight, Shipping Cost is responsibility of purchaser, please contact PRM for a freight quote.
Spare Parts for this Housing
Viton O-Ring for HP-2000RDL Carbon Vessel (CARBONTKVOR2000RDLX)
Original: $13,999.00
-65%$13,999.00
$4,899.65
Description
PRE-ENGINEERED CARBON SYSTEMS - LIQUID PHASE
The HP Series Carbon units are used on remediation systems where standard flow volumes are required with minimal backpressure. These units offer a 25%
freeboard area for excellent backwash ratios. Typical applications are groundwater remediation for VOCs or industrial sites with similar applications. Several media types are available for removal of more specific compounds such as metals and other contaminants. Aggregate media specifically designed to be backwashed is also available.
The higher pressure unit can be used up to 150 psig (standard unit is max 80 psig.)
APPLICATIONS:
- Remediation of contaminated water streams
- Carbon filtration is a recognized method for the treatment of PFAS contaminated water
STANDARD SPECIFICATIONS:
- 60”D x 73”H Tank Vessel With Removable Lid for easy access for changing your carbon media without affecting efficiency or performance
- Heavy Duty Carbon Steel (12MM)
- Epoxy Coated interior
- 3 Inch FNPT Inlet/Outlet
- Pressure: Max 150 psig
- High Flow Distributor Manifold
- Heavy Duty Welded Legs
- Price is for empty vessel, uses approx. 2000 lbs. of GAC media based on a packed density bed of 30lbs/cubic foot
Manufactured item, please allow 2-4 weeks lead time for construction and shipping.
Carbon Vessels must be shipped by LTL Freight, Shipping Cost is responsibility of purchaser, please contact PRM for a freight quote.
Spare Parts for this Housing
Viton O-Ring for HP-2000RDL Carbon Vessel (CARBONTKVOR2000RDLX)
