PRM Filtration HP3000 Liquid Phase Media Filter Tank/Carbon Vessel

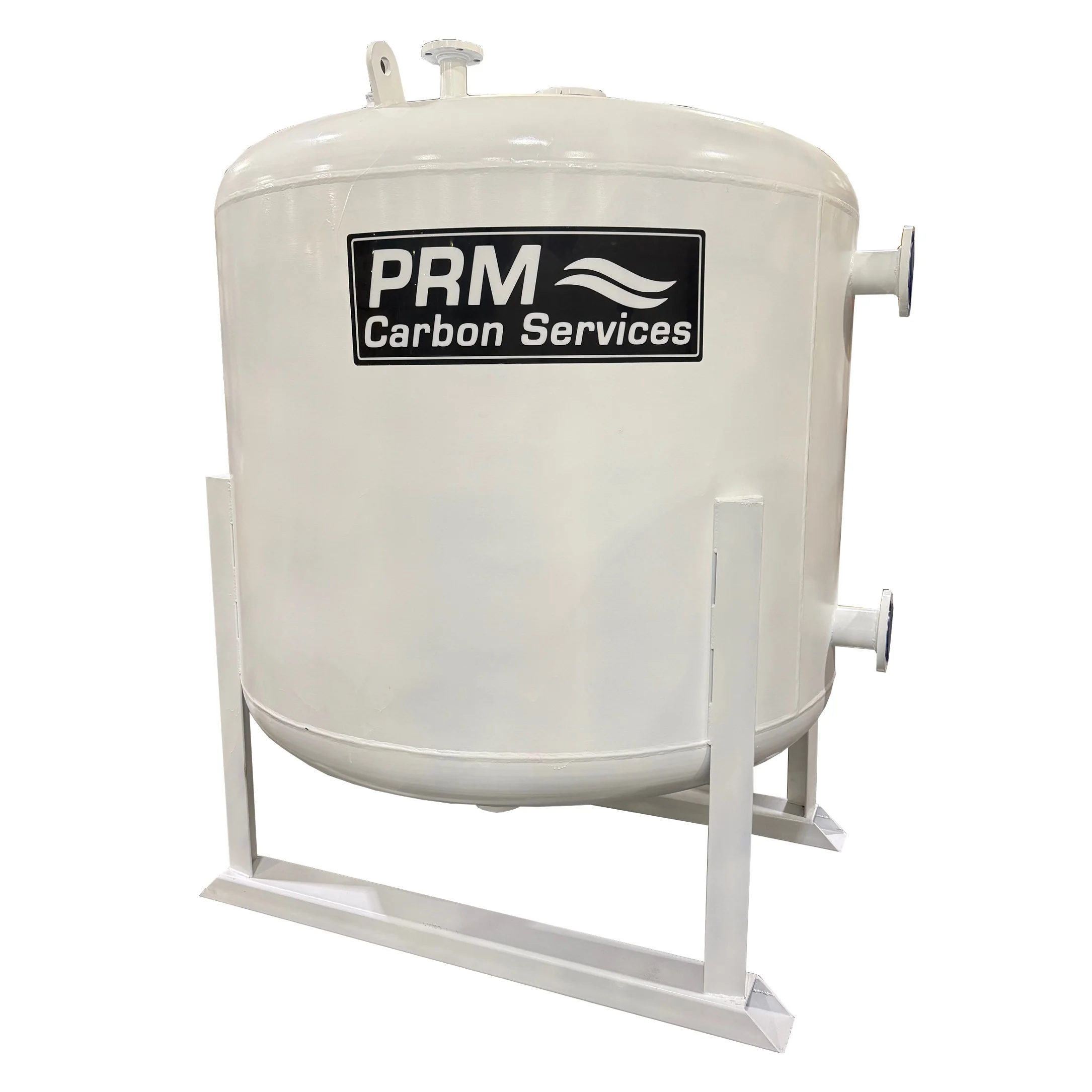

HP-3000 Media Filter Tank/Carbon Vessel with SS Water Diffuser Internals

The HP Series Carbon units for groundwater remediation of VOCs or industrial sites with similar applications. Several media types are available for removal of more specific compounds such as metals and other contaminants.



APPLICATIONS:

•  Remediation of contaminated water streams



SPECIFICATIONS:

• 72”D x 98”H Sandblasted 8MM Carbon Steel Vessel
• High Quality UV Resistant Epoxy Painted Exterior
• 15.7" x 19.7"  Inch Manhole with Cover
• 4 Inch 150# Flanged Inlet/Outlet
• 4 Inch 150# Flanged Vent Port
• 2 Inch 150# Flanged Drain Port
• Working Pressure: 75psig
• 4” x 8” Square Tube Runners
• Price is for empty vessel, uses approx. 3000 lbs. of GAC media based on a packed density bed of 30lbs/cubic foot (sold separately, see below)

HP-3000HD Media Filter Tank Datasheet

Carbon Media:

• Reactivated Liquid Phase (8 X 30) Granular Activated Carbon
• Virgin Liquid Phase (8 X 30) Granular Activated Coconut Shell Base Carbon

Build Product, Check for Availability and Lead Times.

Carbon Vessels must be shipped by LTL Freight, Shipping Cost is responsibility of purchaser, please contact PRM for a freight quote.
