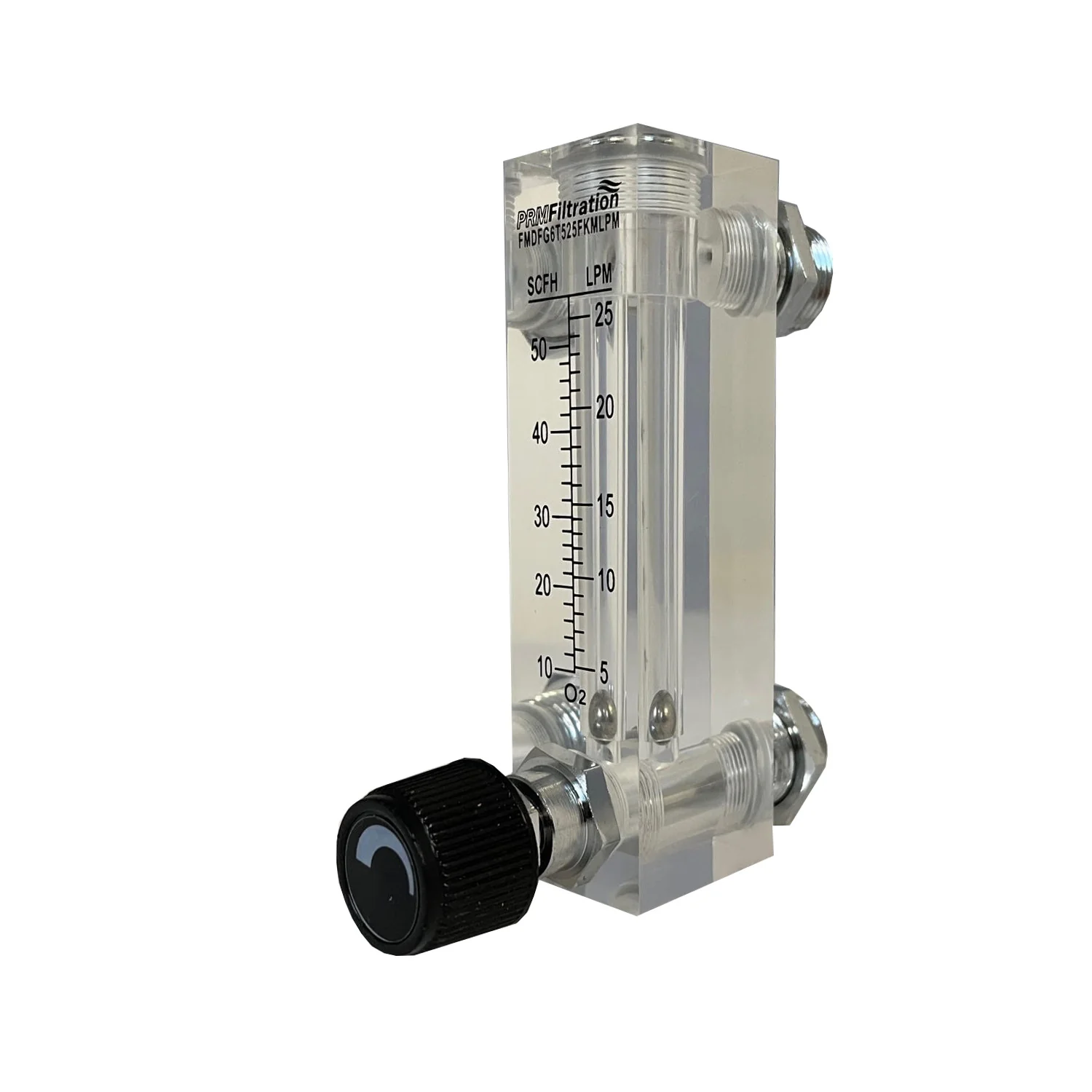

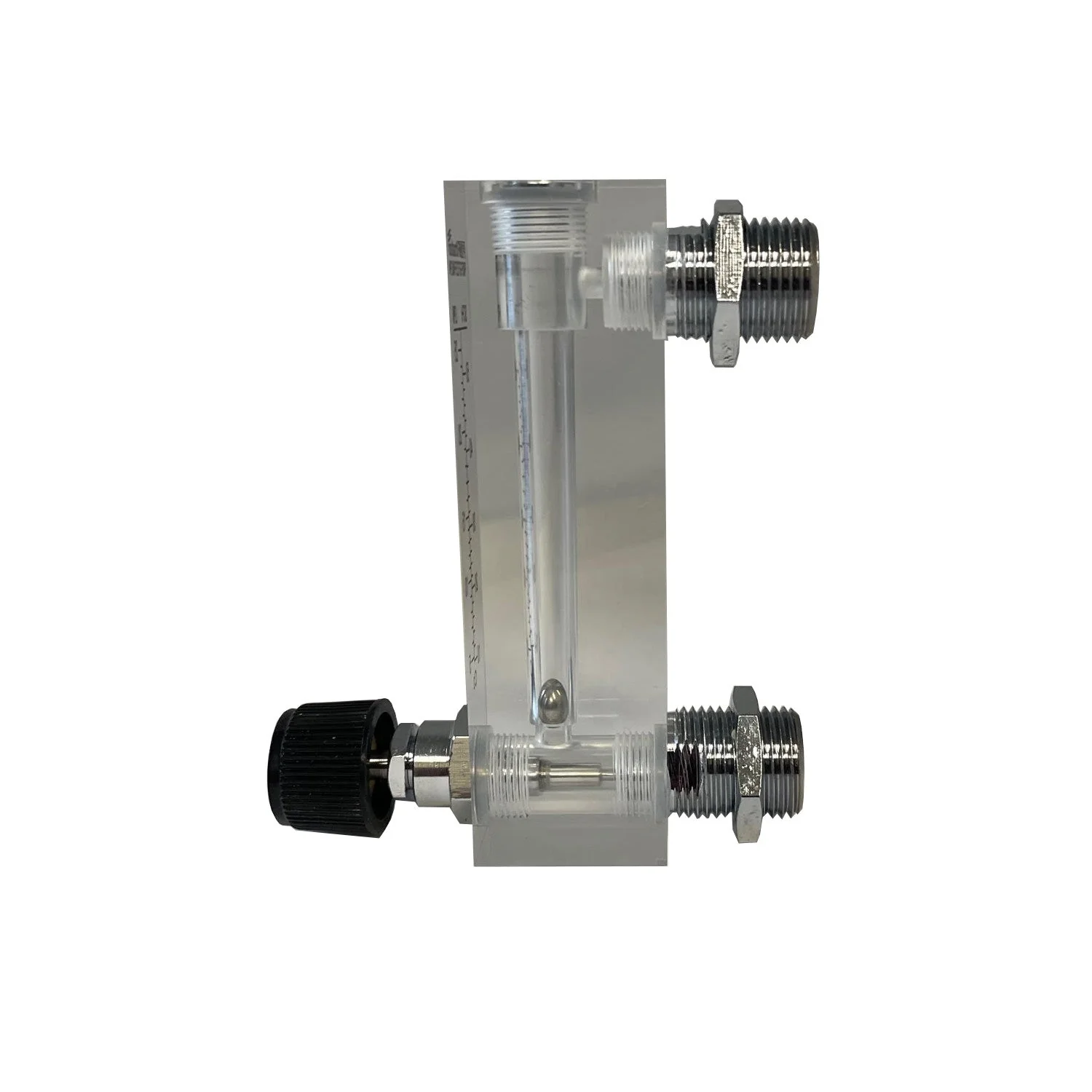

PRM FMDFG6T525FKMLPM 5-25 LPM Oxygen Rotameter Flow Meter with Integrated Flow Valve
PRM FMDFG6T525FKMLPM 5-25 LPM Oxygen Rotameter Flow Meter with Integrated Flow Valve
The 6T rotameters are designed for measuring small flow rates, allowing for fine adjustments with the integrated flow valve. This 6T rotameter series is made specifically for oxygen service with a 304 stainless steel float and control valve and FKM (Viton) o-rings. PRM manufactures these standard flow control rotameters with a heavy duty acrylic body to make the rotameters stationary and prohibit flexing.
Measures in Standard Cubic Feet/Hour (SCFH) and NLM (Normal Liters per Minute, or LPM)
- FMDFG6T525FKMLPM: 10-50 SCFH, 5-25 LPM
- Compact Configuration
- Maximum Pressure: 100 psi
- Maximum Temperature: 145° F
- Connection: 1/4 Inch Female NPT, Nickel Plated Brass
- Accuracy: +/-4%
- Acrylic Body, FKM O-Ring, 304 Stainless Steel Float
Click to view DFG-6T Spec Sheet
Original: $69.99
-65%$69.99
$24.50
Description
PRM FMDFG6T525FKMLPM 5-25 LPM Oxygen Rotameter Flow Meter with Integrated Flow Valve
The 6T rotameters are designed for measuring small flow rates, allowing for fine adjustments with the integrated flow valve. This 6T rotameter series is made specifically for oxygen service with a 304 stainless steel float and control valve and FKM (Viton) o-rings. PRM manufactures these standard flow control rotameters with a heavy duty acrylic body to make the rotameters stationary and prohibit flexing.
Measures in Standard Cubic Feet/Hour (SCFH) and NLM (Normal Liters per Minute, or LPM)
- FMDFG6T525FKMLPM: 10-50 SCFH, 5-25 LPM
- Compact Configuration
- Maximum Pressure: 100 psi
- Maximum Temperature: 145° F
- Connection: 1/4 Inch Female NPT, Nickel Plated Brass
- Accuracy: +/-4%
- Acrylic Body, FKM O-Ring, 304 Stainless Steel Float
