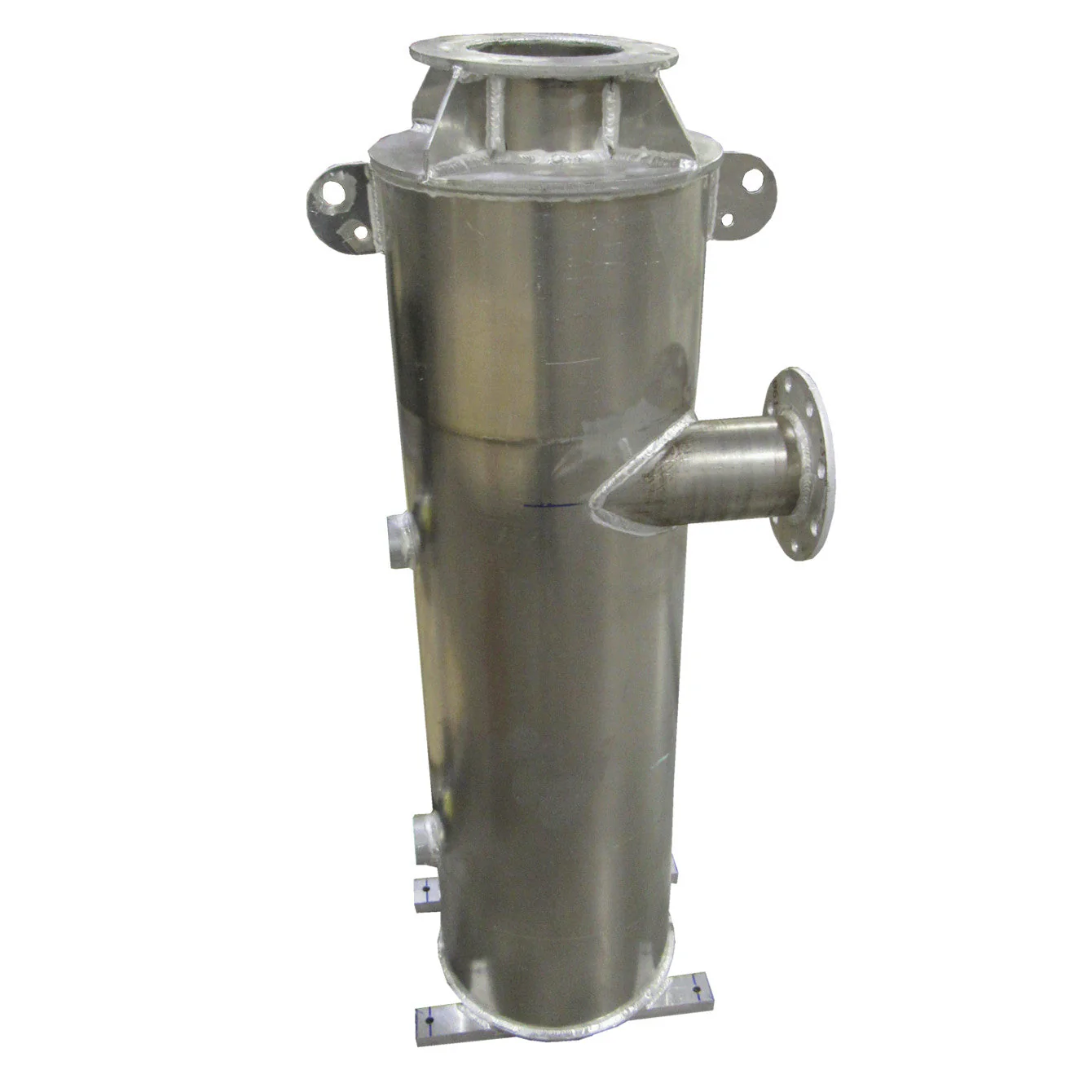

PRM Aluminum Moisture Separator - MS-60, 300 SCFM, 30 Gallon Liquid Capacity

PRM manufactures high quality Moisture Separators specifically for SVE and Dual Phase applications. Moisture Separators are used in conjunction with many remediation and landfill process equipment to remove unwanted moisture. PRM Moisture Separators or Knockout Tanks are designed for 300 to 2500 SCFM Vapor Flow and 15”Hg Maximum Vacuum

PRICE SHOWN IS FOR SHELL ONLY MS TANK WITH STANDARD FEATURES, FOR ADDITIONAL OPTIONS, PLEASE CONTACT PRM FOR A CUSTOMIZED QUOTE

Standard Features:

• Aluminum Construction
• FEA/CAD Engineering Design
• Clean Out Access Port Near Bottom
• Inlet and Outlet Connections Can Be
  Flanged or Threaded


Many Available Options, contact PRM for Quote:

• Econo Series Models Designed For Efficiency
• Mechanical float backup system (all Stainless Steel ports)
• ASME Certification
• Skid Mounted
• Tangential Inlet with Baffle Plate
• Integral Inline Demister
• Internal Centrifugal Isolation Ring
• Carbon Steel, Alloy, or Stainless Steel Construction
• Higher Gauge Corrosion Tolerance
• PVC Sight Tube/ Float Controls
• Inlet Particulate Filter

Model #	Max Air Flow (SCFM)	Liquid  Capacity (Gal)
MS-30	200	18
MS-60	300	30
MS-80	400	38
MS-120	450	55
MS-200	600	98
MS-400	1800	124
