PRM 3/4 Inch Multi-Jet Brass Totalizing Hot Water Meter with Pulse Output
HOT WATER MULTI-JET WATER METERS
Multi-Jet Hot Water Meters for commercial and industrial applications.
Multi-jet hot water meters are designed for long service life and maintenance-free
operation, built for harsh conditions of the remediation industry with Viton seals.
Absolute Quality:
Hydrocarbon Resistant Viton Seals and will not be damaged by dissolved amounts of free product
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Specifications:
Maximum Water Temperature: 194°F
Maximum Water Pressure: 150 psi
Hot Water Meters for Totalization and Rate Indication with Pulse Output
Features:
Pulse Output Components
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Magnetic Drive for lower resistance
Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 194°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Brass, polyethylene
Couplings: Brass
Measuring Chamber: Polyethylene
Paint: Epoxy Coated
Seals: Viton
Mounting Orientation: Horizontal
Not for use with Potable Water
- Spec Sheets
- Installation Instructions

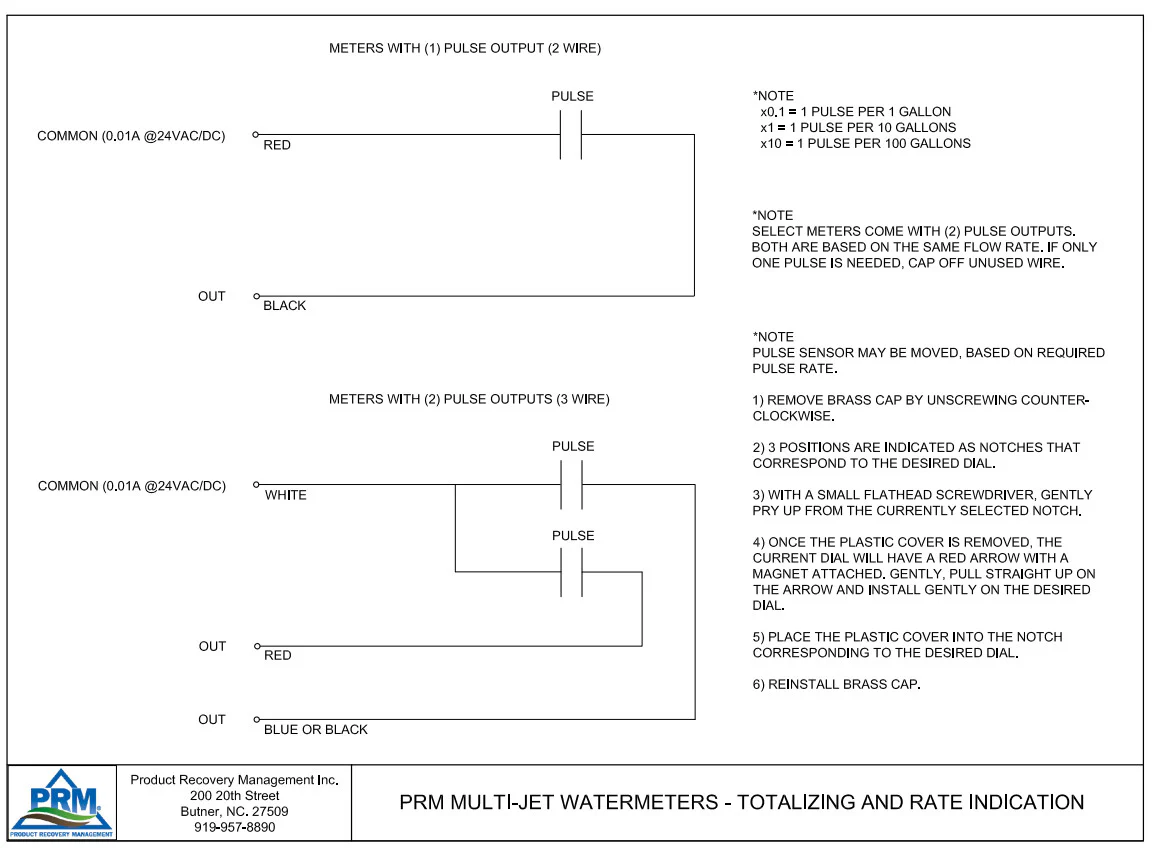

- Wiring Diagram
- PRM Water Meter Manual
- Pair it with pre-wired junction box and digital counter
| PRM Part # | Size | Length (in.) (w/NPTadapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050HOTPVX | 1/2" | 10.5 | 4.75 | 3 lbs. | 1-10 |
| WM075HOTPVX | 3/4" | 12 | 4.75 | 3.5 lbs. | 1-20 |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Original: $89.99
-65%$89.99
$31.50
Description
HOT WATER MULTI-JET WATER METERS
Multi-Jet Hot Water Meters for commercial and industrial applications.
Multi-jet hot water meters are designed for long service life and maintenance-free
operation, built for harsh conditions of the remediation industry with Viton seals.
Absolute Quality:
Hydrocarbon Resistant Viton Seals and will not be damaged by dissolved amounts of free product
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Specifications:
Maximum Water Temperature: 194°F
Maximum Water Pressure: 150 psi
Hot Water Meters for Totalization and Rate Indication with Pulse Output
Features:
Pulse Output Components
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Magnetic Drive for lower resistance
Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 194°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Brass, polyethylene
Couplings: Brass
Measuring Chamber: Polyethylene
Paint: Epoxy Coated
Seals: Viton
Mounting Orientation: Horizontal
Not for use with Potable Water
- Spec Sheets
- Installation Instructions
- Wiring Diagram
- PRM Water Meter Manual
- Pair it with pre-wired junction box and digital counter
| PRM Part # | Size | Length (in.) (w/NPTadapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050HOTPVX | 1/2" | 10.5 | 4.75 | 3 lbs. | 1-10 |
| WM075HOTPVX | 3/4" | 12 | 4.75 | 3.5 lbs. | 1-20 |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
