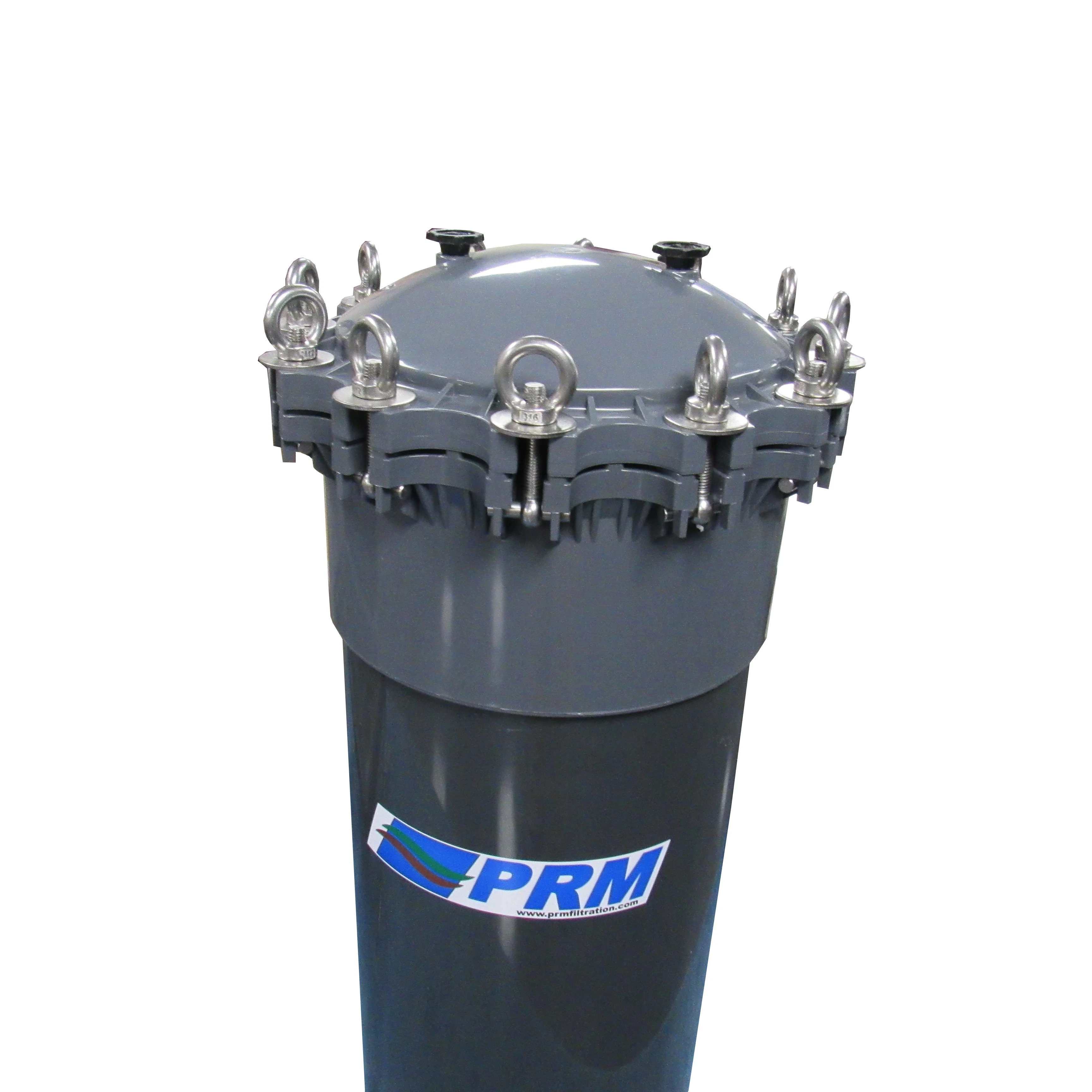

PRM PVC 9 Cartridge Filter Housing, Uses 40" Cartridges, 3 Inch Socket In/Out

PRM PVC MULTI-CARTRIDGE FILTER HOUSING, 3 INCH NPT INLET/OUTLET - 85 PSI MAX PRESSURE

PRM offers high quality PVC constructed water filter housings for industrial filtration applications. Element sizing can be as low as 0.1 micron where extreme fine filtration is required.  These housings offer an economical solution where protection of downstream or point of use equipment is required. Housings are kept in inventory for quick shipping.

Features:

• PVC construction for corrosion resistance
• Uses (9) 40” Cartridge Filters
• Flow Capacity up to 216 GPM
• 3” Socket Inlet and Outlet Connections
• (2) 1/4” Ports in top cover, for pressure gauge (not included) and venting
• Silicone Gaskets
• Temperature Range: 41°F - 104°F
• Max. Operating Pressure: 85 psi
• 1/2” Drain
• 316 Stainless Steel Lid Retention Hardware with 316 SS Bolts
• Filtration for sediment, silt, odor/taste or organic compounds

BFCARTHPCF9DC4BX Datasheet

BFCARTHPCF9DC4BX Drawing

Spare Parts for this Housing (BFCARTHPCF9DC4BX)
Replacement EPDM O-Ring (BFPCHPTOREPDM1200X)
Replacement Lid (BFPCHPTLID1600X)
Replacement Threaded Rod (BFPCHPT40RODX)
Replacement Hold Down Plate (BFPCHPTHDP16009X)
Replacement Inlet/Outlet Connectors (BFPCHINOUTCON300X)
Replacement Tightener (BFPCHPVCFASTX)
Replacement Knob (BFPCHPVCKNOBX)
Replacement Male Adapter (BFPCHPVCMAX)
Replacement Drain Port Adapter (BFPCHPVCDRAINADX)
Replacement Eye Bolt Assembly (BFPCHPT316SSEBA9X)
