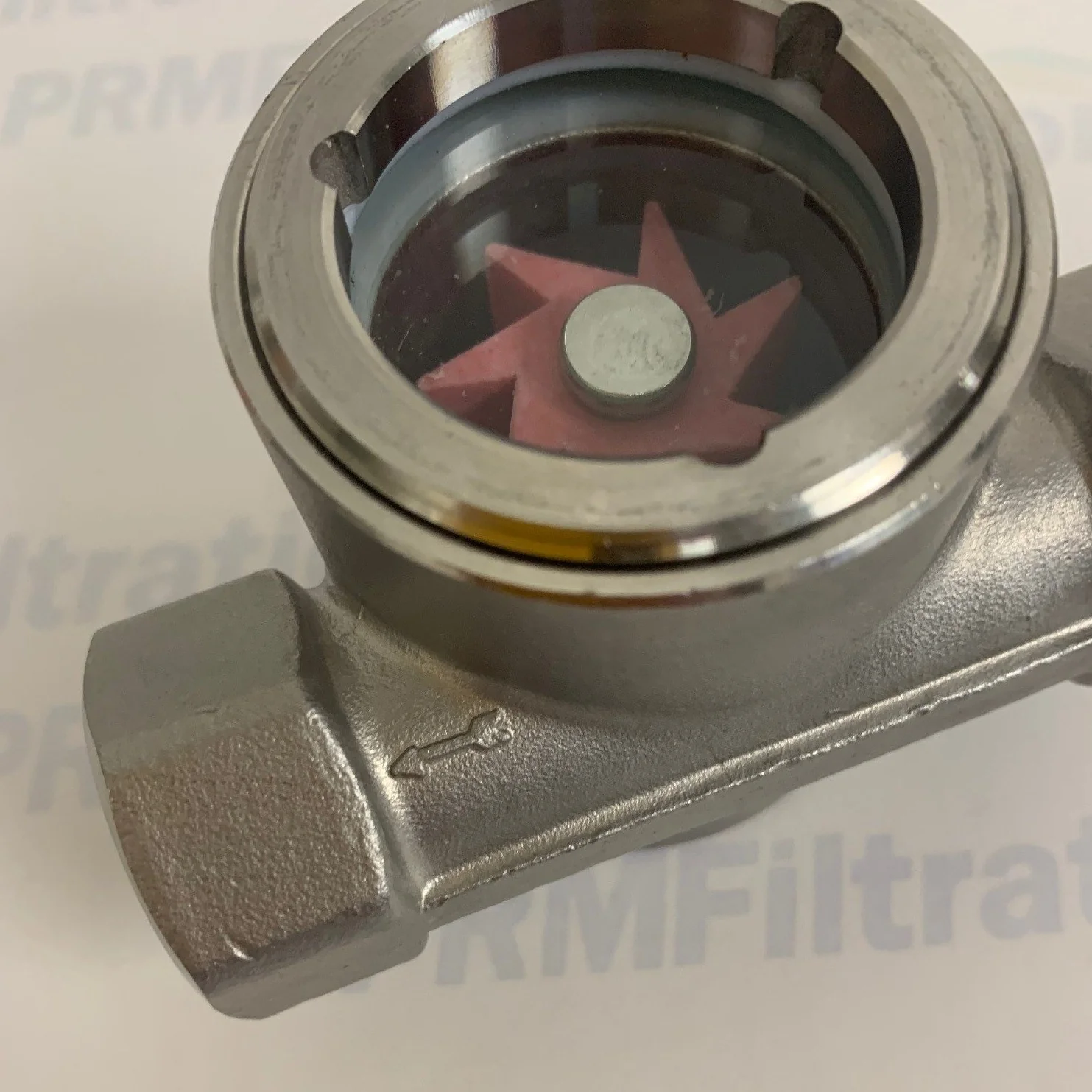

PRM Sight Flow Indicator, 1 Inch, 304 Stainless Steel, PTFE Seal and Impeller

PRM Sight Flow Indicator, 1 Inch, 304 Stainless Steel, PTFE Seal and Impeller

Sight flow indicators make monitoring liquids inside a pipe easy and efficient. The device is installed into a pipe and offers a visual reference for liquid flow and direction. Operators can also see the clarity and color of fluids via a window.



Specifications:

• Connection: 1 Inch FNPT

• Materials:

• Body: 304 Stainless Steel, Tempered Glass
• Seal: PTFE
• Impeller: PTFE (Red)
• Maximum Pressure: 232 psig (16 bar)
• Maximum Temperature: 212°F



For use with liquids. Directional arrow on the unit specifies direction of flow and should be installed accordingly.

Spec Sheet
316 Stainless Steel Available
