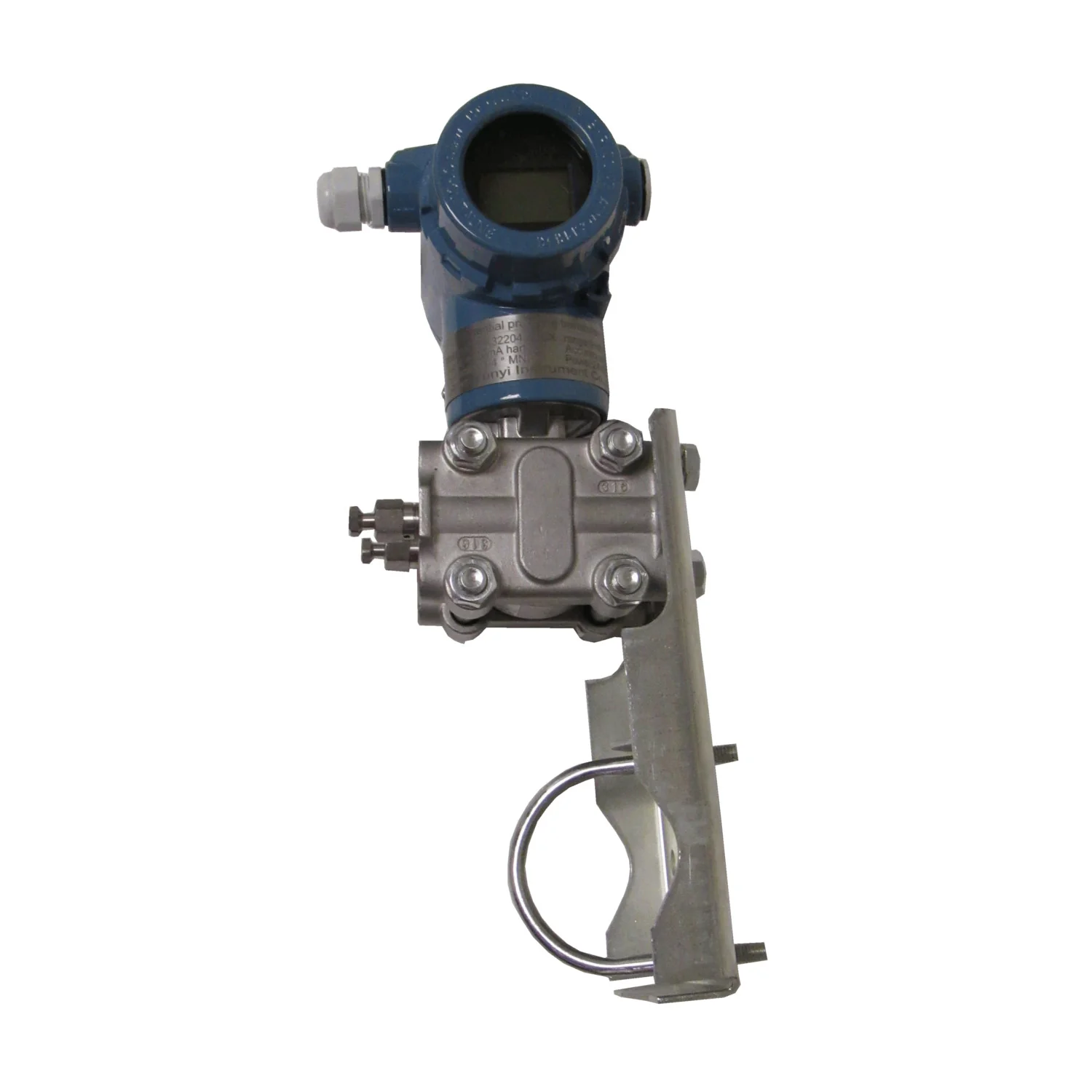

PRM (3051 for Hazardous Locations) Differential Pressure Transmitter with LCD Display, 0-40"WC, Mounting Bracket

PRM 0-40 IN. WC DIFFERENTIAL PRESSURE TRANSMITTERS

Differential pressure sensor
This sensor measures the difference between two pressures, one connected to each side of the sensor. Differential pressure sensors are used to measure many properties, such as pressure drops across oil filters or air filters, fluid levels (by comparing the pressure above and below the liquid) or flow rates (by measuring the change in pressure across a restriction).

Specifications:

• Range: 0-40“ WC
• Maximum Line Pressure: 125 PSI
• Accuracy: +/-0.5%FS
• Working Temperature: 32-176° F
• Mounting Bracket Included
• Output Signal: 4~20 mA
• Power: 24 VDC
• Connection: ¼ INCH MNPT
• 316L Capacitive Sensor
