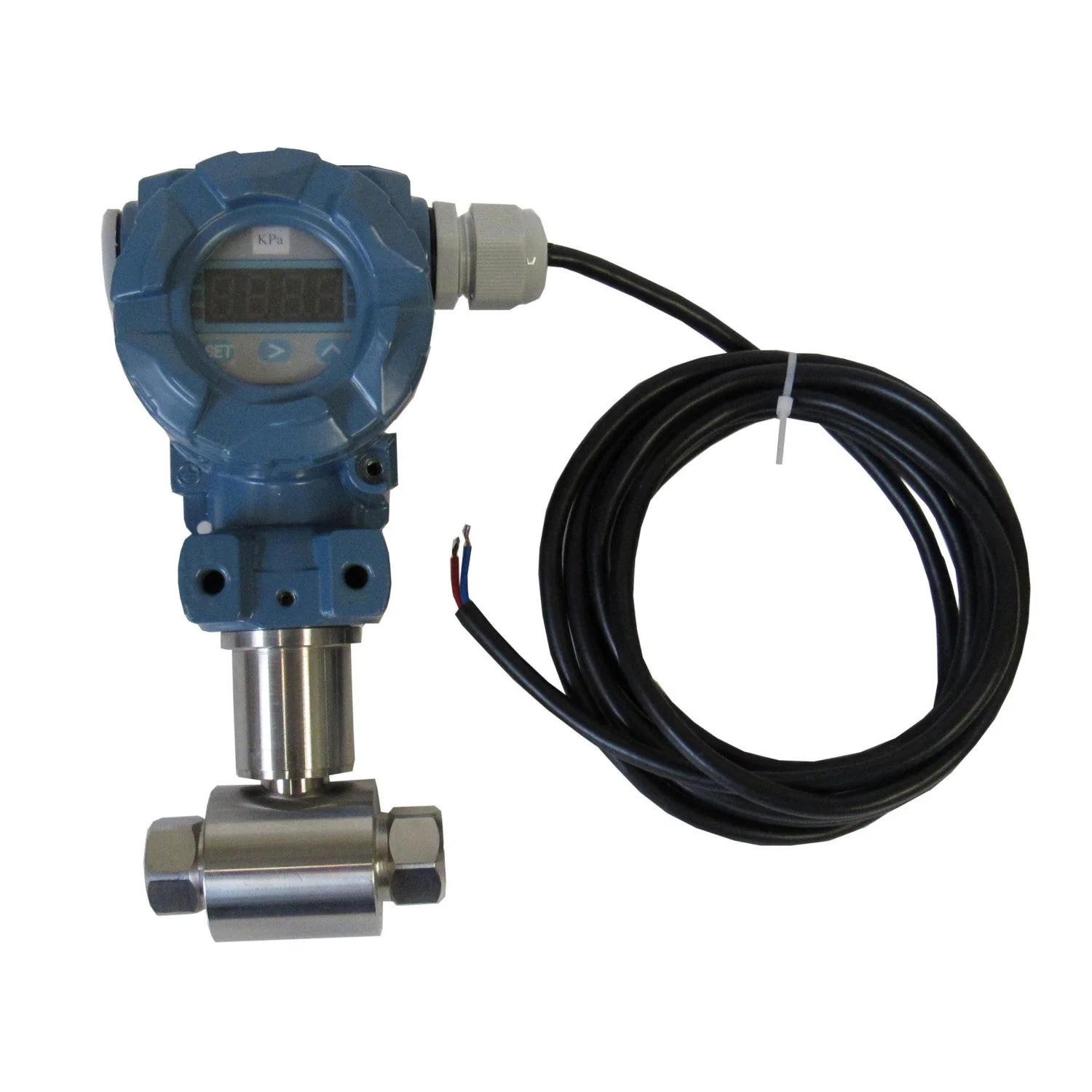

PRM Differential Pressure Transmitter with LCD Display, 0-100"WC, 4~20mA, 24VDC

PRM 0-100 IN. WC DIFFERENTIAL PRESSURE TRANSMITTERS

Differential Pressure Transmitter Datasheet

This sensor measures the difference between two pressures, one connected to each side of the sensor. Differential pressure sensors are used to measure many properties, such as pressure drops across oil filters or air filters, fluid levels (by comparing the pressure above and below the liquid) or flow rates (by measuring the change in pressure across a restriction).

SPECIFICATIONS:

• RANGE: 0-100 “ WC
• MAXIMUM PRESSURE: 7 PSI
• OUTPUT SIGNAL: 4~20 mA
• POWER SUPPLY: 24 VDC
• CONNECTION: ¼ INCH FNPT
• ACCURACY:+/- 1% FS
• WORKING TEMPERATURE: -4 to 185° F
