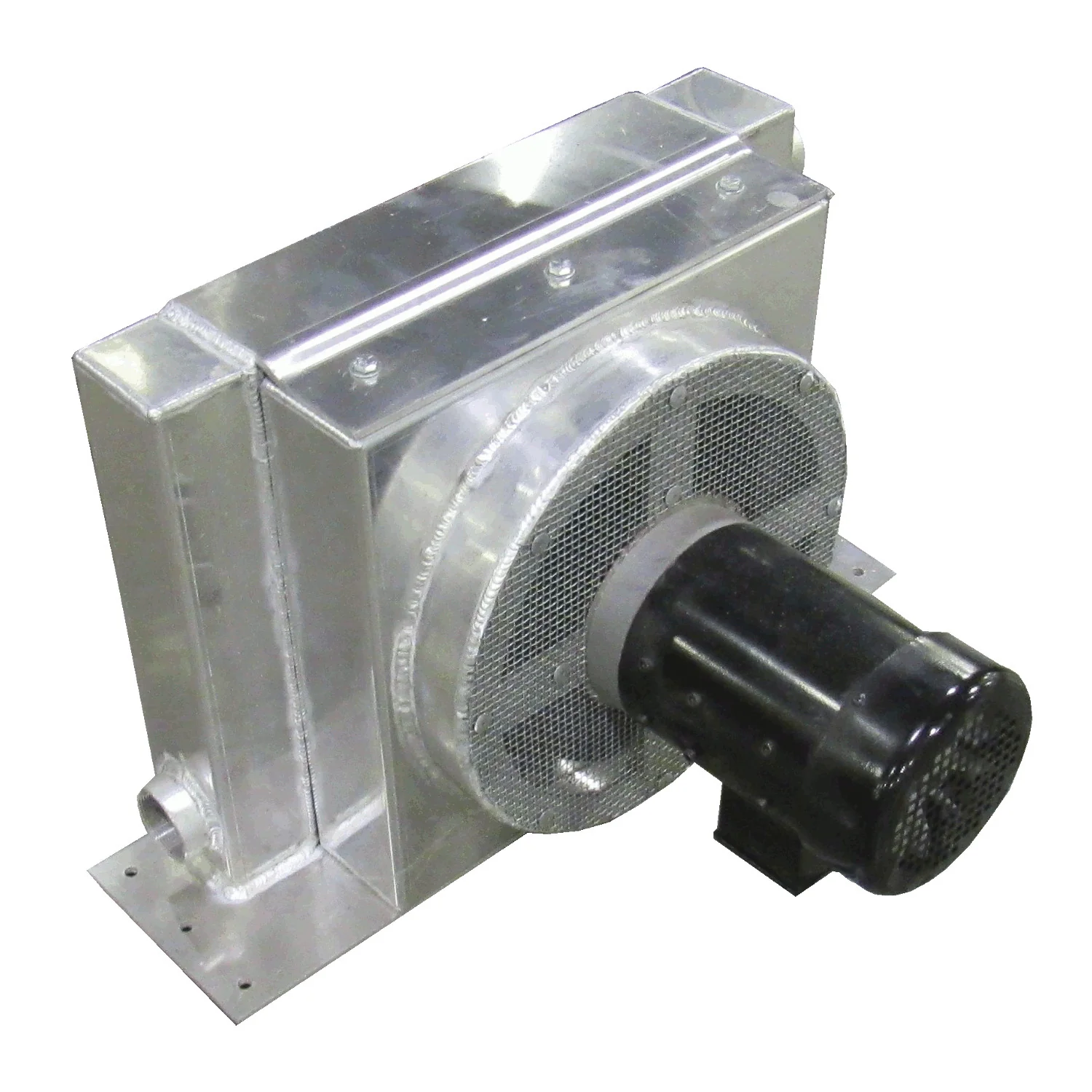

PRM XT Series Heat Exchanger, AC-EX-XT-18, 18 Inch Core, 2 Inch NPT

XT SERIES HEAT EXCHANGERS

PRM XT Heat Exchangers are used to cool process gasses or compressed air to protect temperature sensitive equipment.

AC-EX-XT-18
18” core, 2” NPT, 0.5 hp motor (In Stock ready for quick shipment)

AC-EX-XT-24
24" core, 3" NPT, 1.5 hp motor (Build Product, Call for lead time)

AC-EX-XT-36
36" core, 6" NPT or Flange, 1.5 hp motor (Build Product, Call for lead time)

(motor size may change for considerations of noise and cooling)

Features:

• 100% Aluminum Construction for maximum cooling
• Minimal pressure drop for process flow, even at high flow rates
• Large fans and motors to move cold air across fins for heat exchange– no overloading
• Can be mounted horizontally or vertically (w/ drip cover for outdoor applications)
• Efficient temperature drop across aftercooler
• Premium TEFC 3 Phase Motor or Explosion Proof as requested
• 208-230/460 VAC
• Temperature Monitoring Sensor and Controls per specification
• Mounting Brackets
