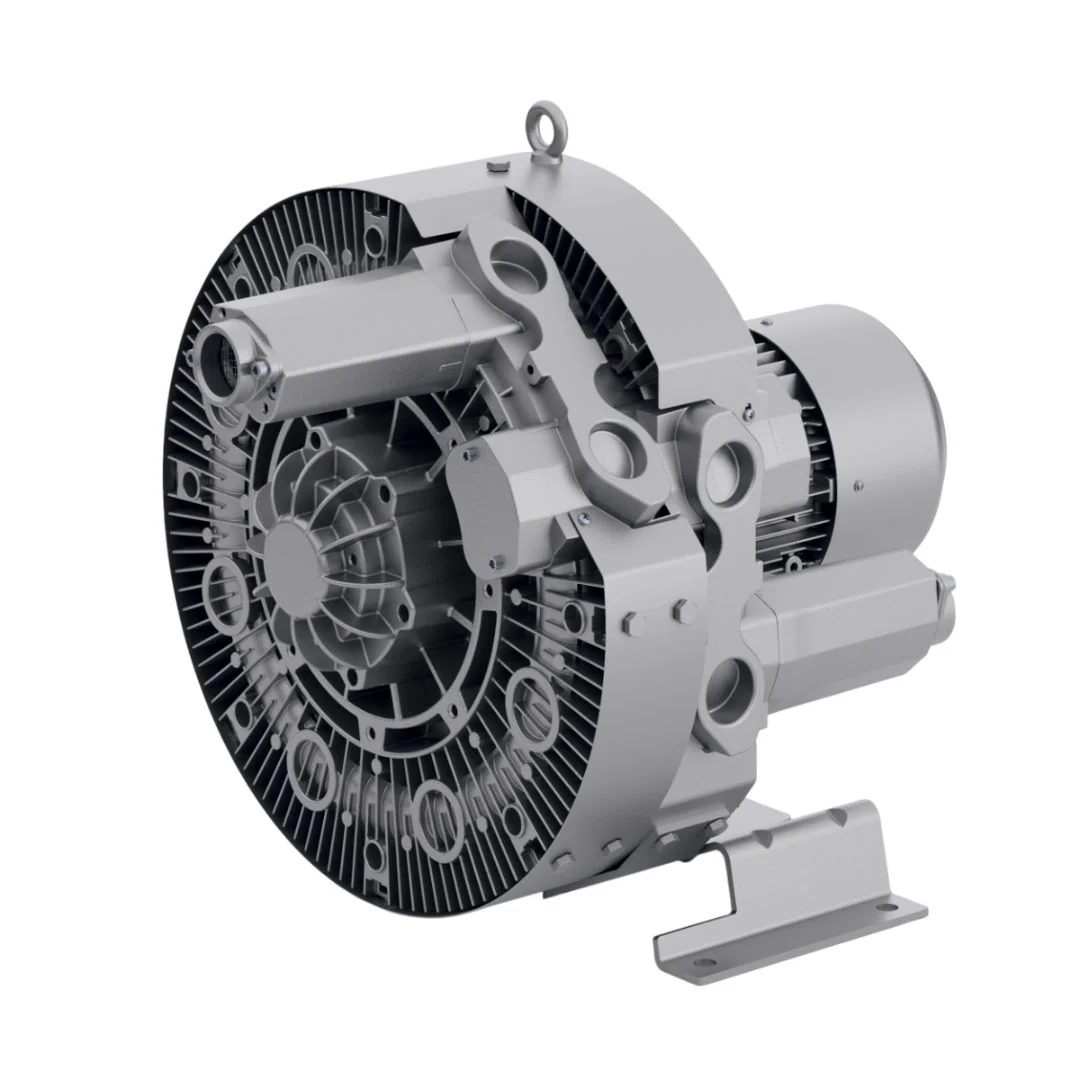

Republic 4RC220-H56 2.3 HP Regenerative Blower, 3 Phase
Republic 4RC220-H56 2.3 HP Regenerative Blower, 3 Phase
The Republic 4RC220-H56 is a three phase, high pressure regenerative blower with a maximum air flow of 35 cfm, maximum vacuum of 201 in.H2O, and maximum pressure of 297 in.H2O.
Blower Specifications:
| Specification | 50 Hz | 60 Hz |
|---|---|---|
| Model | 4RC220-H56 | 4RC220-H56 |
| Phase | 3 | 3 |
| Air flow (CFM/m³/hr) | 28/47 | 35/60 |
| Rated Vacuum (in. H&sub2;O/mbar) | 149/370 | 201/500 |
| Rated Pressure (in. H&sub2;O/mbar) | 261/650 | 297/740 |
| Motor (HP/kW) | 2.0/1.5 | 2.3/1.7 |
| Voltage (V) | 190 YY/380 Y | 230 YY/460 Y |
| Current (A) | 8.6 YY/4.3 Y | 7.5 YY/4.4 Y |
| Sound Level (dB) | 62 | 62 |
| Weight (lb/kg) | 62/31 | 62/31 |
Resources:
$1,194.18
Original: $3,411.93
-65%Republic 4RC220-H56 2.3 HP Regenerative Blower, 3 Phase—
$3,411.93
$1,194.18
Description
Republic 4RC220-H56 2.3 HP Regenerative Blower, 3 Phase
The Republic 4RC220-H56 is a three phase, high pressure regenerative blower with a maximum air flow of 35 cfm, maximum vacuum of 201 in.H2O, and maximum pressure of 297 in.H2O.
Blower Specifications:
| Specification | 50 Hz | 60 Hz |
|---|---|---|
| Model | 4RC220-H56 | 4RC220-H56 |
| Phase | 3 | 3 |
| Air flow (CFM/m³/hr) | 28/47 | 35/60 |
| Rated Vacuum (in. H&sub2;O/mbar) | 149/370 | 201/500 |
| Rated Pressure (in. H&sub2;O/mbar) | 261/650 | 297/740 |
| Motor (HP/kW) | 2.0/1.5 | 2.3/1.7 |
| Voltage (V) | 190 YY/380 Y | 230 YY/460 Y |
| Current (A) | 8.6 YY/4.3 Y | 7.5 YY/4.4 Y |
| Sound Level (dB) | 62 | 62 |
| Weight (lb/kg) | 62/31 | 62/31 |
