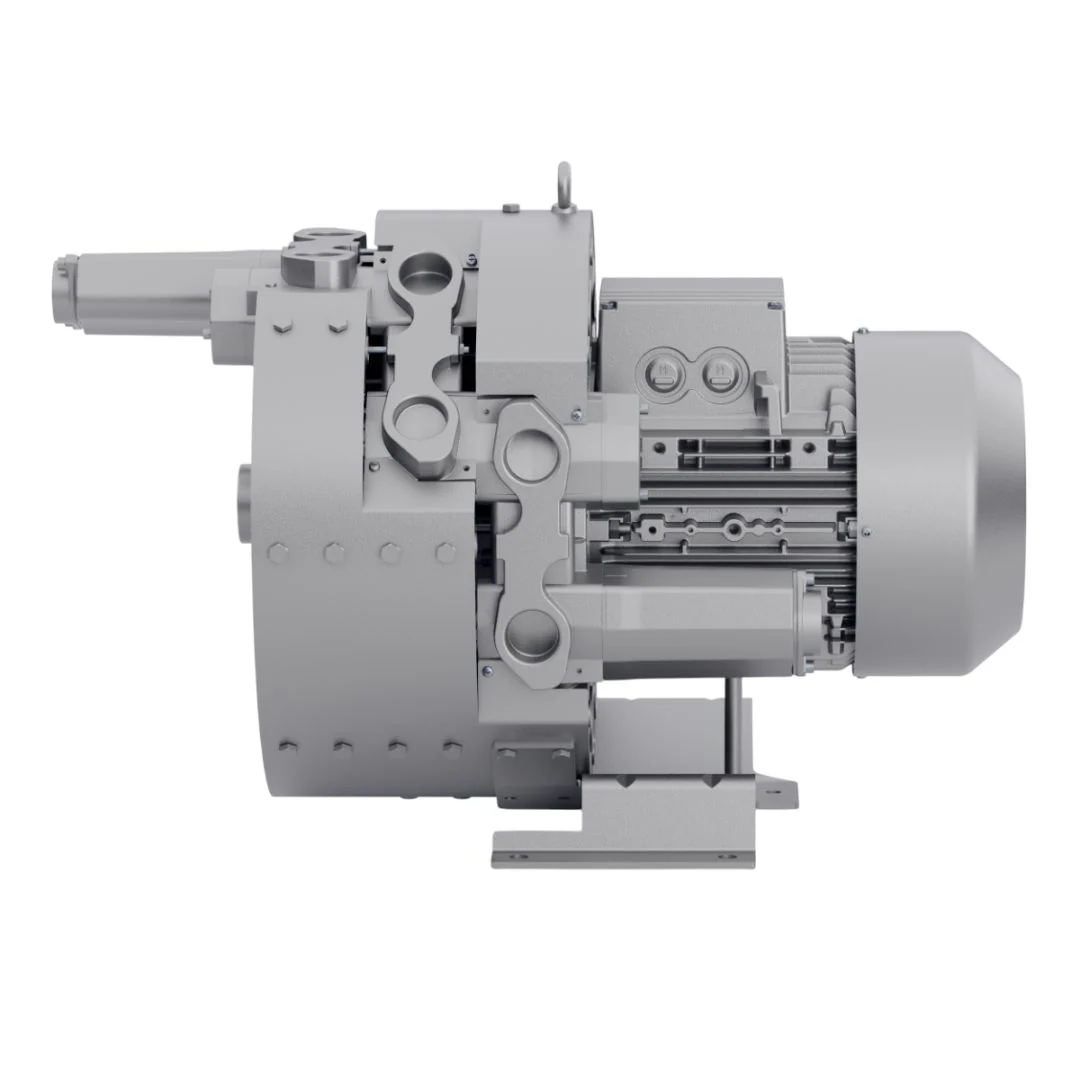

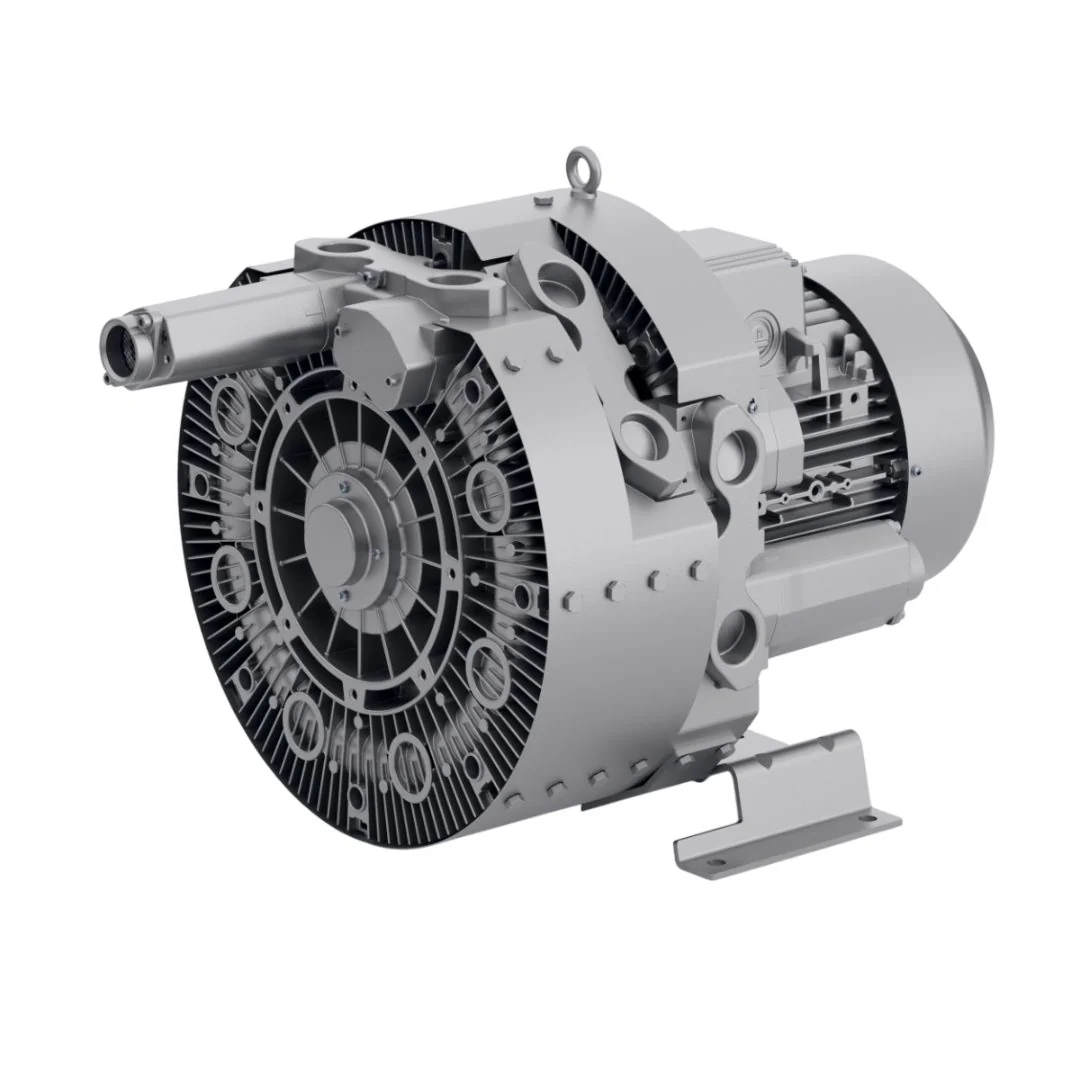

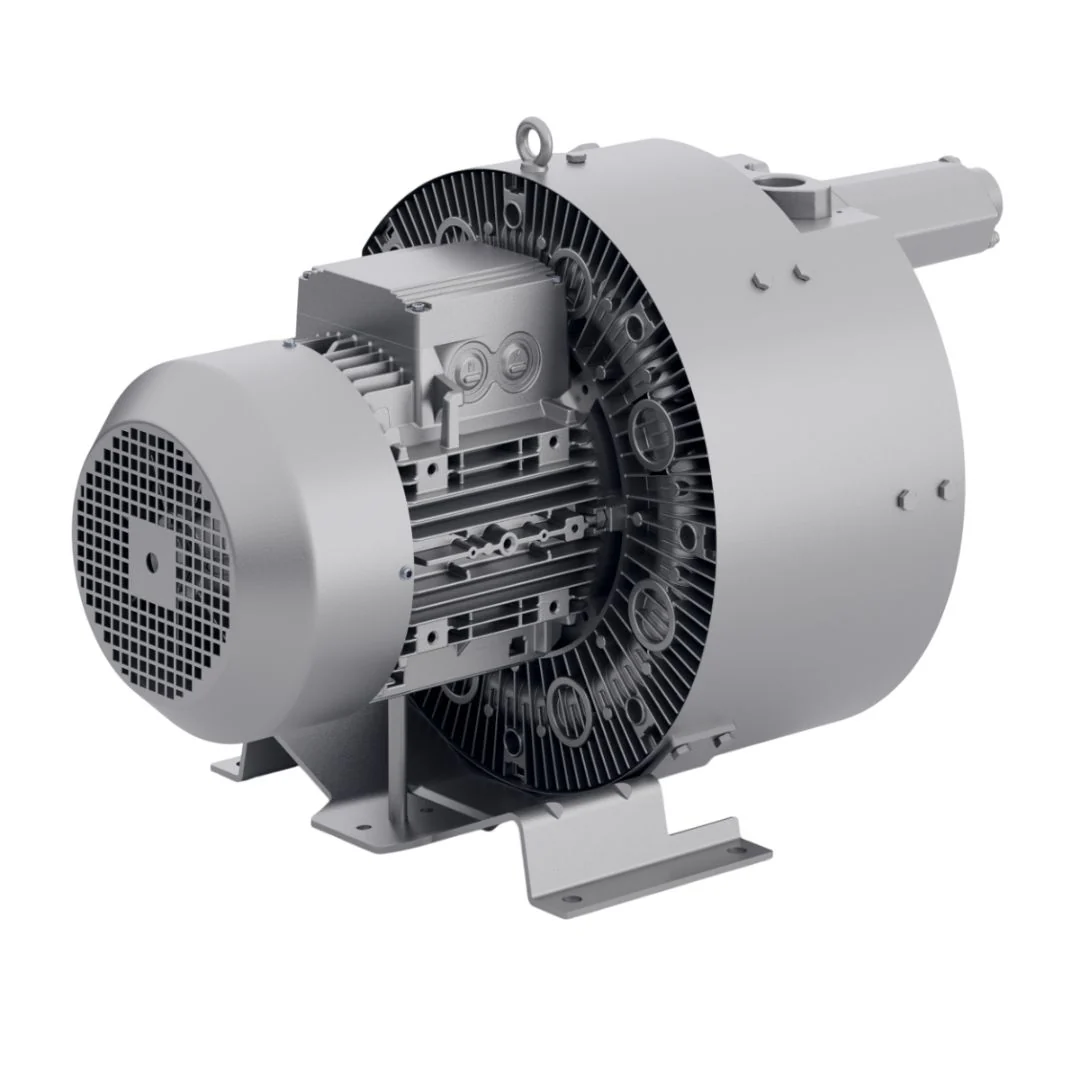

Republic 4RC630-H67 11.5 HP Regenerative Blower, 3 Phase
Republic 4RC630-H67 11.5 HP Regenerative Blower, 3 Phase
The Republic 4RC630-H67 is a three phase, high pressure regenerative blower with a maximum air flow of 118 cfm, maximum vacuum of 281 in.H2O, and maximum pressure of 418 in.
Blower Specifications:
| Characteristic | 50 Hz Operation | 60 Hz Operation |
|---|---|---|
| Model | 4RC630-H67 | |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 100/170 | 118/200 |
| Rated Vacuum (in. H₂O/mbar) | 293/730 | 281/700 |
| Rated Pressure (in. H₂O/mbar) | 418/1040 | 418/1040 |
| Motor (HP/kW) | 10.1/7.5 | 11.5/8.6 |
| Voltage (V) | 190 ΔΔ/380 Δ | 230 ΔΔ/460 Δ |
| Current (A) | 32.0 ΔΔ/16.0 Δ | 27.8 ΔΔ/16.0 Δ |
| Sound Level (dB) | 76 | 76 |
| Weight (lb/kg) | 188/86 | 188/86 |
Resources:
$10,488.58
Republic 4RC630-H67 11.5 HP Regenerative Blower, 3 Phase—
$10,488.58
Description
Republic 4RC630-H67 11.5 HP Regenerative Blower, 3 Phase
The Republic 4RC630-H67 is a three phase, high pressure regenerative blower with a maximum air flow of 118 cfm, maximum vacuum of 281 in.H2O, and maximum pressure of 418 in.
Blower Specifications:
| Characteristic | 50 Hz Operation | 60 Hz Operation |
|---|---|---|
| Model | 4RC630-H67 | |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 100/170 | 118/200 |
| Rated Vacuum (in. H₂O/mbar) | 293/730 | 281/700 |
| Rated Pressure (in. H₂O/mbar) | 418/1040 | 418/1040 |
| Motor (HP/kW) | 10.1/7.5 | 11.5/8.6 |
| Voltage (V) | 190 ΔΔ/380 Δ | 230 ΔΔ/460 Δ |
| Current (A) | 32.0 ΔΔ/16.0 Δ | 27.8 ΔΔ/16.0 Δ |
| Sound Level (dB) | 76 | 76 |
| Weight (lb/kg) | 188/86 | 188/86 |
