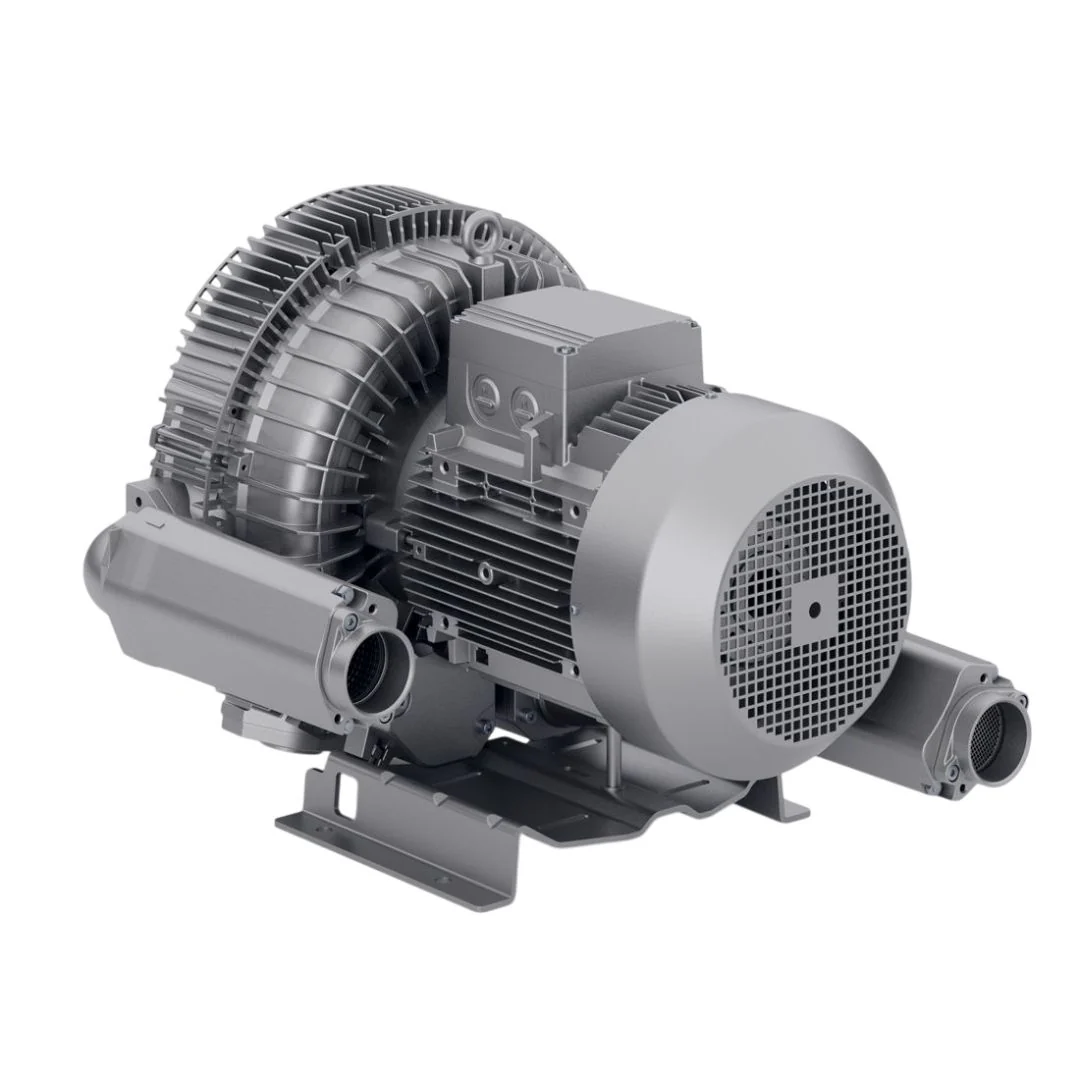

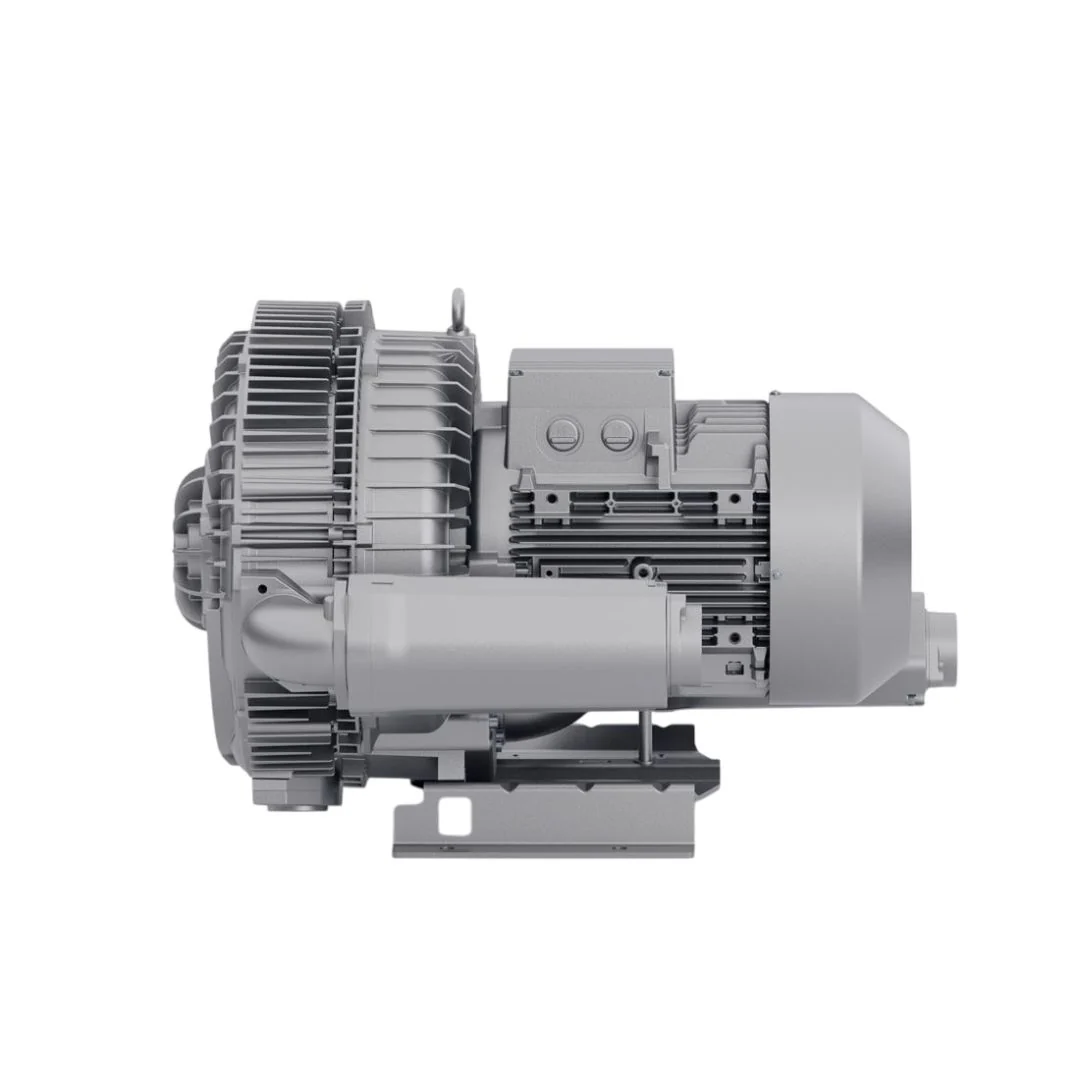

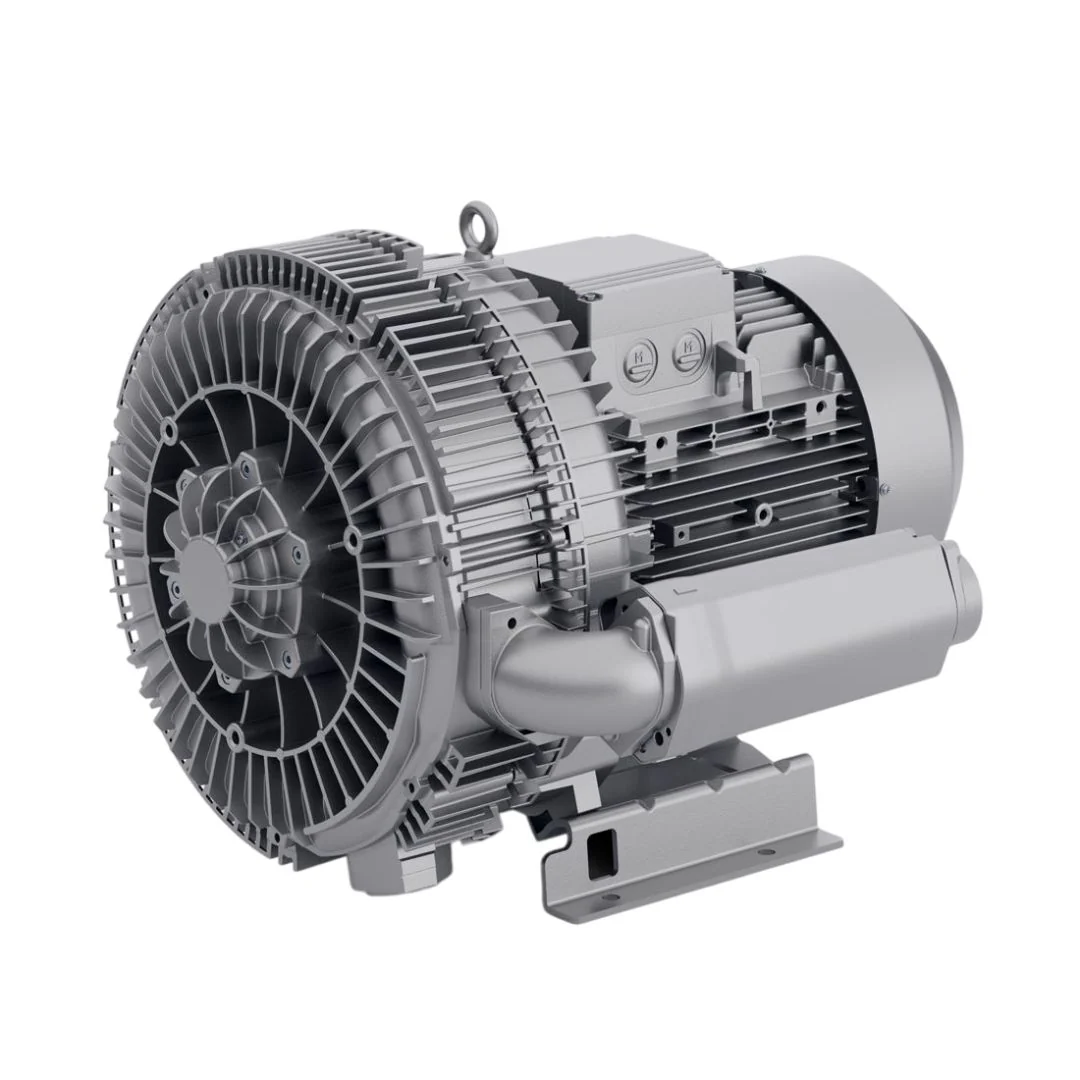

Republic HRC1002 11.5 HP Regenerative Blower, 3 Phase
Republic HRC1002 11.5 HP Regenerative Blower, 3 Phase
The Republic HRC1002 is a three phase, high pressure regenerative blower with a maximum air flow of 227 cfm, maximum vacuum of 185 in.H2O, and maximum pressure of 269 in.H2O.
Blower Specification:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 1002 | HRC 1002 |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 188/320 | 227/385 |
| Rated Vacuum (in. H₂O/mbar) | 177/440 | 185/460 |
| Rated Pressure (in. H₂O/mbar) | 229/570 | 269/660 |
| Motor (HP/kW) | 10.1/7.5 | 11.5/8.6 |
| Voltage (V) | 190 Δ/380 Δ | 230 Δ/460 Δ |
| Current (A) | 33.4 Δ/16.7 Δ | 30.0 Δ/17.3 Δ |
| Sound Level (dB) | 73 | 76 |
| Weight (lb/kg) | 163/74 | 163/74 |
Resources:
$2,938.73
Original: $8,396.38
-65%Republic HRC1002 11.5 HP Regenerative Blower, 3 Phase—
$8,396.38
$2,938.73
Description
Republic HRC1002 11.5 HP Regenerative Blower, 3 Phase
The Republic HRC1002 is a three phase, high pressure regenerative blower with a maximum air flow of 227 cfm, maximum vacuum of 185 in.H2O, and maximum pressure of 269 in.H2O.
Blower Specification:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 1002 | HRC 1002 |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 188/320 | 227/385 |
| Rated Vacuum (in. H₂O/mbar) | 177/440 | 185/460 |
| Rated Pressure (in. H₂O/mbar) | 229/570 | 269/660 |
| Motor (HP/kW) | 10.1/7.5 | 11.5/8.6 |
| Voltage (V) | 190 Δ/380 Δ | 230 Δ/460 Δ |
| Current (A) | 33.4 Δ/16.7 Δ | 30.0 Δ/17.3 Δ |
| Sound Level (dB) | 73 | 76 |
| Weight (lb/kg) | 163/74 | 163/74 |
