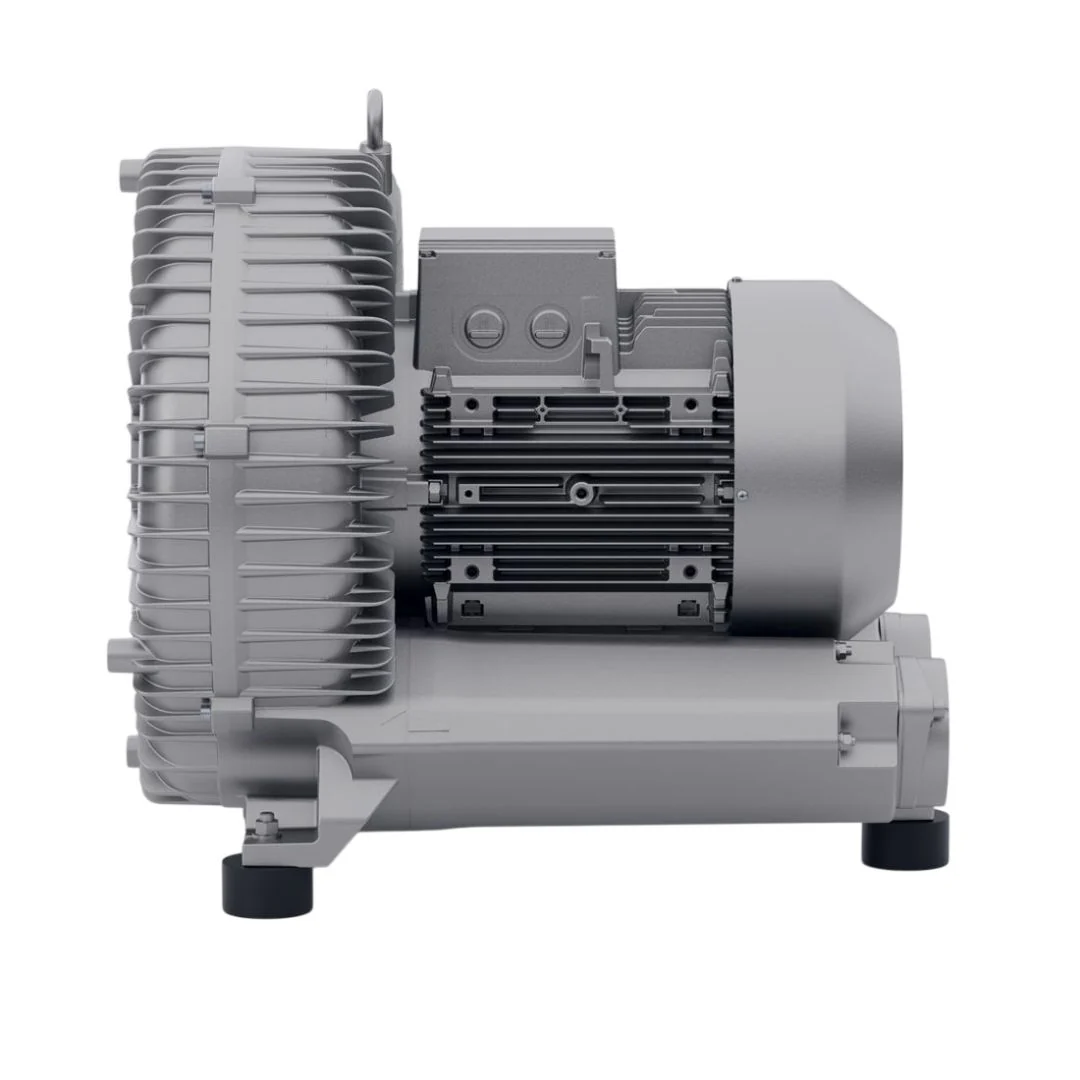

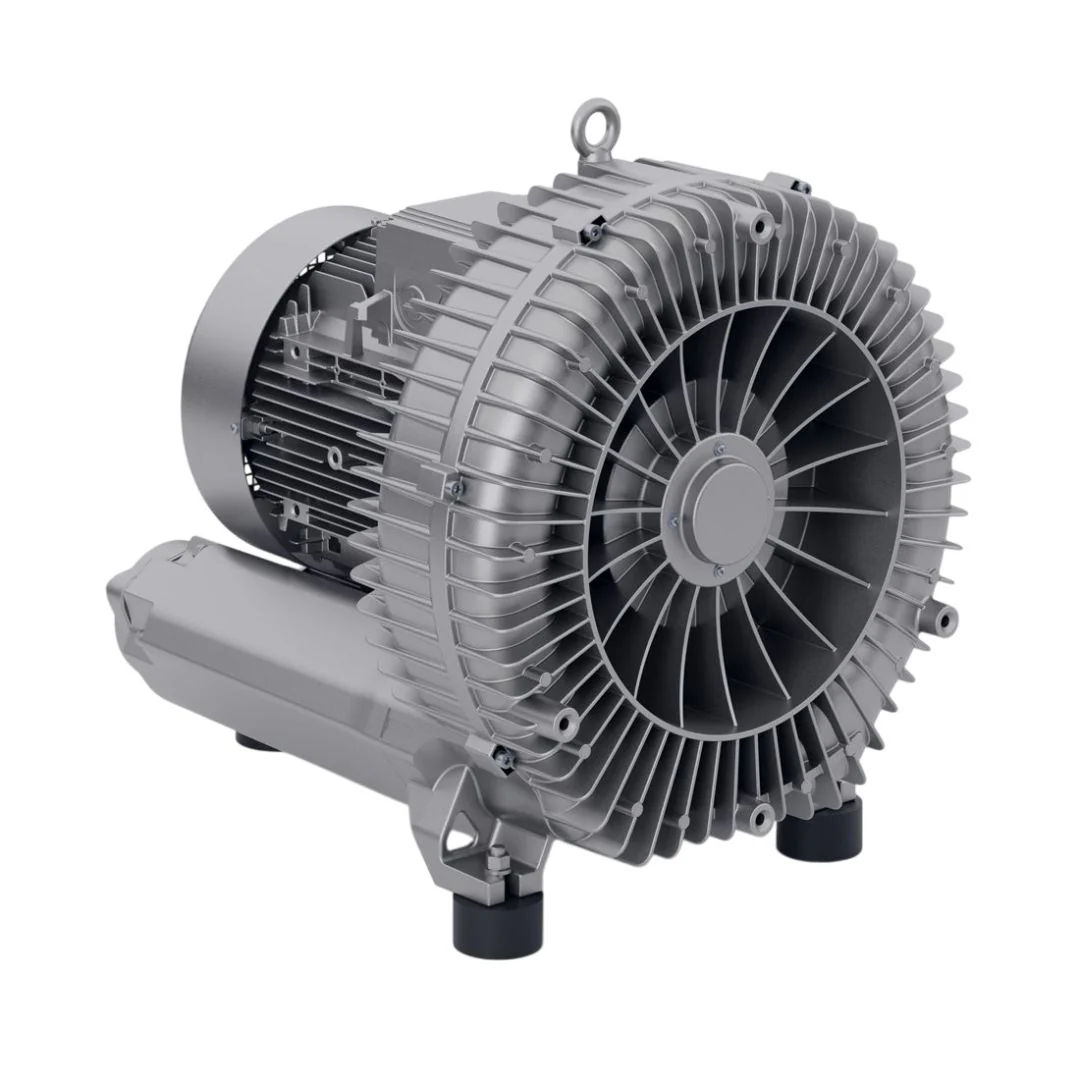

Republic HRC1060 11.5 HP Regenerative Blower, 3 Phase
Republic HRC1060 11.5 HP Regenerative Blower, 3 Phase
The Republic HRC1060 is a three phase, high pressure regenerative blower with a maximum air flow of 494 cfm, maximum vacuum of 108 in.H2O, and maximum pressure of 104 in.H2O.
Blower Specifications:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 1060 | HRC 1060 |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 412/700 | 494/840 |
| Rated Vacuum (in. H₂O/mbar) | 108/270 | 108/270 |
| Rated Pressure (in. H₂O/mbar) | 104/260 | 104/260 |
| Motor (HP/kW) | 10.0/7.5 | 11.5/8.6 |
| Voltage (V) | 190 Δ/380 Δ | 230 Δ/460 Δ |
| Current (A) | 33.4 Δ/16.7 Δ | 30.0 Δ/17.3 Δ |
| Sound Level (dB) | 70 | 74 |
| Weight (lb/kg) | 153/69 | 153/69 |
Resources:
