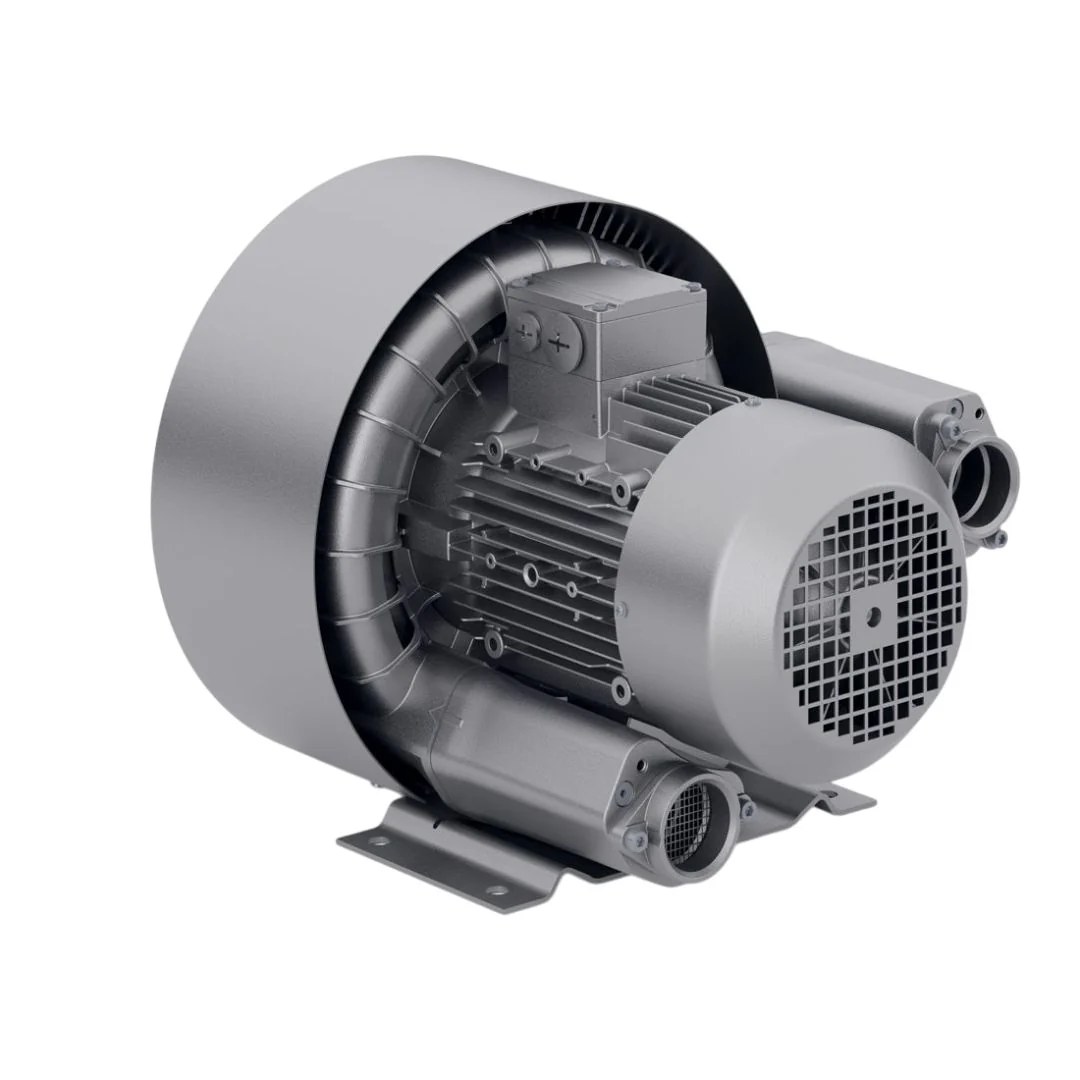

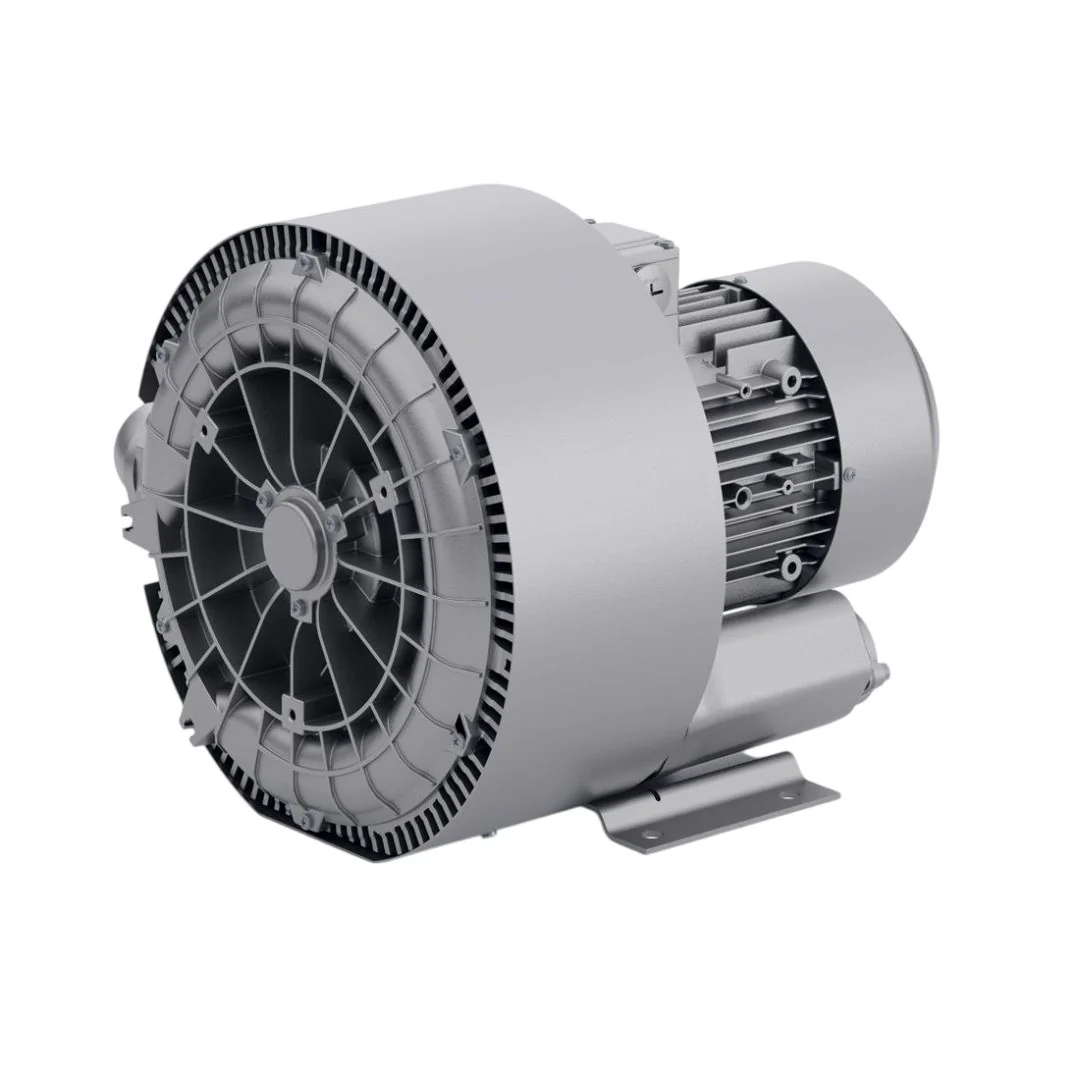

Republic HRC202/1 1.1 HP Regenerative Blower, 1 Phase
Republic HRC202/1 1.1 HP Regenerative Blower, 1 Phase
The Republic HRC202/1 is a single phase, high pressure regenerative blower with a maximum air flow of 61 cfm, maximum vacuum of 100 in.H2O, and maximum pressure of 100 in.H2O.
Blower Specifications:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 202/1 | HRC 202/1 |
| Phase | 1 | 1 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 49/83 | 61/103 |
| Rated Vacuum (in. H₂O/mbar) | 84/210 | 100/250 |
| Rated Pressure (in. H₂O/mbar) | 96/240 | 100/250 |
| Motor (HP/kW) | 0.9/0.7 | 1.1/0.9 |
| Voltage (V) | 230 | 115/230 |
| Current (A) | 4.5 | 11.2/5.6 |
| Sound Level (dB) | 55 | 61 |
| Weight (lb/kg) | 35/16 | 35/16 |
Resources:
$2,734.97
Republic HRC202/1 1.1 HP Regenerative Blower, 1 Phase—
$2,734.97
Description
Republic HRC202/1 1.1 HP Regenerative Blower, 1 Phase
The Republic HRC202/1 is a single phase, high pressure regenerative blower with a maximum air flow of 61 cfm, maximum vacuum of 100 in.H2O, and maximum pressure of 100 in.H2O.
Blower Specifications:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 202/1 | HRC 202/1 |
| Phase | 1 | 1 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 49/83 | 61/103 |
| Rated Vacuum (in. H₂O/mbar) | 84/210 | 100/250 |
| Rated Pressure (in. H₂O/mbar) | 96/240 | 100/250 |
| Motor (HP/kW) | 0.9/0.7 | 1.1/0.9 |
| Voltage (V) | 230 | 115/230 |
| Current (A) | 4.5 | 11.2/5.6 |
| Sound Level (dB) | 55 | 61 |
| Weight (lb/kg) | 35/16 | 35/16 |
