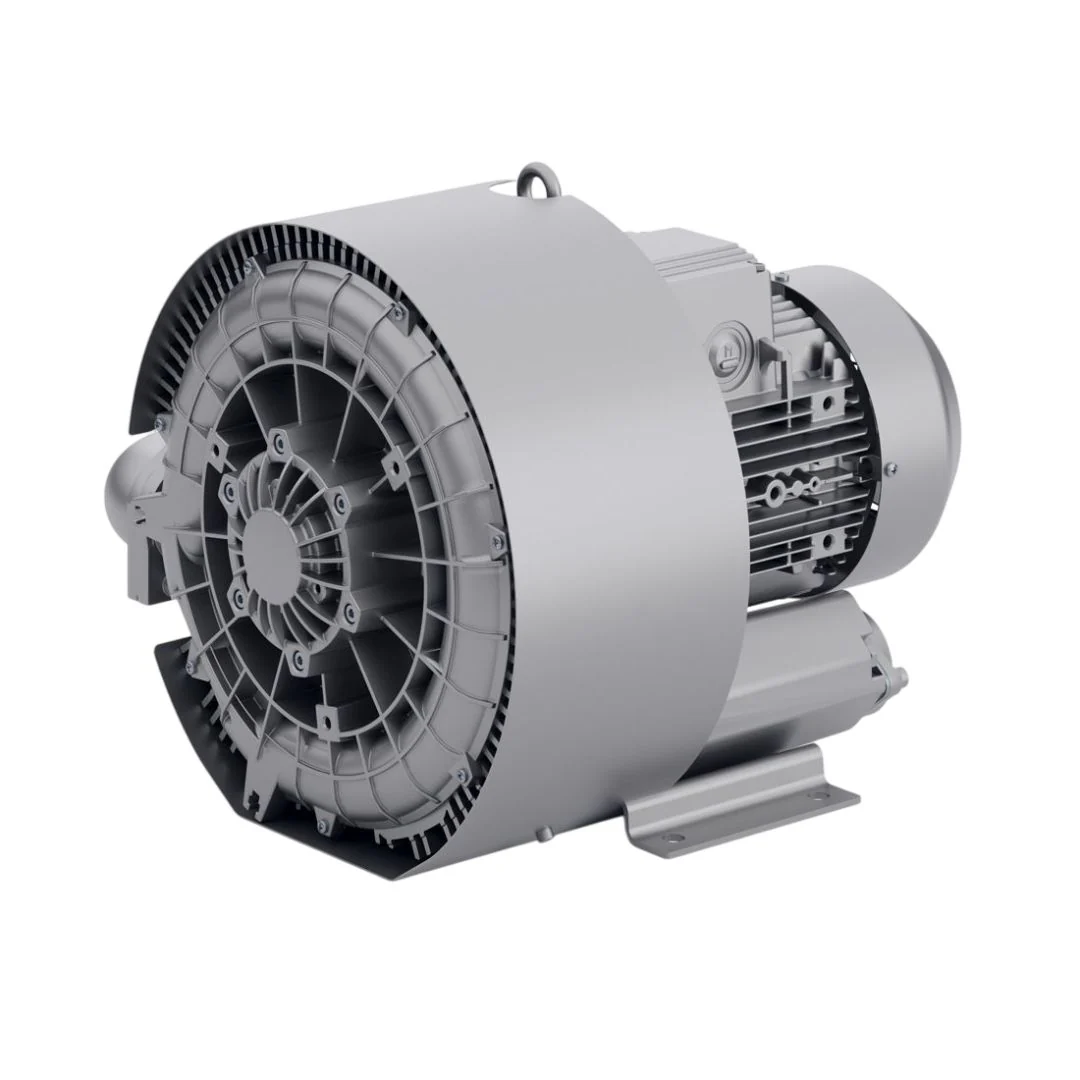

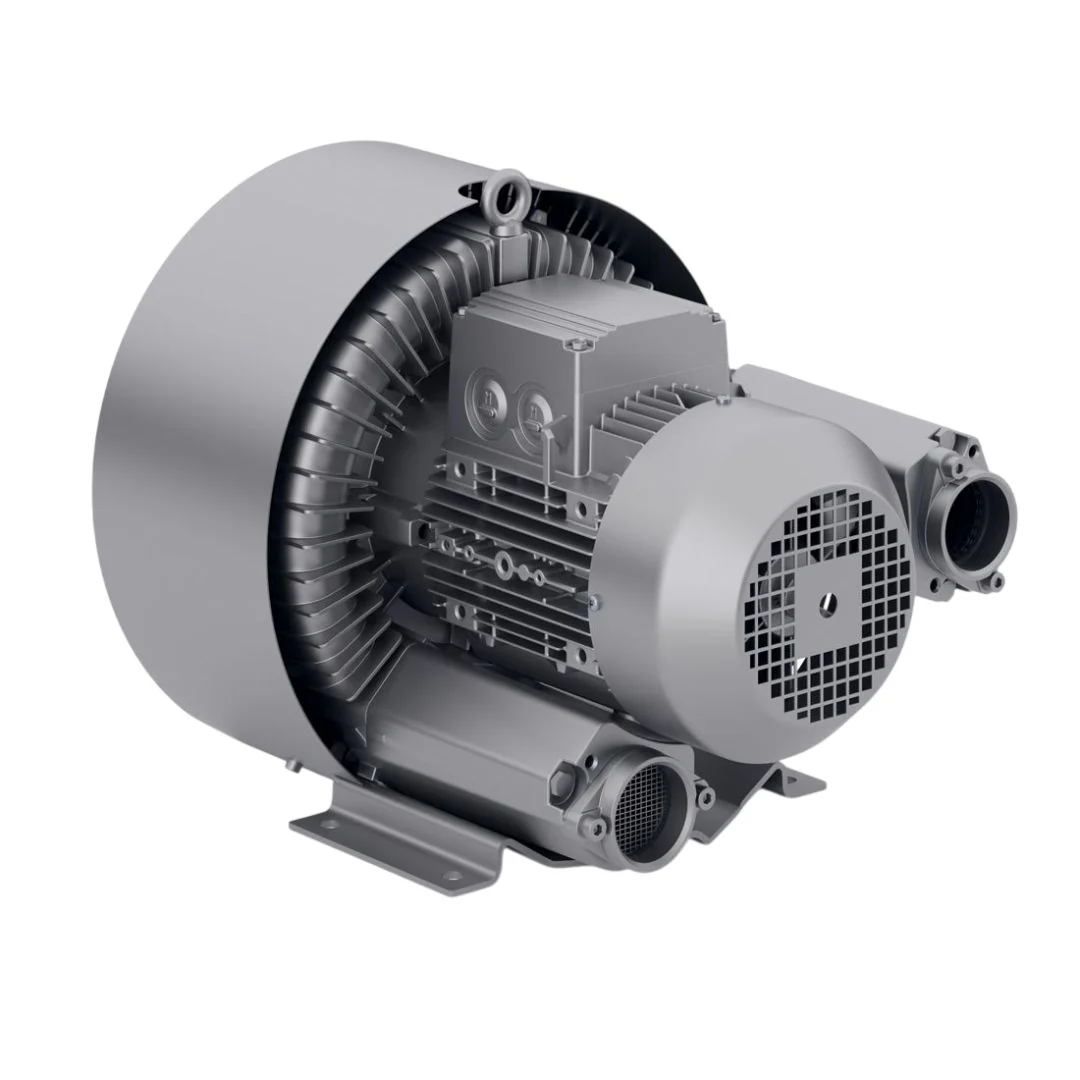

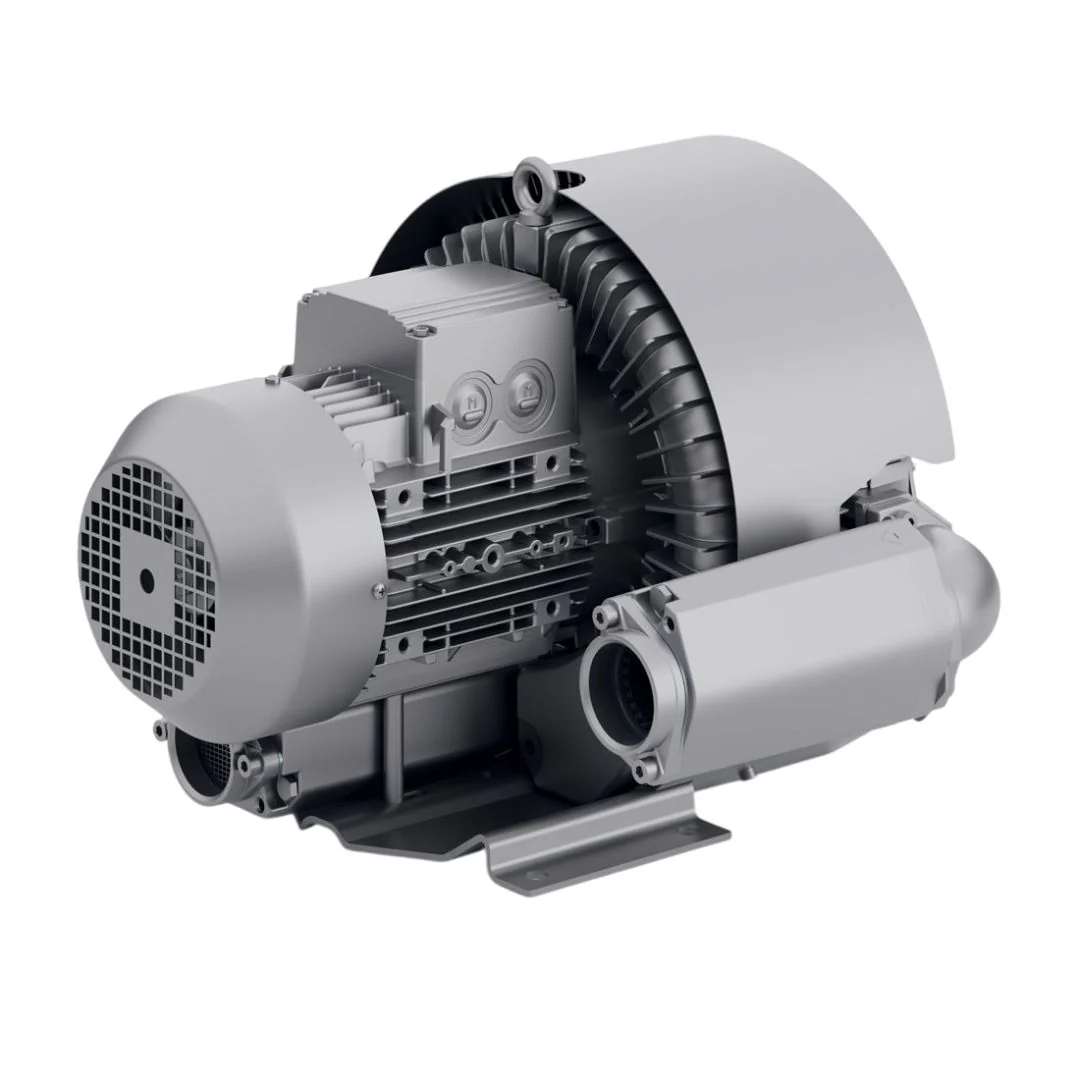

Republic HRC502 3.4 HP Regenerative Blower, 3 Phase
Republic HRC502 3.4 HP Regenerative Blower, 3 Phase
The Republic HRC502 is a three phase, high pressure regenerative blower with a maximum air flow of 162 cfm, maximum vacuum of 141 in.H2O, and maximum pressure of 132 in.H2O.
Blower Specifications:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 502 | HRC 502 |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 135/230 | 162/275 |
| Rated Vacuum (in. H₂O/mbar) | 116/290 | 141/350 |
| Rated Pressure (in. H₂O/mbar) | 145/360 | 132/330 |
| Motor (HP/kW) | 3.0/2.2 | 3.4/2.6 |
| Voltage (V) | 190 Y/380 Y | 230 Y/460 Y |
| Current (A) | 11.2 Y/5.6 Y | 10.3 Y/6.0 Y |
| Sound Level (dB) | 72 | 74 |
| Weight (lb/kg) | 78/35 | 78/35 |
Resources:
$1,553.04
Original: $4,437.25
-65%Republic HRC502 3.4 HP Regenerative Blower, 3 Phase—
$4,437.25
$1,553.04
Description
Republic HRC502 3.4 HP Regenerative Blower, 3 Phase
The Republic HRC502 is a three phase, high pressure regenerative blower with a maximum air flow of 162 cfm, maximum vacuum of 141 in.H2O, and maximum pressure of 132 in.H2O.
Blower Specifications:
| Specification | Value at 50 Hz | Value at 60 Hz |
|---|---|---|
| Model | HRC 502 | HRC 502 |
| Phase | 3 | 3 |
| Frequency (Hz) | 50 | 60 |
| Air flow (CFM/m³/hr) | 135/230 | 162/275 |
| Rated Vacuum (in. H₂O/mbar) | 116/290 | 141/350 |
| Rated Pressure (in. H₂O/mbar) | 145/360 | 132/330 |
| Motor (HP/kW) | 3.0/2.2 | 3.4/2.6 |
| Voltage (V) | 190 Y/380 Y | 230 Y/460 Y |
| Current (A) | 11.2 Y/5.6 Y | 10.3 Y/6.0 Y |
| Sound Level (dB) | 72 | 74 |
| Weight (lb/kg) | 78/35 | 78/35 |
Resources:
