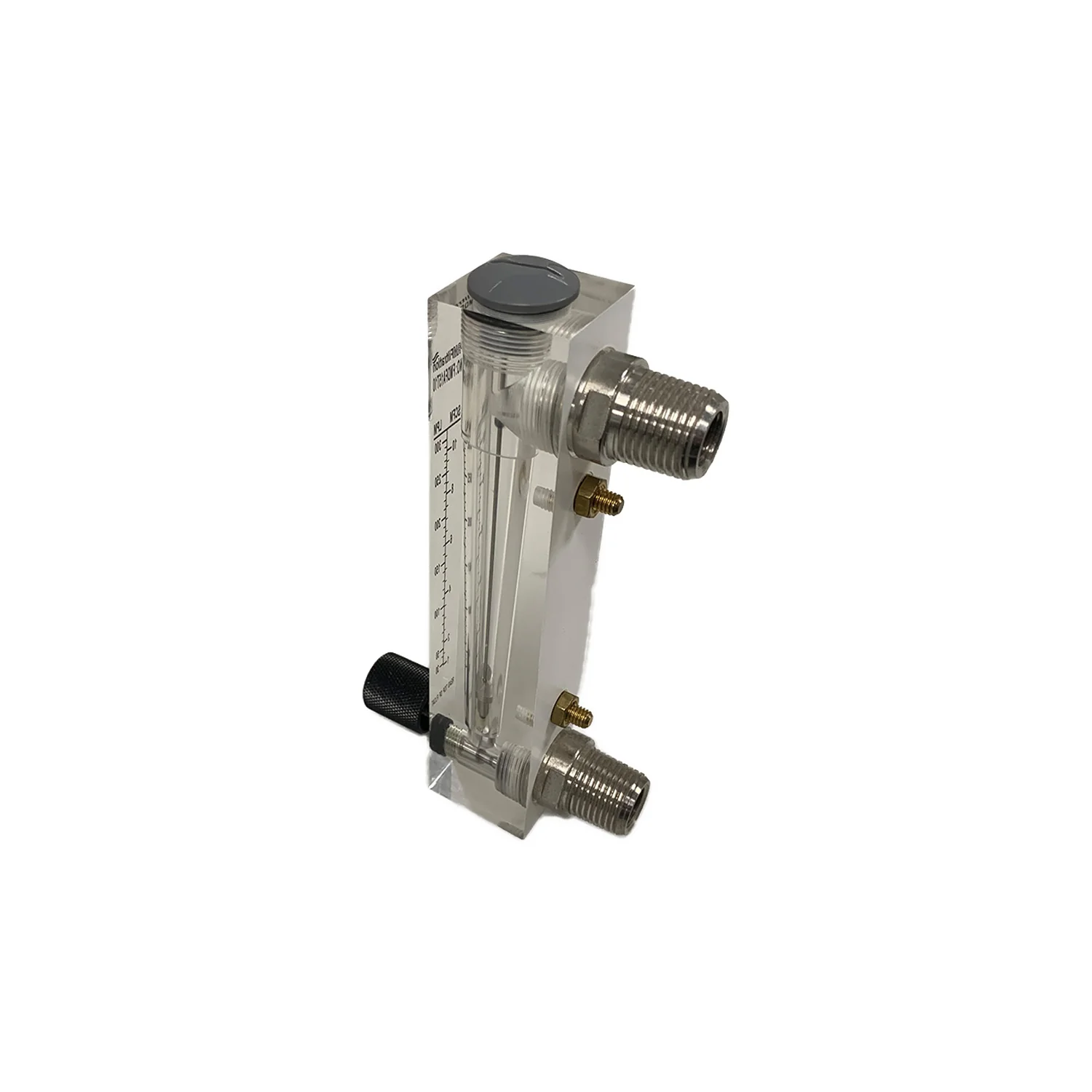

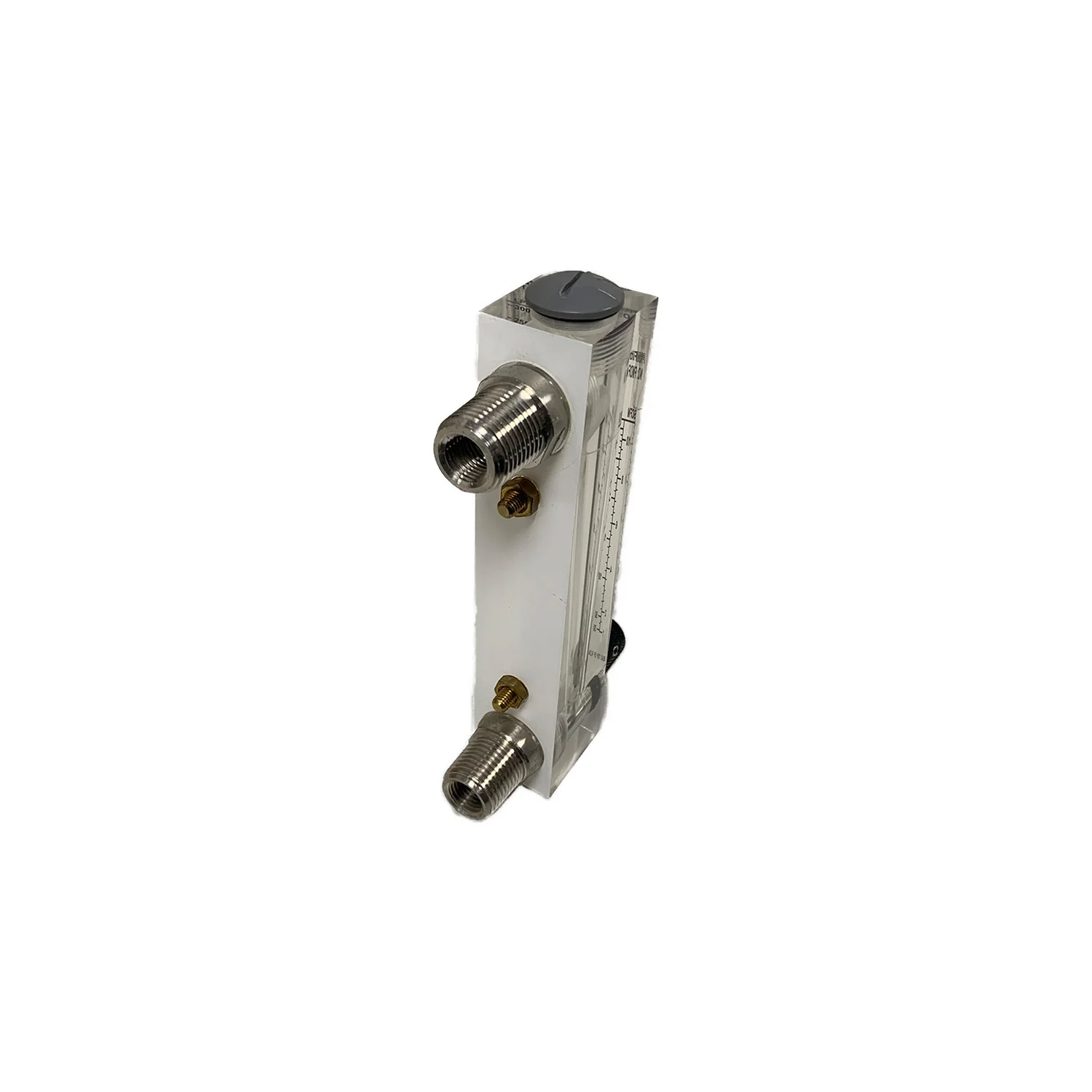

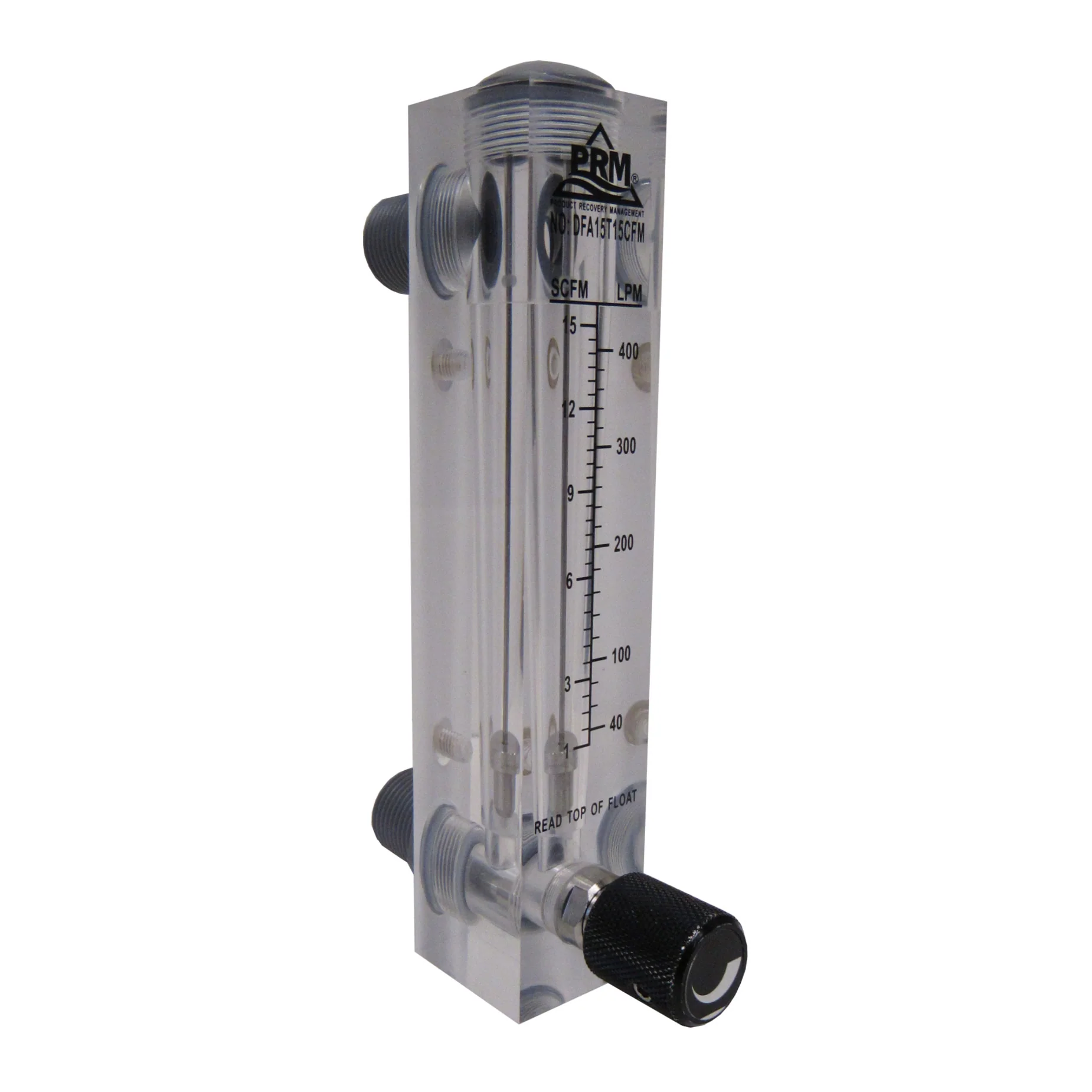

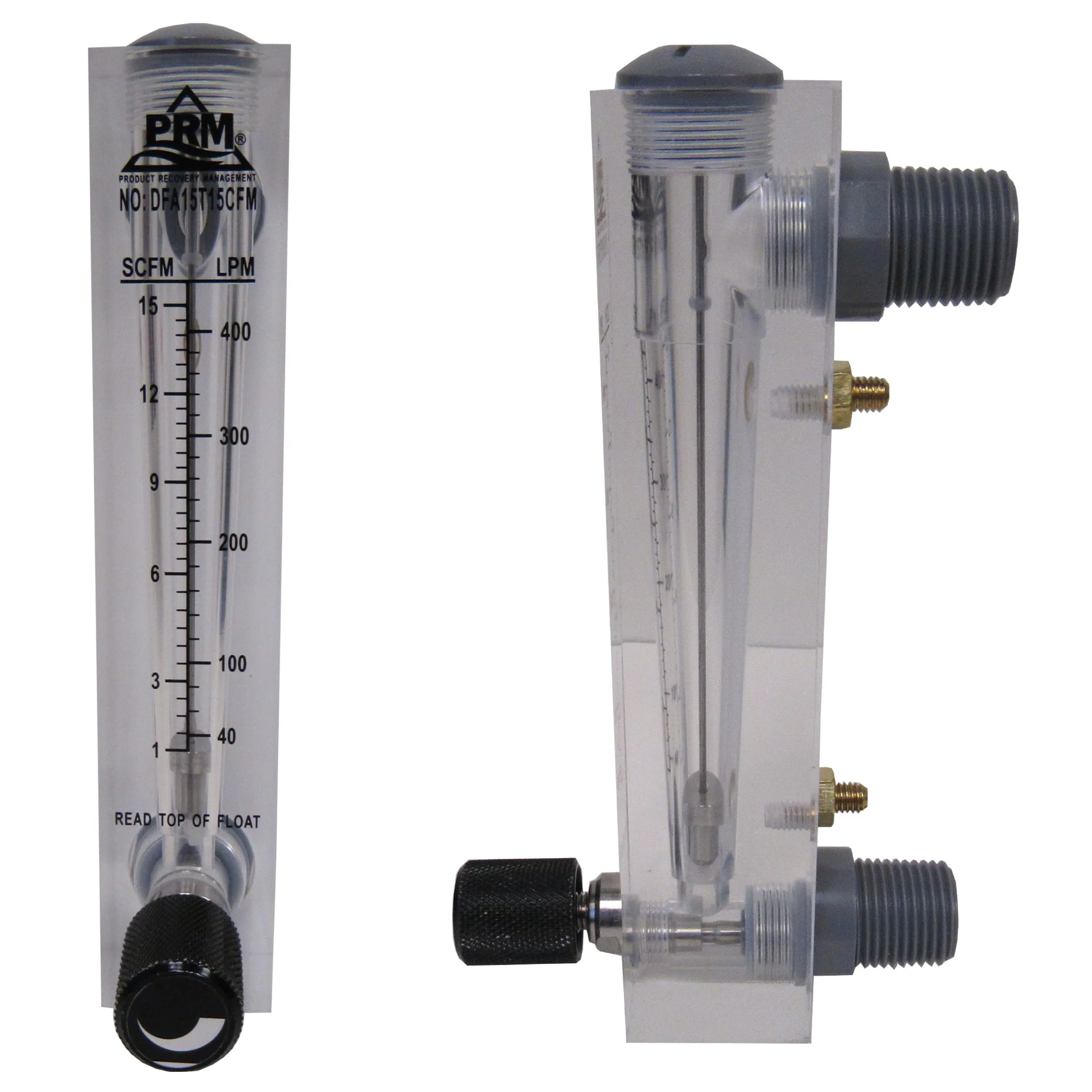

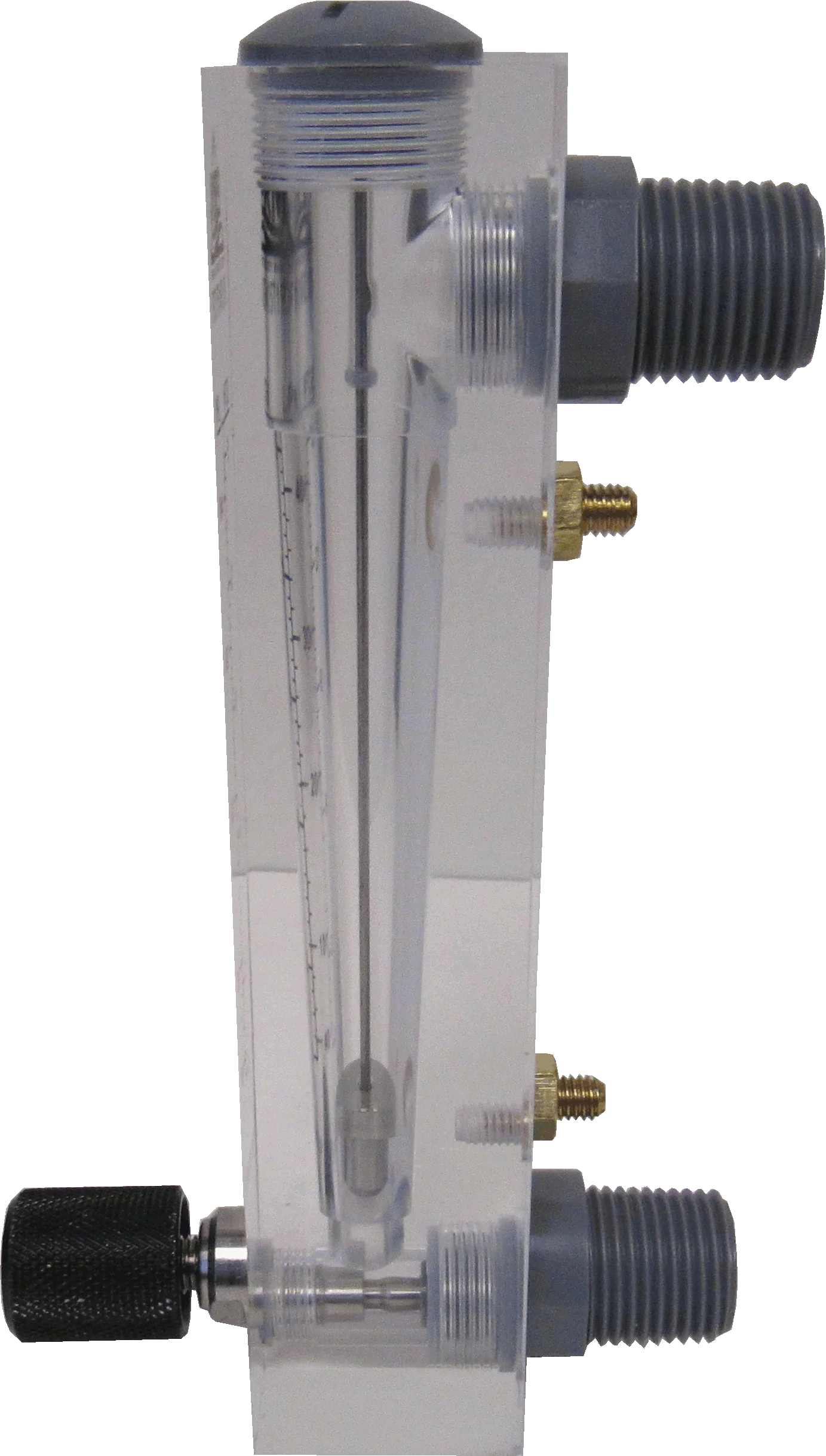

PRM FMDFA15T15 1-15 CFM Air Injection / Air Sparge Rotameter with Integrated Flow Valve
AIR INJECTION / AIR SPARGE ROTAMETERS WITH INTEGRATED FLOW CONTROL VALVE
The PRM DFA-15T Rotameters are designed for heavy duty service in the environmental remediation and industrial process markets. PRM has found through experience that other brands of rotameters break, leak, and fail in the harsh conditions of the remediation industry, so PRM manufactures these standard flow control rotameters with a heavier duty body and mounting bosses to make the rotameters stationary and prohibit flexing. PRM rotameters uses a Stainless Steel valve assembly where others use brass, which is a typical failure point in harsh conditions. White background allows for better visibility of the float increasing reading accuracy.
- FMDFA15T15: 1-15 CFM / 40-400 LPM
- Maximum Pressure: 100 psi
- Maximum Temperature: 145° F
- Connection: 1/4" Female NPT
- Accuracy: +/-4%
Materials :
- Body: Acrylic
- Float: 304 Stainless Steel
- Valve: 304 Stainless Steel
- O-Ring: Buna-N
- Mounting: Brass hardware
- Fitting: 304 Stainless Steel (standard) or ABS Plastic (request)
Original: $99.99
-65%$99.99
$35.00
Description
AIR INJECTION / AIR SPARGE ROTAMETERS WITH INTEGRATED FLOW CONTROL VALVE
The PRM DFA-15T Rotameters are designed for heavy duty service in the environmental remediation and industrial process markets. PRM has found through experience that other brands of rotameters break, leak, and fail in the harsh conditions of the remediation industry, so PRM manufactures these standard flow control rotameters with a heavier duty body and mounting bosses to make the rotameters stationary and prohibit flexing. PRM rotameters uses a Stainless Steel valve assembly where others use brass, which is a typical failure point in harsh conditions. White background allows for better visibility of the float increasing reading accuracy.
- FMDFA15T15: 1-15 CFM / 40-400 LPM
- Maximum Pressure: 100 psi
- Maximum Temperature: 145° F
- Connection: 1/4" Female NPT
- Accuracy: +/-4%
Materials :
- Body: Acrylic
- Float: 304 Stainless Steel
- Valve: 304 Stainless Steel
- O-Ring: Buna-N
- Mounting: Brass hardware
- Fitting: 304 Stainless Steel (standard) or ABS Plastic (request)
