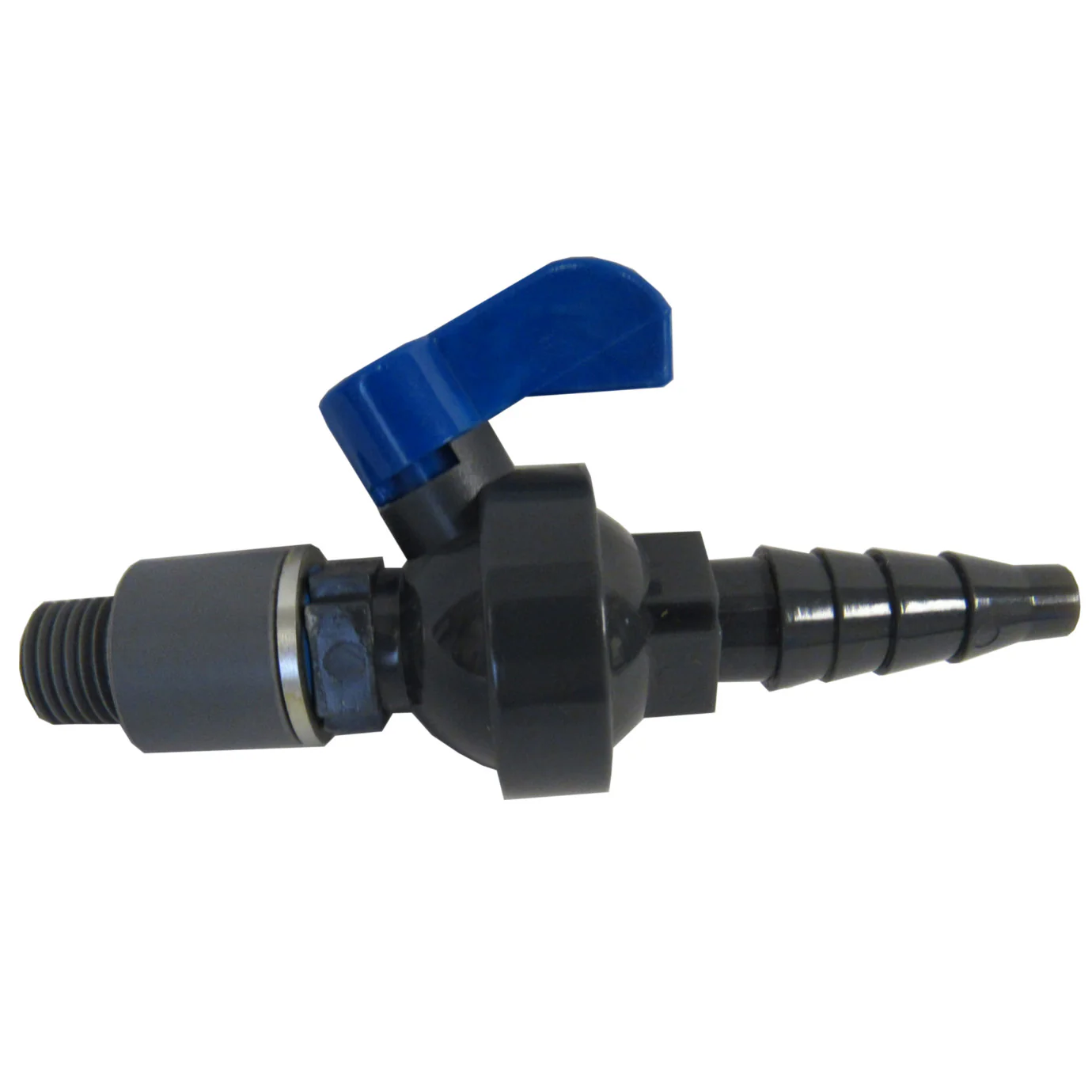

SCH 80 PVC Sample Port Ball Valve - 1/4 Inch MNPT X Barb

SCH 80 PVC 1/4" SAMPLE PORT VALVE WITH HOSE BARB AND CHEMICAL RESISTANT VITON O-RING.

SAMPLE PORT VALVE -

HOSE BARB FOR 1/4" ID HOSE X 1/4" BSPP CONNECTION, COMES WITH 1/4" PVC ADAPTER TO CONVERT BSPP CONNECTION TO NPT. CHEMICAL RESISTANT BUNA-N SEALING WASHER INCLUDED.

This Sch 80 PVC Sample Port Valve is a ball valve is made of PVC (polyvinyl chloride) for less weight than metals, and has a lever handle for on/off manual control. This inline valve has 1/4" male BSPP threads and comes with a National Pipe Taper (NPT) adapter to connect to a female threaded pipe and a 1/4" ID hose connection to connect to a hose going in the same direction. This valve has a Viton Rubber seal for increased chemical resistance. This inline ball valve is suitable for chemical processing and water and wastewater applications.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
