Shipping Container Tie Down Twist Lock Anchor
Shipping Container Side Tie Down, Galvanized Steel
Storage container tie-down brackets allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position. With your container already in place, insert the container tie down into side of the ISO container corner casting then rotate so the bolt hole is toward the ground.

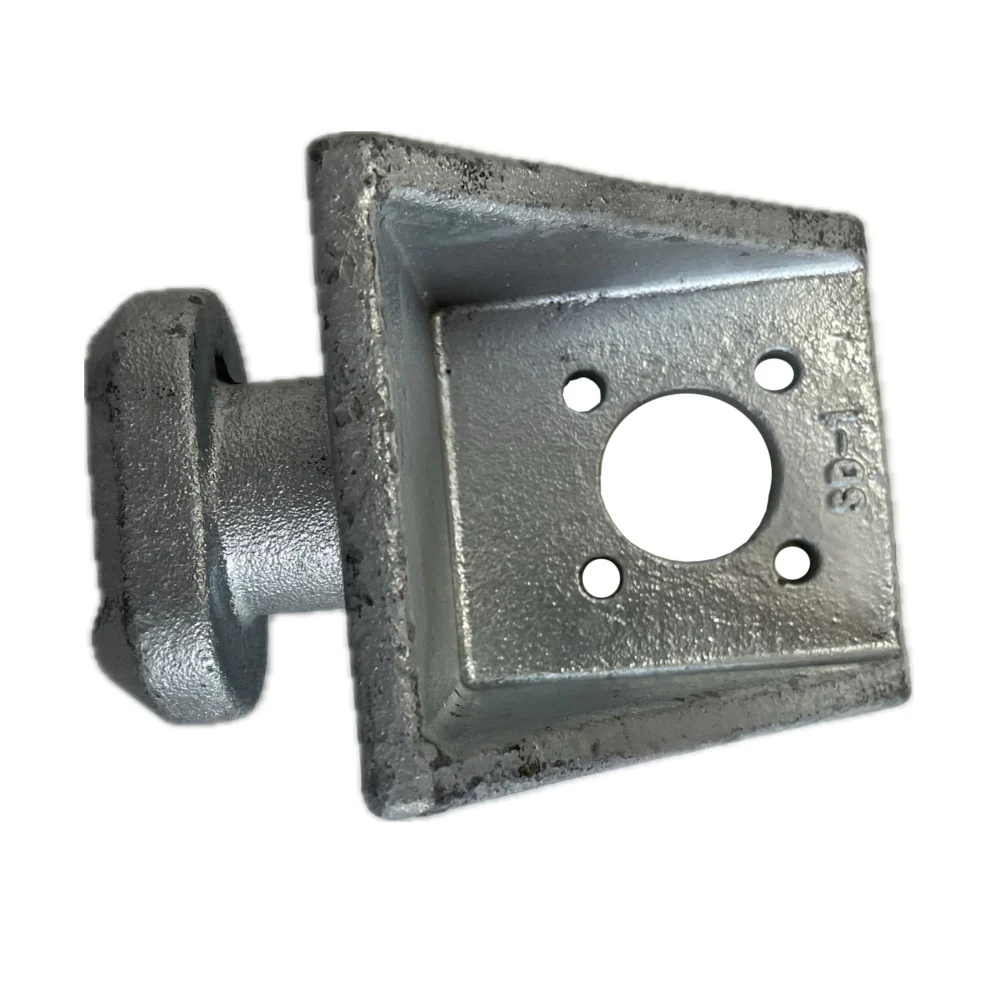

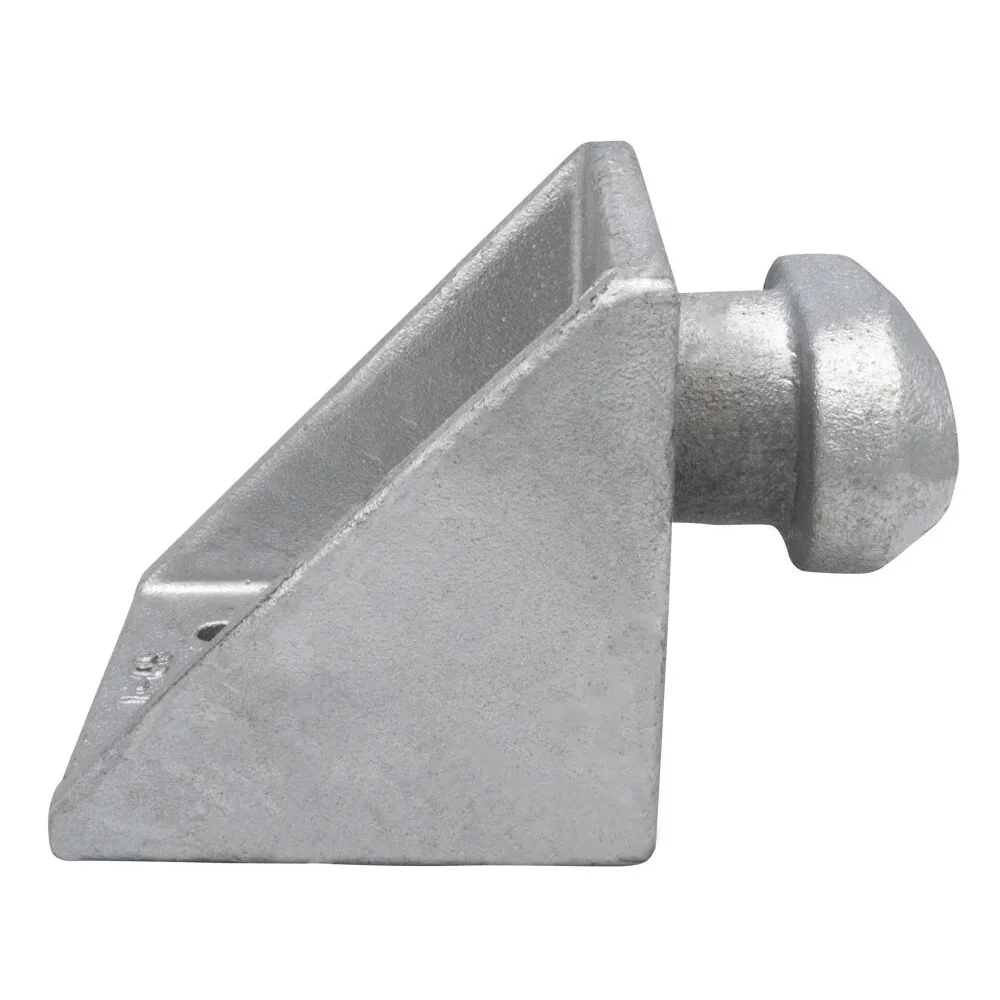

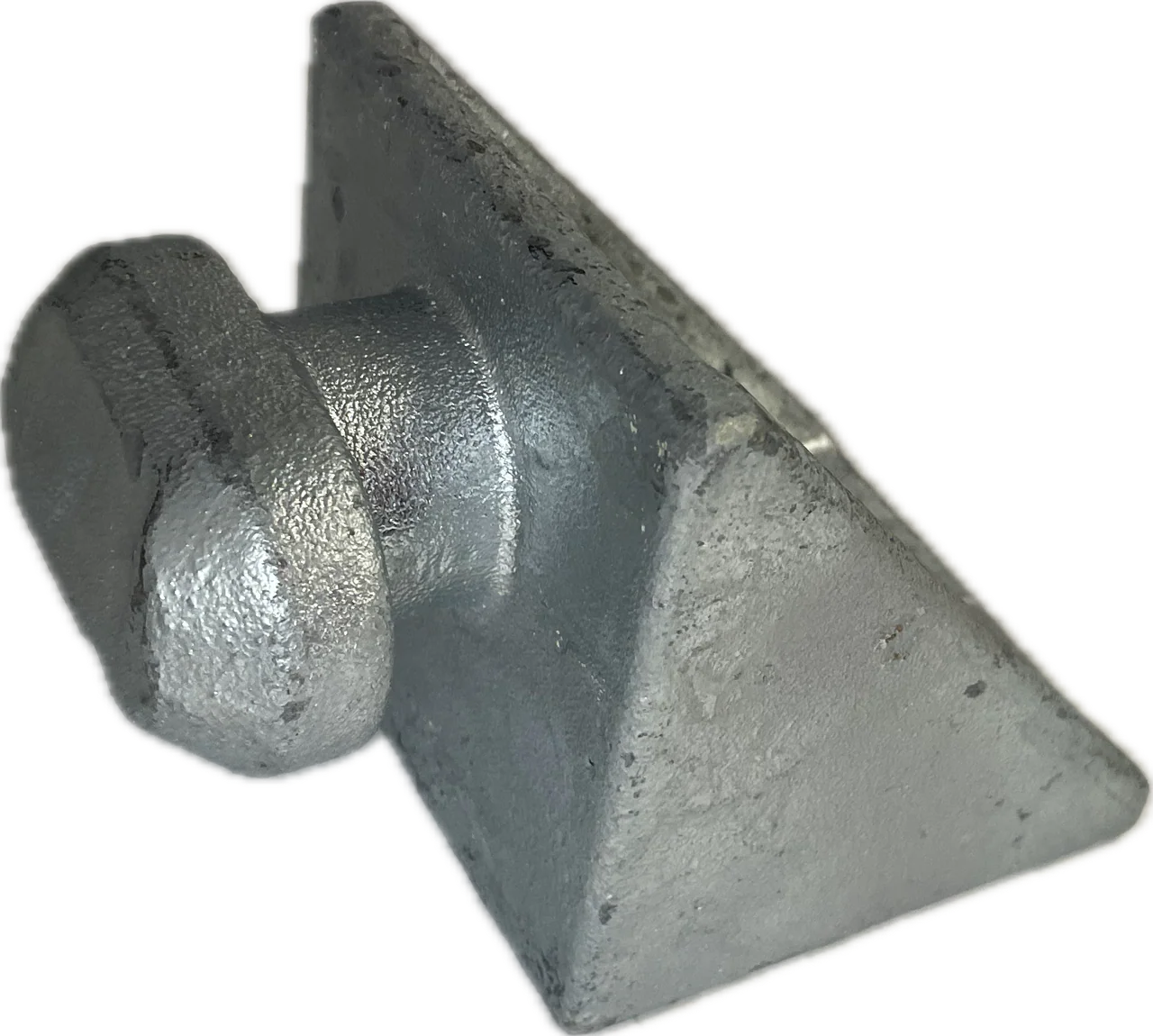

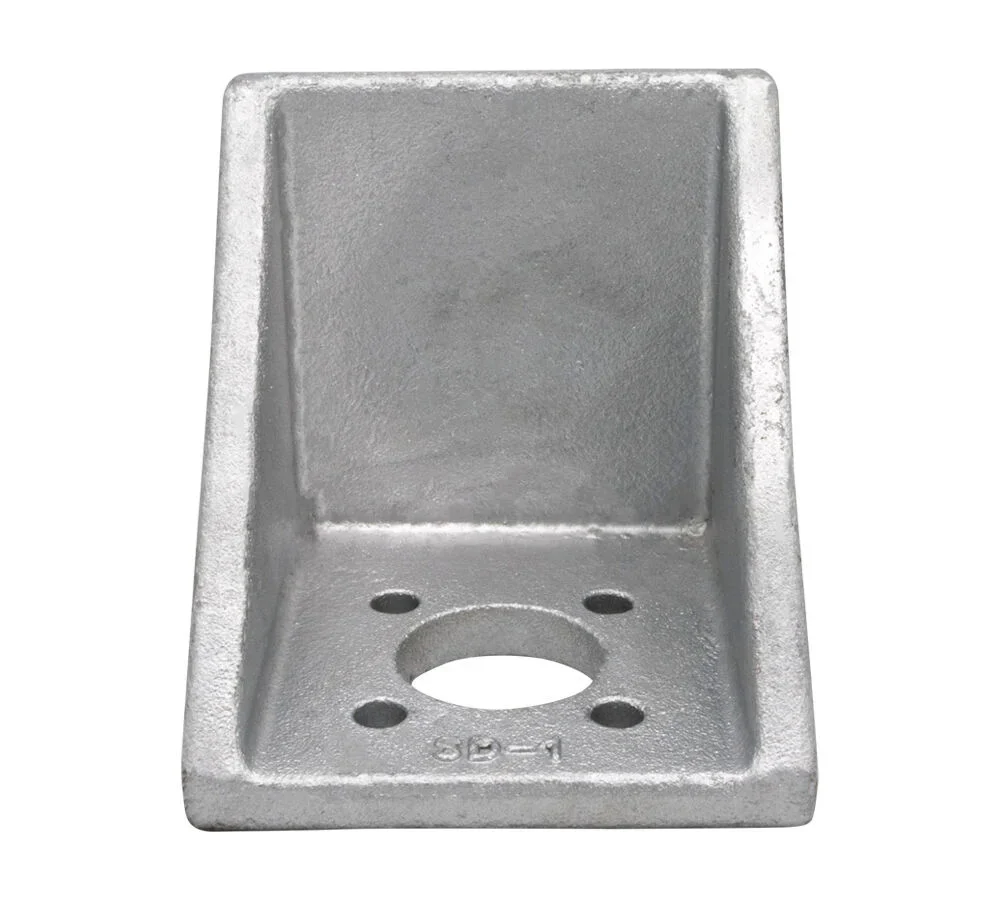

Container Side Twist Lock
Material: Galvanized Steel
Structural Notes:
Weight: 6.17 LBS
SWL Tension: 9000 LBF
SWL Shear: 4500 LBF
MBL Tension: 45000 LBF
For connecting containers that have been placed into position.

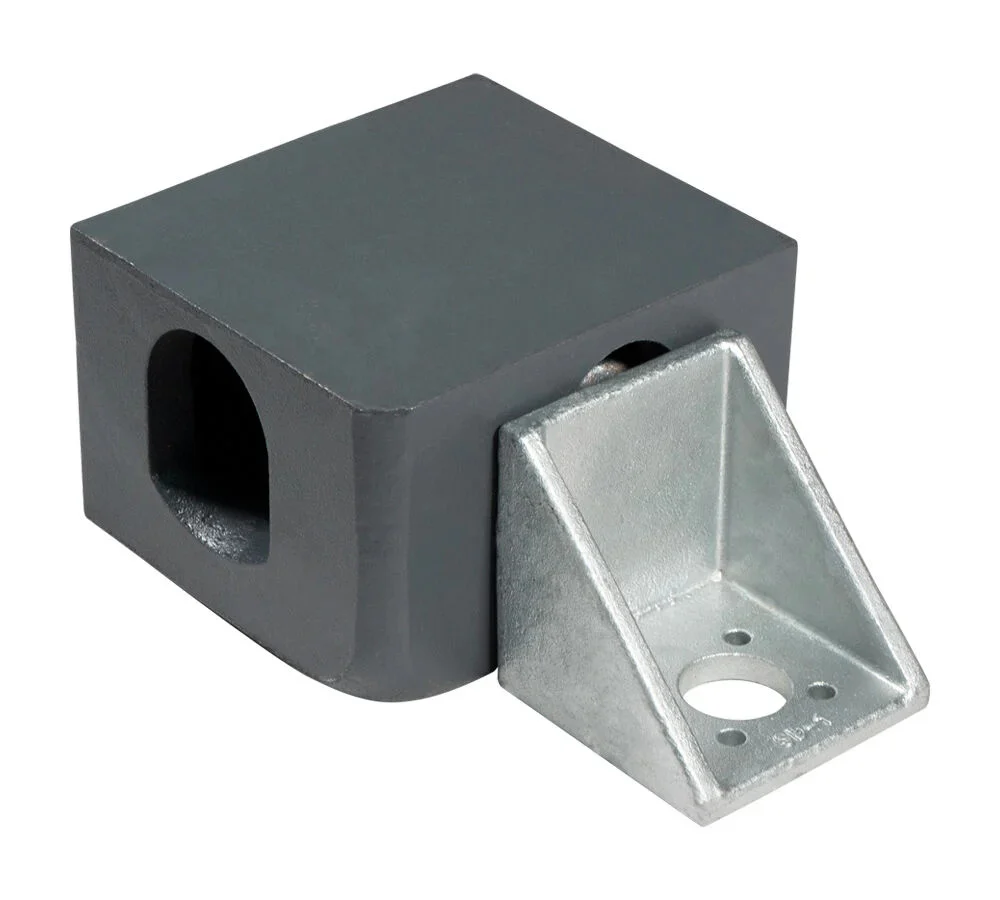

Installs into the side hole of a shipping container corner casting.
Description
Shipping Container Side Tie Down, Galvanized Steel
Storage container tie-down brackets allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position. With your container already in place, insert the container tie down into side of the ISO container corner casting then rotate so the bolt hole is toward the ground.
Container Side Twist Lock
Material: Galvanized Steel
Structural Notes:
Weight: 6.17 LBS
SWL Tension: 9000 LBF
SWL Shear: 4500 LBF
MBL Tension: 45000 LBF
For connecting containers that have been placed into position.
Installs into the side hole of a shipping container corner casting.
