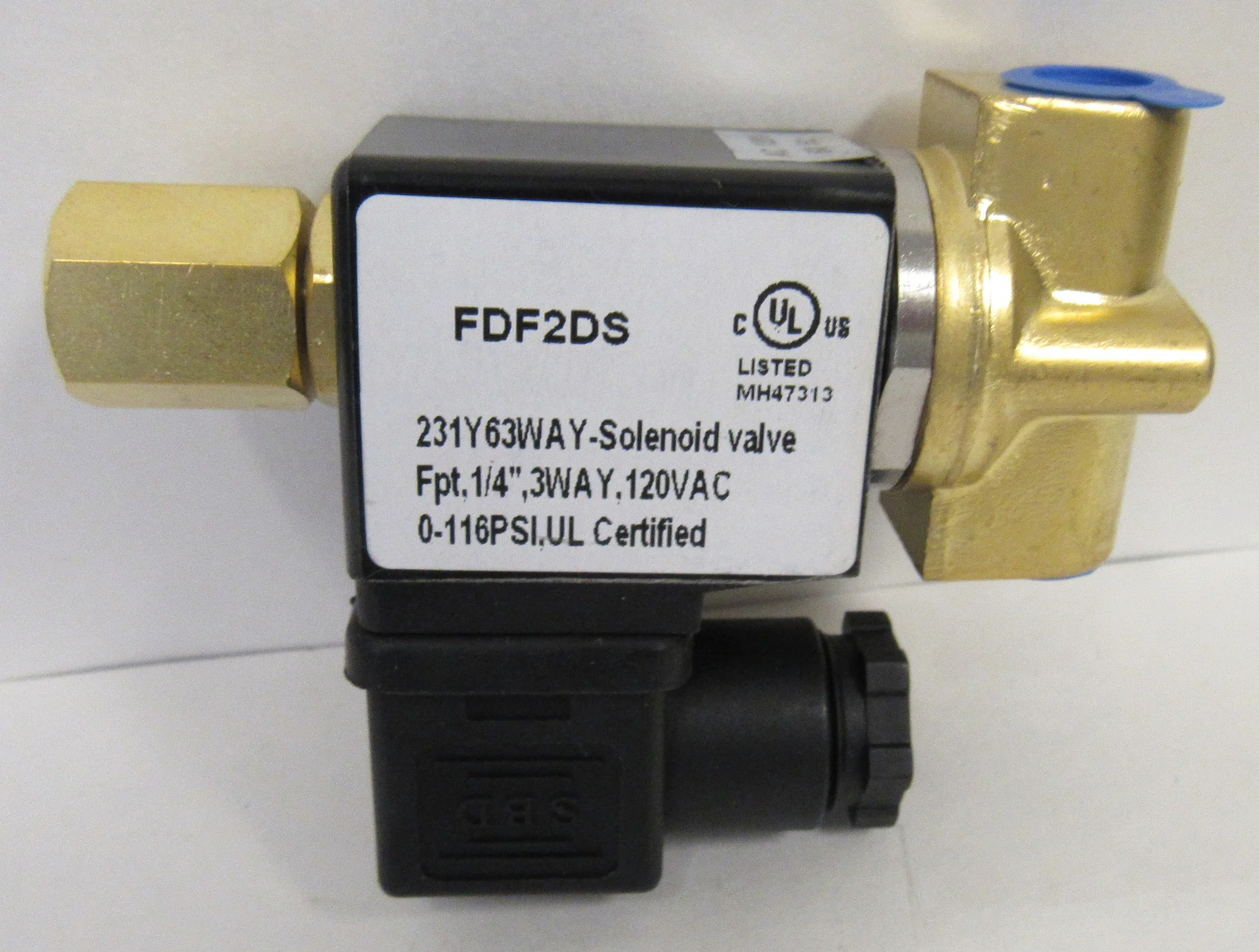

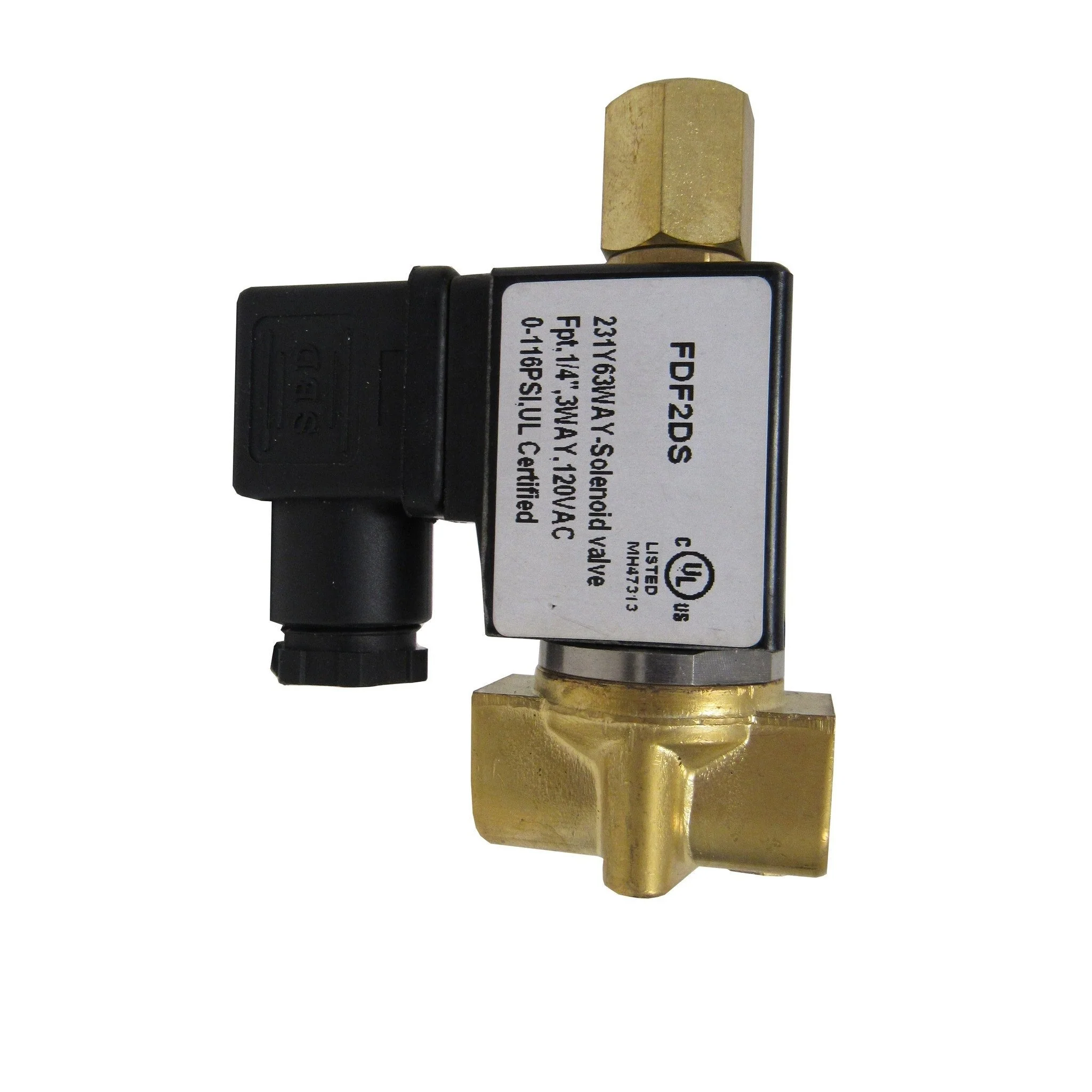

Solenoid Valve, 1/4 Inch NPT, Brass 3-Way Valve, 120 VAC Coil

1/4" NPT 3-WAY SOLENOID VALVE 120/240VAC BRASS BODY VITON SEALS



PRM Solenoid Valves are designed to handle the most demanding fluid control applications. Solenoid valves operate on electricity to automatically start and stop flow. The actuator is directly mounted to the valve body to minimize movement and reduce wear.

Solenoid Valves Datasheet

Specifications:

Working Medium: Air, Water, Steam, Gas, Light Oil (≤20CST)
Pressure Range: 0-115 psi
Medium Temperature Range: 23°F to 175°F
Voltage: 120 VAC
Normally Closed

Materials:

Body: Brass
Seal: Viton, FKM

Size: 1/4 Inch NPT
Orifice (mm): 1.5
Cv Value: 0.23
