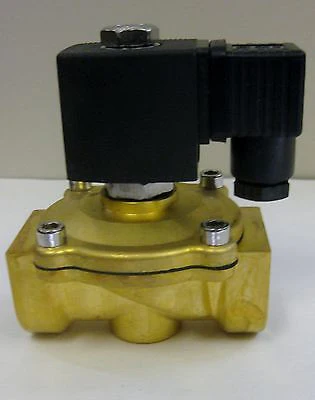

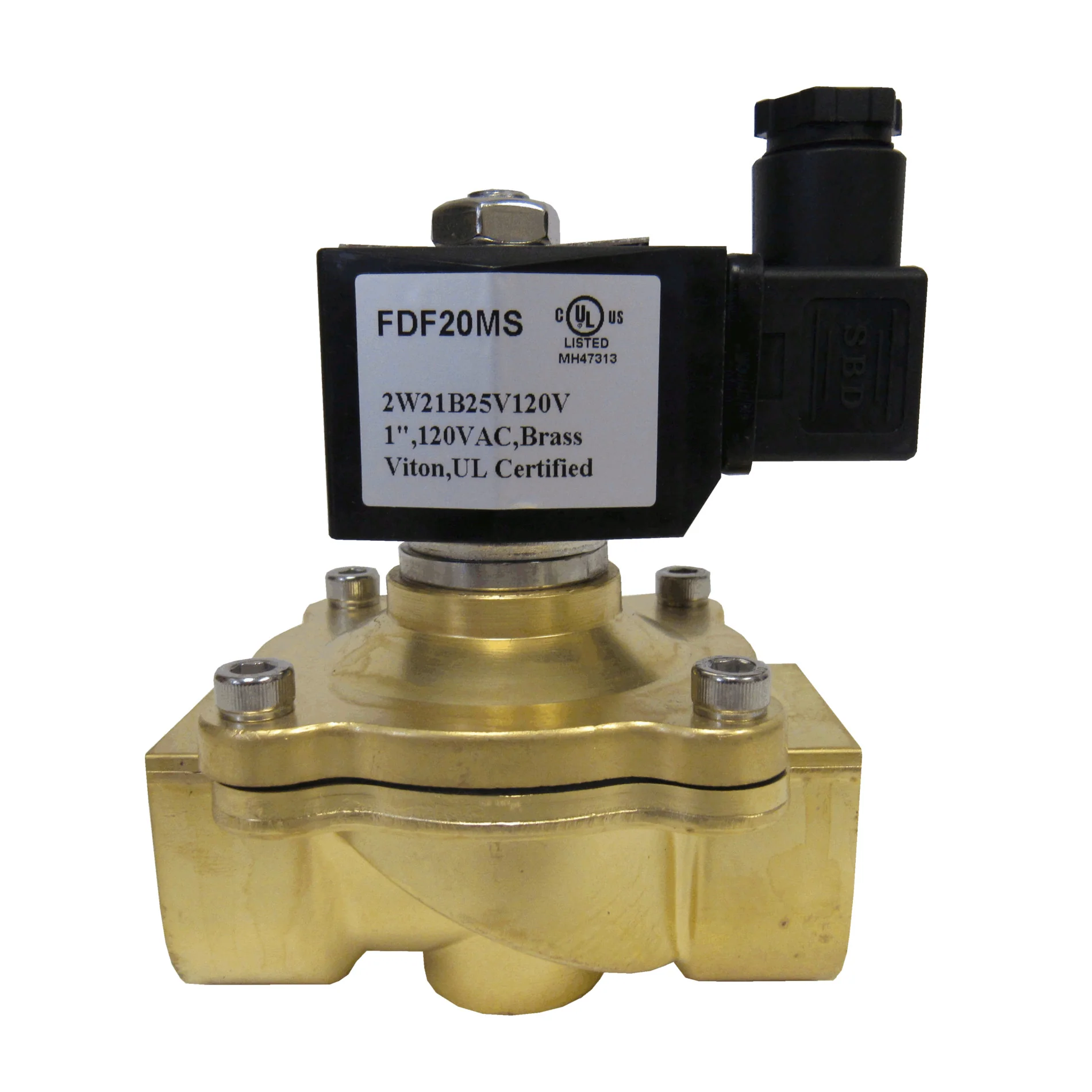

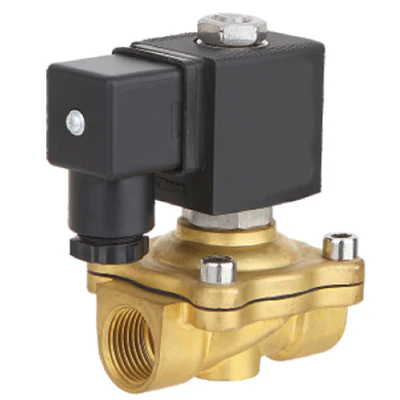

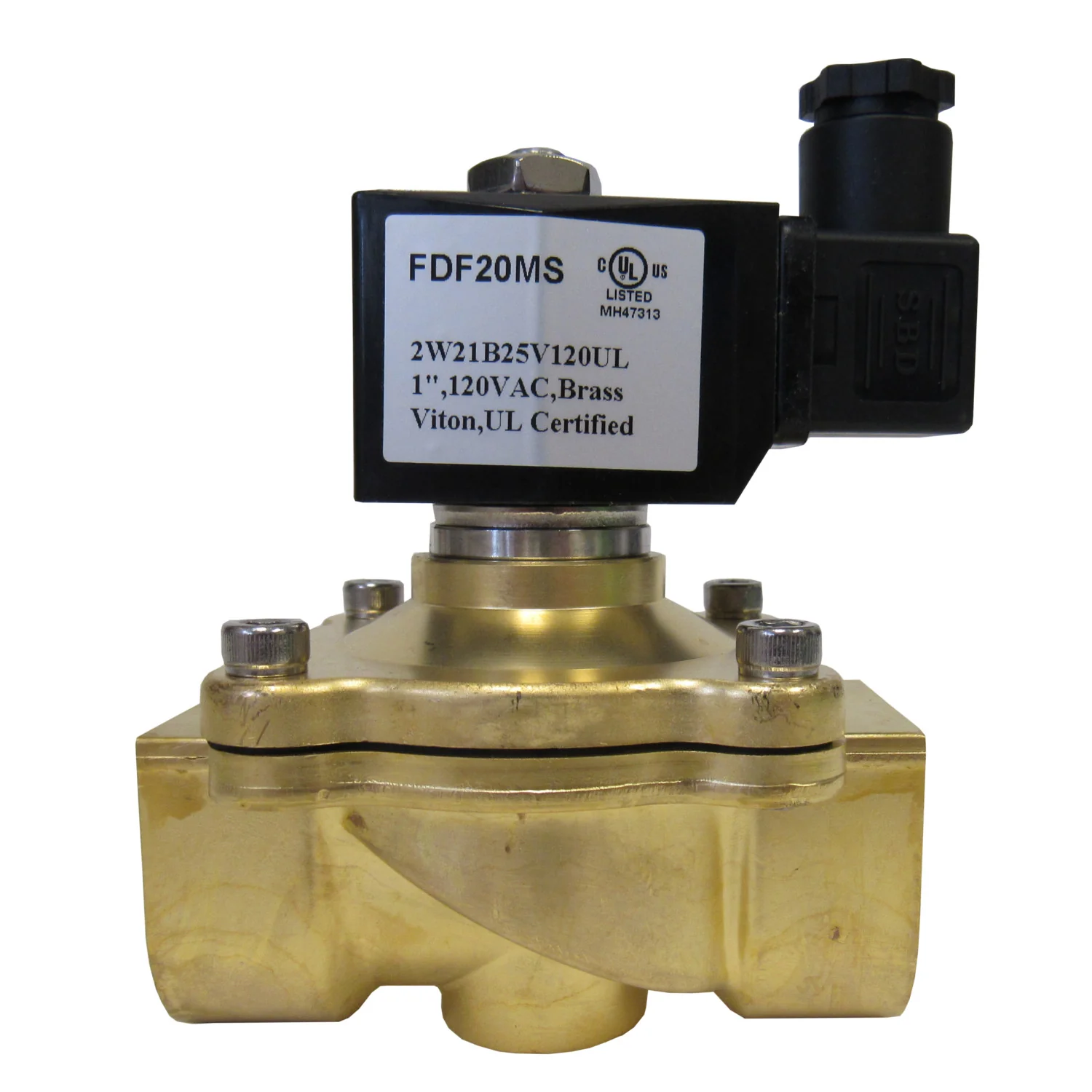

Solenoid Valve, 1 Inch NPT, Brass Body, Zero Differential, 120 VAC Coil

Solenoid Valve 1” NPT Brass Body 120 VAC Coil Viton Seal

PRM Solenoid Valves are designed to handle the most demanding fluid control applications. Solenoid valves operate on electricity to automatically start and stop flow. The actuator is directly mounted to the valve body to minimize movement and reduce wear.

Solenoid Valves Datasheet

Normally closed valves are closed unless actuated.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Specifications:

• Zero Differential/ Direct Acting
• Medium: Air, Water, Oil, Petroleum

• Pressure Range: 0-145 psi
• Temperature Range: Viton Seal: -30°F to 150°F
• Voltage: 120 VAC
• Coil: Class F
• Normally Closed

Materials:

• Body: Brass
• Seal: Viton, FKM
• Armature Tube: 304 Stainless Steel
• Plunger: 430F Stainless Steel
• Stop: 430F Stainless Steel
• Springs: 304 Stainless Steel
• Shading Rings: Copper

Size	Thread	Orifice (mm)	Cv
1/2 Inch	NPT	15	4.5
3/4 Inch	NPT	20	9.3
1 Inch	NPT	25	12
1-1/4 Inch	NPT	32	24
1-1/2 Inch	NPT	40	29
2 Inch	NPT	50	48
