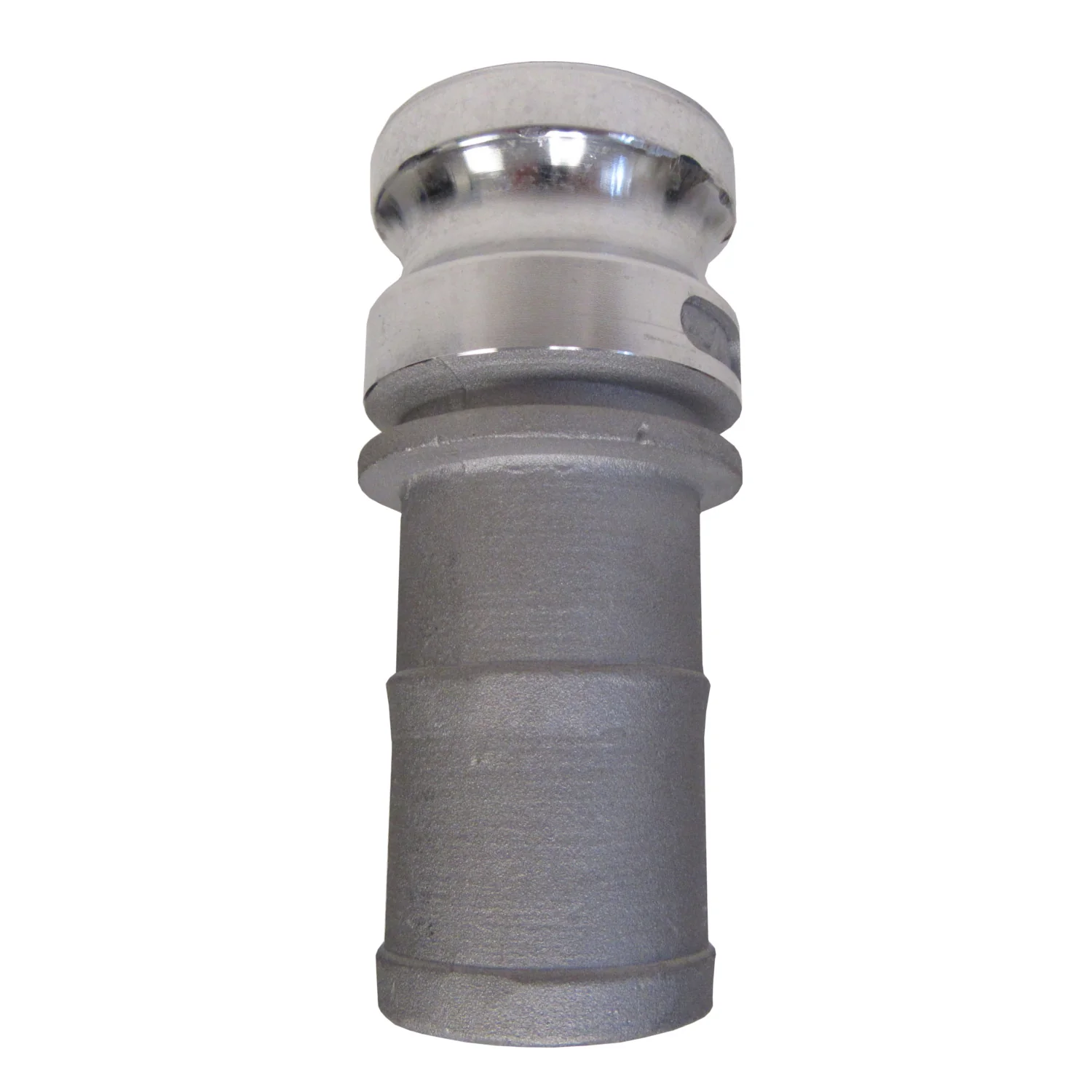

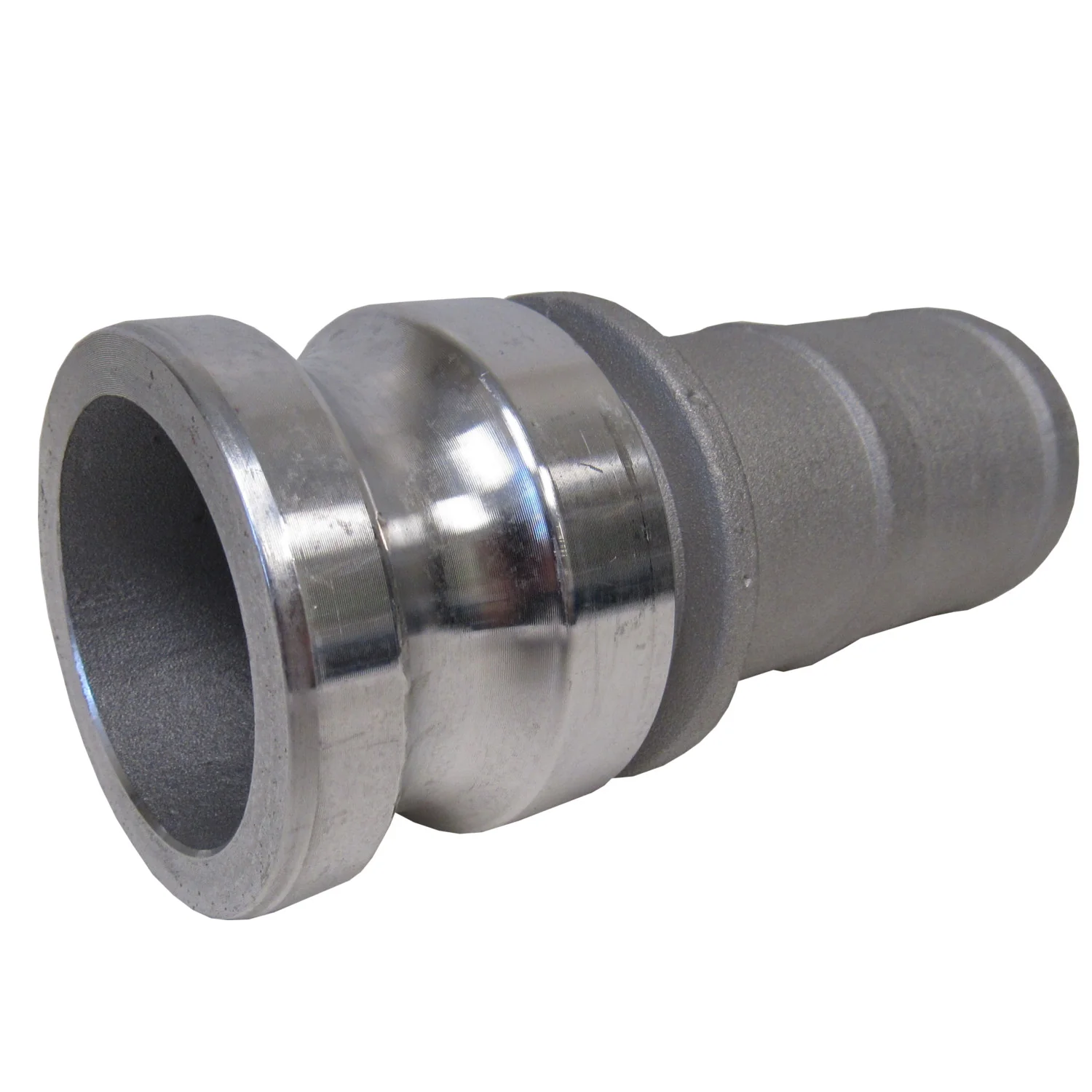

Stainless Steel Cam & Groove E075 Fitting, 3/4 Inch Male Camlock X Hose Shank

CAM & GROOVE FITTING, ALUMINUM MALE ADAPTER/ HOSE SHANK

Stainless steel camlock adapter Type E - Male Adapter by Hose Tail, is typically used with Type C, B, D and Dust Cap couplers of the identical size. Heavy duty stainless steel camlocks connects the hose to the tank, pump or other equipment quickly and safely. Stainless steel quick hose couplings are ideal for chemicals, coolants, hydraulic oils, salt water and other corrosive materials.

• Male Cam Lock Adapter x Hose Shank

• 304 Stainless Steel for strength and resistance to abrasion, corrosion, and chemicals.


• Coupling Type: E

• Maximum operating pressure (@70° F) : 3/4 inch - 2 inch : 250 psi


• Maximum Temperature: 250° F

• Available in 3/4", 1", 1-1/4",1-1/2", 2" sizes

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
