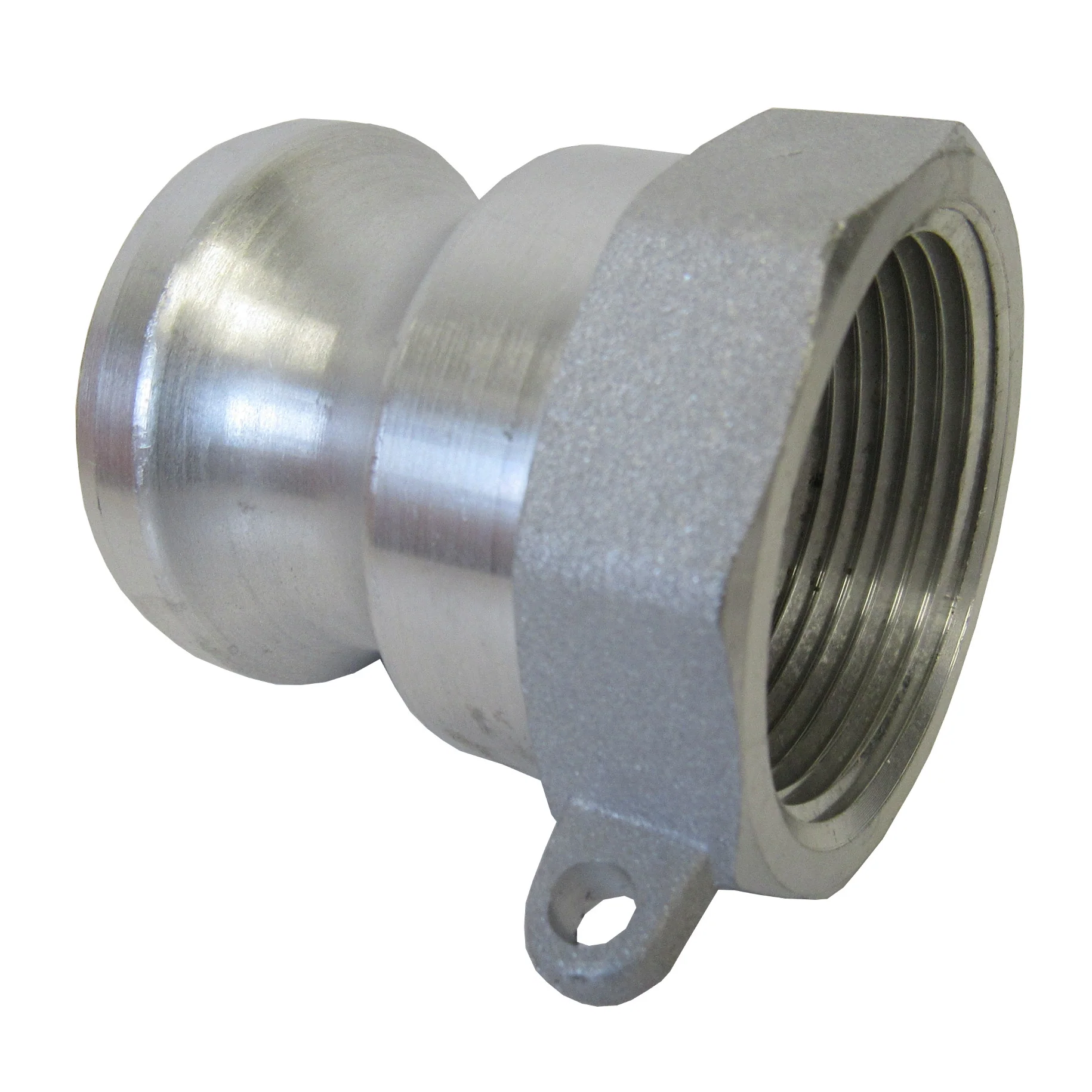

Stainless Steel Cam & Groove Fitting A075 Male Camlock X Female NPT Thread, 3/4 Inch

CAM & GROOVE FITTING, 304 STAINLESS STEEL MALE ADAPTER/ FEMALE NPT

STAINLESS STEEL CAMLOCK COUPLING TYPE A
Type A stainless steel camlock couplings have male adapters & female threads of the same size. The male grooved end can be inserted into any female couplers such as Type D, B, C & Dust Cap with identical size. Low pressure stainless steel camlock couplings are very compatible with seawater, waste water, hydraulic fluids & coolants.

• Female NPT threaded connection x Male Adapter

• 304 Stainless Steel for strength and resistance to abrasion, corrosion, and chemicals.

• Coupling Type: "A" Quick Disconnect
• Maximum operating pressure (@70° F) : 3/4 inch through 2 inch : 250 psi
• Maximum Temperature: 250° F

• Available in 3/4", 1", 1-1/4", 1-1/2", 2"

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
