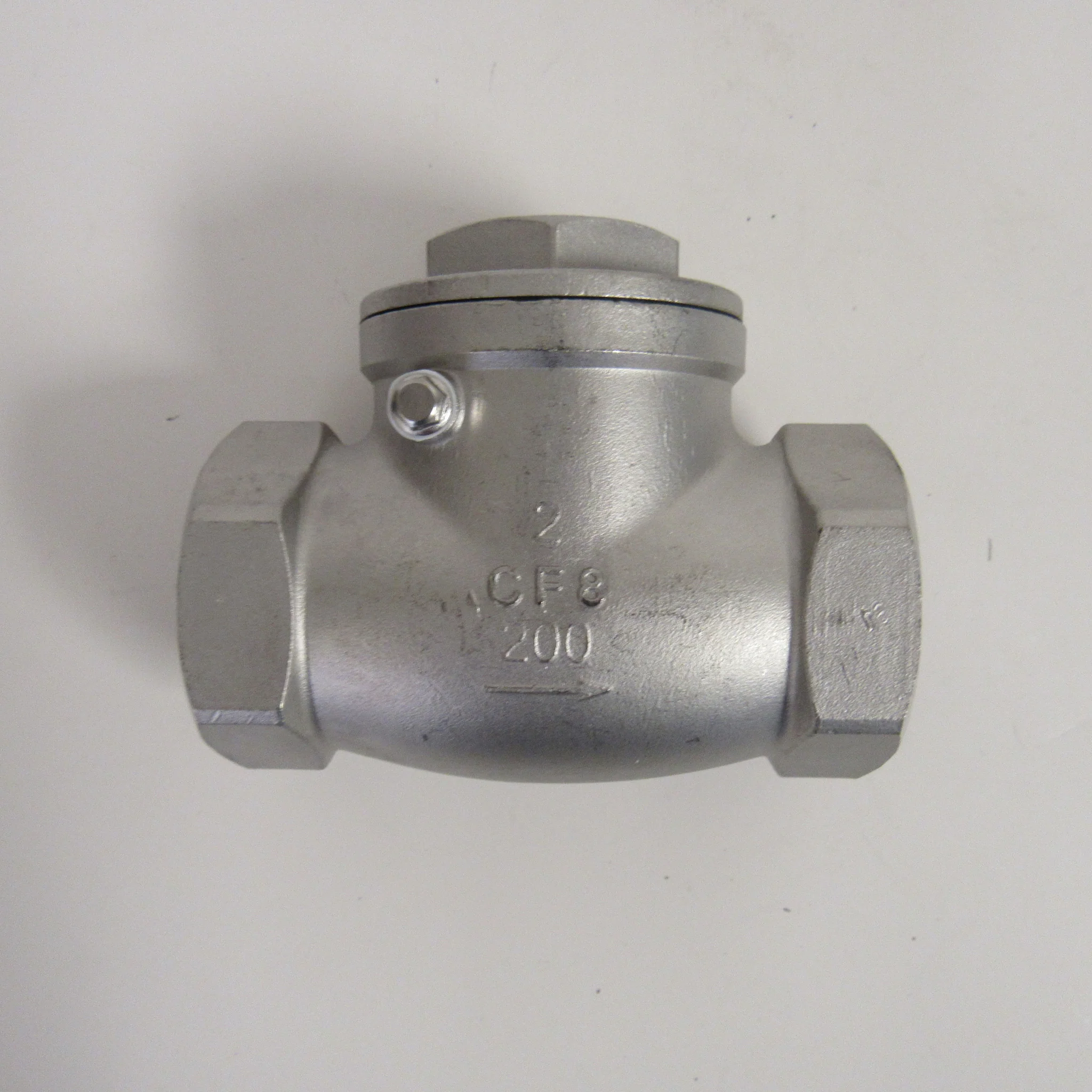

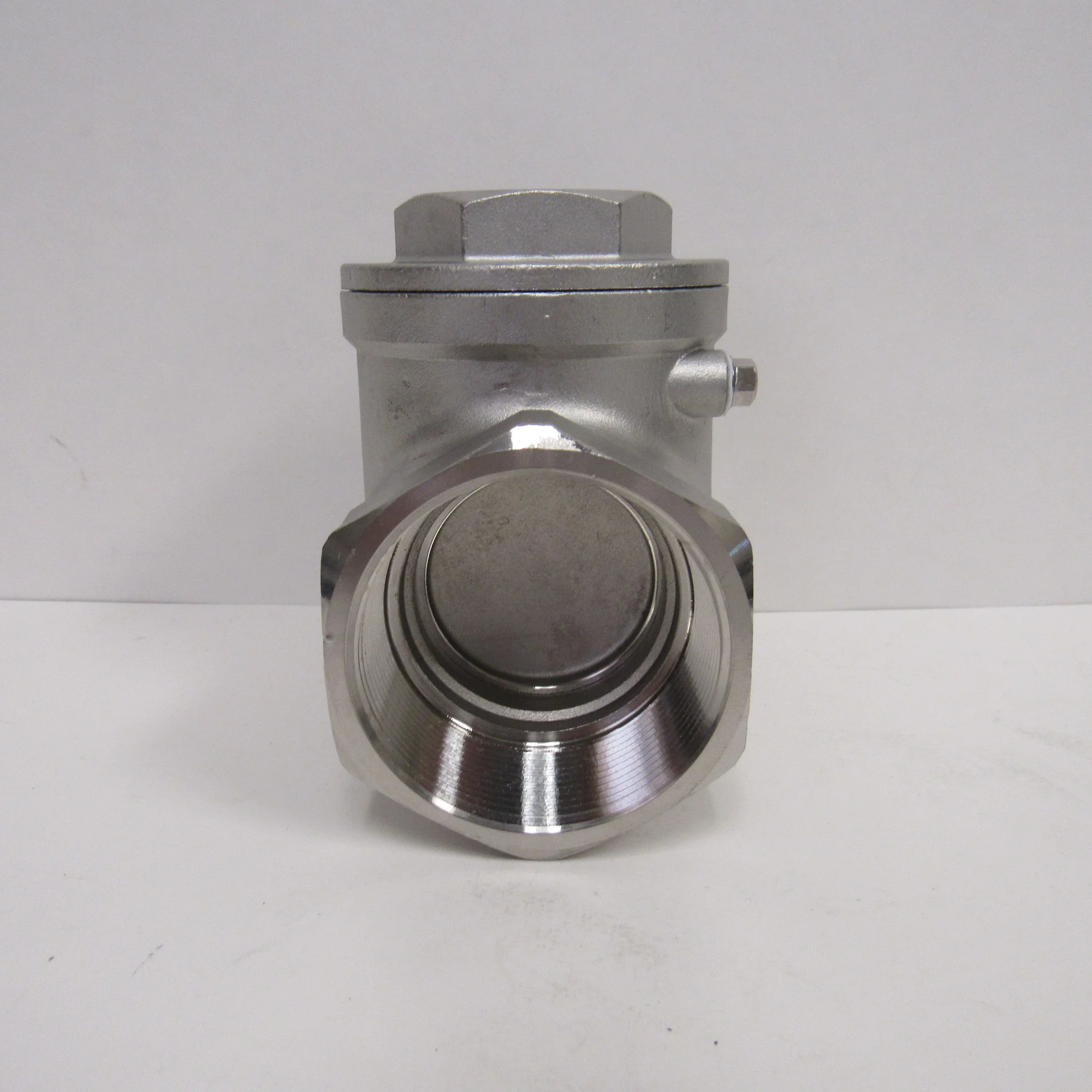

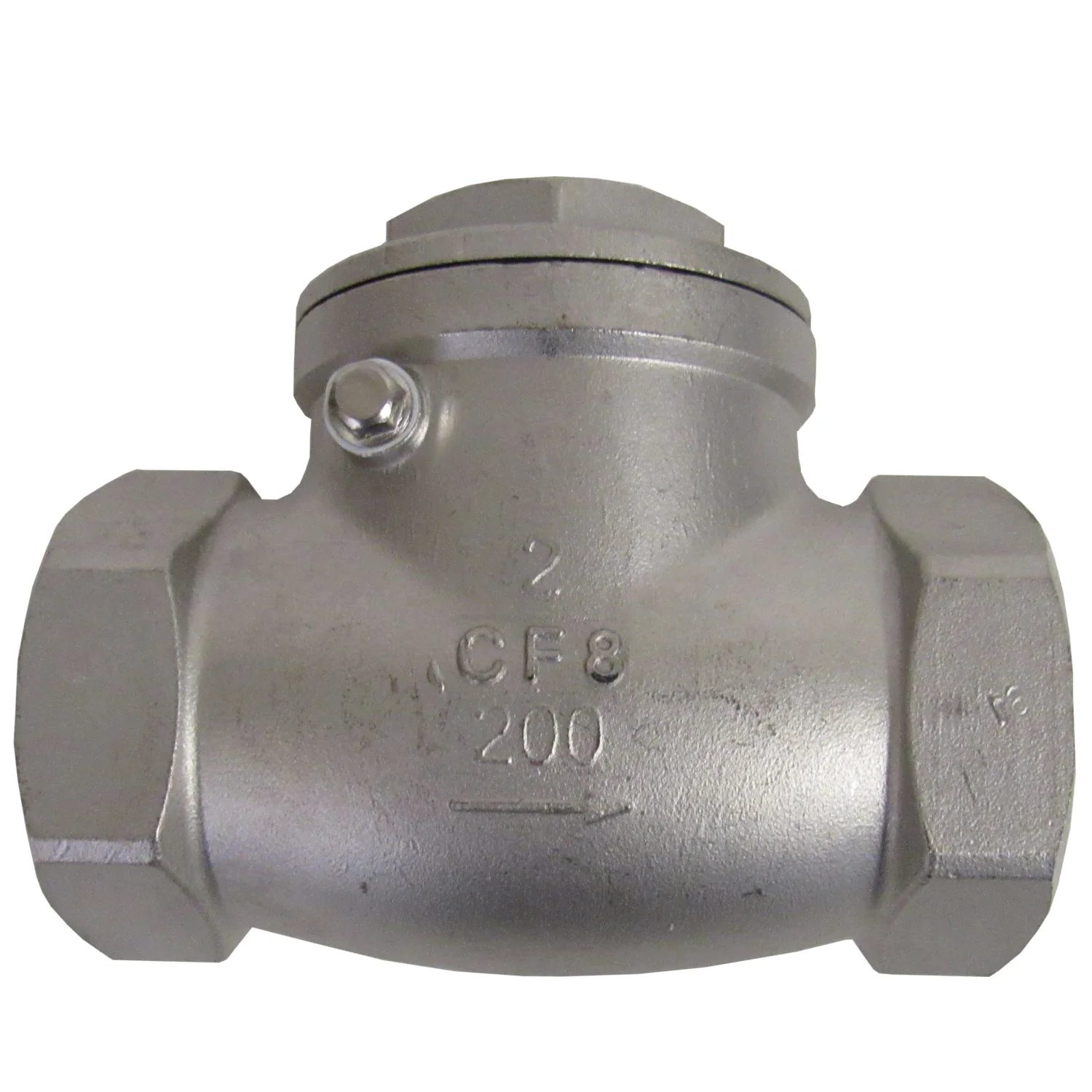

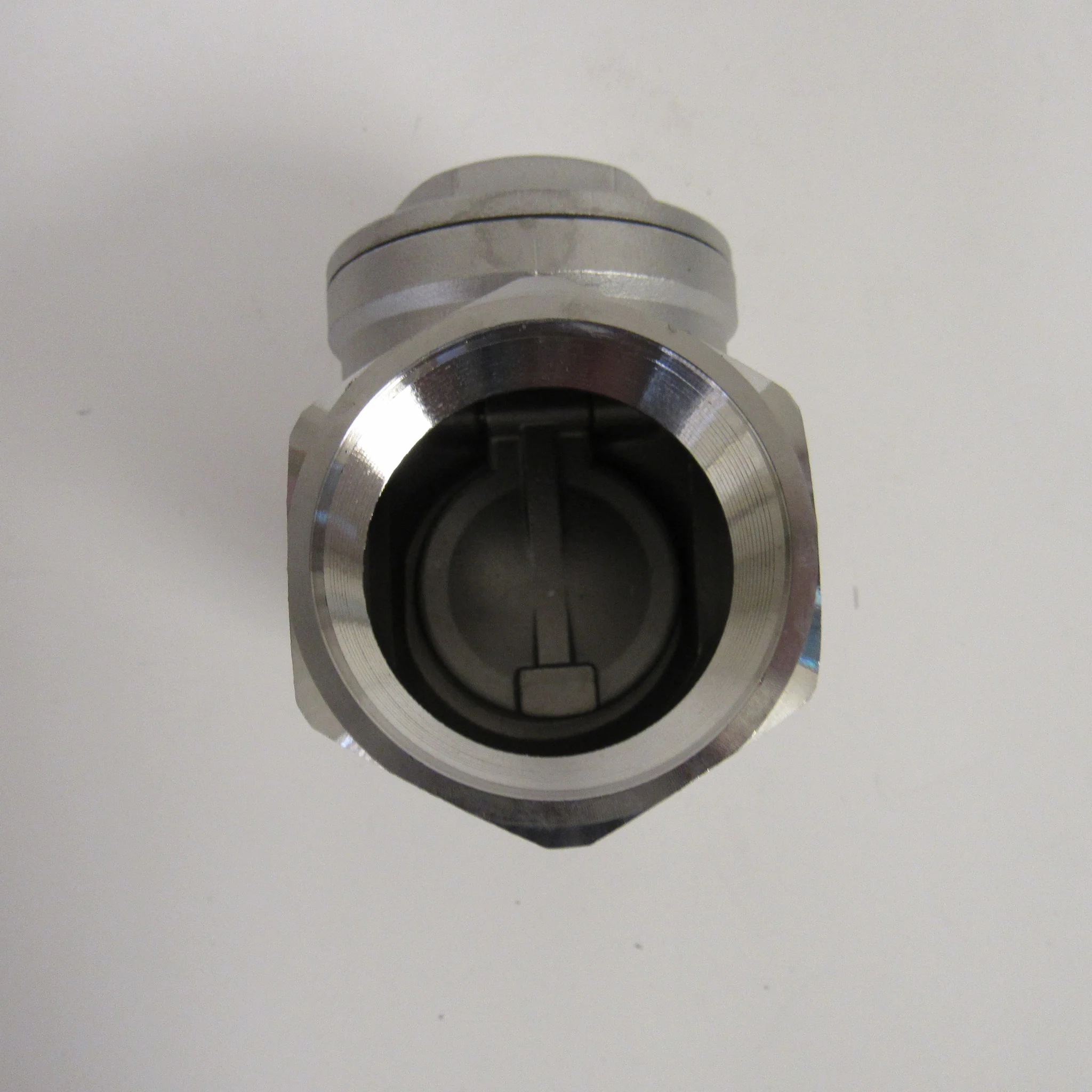

Horizontal Swing Check Valve, 2 Inch NPT, 304 SS, 200 PSI

SWING CHECK VALVES - 304 STAINLESS STEEL - 200 PSI

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. A swing check valve is a check valve in which the disc, the movable part to block the flow, swings on a hinge to block reverse flow or off the seat to allow forward flow. FNPT connections. PTFE seal for tight shutoff. The stainless steel body is corrosion resistant and suitable for use with water, oil, and gas.

Features:

Connection: FNPT

Mounting Position: Horizontal

Body Material: 304 Stainless Steel

Seal Material: PTFE

Max. Pressure: 200 PSI

For Use with Water, Oil and Gas



Swing Check Valve Information Sheet
