TechTop 2 HP NEMA Premium TEFC Cobra Aluminum Motors
TechTop 2 HP NEMA Premium TEFC Three Phase Cobra Aluminum Motors
Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.
TechTop's Cobra Line premium aluminum electric motors are top of the line, with a modular design that is a great fit for both commercial and industrial applications. They are lighter weight than rolled steel and cast iron motors, run cooler, and have naturally occurring anti-corrosion surface.

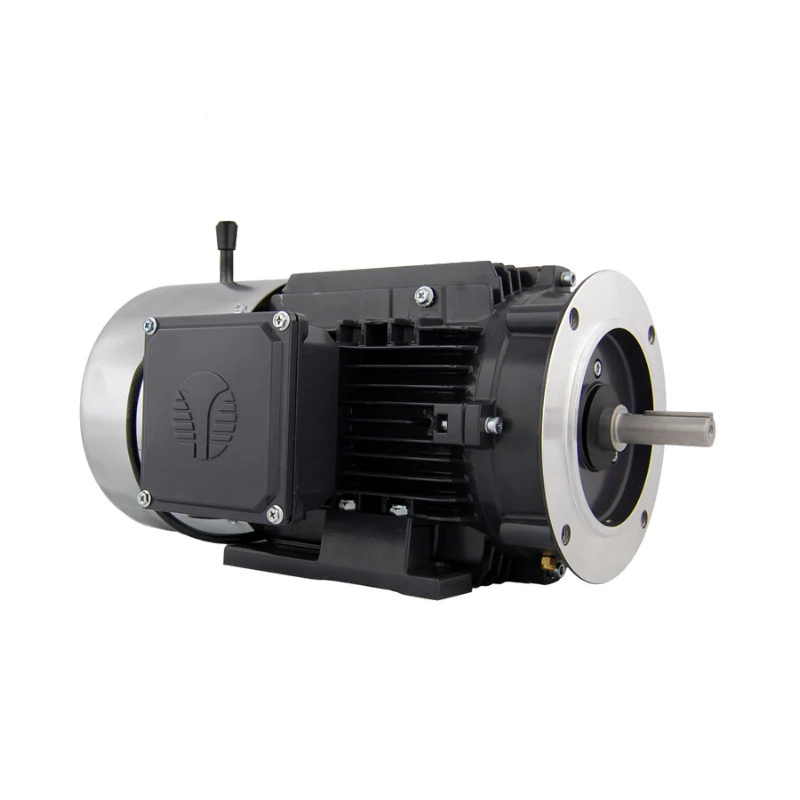

Pictured motor is an example only, product appearance may vary.
Warranty
These three phase aluminum motors come with a 36 month warranty from TechTop that starts from date of purchase.
Features
- NEMA Premium Efficiency Design
- PTC Thermal Protection Installed
- Stainless Steel Anti-Corrosion Fan Cover
- 1.25 Service Factor with 60Hz TEFC operation
- Multi-mount Removable Feet F1, F2, F0 convertible
- Arc Arrestor Shaft Grounding Brush Installed
- Brake Kit Ready, Encoder Installation Available
- Power Ratings from 0.33 to 3 HP
- Three Phase, 2 and 4 Pole
- 60 Hz (50 Hz Capable)
- 230/460V 60 Hz (Usable at 208V)
- Totally Enclosed Fan Cooled (TEFC)
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300ft
- IP 55 Ingress Protection
- Inverter Rated 15:1 Constant Torque (1.0 S.F. on VFD Power) per NEMA MG 1 Part 31
- Class F Insulation
- Designed to Class B temperature rise
- Vacuum Pressure Impregnated Stator
- Fully Epoxy Potted Conduit Box Entry
- Conduit Box 90° rotatable
- Full Die-Cast Aluminum Frame
- Anti-microbial (tropicalization) coating on stator
- Oversized shielded bearings
- Viton Double Lip Shaft Seal
- TENV Capable at 1.0 SF
- 1045 steel shaft
- Stainless steel nameplate
- Corrosion resistant Blue Zinc hardware
- Class 1, Division II, Groups A, B, C and D Compliant*
- Powder Coated RAL7024 - Graphite Gray
- 36 Month Warranty from Purchase Date
* Requires removal of internal Grounding Brush. Note requirement on your order.
Specifications
- 2 HP Three Phase Cobra Line Aluminum Electric Motor
- TEFC
- NEMA Premium
- Voltage: 230/460V 60HZ
Available in the following options:
| MPN & DATA SHEET | RPM | FRAME | TYPE | LBS |
|---|---|---|---|---|
| CB3-AL-TF-56C-2-B-D-2 | 2 Pole (3600) | 56C | C-Face | 27 |
| CB3-AL-TF-56HC-4-B-D-2 | 4 Pole (1800) | 56HC | C-Face | 42 |
