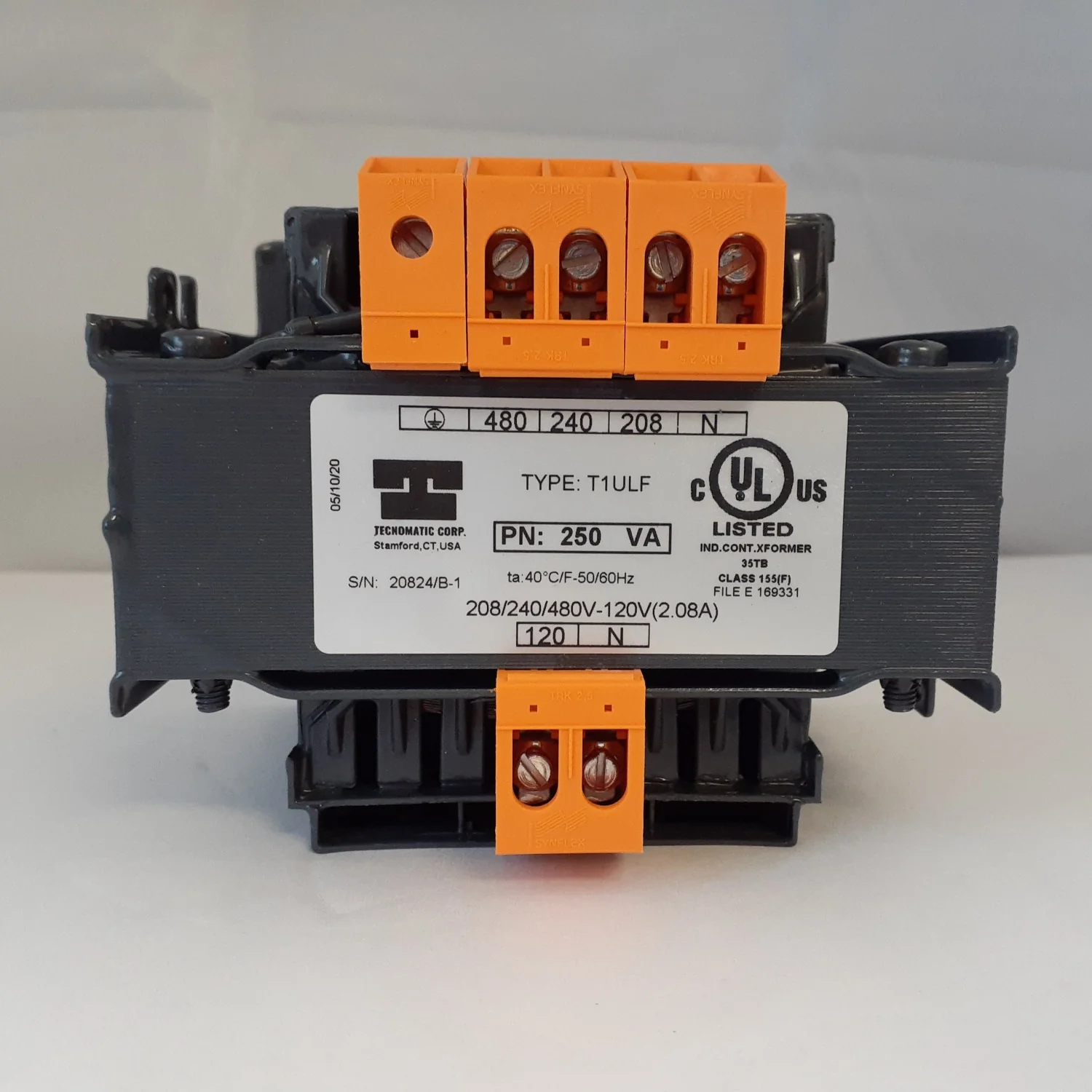

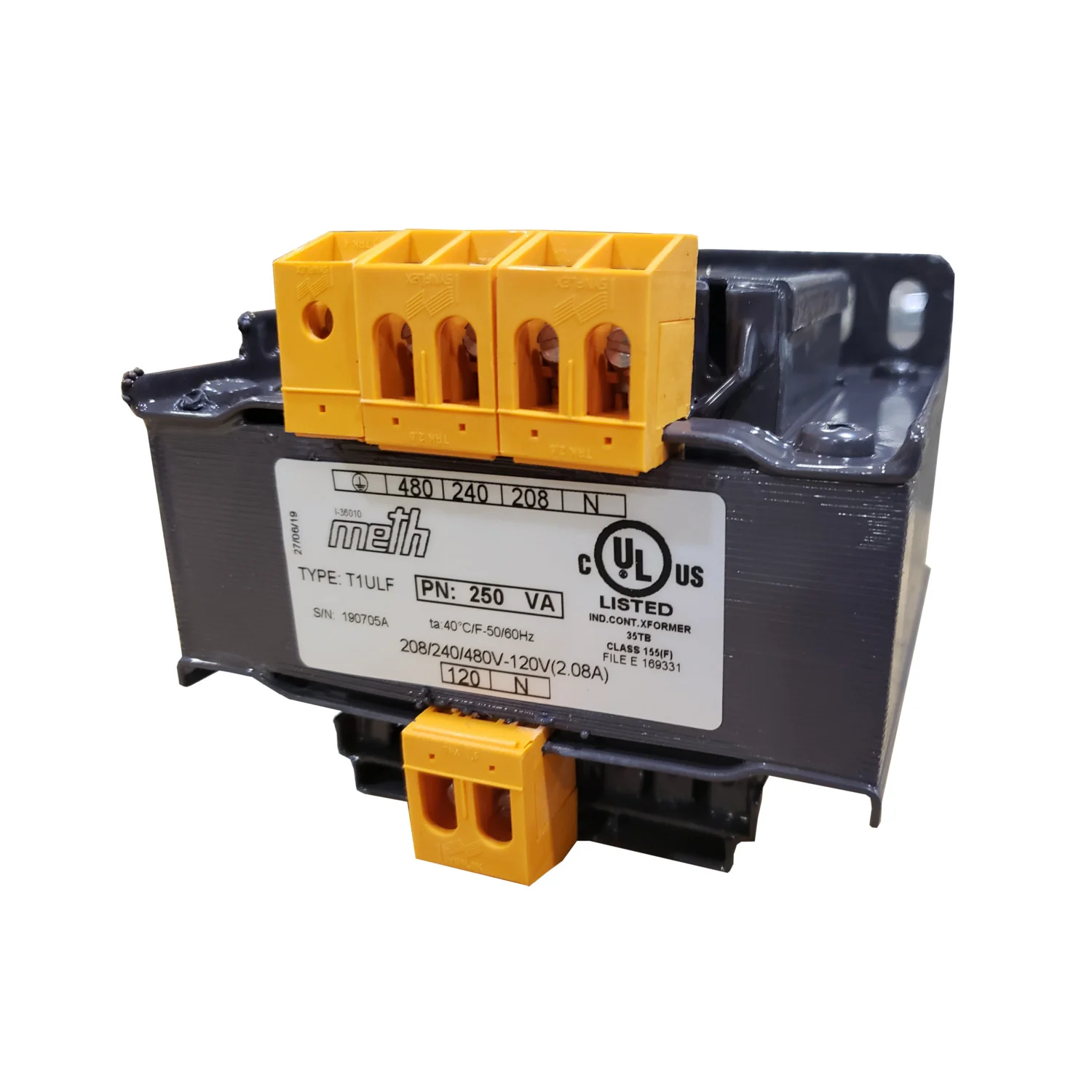

Tecnomatic Panel Mount T1ULF Multi Voltage Control Transformer 250VA, Single Phase, UL Listed

Tecnomatic Multi Voltage Control Transformer 250VA - Meth T1ULF Panel Mount Single Phase Transformer UL Listed Primary 480V,240V,208V Secondary 120VAC

Application:
Isolating transformer with secondary voltage > 50 V
Safety transformer with secondary voltage ≤ 50 V
They are suitable for any industrial/civil use for the electrical isolation of
the input and output sides.

Data Sheet: Meth T1ULF Transformers

Technical specifications:
Input voltage: 100-600V Primary 480V,240V,208V / Secondary 120VAC.
Output voltage: 12-600V
Insulation class: ta= 40°C/B (UL: ta=40°C/F)
Insulation system: UL-CSA – class F
Protection degree: IP00
Ambient temperature: 40°C
Type of termination: terminal blocks
Insulation voltage: 4kV

Tecnomatic introduced Meth transformers to the US market 20 years ago. Meth Srl has designed and manufactured electric transformers since 1980. With 40 years of experience, Meth’s focus has been on Quality and Performance.
Since 1998 Meth has acquired multiple national and international certifications, the result of continuous efforts in updating the product line to meet the demand
for worldwide standards.
