Teledyne 465H Process Ozone Monitor

Teledyne 465H Process Ozone Monitor

*Please inquire about lead times prior to purchasing.*

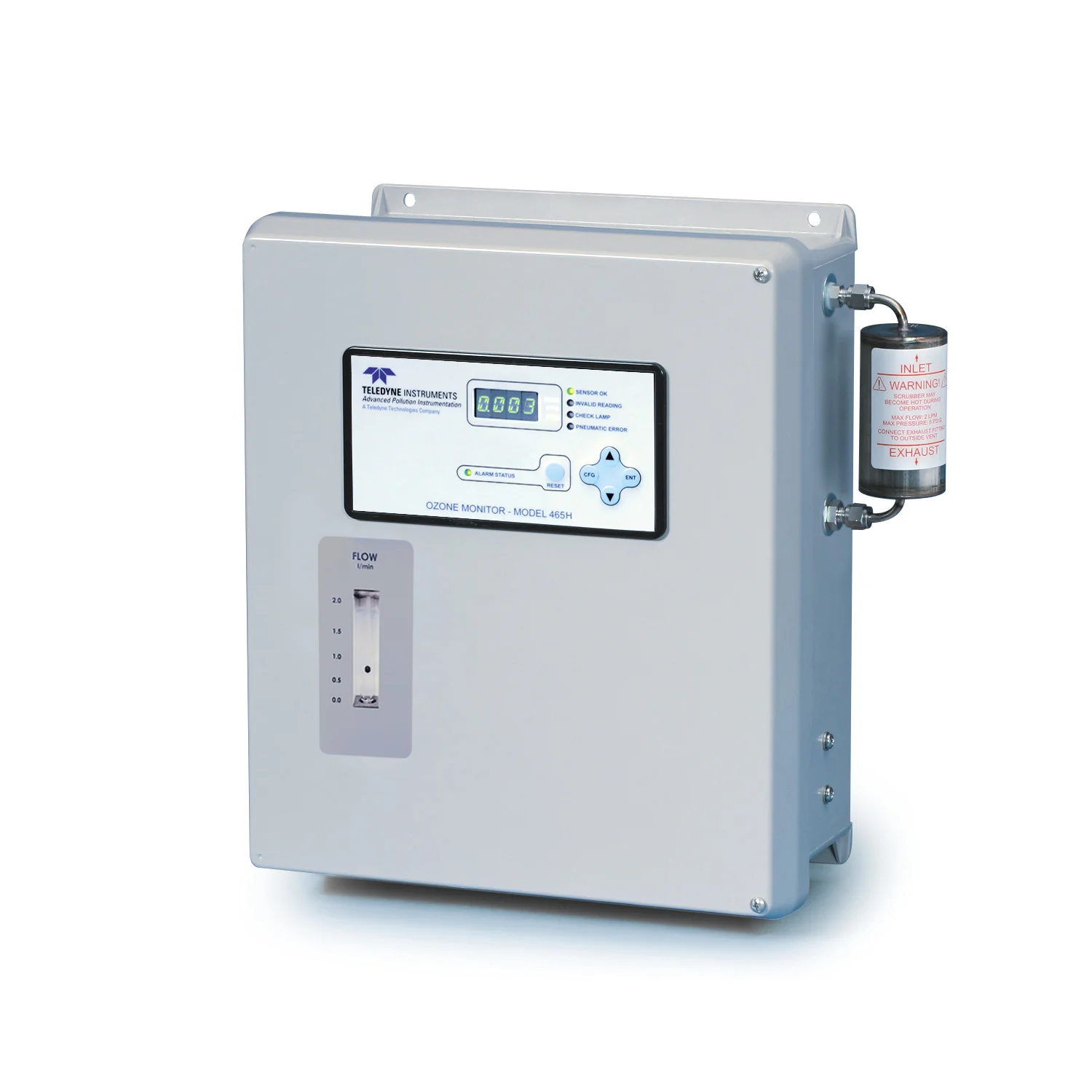

The Model 465H is a microprocessor based high concentration ozone monitor for measuring ozone in process gas streams in water treatment, food processing, and research applications.  The 465H has been designed to give accurate and stable readings over long time periods with little or no maintenance or calibration.  The Model 465H is available in a NEMA 4X wall mount enclosure.

The sensor module contained in the Model 465H uses detectors which have a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity.  Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV lamp intensity.  This unique design provides a sensor which will operate for extended periods without calibration or maintenance.

Built-in diagnostics provide warning signals in case operating parameters are out of range.  Test values can be viewed while the Model 465H is operating.  These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. In addition, any function that can be set or monitored from the front panel can be remotely set or viewed through the bi-directional RS-232 port.

Specifications:

Measurement Principle
 UV Absorption (Beer Lambert Law)
 Ranges
 0-5% w/w to 0-25% w/w
0-100 g/Nm3 to 0-400 g/Nm3
 Measurement Units
% w/w, g/Nm3
​​​​ Accuracy
 ​± 1% of full scale
 Precision/Repeatability

± 0.5% of full scale​​
 Display Resolution
 0.01% w/w, 0.1 g/Nm3
 Response Time
 < 30 seconds to 95%
 ​Compensation
 Pressure, Temperature
(NTP = 273.15K, 760mmHg)
 ​​Gas Inlet Pressure Range
 3.0 - 30.0 psig​
 Gas Flow R​ate
 0.2 - 2.0 LPM
 Temperature Range​ 5 - 45°C
 Dimensions (H x W x D)

NEMA 4X – 16.85" (428 mm) x 15.60" (396 mm) x 6.90" (175 mm)
 ​Weight NEMA 4X – 15.0 lbs (6.8 kg)
 Power 110-240V, 50/60Hz, 74W
 Analog Output
 0-5V or 4-20mA isolated output
 Status Outputs System OK, Invalid Reading, UV Lamp Fault
 RS-232 (Optional RS-485)

57.6 Kbaud, DB-9 connector
 ​Degree of Protection (NEMA)
 IP65 (NEMA 4X)​
 Approvals CE



Features:

  • UV Absorption Method
  • Microprocessor controlled
  • Menu driven software
  • Ranges 0-5 to 0-25% w/w
  • Built-in diagnostics
  • Self-check warning alarms
  • Fast response times
  • Minimal zero drift
  • Programmable auto-zero function included
  • Programmable concentration alarms
  • Temperature and pressure compensation (standard)
  • Optional Ethernet
