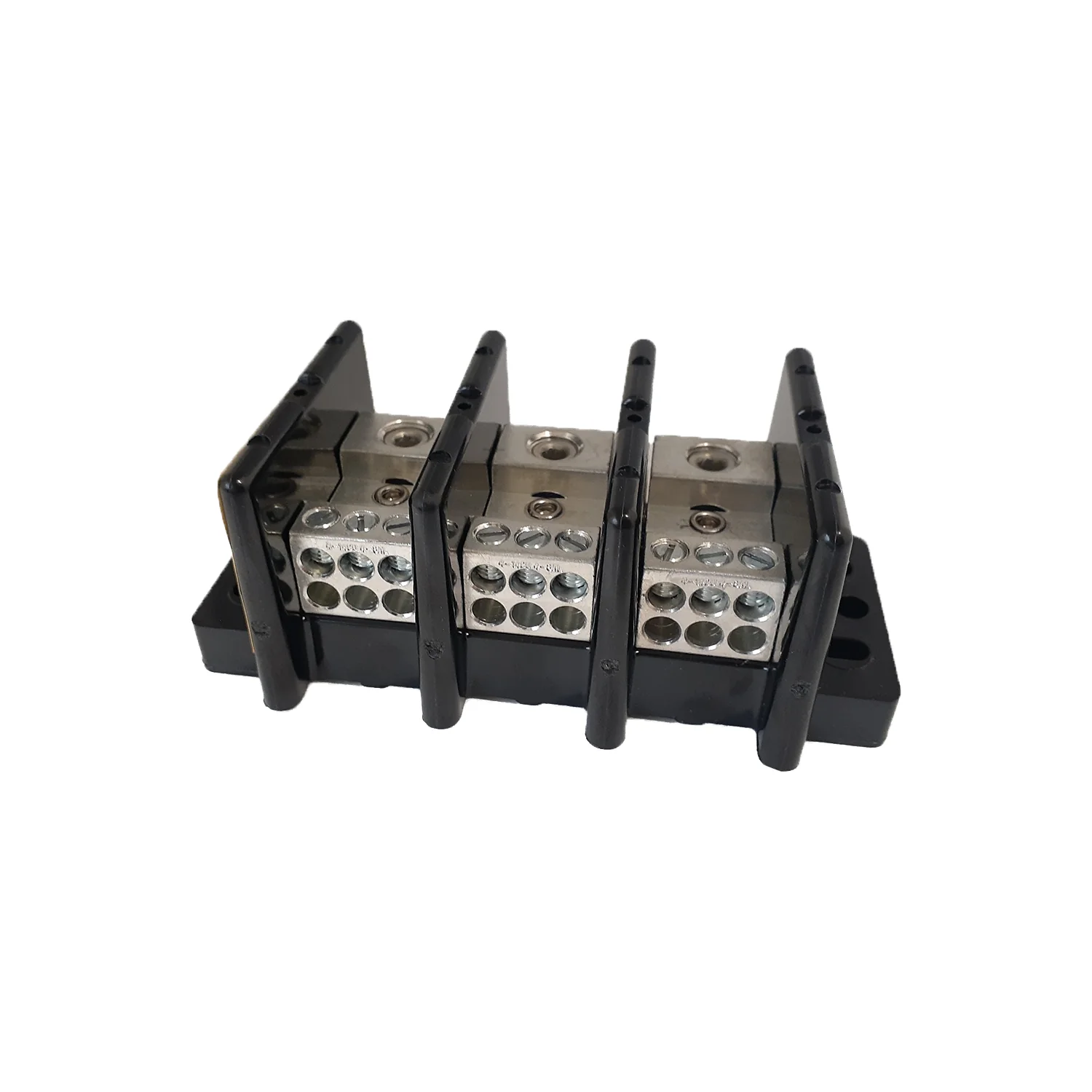

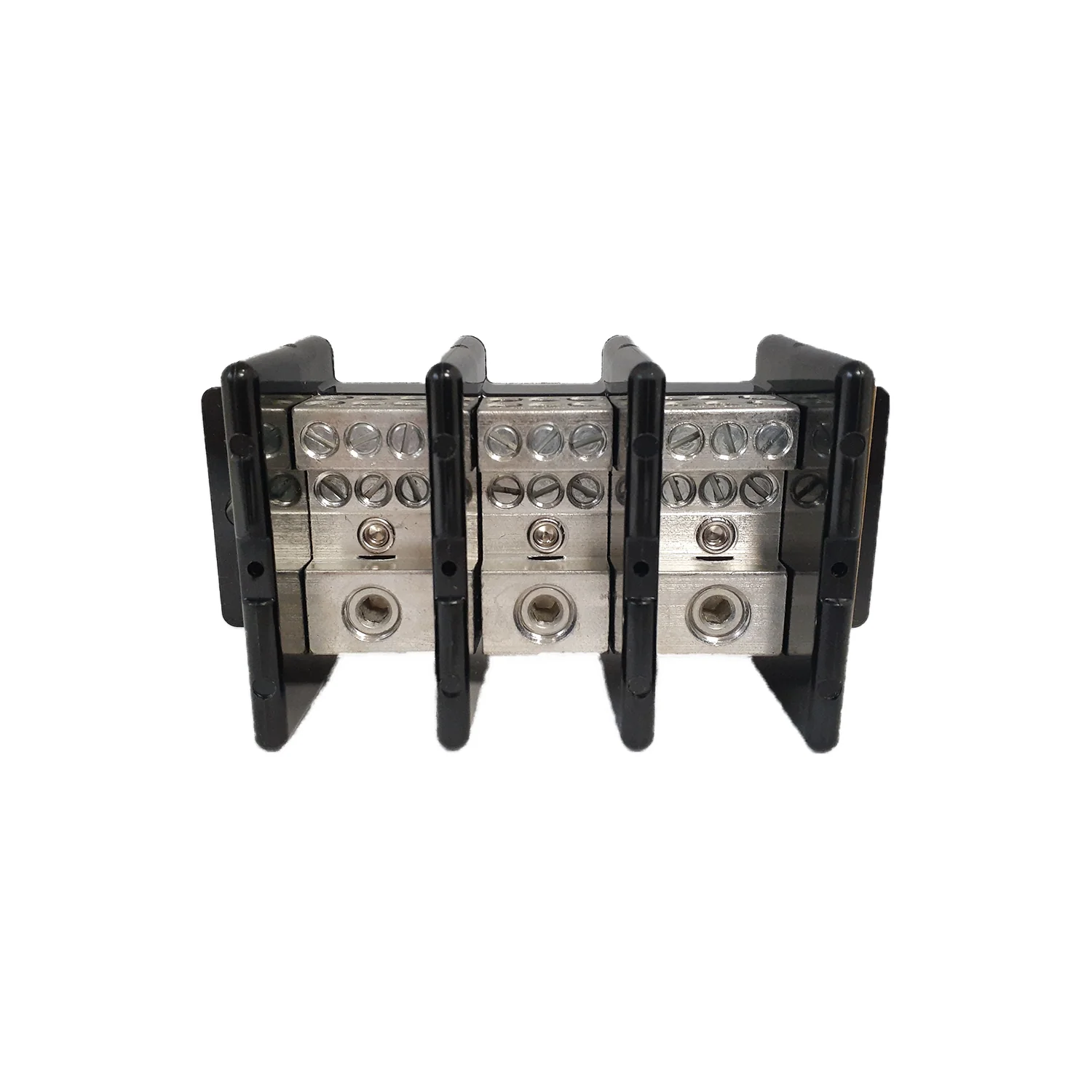

Bussmann 16021-3 Power Distribution Block
Bussmann 16021-3 Power Distribution Block. 600VAC/VDC, 175A, 3-pole, Black, Molded Thermoplastic
Max. Amps: 175 A
Primary Wire Range (AWG): 14 to 2/0 AWG CU, 8 to 2/0 AWG AL
Secondary Wire Range (AWG): 14 to 4 AWG CU, 8 to 4 AWG AL
Power Distribution Block Design: Open
Voltage Rating: 600V AC/DC
Width: 5.37 in
Length: 2.8 in
Standards: CSA Class 6228-01, UL 1059
Depth: 2.12 in
Length (Straight Wireway): 2.8 in
Number of Circuits: 3
Load Side Wire Range: 14 AWG - 4 AWG
Load Side Connection Type: Lug
Maximum Operating Temperature: 248 Degrees F
Minimum Operating Temperature: -4 Degrees F
For Conductor Material: Aluminum, Copper
RoHS Compliant: Yes
Original: $189.99
-65%$189.99
$66.50
Description
Bussmann 16021-3 Power Distribution Block. 600VAC/VDC, 175A, 3-pole, Black, Molded Thermoplastic
Max. Amps: 175 A
Primary Wire Range (AWG): 14 to 2/0 AWG CU, 8 to 2/0 AWG AL
Secondary Wire Range (AWG): 14 to 4 AWG CU, 8 to 4 AWG AL
Power Distribution Block Design: Open
Voltage Rating: 600V AC/DC
Width: 5.37 in
Length: 2.8 in
Standards: CSA Class 6228-01, UL 1059
Depth: 2.12 in
Length (Straight Wireway): 2.8 in
Number of Circuits: 3
Load Side Wire Range: 14 AWG - 4 AWG
Load Side Connection Type: Lug
Maximum Operating Temperature: 248 Degrees F
Minimum Operating Temperature: -4 Degrees F
For Conductor Material: Aluminum, Copper
RoHS Compliant: Yes
