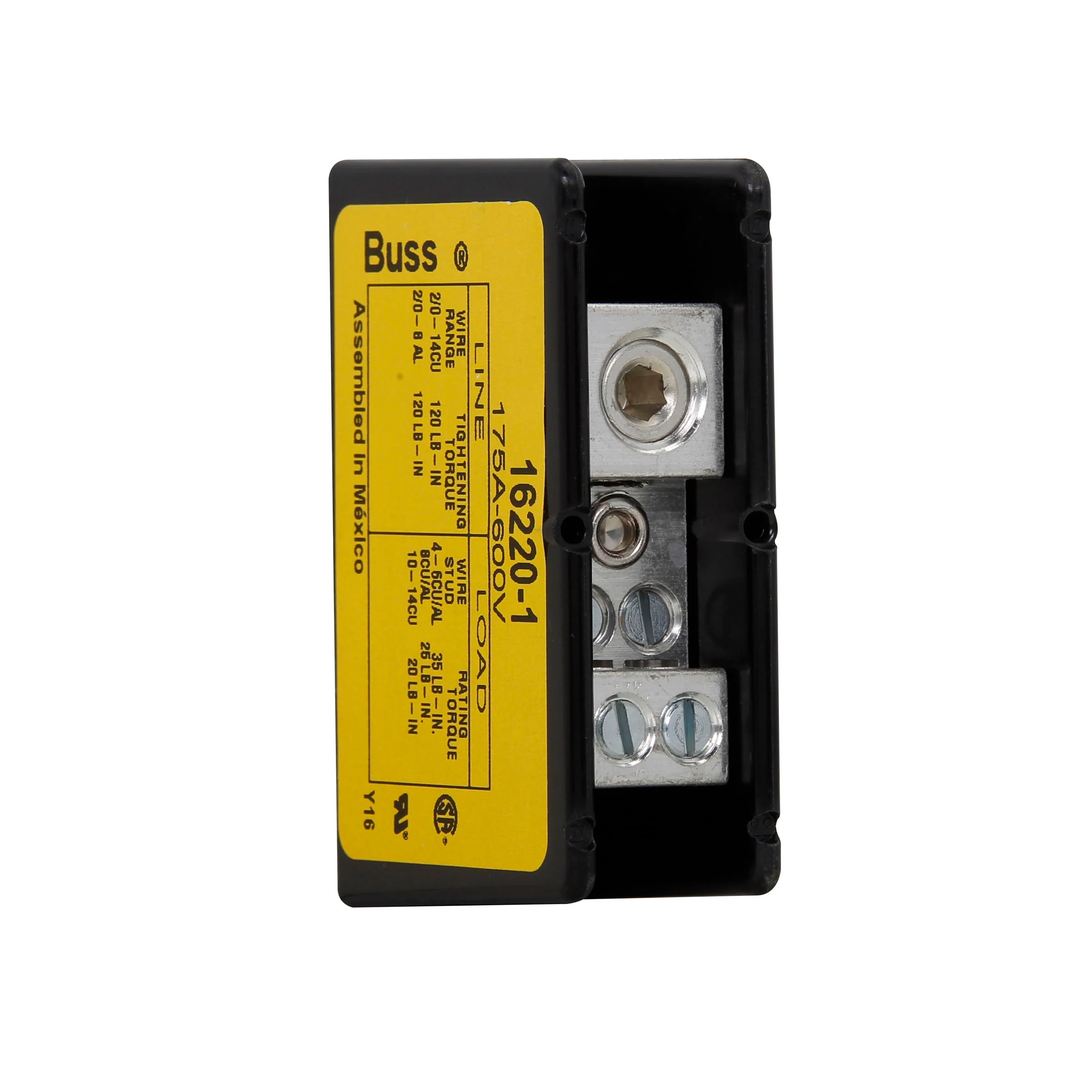

Bussmann 16220-1 Miniature Distribution Block

Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 175A, Power distribution block, Single-pole, Black, Molded Thermoplastic

Power Distribution Block Design: Open
Line Side Connection Type: Lug
Load Side Connection Type: Lug
Overall Depth: 2 in
Overall Width: 1 in
Overall Length: 3 in
Maximum Voltage: 600 V AC/DC
Number of Poles:1
Line Connections/Pole:1
For Minimum Line Wire Size:14 AWG
For Maximum Line Wire Size:2/0 AWG
Load Connections/Pole:4
For Conductor Material:Aluminum; Copper



These blocks have an open design that allows unrestricted access to the terminals. They have a lug termination design that tightens onto the ends of stripped wires with wrenches or screwdrivers.
