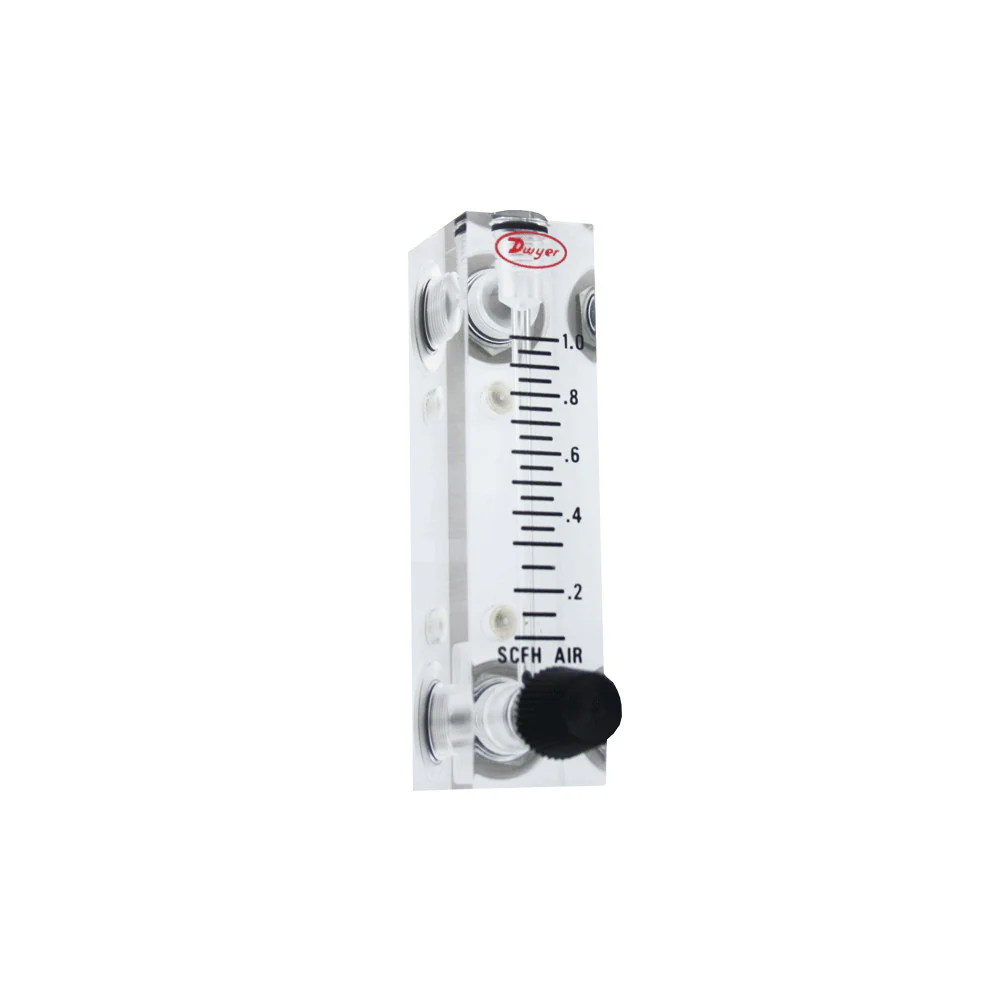

Dwyer VFA-21 Visi-Float® Acrylic Flowmeter, 0.06-0.5 LPM Air, Stainless Steel Valve

VF Series Visi-Float® Acrylic Flowmeter, 0.06-0.5 LPM Air, Stainless Steel

SERIES VF VISI-FLOAT® ACRYLIC FLOWMETER
Hot-Stamped Scales, Multi-Angle Views of Flow
The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining.

• Service: Compatible gases and liquids.
• Wetted Materials:
  Body: Acrylic plastic;
  O-ring: Buna-N (fluoroelastomer available);
  Metal parts: Stainless Steel
  Float: Stainless Steel
• Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
• Accuracy: VFA = 5% of FS; VFB = 3% of FS.
• Process Connection:1/8" female NPT.
• Scale Length: VFA 2" typical length
• Mounting Orientation: Mount in vertical position.
