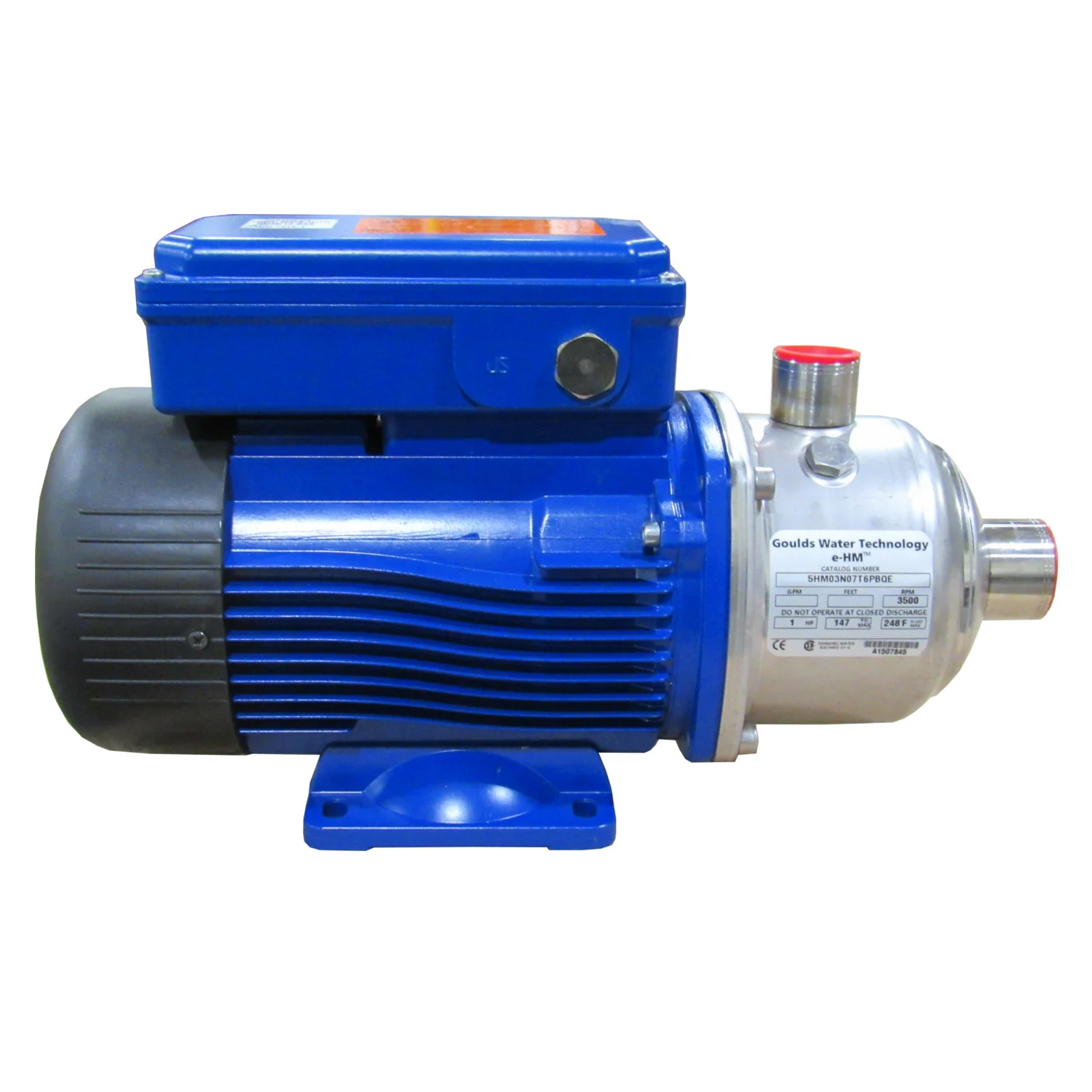

Goulds 1HP Horizontal Multi Stage Centrifugal Pump - 5HM03N07T6PBQE
Goulds 5HM03N07T6PBQE 1HP Multi Stage Centrifugal Pump 3 Phase 208-230/460V
The eHM series of horizontal multi-stage pumps designed expressly for commercial and industrial use. The e-HM uses the market-proven hydraulics of the e-SV, which helps the e-HM offer market leading efficiency. The high-efficiency motor means that you can use less pump for more performance. The standard balanced impeller reduces axial thrust 40%, therefore; extending motor bearing life. The e-HM also boasts a 20% increase in body thickness enhancing durability, and further reducing life cycle costs. This pump is specifically designed for industrial washing and cleaning, food and beverage, industrial refrigeration, water treatment, and OEM custom applications
Specifications:
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
5HM03N07T6PBQE
|
|
Type
|
Horizontal, Multi-Stage Centrifugal Electric Pump
|
|
Series
|
e-HM
|
|
Nominal Flow
|
33 GPM
|
|
Construction
|
316 Stainless Steel
|
|
HP
|
1
|
|
Phase
|
3
|
|
Hz Phase Voltage
|
60 3 208-230/460V
|
|
Seal Material
|
Carbon-SilCar-EPDM
|
|
Max Head
|
430 FT
|
|
Piping Connections NPT
|
1-1/4" x 1"
|
|
Max Pump Efficiency
|
70
|
|
Temp Range
|
-20F to 248F
|
|
Flow Range
|
10 - 45 GPM
|
|
Enclosure
|
TEFC
|
|
RPM
|
3500
|
Documents:
Original: $1,549.99
-65%$1,549.99
$542.50
