PRM Portable Stainless Steel Bag Filter Housing on Hand Truck, #2 Size

PRM Portable Stainless Steel Bag Filter Housing on Hand Truck, #2 Size

PRM PORTABLE STAINLESS STEEL BAG FILTER HOUSING, #2 SIZE, 100 PSI-150 PSI MAX PRESSURE

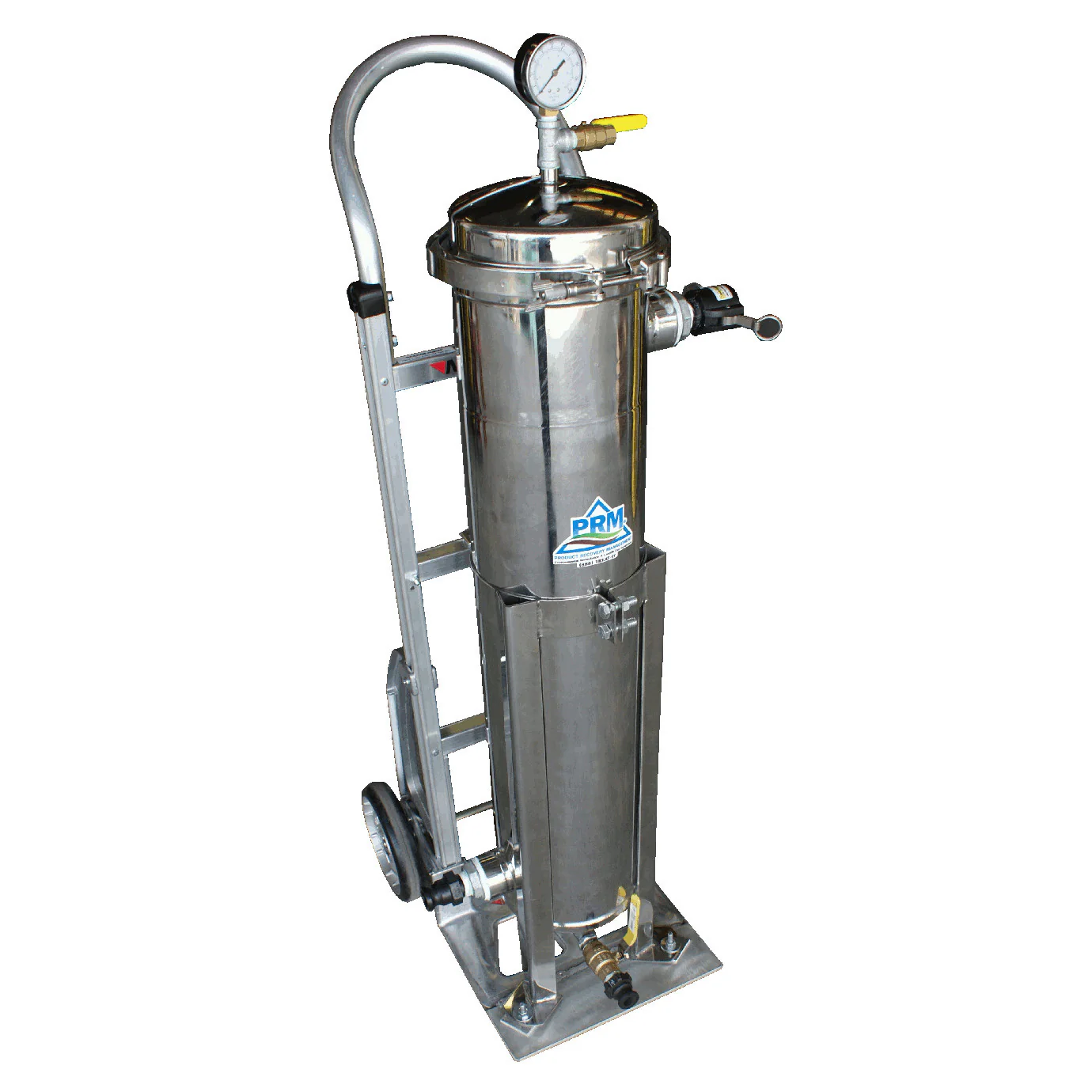

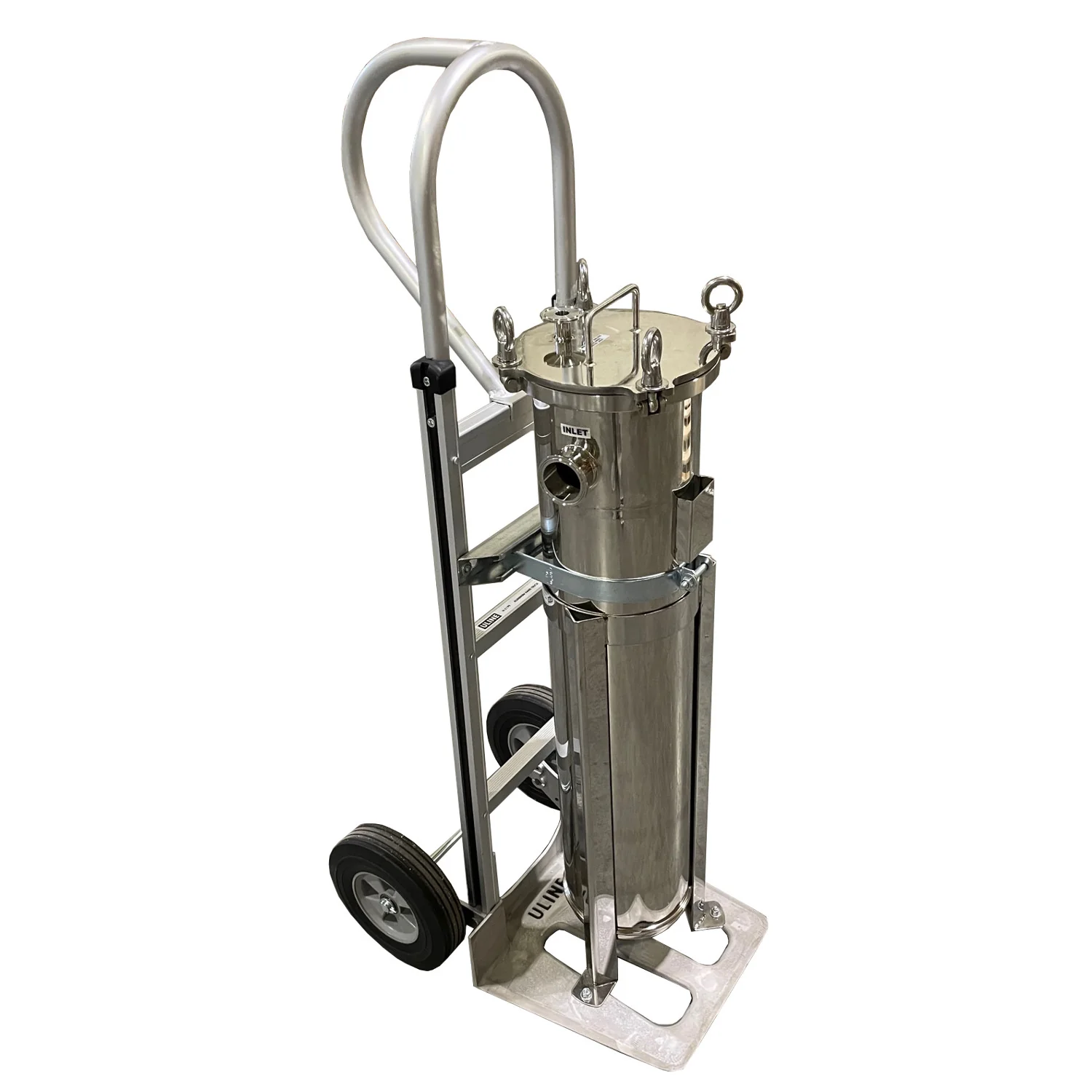

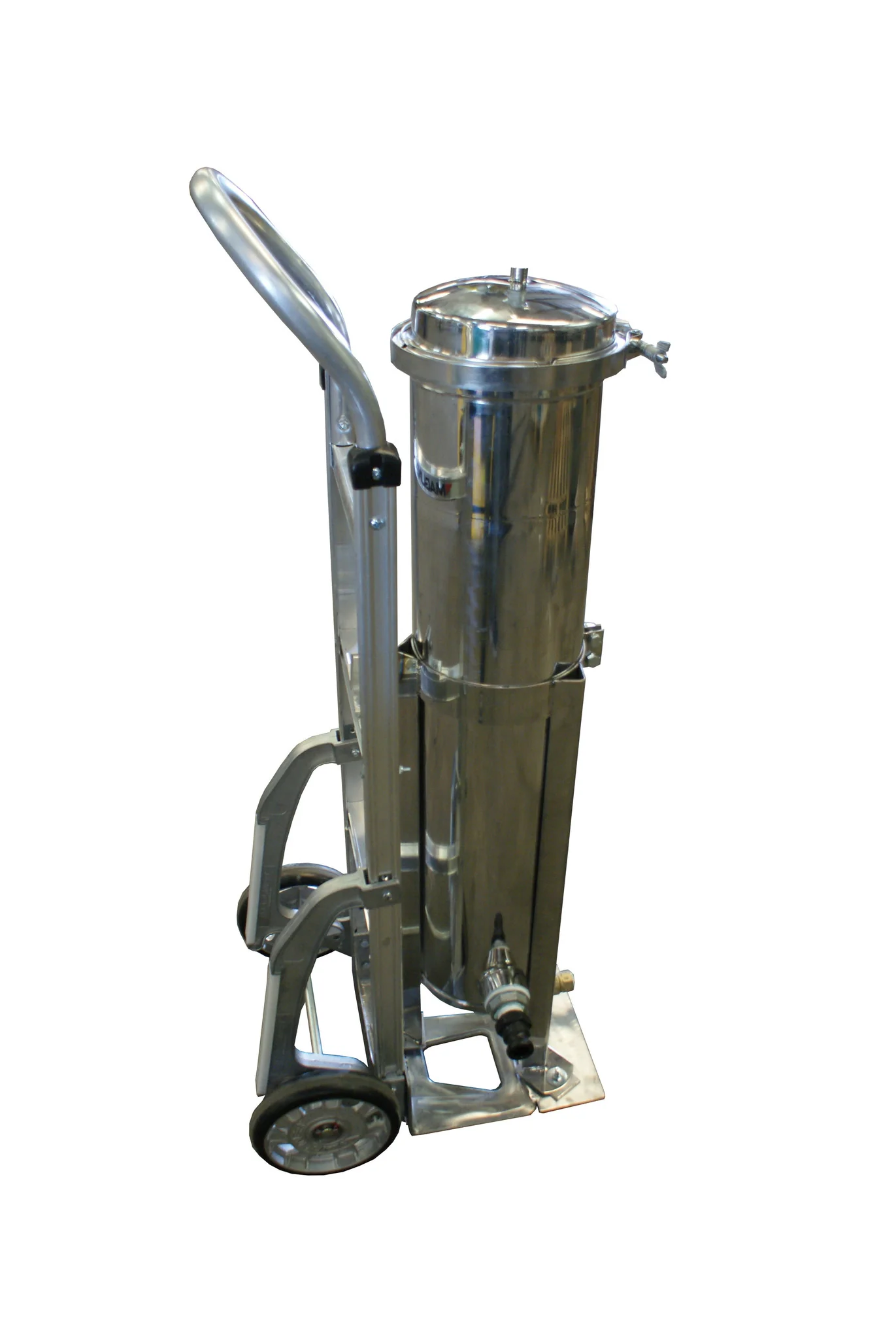

 Bag Filter Housings for remediation and industrial filtration needs. These bag filter housing units are mounted to heavy duty hand truck for easy transport or mobility around the project site. Standard units are only the housing attached to the handtruck, PRM can add accessories such as camlock fittings, bag filters and pressure gauges to meet your requirements as a small add-on.

Typical Features Include:
  • 304 or 316 Stainless Steel Construction
  • 8”x 30” Trade Size # 2 Housing
  • 2” NPT In/Out, Optional Tri-Clamp or Flanged In/Out
  • NPT and flanged housings have FKM (Viton) O-rings, Tri-Clamp housings come with EPDM orings.

  • 100 psi Maximum Working Pressure Banded Clamp Housing
  • 150 psi Maximum Working Pressure Bolt Plate Housing

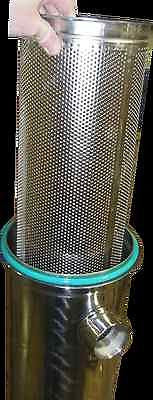

  • Stainless Steel Strainer Basket and Internal Bag Support Rack
  • Drain Port and Mounting Stand
  • Quick Opening Clamp Top
  • Safety Release Vent for Maintenance
  • Head loss is negligible with an empty housing and clean bag(s)

**Customization available on request.  The housings can be customized with 2", 3", or 4" flange assemblies.  Please contact us with special needs or requests.

Allow 2 week build time for portable unit.




** Motor freight is the best method of shipping for these units.  Please contact PRM if you have a preferred shipping method.






Select Style
From $805.00

Original: $2,299.99

-65%
PRM Portable Stainless Steel Bag Filter Housing on Hand Truck, #2 Size—

$2,299.99

$805.00
Product image 1
Product image 2
Product image 3
Product image 4

Description

PRM PORTABLE STAINLESS STEEL BAG FILTER HOUSING, #2 SIZE, 100 PSI-150 PSI MAX PRESSURE

 Bag Filter Housings for remediation and industrial filtration needs. These bag filter housing units are mounted to heavy duty hand truck for easy transport or mobility around the project site. Standard units are only the housing attached to the handtruck, PRM can add accessories such as camlock fittings, bag filters and pressure gauges to meet your requirements as a small add-on.

Typical Features Include:
  • 304 or 316 Stainless Steel Construction
  • 8”x 30” Trade Size # 2 Housing
  • 2” NPT In/Out, Optional Tri-Clamp or Flanged In/Out
  • NPT and flanged housings have FKM (Viton) O-rings, Tri-Clamp housings come with EPDM orings.

  • 100 psi Maximum Working Pressure Banded Clamp Housing
  • 150 psi Maximum Working Pressure Bolt Plate Housing
  • Stainless Steel Strainer Basket and Internal Bag Support Rack
  • Drain Port and Mounting Stand
  • Quick Opening Clamp Top
  • Safety Release Vent for Maintenance
  • Head loss is negligible with an empty housing and clean bag(s)

**Customization available on request.  The housings can be customized with 2", 3", or 4" flange assemblies.  Please contact us with special needs or requests.

Allow 2 week build time for portable unit.




** Motor freight is the best method of shipping for these units.  Please contact PRM if you have a preferred shipping method.
