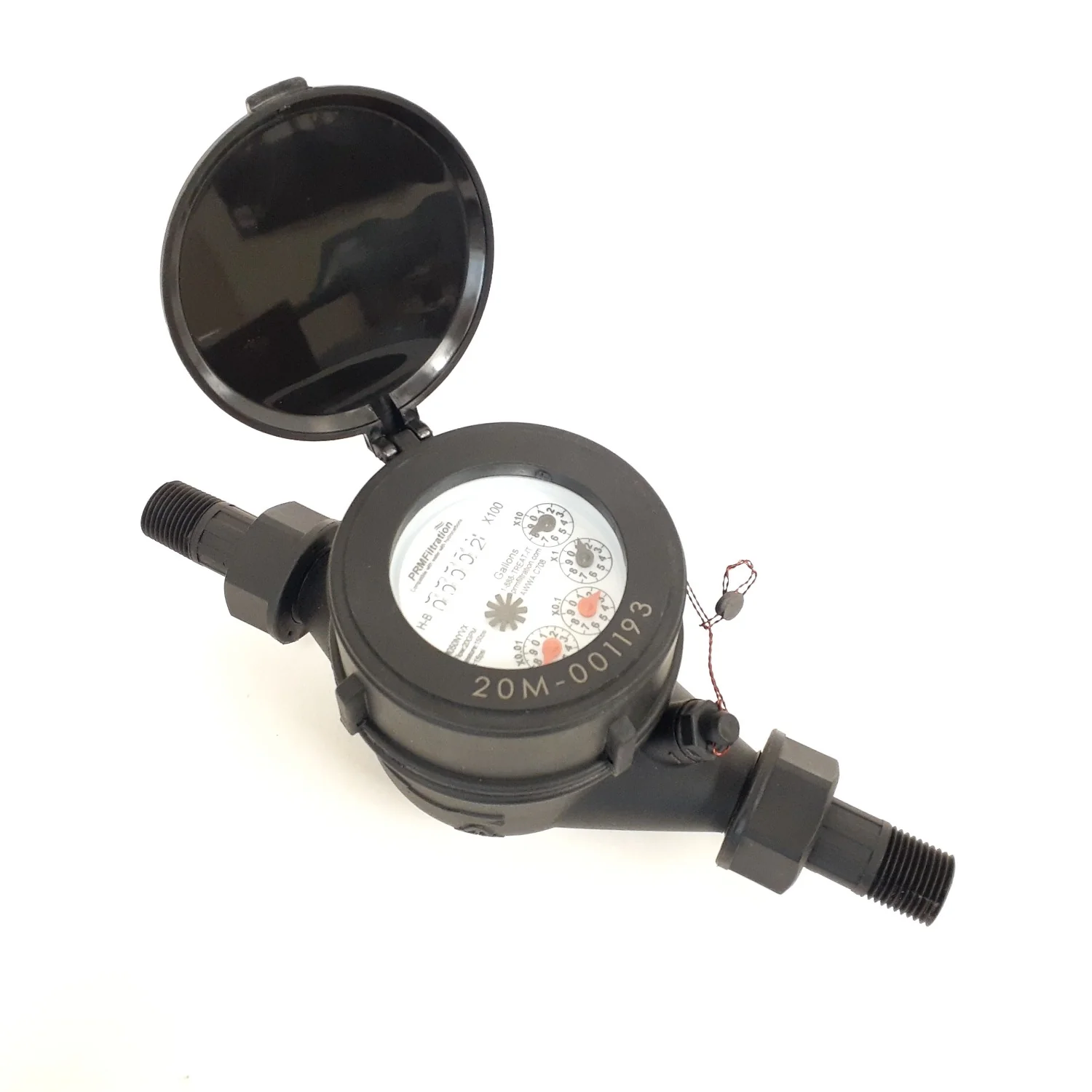

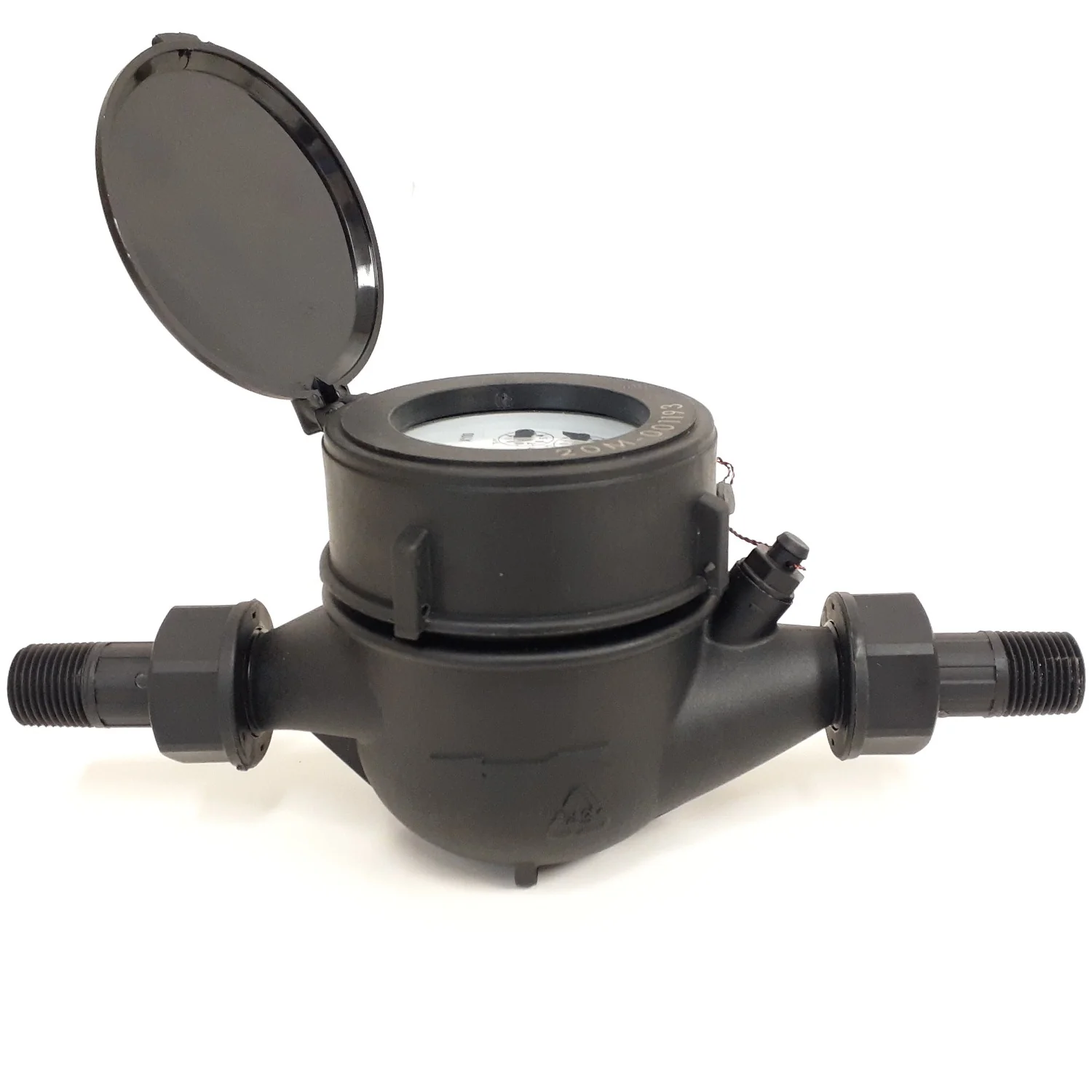

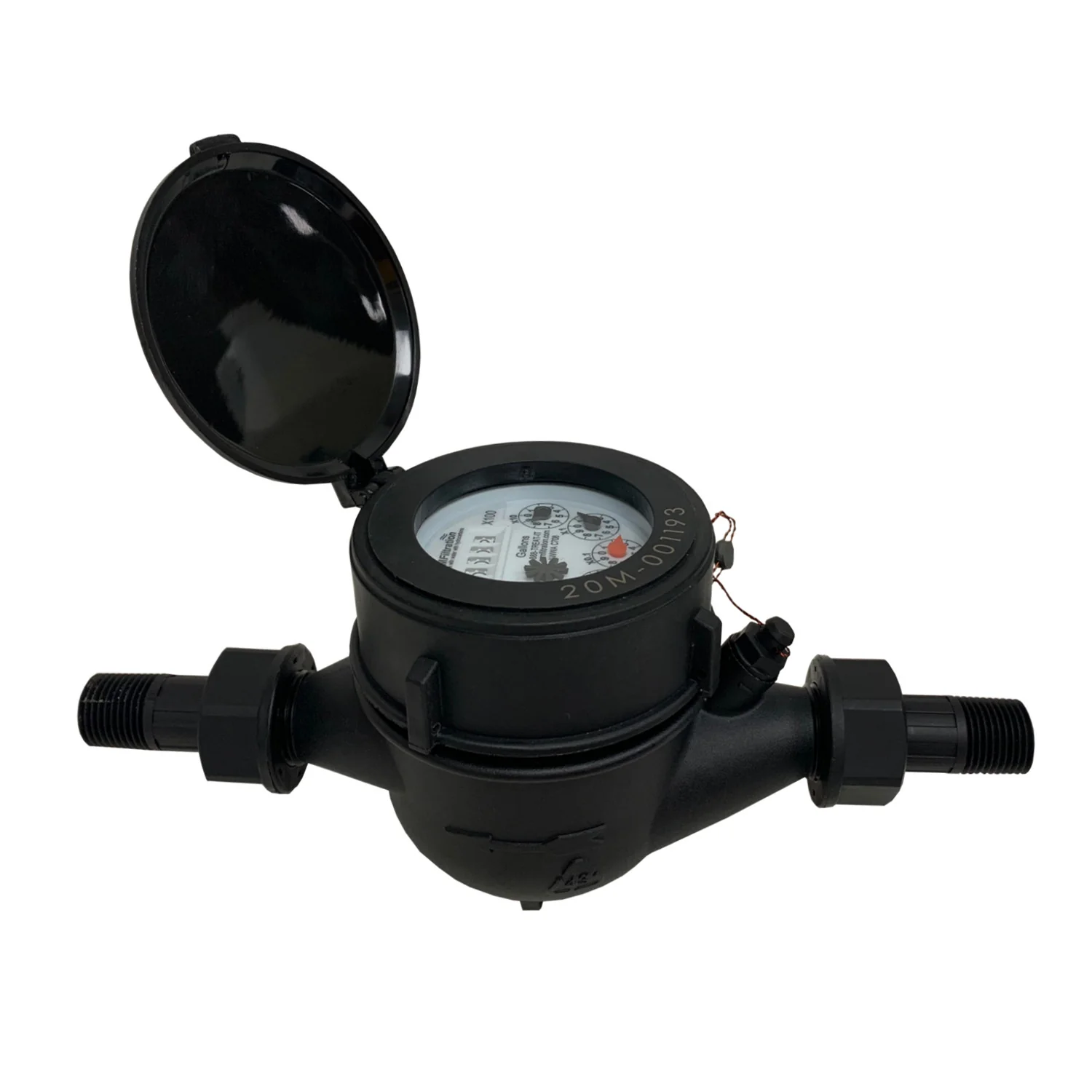

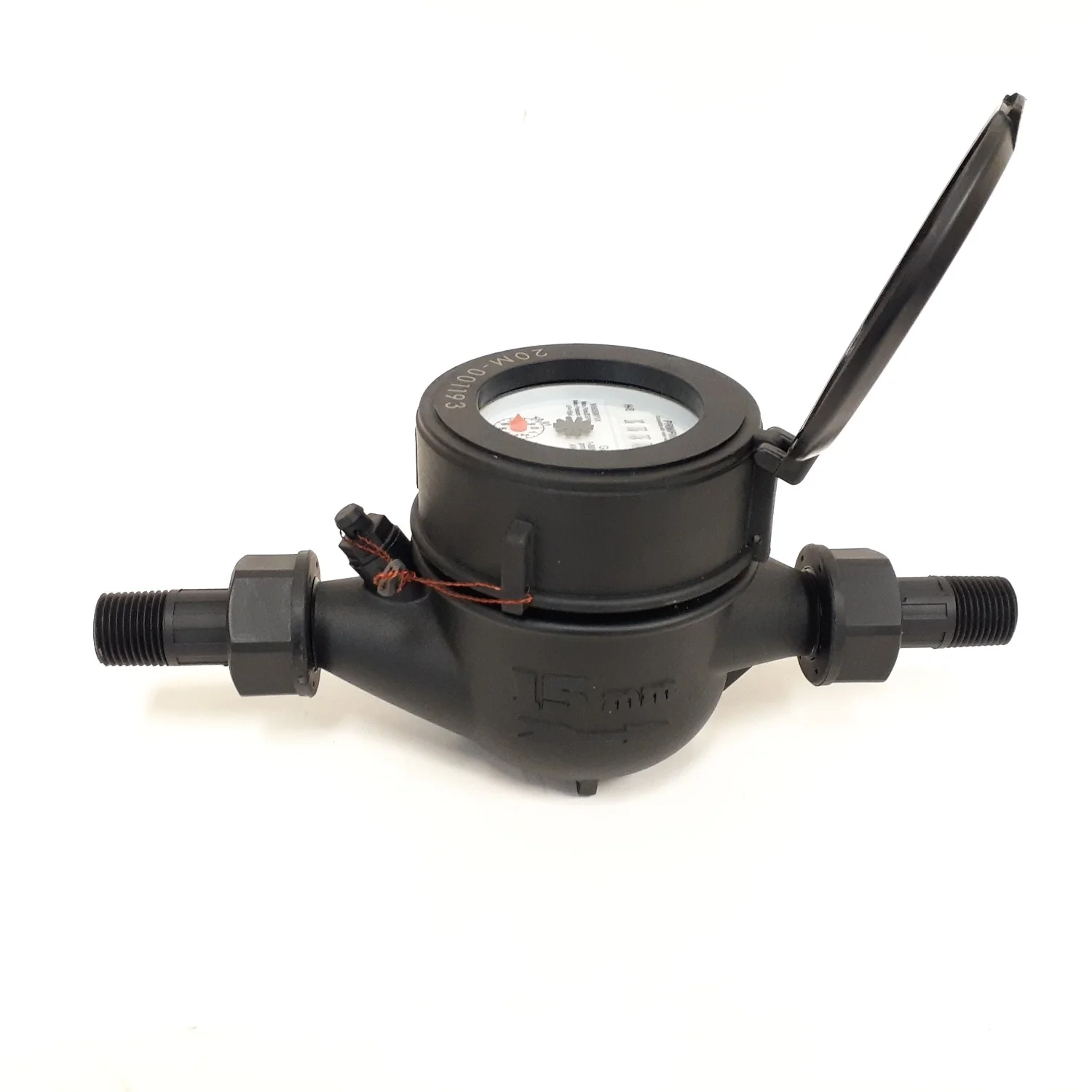

PRM 1/2 Inch Multi-Jet Nylon Totalizing Water Meter, Silicone Seals
PRM MULTI-JET WATER METERS
Multi-Jet Mechanical Water Totalizing Meters display total water usage in gallons.
Available in a 1/2 Inch and 3/4 Inch and include NPT couplings.
Type: Nylon Water Meter, 1/2" NPT Couplings at both ends, Multi-Jet.
Model: WM050NYSX
Mounting: Horizontal Inline mount with dial facing upward.
Unit: Totalizer Measuring in Gallon, GPM
Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard
Meter body: Nylon
Dimensions: 7" length(with couplings: 10.5 inches), 3.7" wide, 4.23" height.
Weight: 1.75 lbs.
Nylon Couplings Included
Max. Reading: 9,999,999, The last digit has a multiplier of 100 gallons.
Max. working pressure: 150 psi
Max temperature: 104˚F
Pressure drop: 0.580 psi @ 5 GPM, 2.750 psi @ 10 GPM
Maximum Flow Rate: 10 GPM
Maximum Continuous Flow Rate: 5 GPM
Minimum Flow Rate: 0.25 GPM
Normal Test Flow Limits: 1-10 GPM
Meters have been tested by QC inspectors in the production line to certify their quality, therefore the dial reading will not be zero.
Specifications:
Conforms to AWWA C708, for clean water only.
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Nylon
Couplings: Nylon
Measuring Chamber: Polyethylene
Seals & O-Ring: Silicone
Mounting Orientation: Horizontal
| PRM Part # | Size | Length (in.) (w/NPT adapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050NYSX | 1/2" | 10.5 | 4.25 | 1.75 lbs. | 1-10 |
| WM075NYSX | 3/4" | 11.5 |
4.25 | 1.76 lbs. | 1-20 |
Original: $29.99
-65%$29.99
$10.50
Description
PRM MULTI-JET WATER METERS
Multi-Jet Mechanical Water Totalizing Meters display total water usage in gallons.
Available in a 1/2 Inch and 3/4 Inch and include NPT couplings.
Type: Nylon Water Meter, 1/2" NPT Couplings at both ends, Multi-Jet.
Model: WM050NYSX
Mounting: Horizontal Inline mount with dial facing upward.
Unit: Totalizer Measuring in Gallon, GPM
Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard
Meter body: Nylon
Dimensions: 7" length(with couplings: 10.5 inches), 3.7" wide, 4.23" height.
Weight: 1.75 lbs.
Nylon Couplings Included
Max. Reading: 9,999,999, The last digit has a multiplier of 100 gallons.
Max. working pressure: 150 psi
Max temperature: 104˚F
Pressure drop: 0.580 psi @ 5 GPM, 2.750 psi @ 10 GPM
Maximum Flow Rate: 10 GPM
Maximum Continuous Flow Rate: 5 GPM
Minimum Flow Rate: 0.25 GPM
Normal Test Flow Limits: 1-10 GPM
Meters have been tested by QC inspectors in the production line to certify their quality, therefore the dial reading will not be zero.
Specifications:
Conforms to AWWA C708, for clean water only.
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Nylon
Couplings: Nylon
Measuring Chamber: Polyethylene
Seals & O-Ring: Silicone
Mounting Orientation: Horizontal
| PRM Part # | Size | Length (in.) (w/NPT adapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050NYSX | 1/2" | 10.5 | 4.25 | 1.75 lbs. | 1-10 |
| WM075NYSX | 3/4" | 11.5 |
4.25 | 1.76 lbs. | 1-20 |
