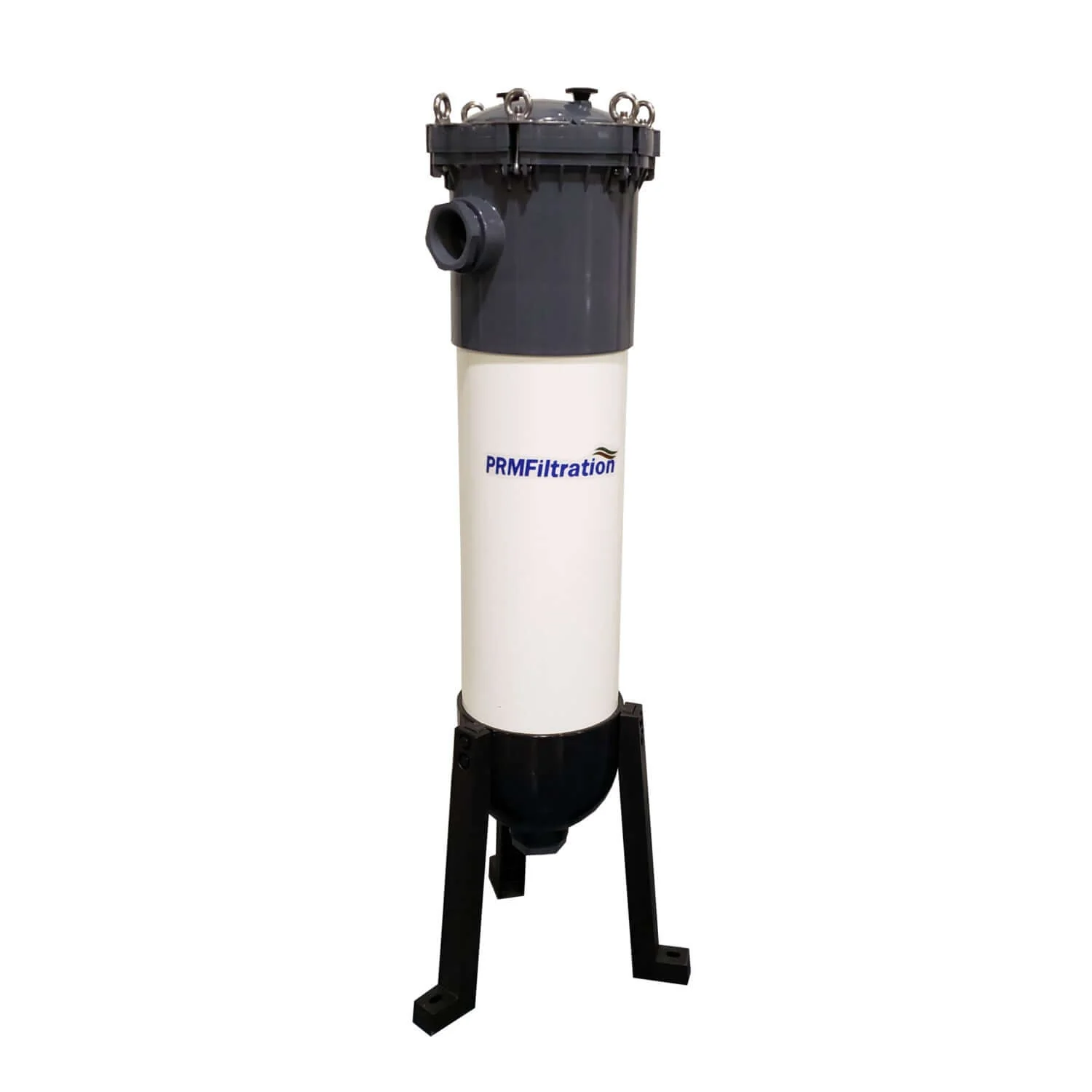

PRM #2 PVC Bag Filter Housing, 2 Inch NPT Inlet/Outlet, 100 psi

PRM #2 PVC Bag Filter Housing, 2 Inch NPT Inlet/Outlet, 100 psi

PRM offers high quality PVC constructed water filter housings for industrial filtration applications.  Bag filters are kept in stock from 1 micron to 200 micron. These housings offer an economical solution where protection of downstream or point of use equipment is required.

Features:

• PVC construction for corrosion resistance
• Uses #2 Size Liquid Filter Bags (7-1/16"Diameter x 32” Length)
• Flow Capacity 100 gpm
• 2” Inlet and Outlet FNPT Connections

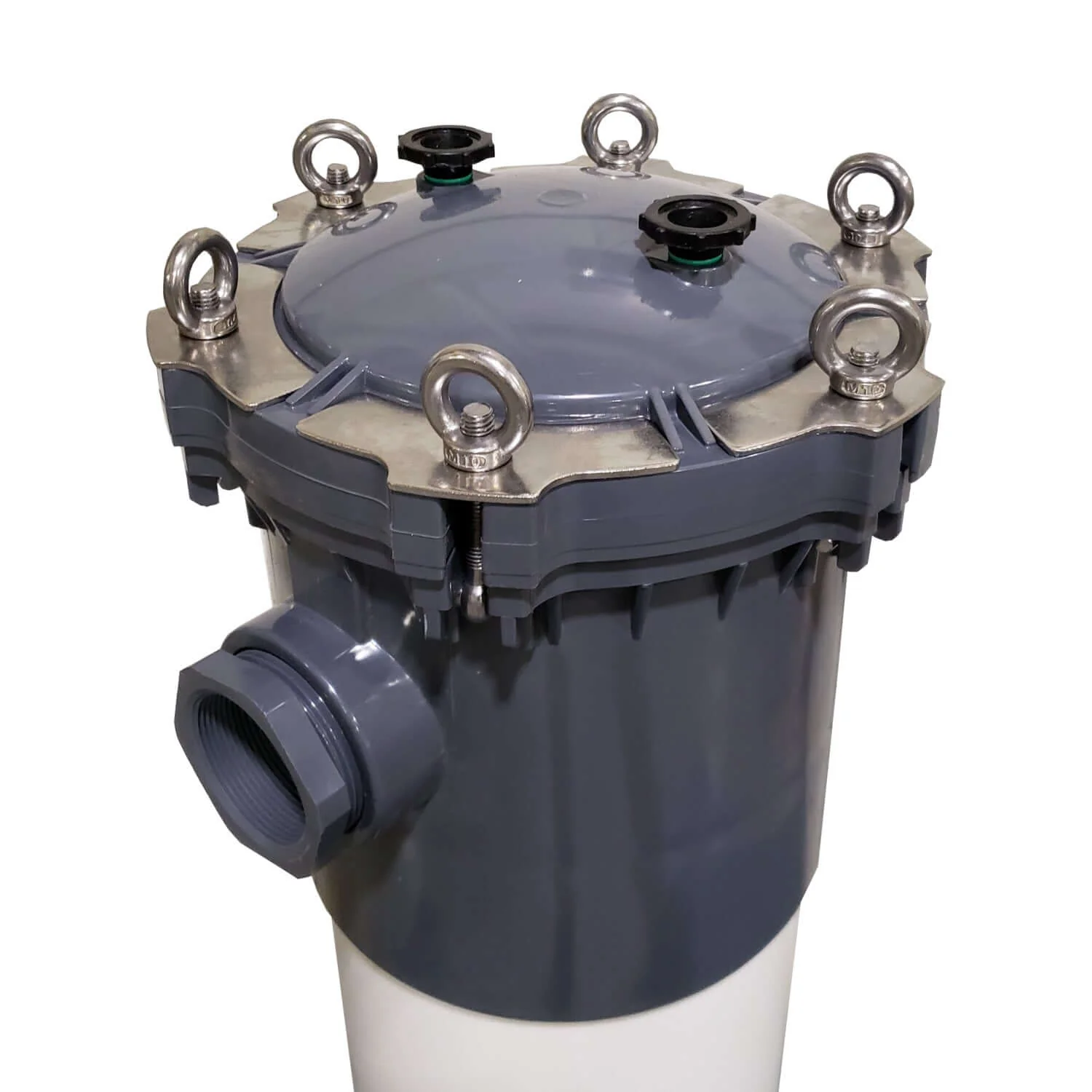

• (2) 1/4” Ports in top cover, for pressure gauge (not included) and/or venting
• Viton O-Rings
• Max. Temperature 113°F. Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.
• Max. Operating Pressure: 100 psi
• 304 Stainless Steel Lid Retention Hardware with 304 SS Eyebolts
• Head loss is negligible with an empty housing and clean bag(s)

Spare Parts for this Housing (BFHPVCBF12BXV2)
Viton O-Ring for Lid (BFHPVCBFVORLIDX)
Viton O-Rings for Inlet/Outlet (BFHPVCBFVORIOX)
Plugs for Vent Ports (1/2" MNPT W/Viton O-Ring) (BFHPVCPLSBLTPKBF12XV2)
NPT Adapters for Inlet/Outlet (BFHPVCBF12NPTADAPTXV2)
Replacement Hardware Assembly (Plates, Bolts, Pins) (BFHPVCBF12SM10BOLTSXV2)
Replacement Lid (BFHPVCBF12BLIDXV2)

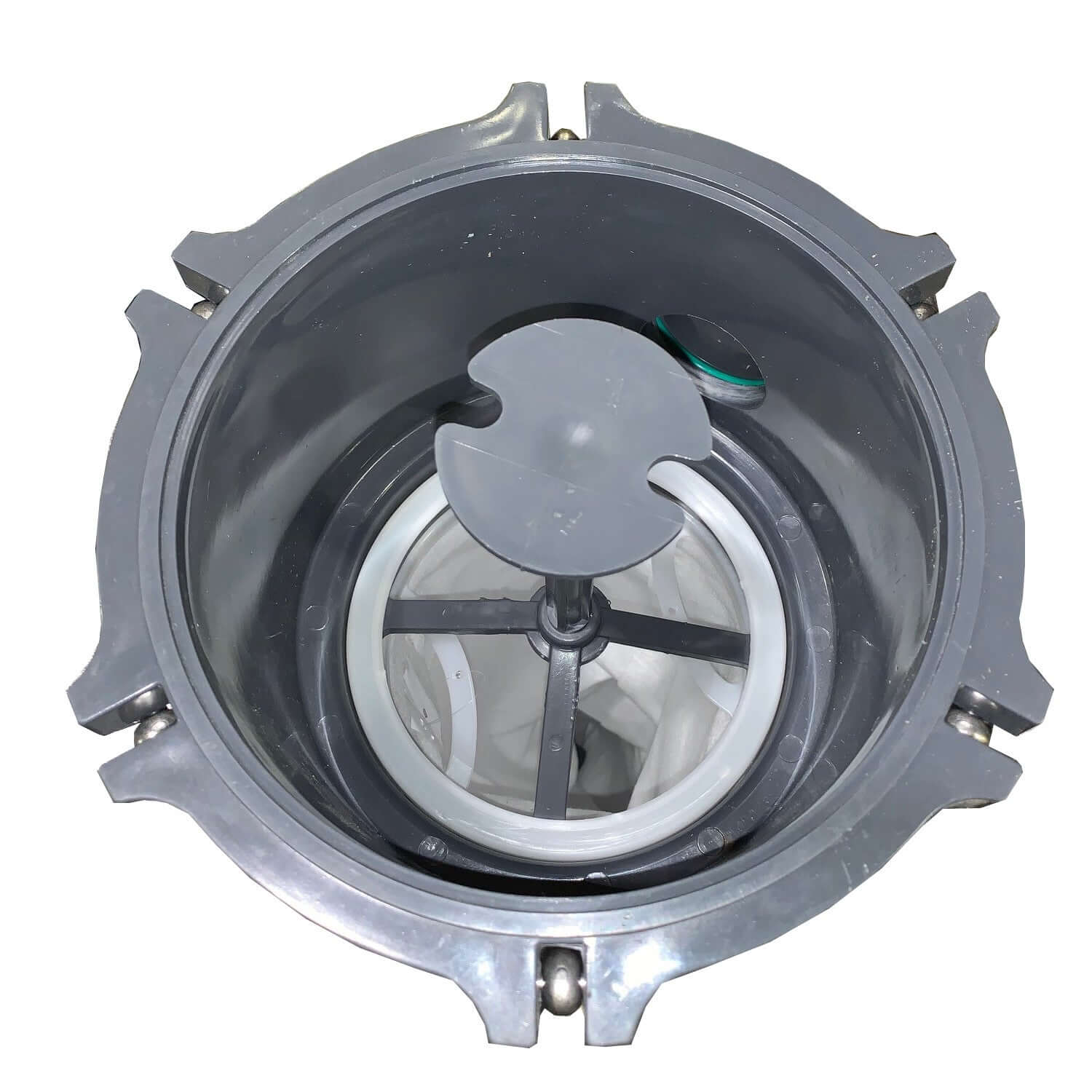

Replacement Hold Down System (BFHPVCBF12HOLDDOWNXV2)
Replacement Hold Down Retaining Ring With Viton O-Ring (BFHPVCBF12HDRRINGXV2)

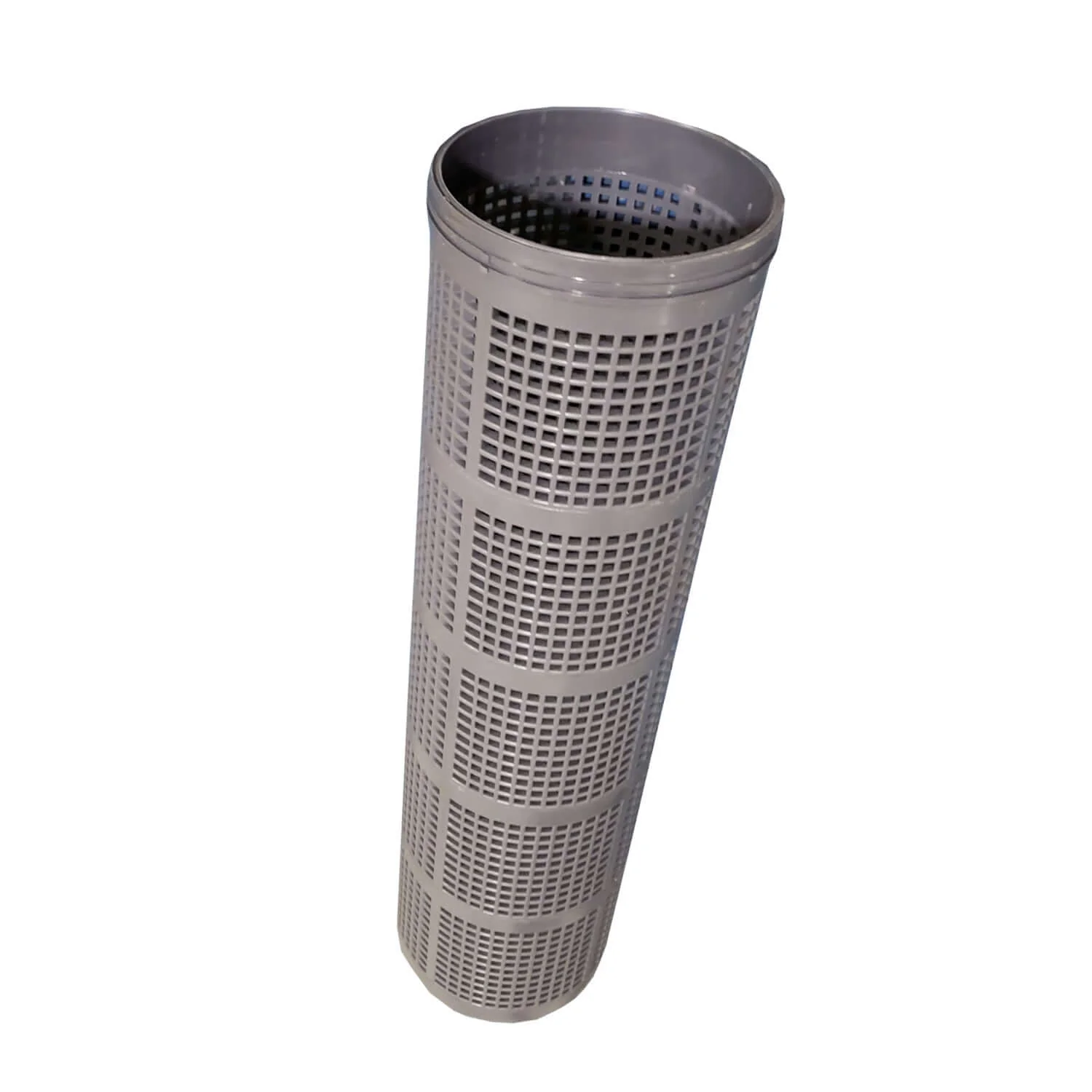

Replacement Basket Strainer (BFHPVCBF12BASKETXV2)
Replacement Legs (BFHPVCBF12BLEGXV2)
