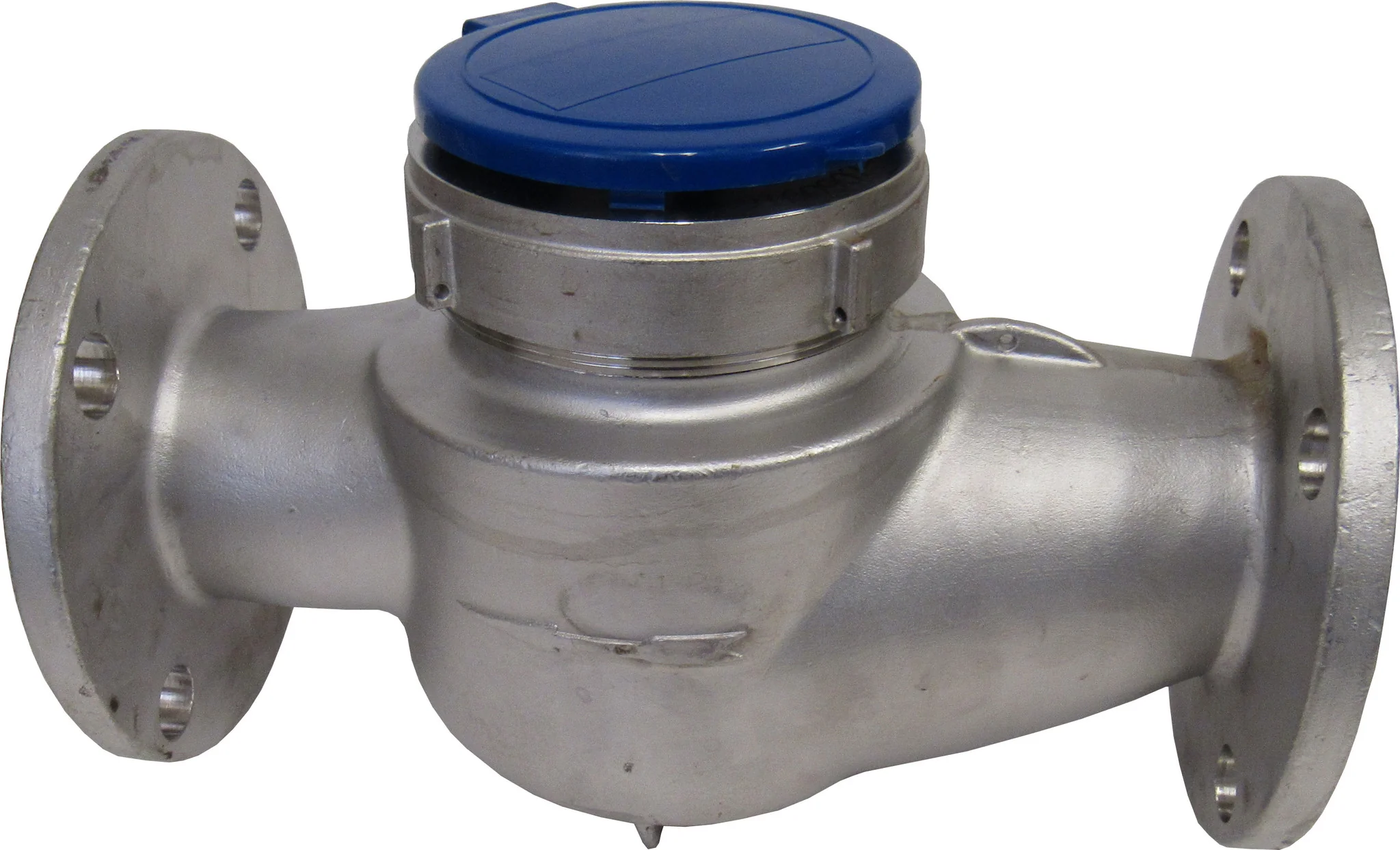

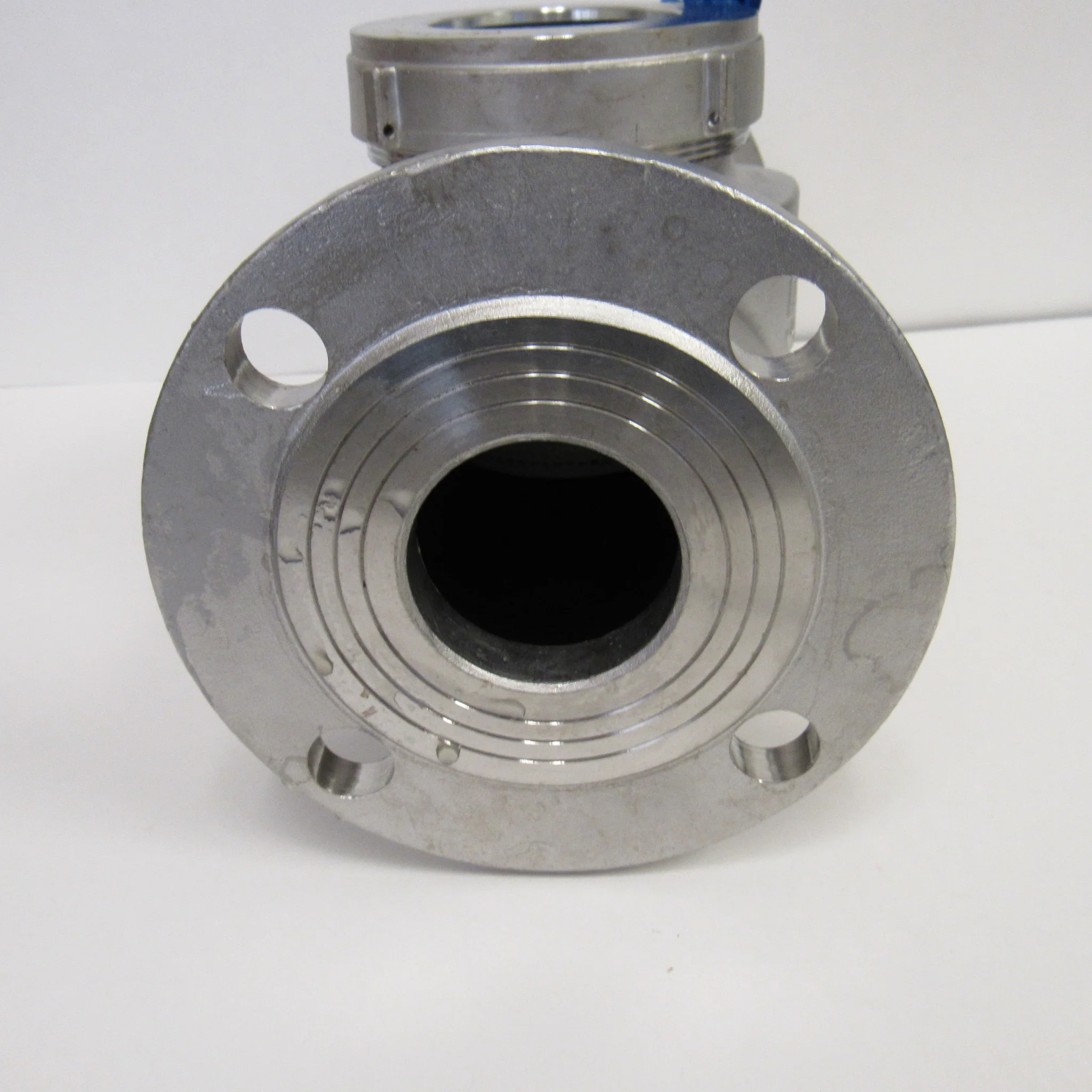

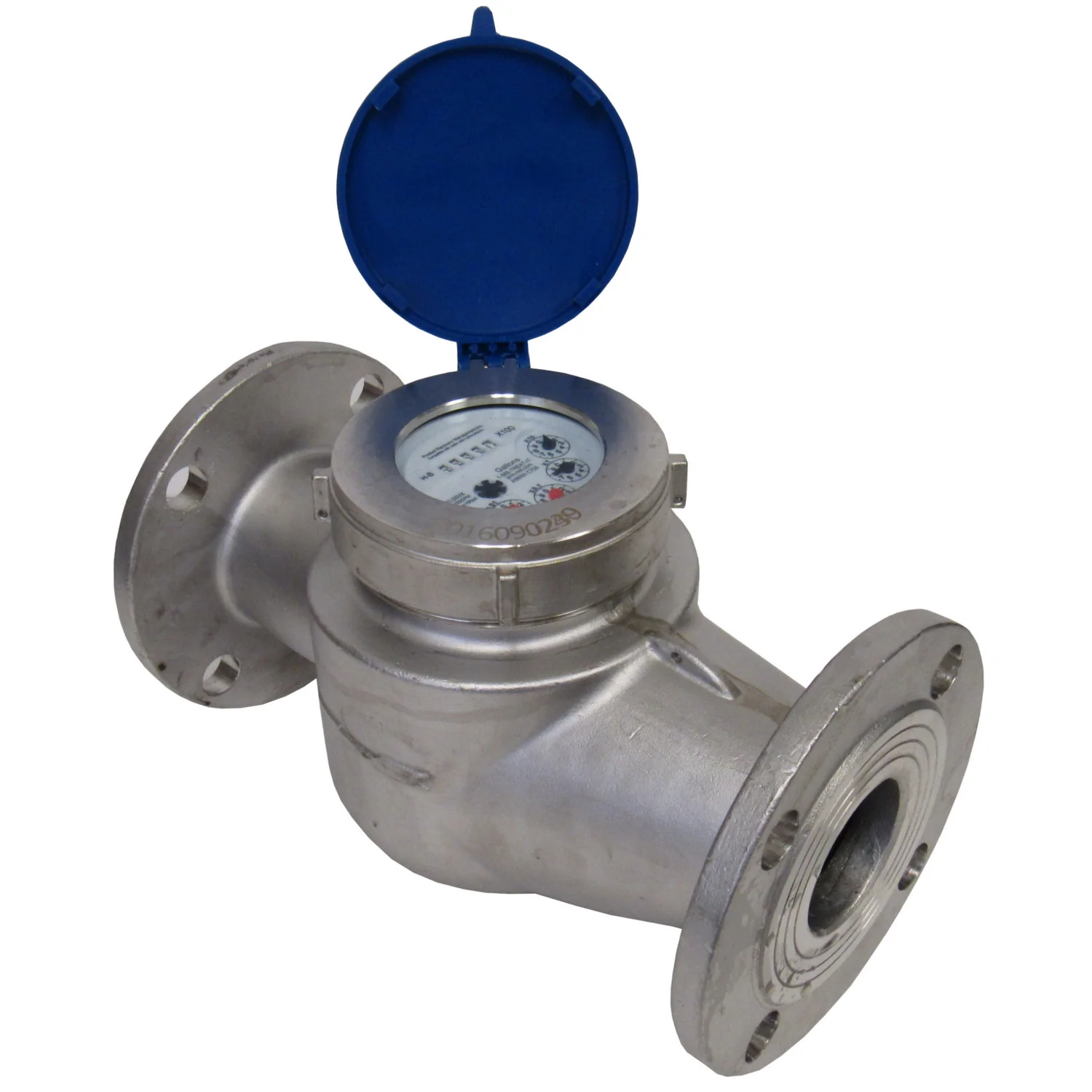

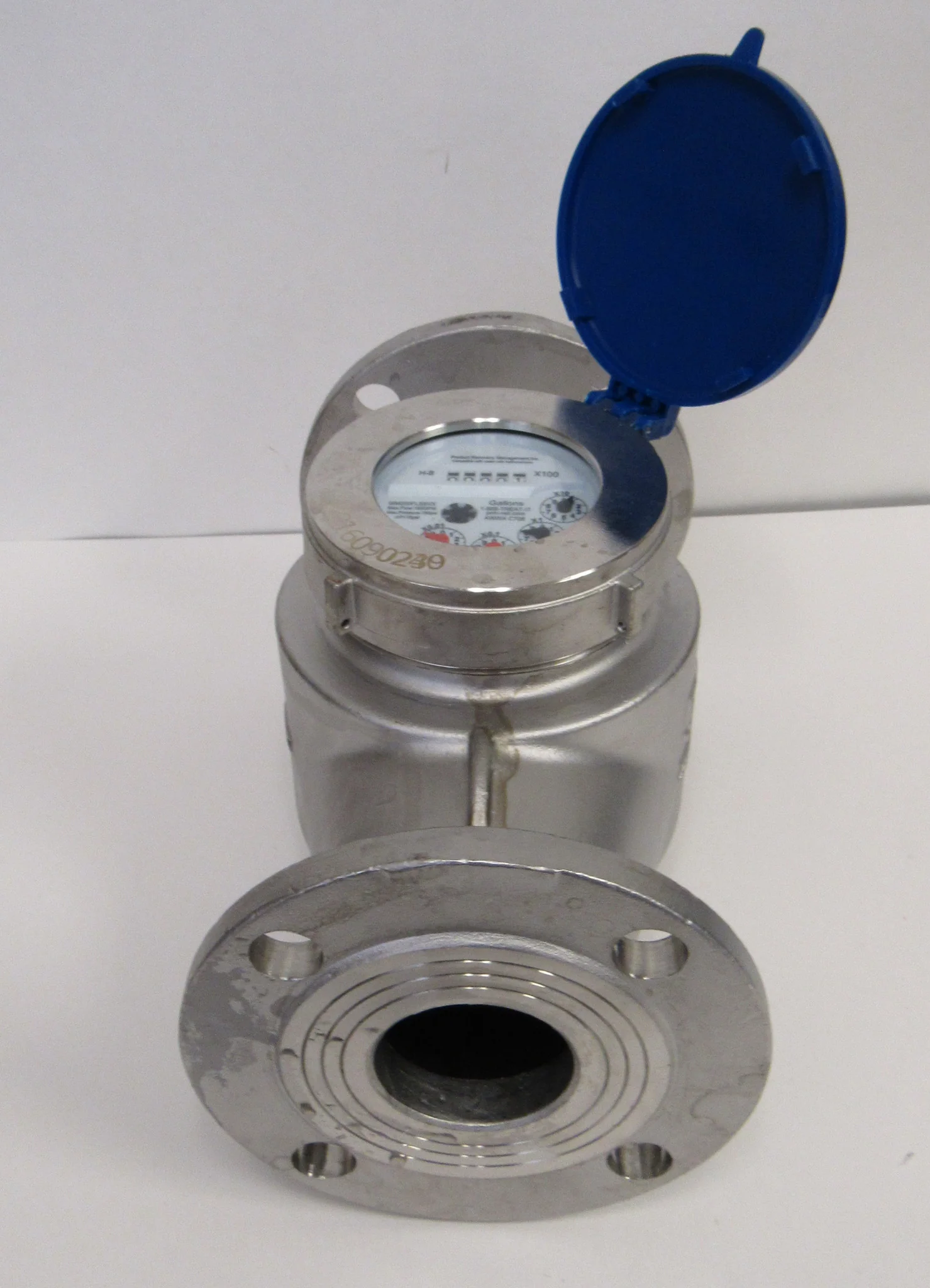

PRM 2 Inch Flanged Stainless Steel Multi-Jet Totalizing Water Meter

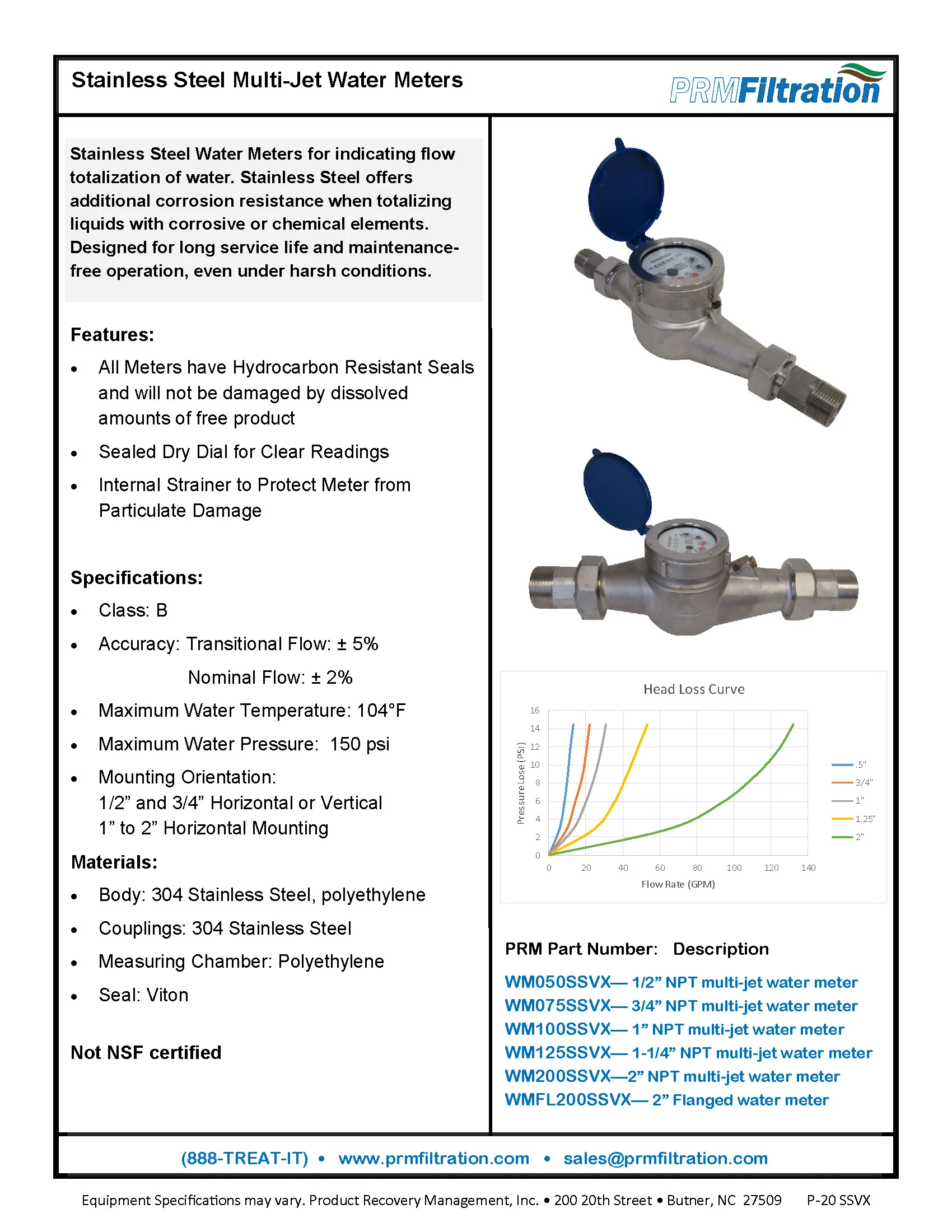

STAINLESS STEEL PRM MULTI-JET WATER METERS
Stainless Steel Water Meters for indicating flow totalization of water. Stainless Steel offers additional corrosion resistance when totalizing liquids with corrosive or chemical elements. Designed for long service life and maintenance-free operation, built for harsh conditions with hydrocarbon resistant Viton® seals.
Features:
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: 304 Stainless Steel, polyethylene
Measuring Chamber: Polyethylene
Seals: FKM (Viton®)
Mounting Orientation: Horizontal
Not for potable water

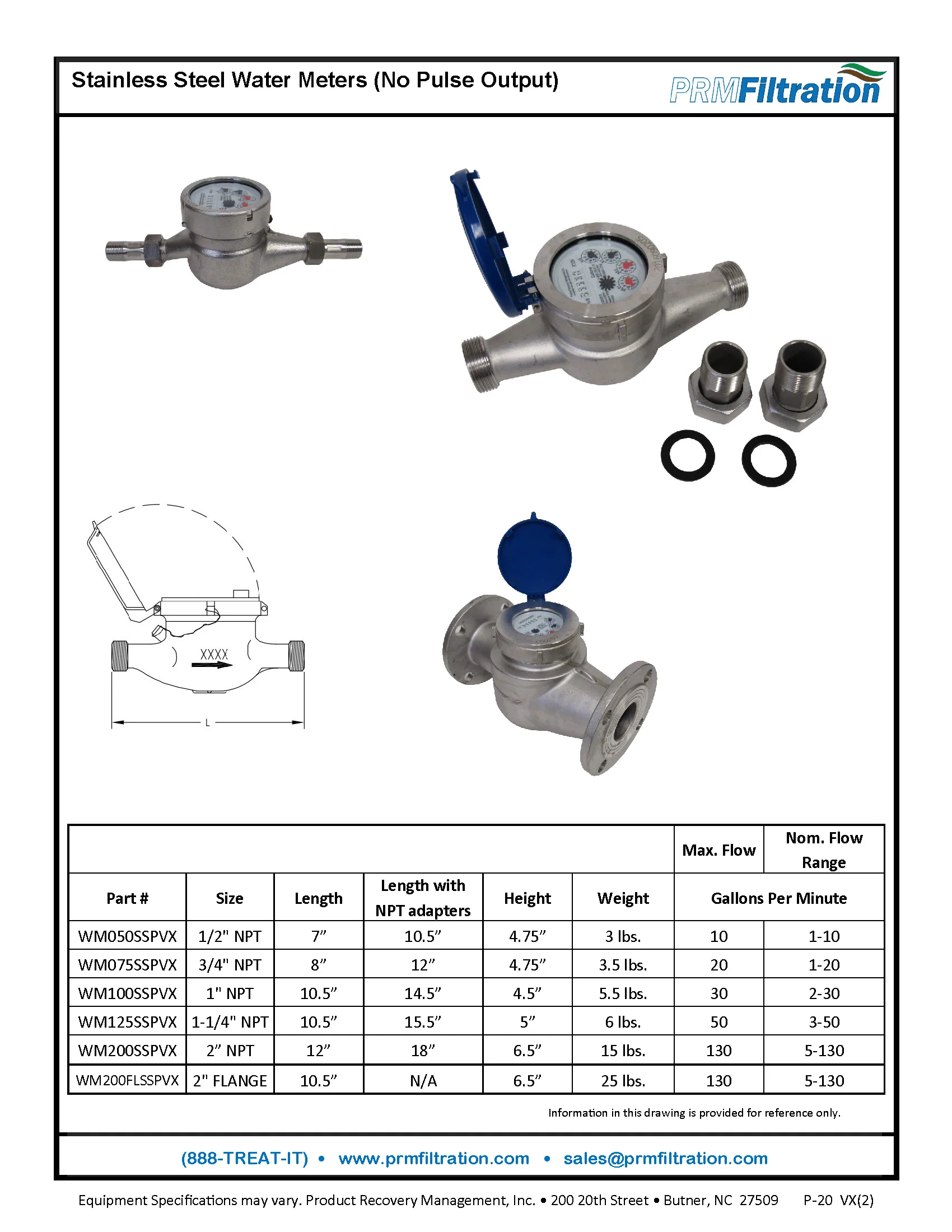

| PRM Part # | Size | Length (in.) (w/NPT adapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050SSVX | 1/2 Inch | 10.5 | 4.75 | 3 lbs. | 1-10 |
| WM075SSVX | 3/4 Inch | 12 | 4.75 | 3.5 lbs. | 1-20 |
| WM100SSVX | 1 Inch | 14.5 | 4.75 | 5.5 lbs. | 2-30 |
| WM125SSVX | 1-1/4 inch | 15.5 | 5 | 6 lbs. | 3-50 |
| WM200SSVX | 2 Inch NPT | 18 | 6.5 | 15lbs. | 5-125 |
| WM200FLSSVX | 2 Inch Flange |
10.5 (flanged, no adapters) |
6.5 | 25 lbs. | 5-125 |
