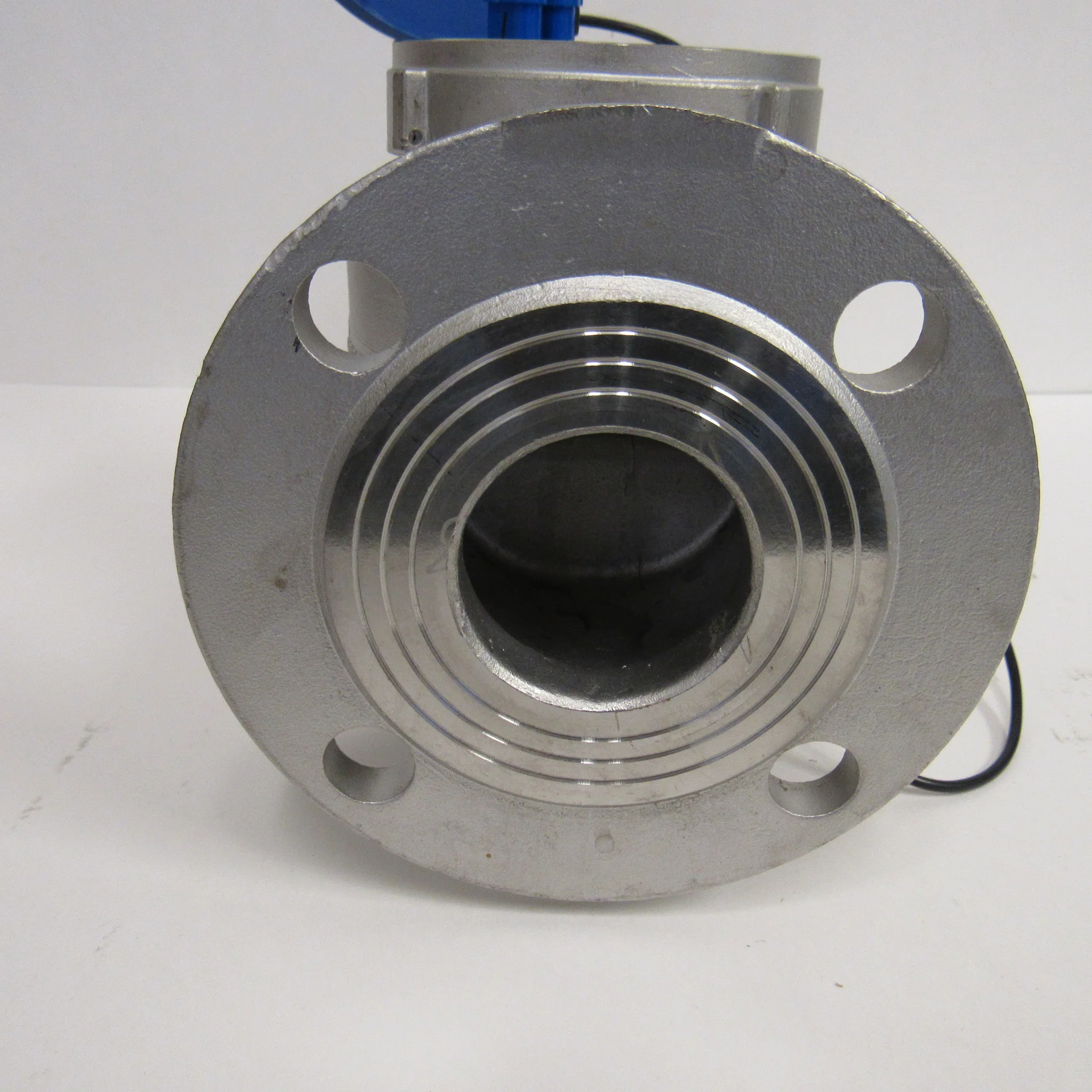

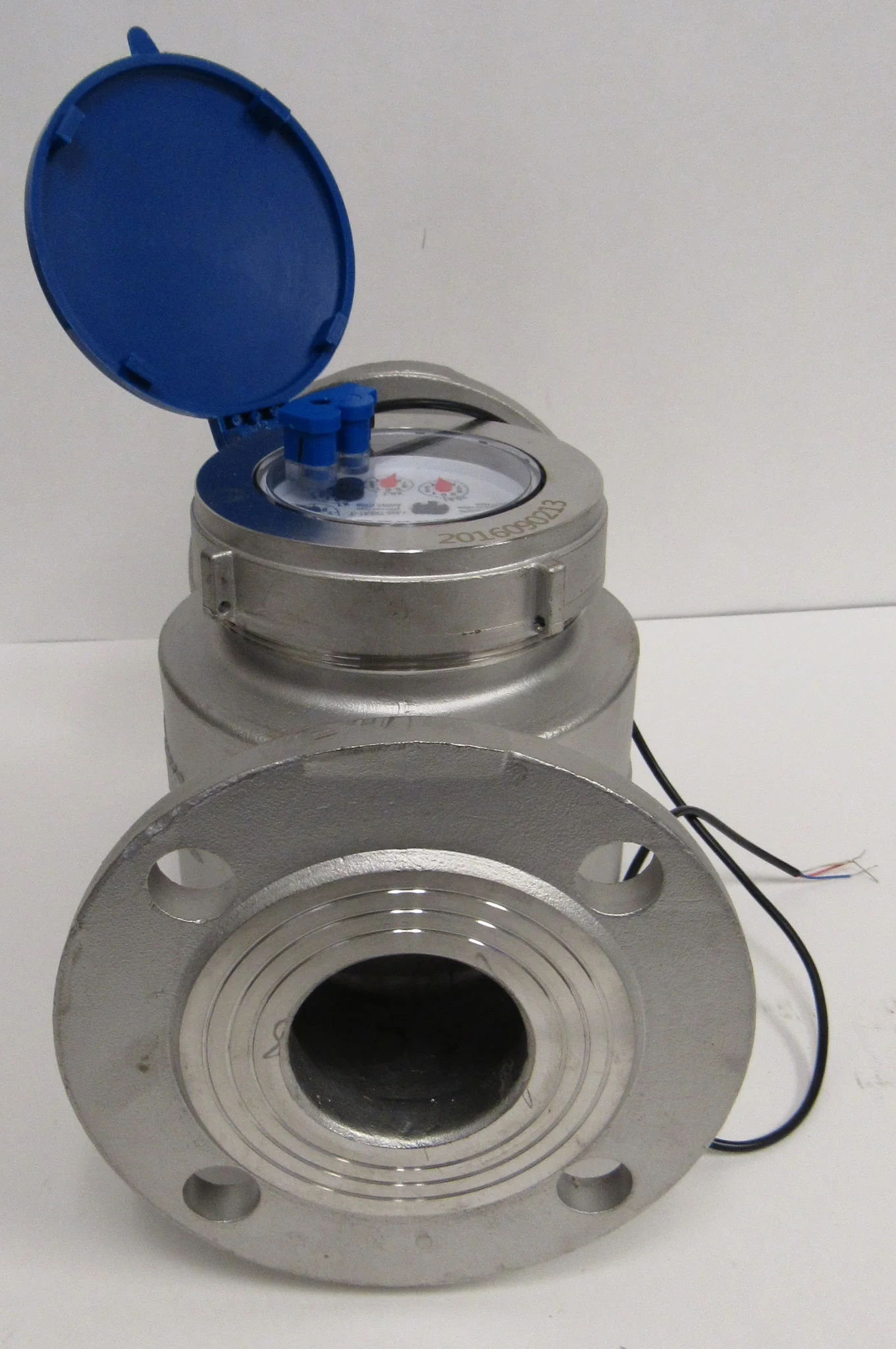

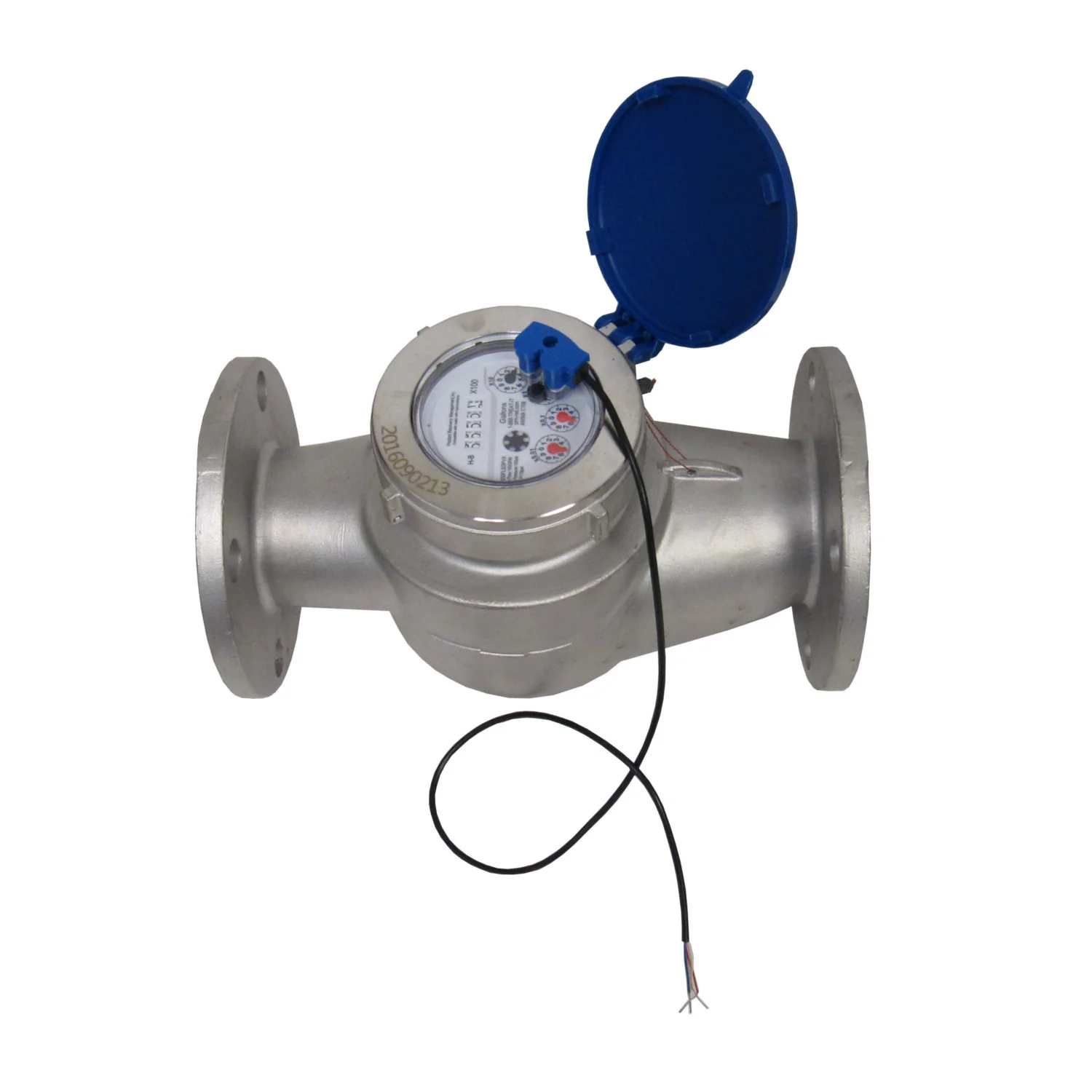

PRM 2 Inch Flanged Stainless Steel Multi-Jet Totalizing Water Meter with Pulse Output

STAINLESS STEEL MULTI-JET WATER METERS

Water Meters for Totalization and Rate Indication with Pulse Output

Stainless steel multi-jet water meters offer additional corrosion resistance when totalizing liquids with corrosive or chemical elements.

Features:
Pulse Output Components

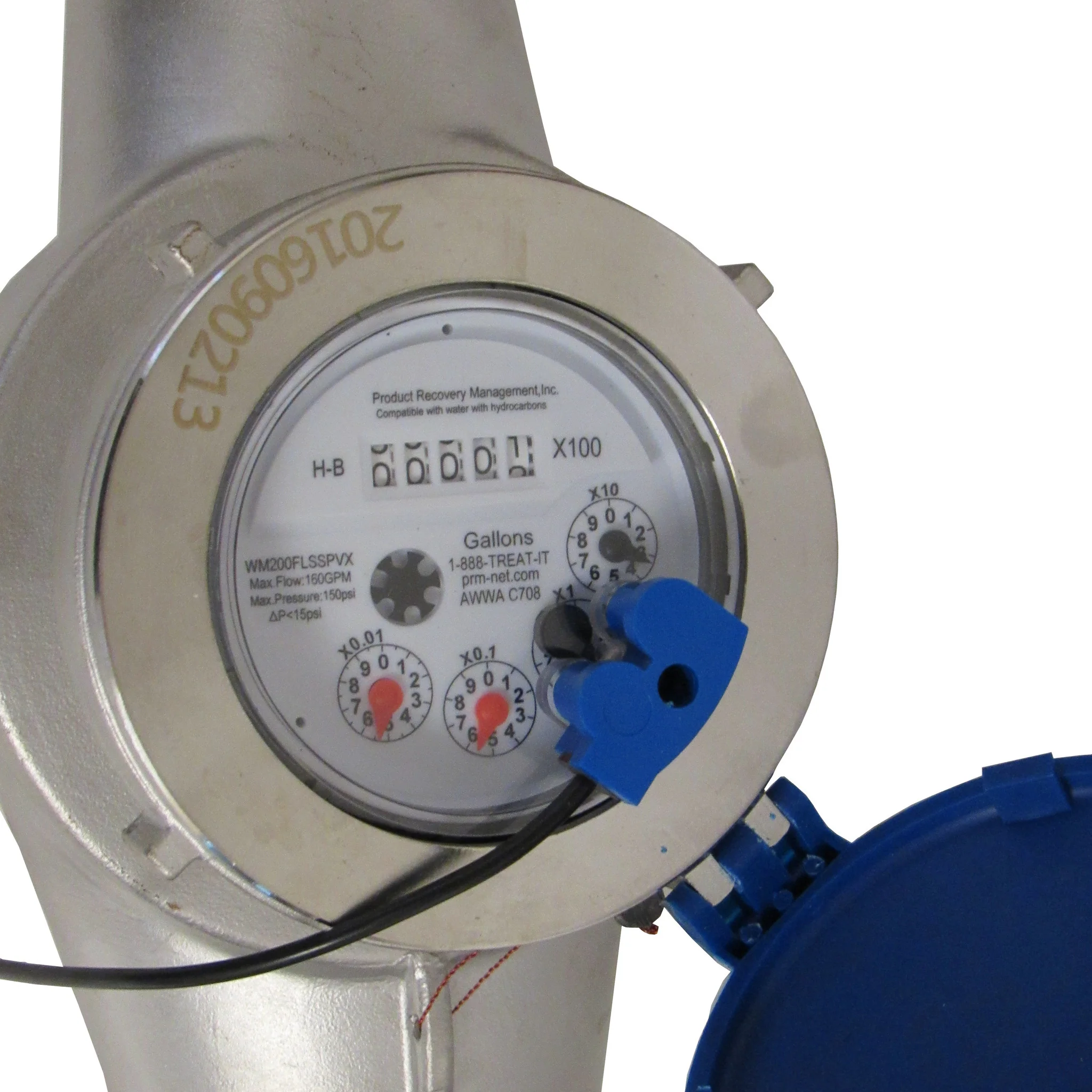

Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Magnetic Drive for lower resistance

Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal

Materials:
Body: 304 Stainless Steel, polyethylene
Couplings: 304 Stainless Steel
Measuring Chamber: Polyethylene
Seal: Black: Viton®, White: HDPE (Optional Viton seals for Hydrocarbon Resistance)

Mounting Orientation: Horizontal

PRM Stainless Steel water meters are not NSF 61 certified. Please check local water regulations to choose the correct meter for your application. California, Vermont, Maryland and Louisiana state laws require that all the water meters used be NSF 61 certified.

• Spec Sheet
• Installation Instructions
• Wiring Diagram
• PRM Water Meter Manual
• Pair it with pre-wired junction box and digital counter

PRM Part #	Size	Length (in.) (w/NPTadapters)	Height (in.)	Weight	Nominal Flow (GPM)
WM050SSPVX	1/2'	10.5	4.75	3 lbs.	1-10
WM075SSPVX	3/4'	12	4.75	3.5 lbs.	1-20
WM100SSPVX	1'	13	4.75	5.5 lbs.	2-30
WM125SSPVX	1-1/4'	13	5	6 lbs.	3-50
WM200SSPVX	2'	Flange	6.5	14 lbs.	5-125
