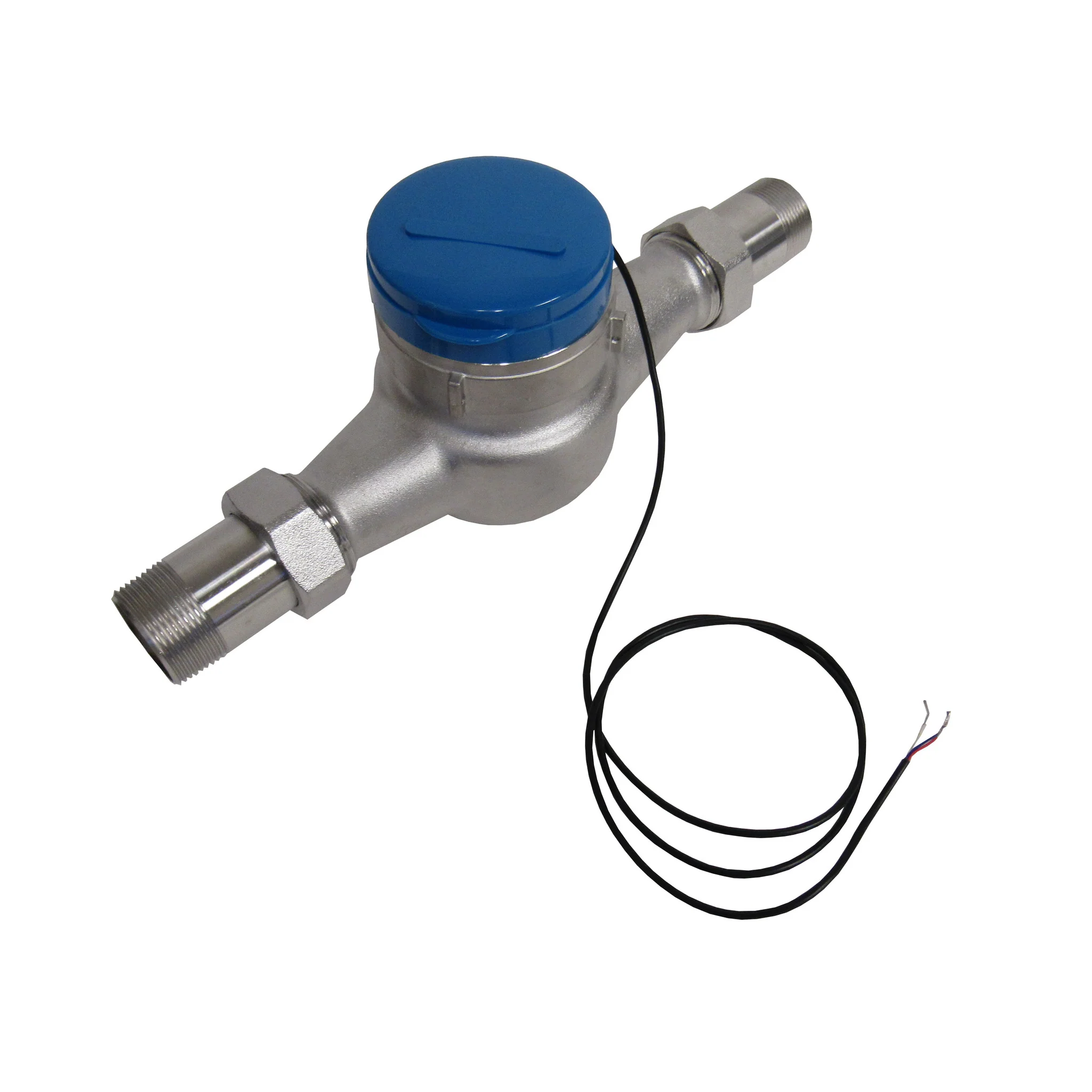

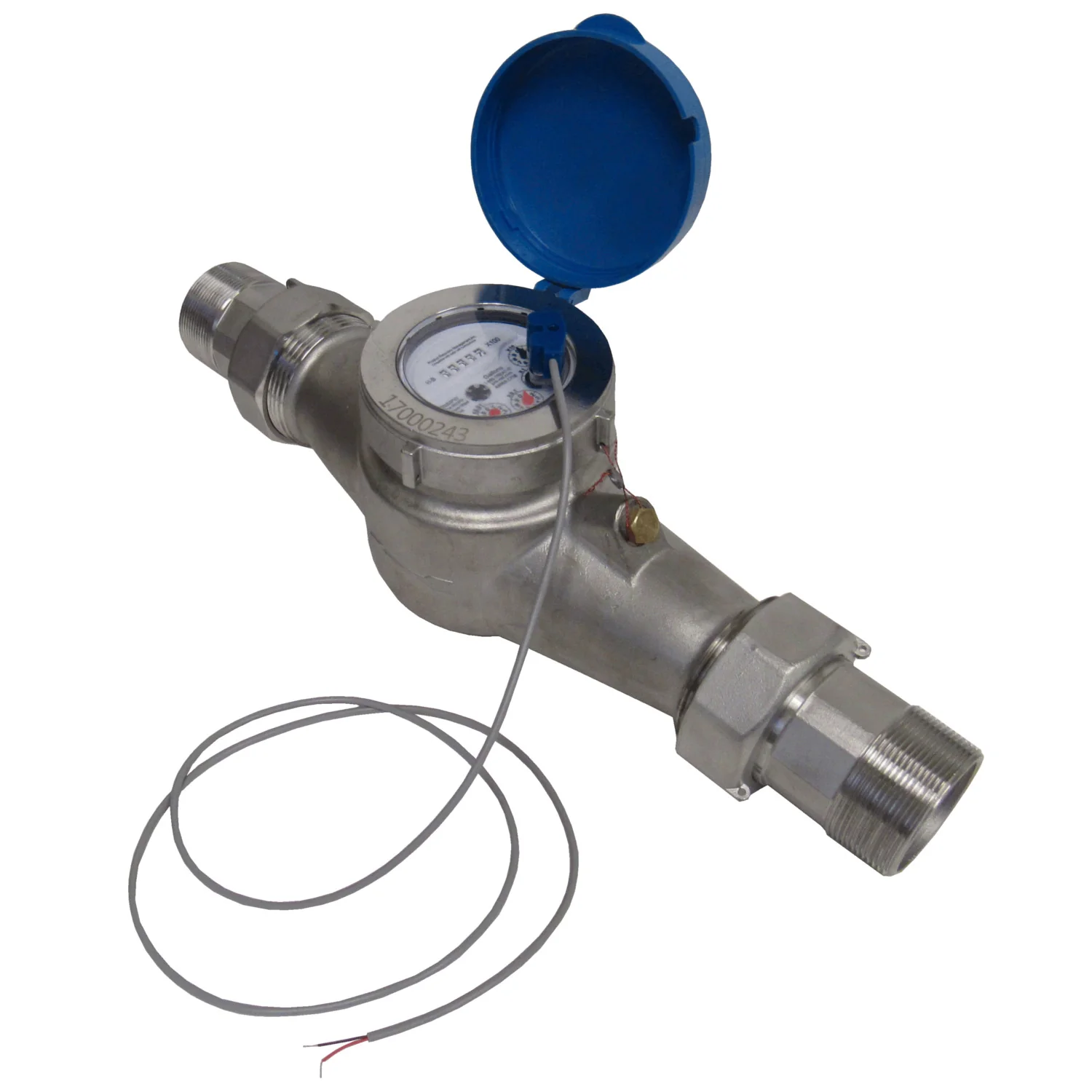

PRM 2 Inch NPT Stainless Steel Multi-Jet Totalizing Water Meter with Pulse Output

STAINLESS STEEL MULTI-JET WATER METERS

Water Meters for Totalization and Rate Indication with Pulse Output

Stainless steel multi-jet water meters offer additional corrosion resistance when totalizing liquids with corrosive or chemical elements.

Features:
Pulse Output Components
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage
Magnetic Drive for lower resistance

Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal

Materials:
Body: 304 Stainless Steel, polyethylene
Couplings: 304 Stainless Steel
Measuring Chamber: Polyethylene
Seal: Black: Viton®, White: HDPE (Optional Viton seals for Hydrocarbon Resistance)

Mounting Orientation: Horizontal

Not NSF Certified

• Spec Sheet
• Installation Instructions
• Wiring Diagram
• PRM Water Meter Manual
• Pair it with pre-wired junction box and digital counter

PRM Part #	Size	Length (in.) (w/NPTadapters)	Height (in.)	Weight	Nominal Flow (GPM)
WM050SSPVX	1/2'	10.5	4.75	3 lbs.	1-10
WM075SSPVX	3/4'	12	4.75	3.5 lbs.	1-20
WM100SSPVX	1'	13	4.75	5.5 lbs.	2-30
WM125SSPVX	1-1/4'	13	5	6 lbs.	3-50
WM200SSPVX	2'	Flange	6.5	14 lbs.	5-125
