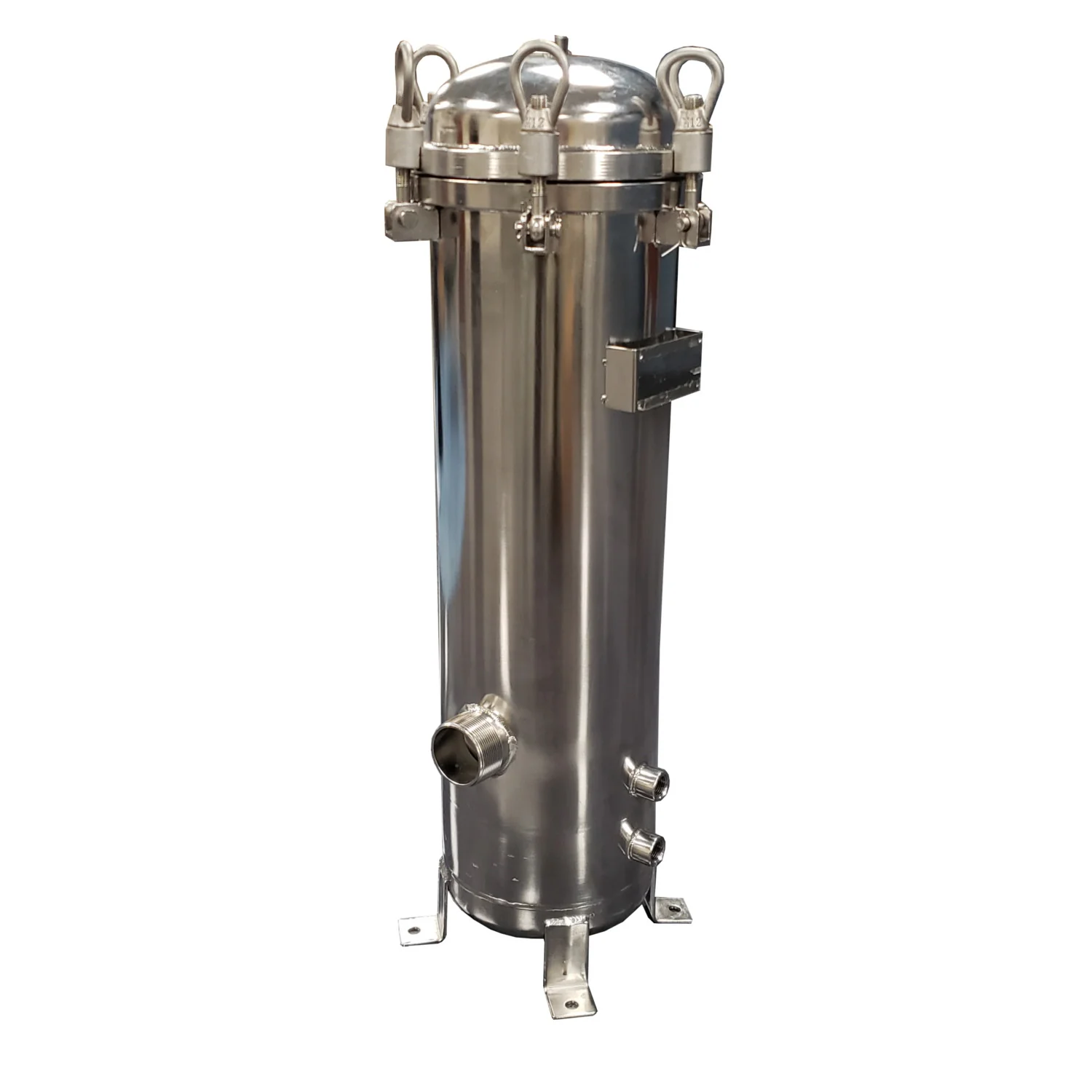

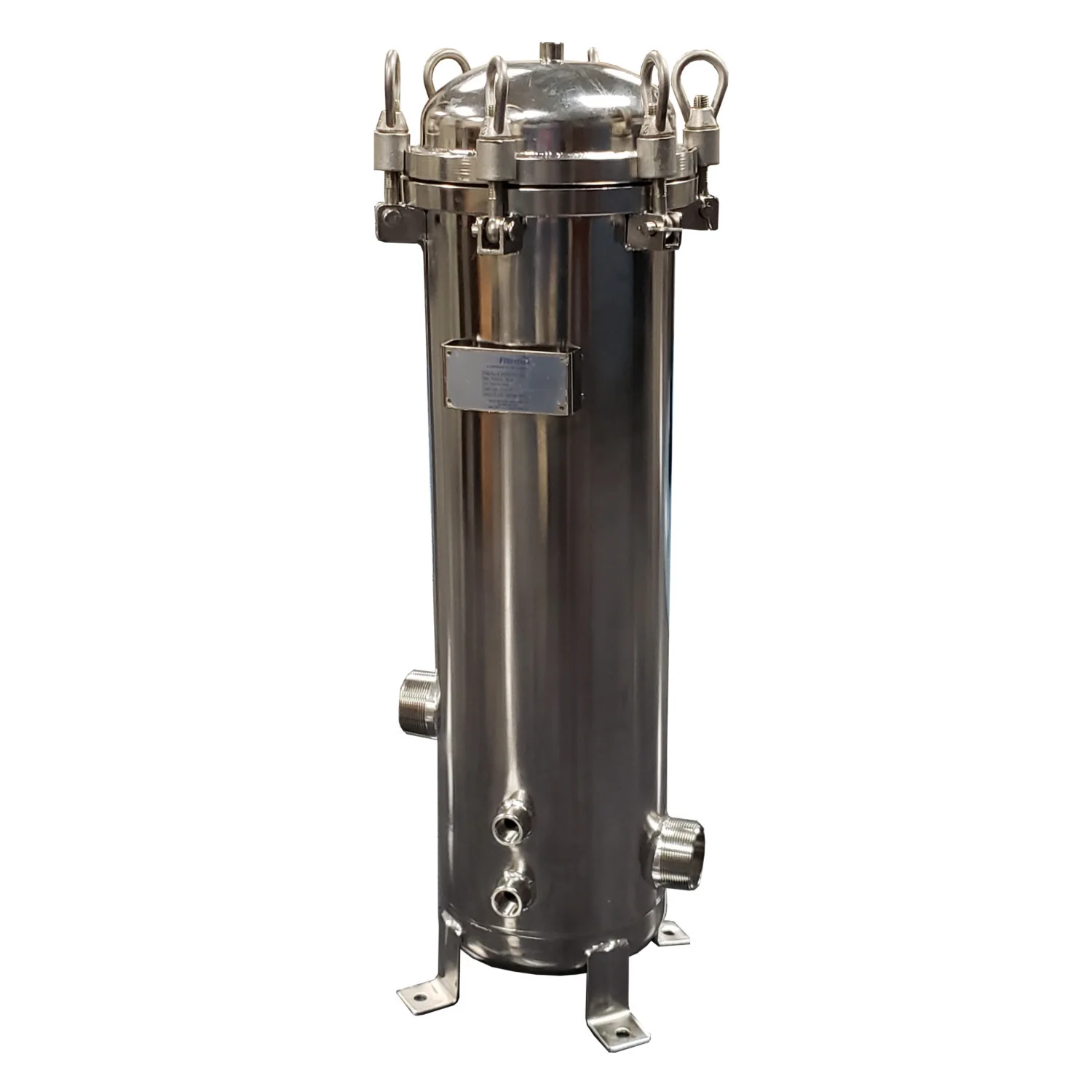

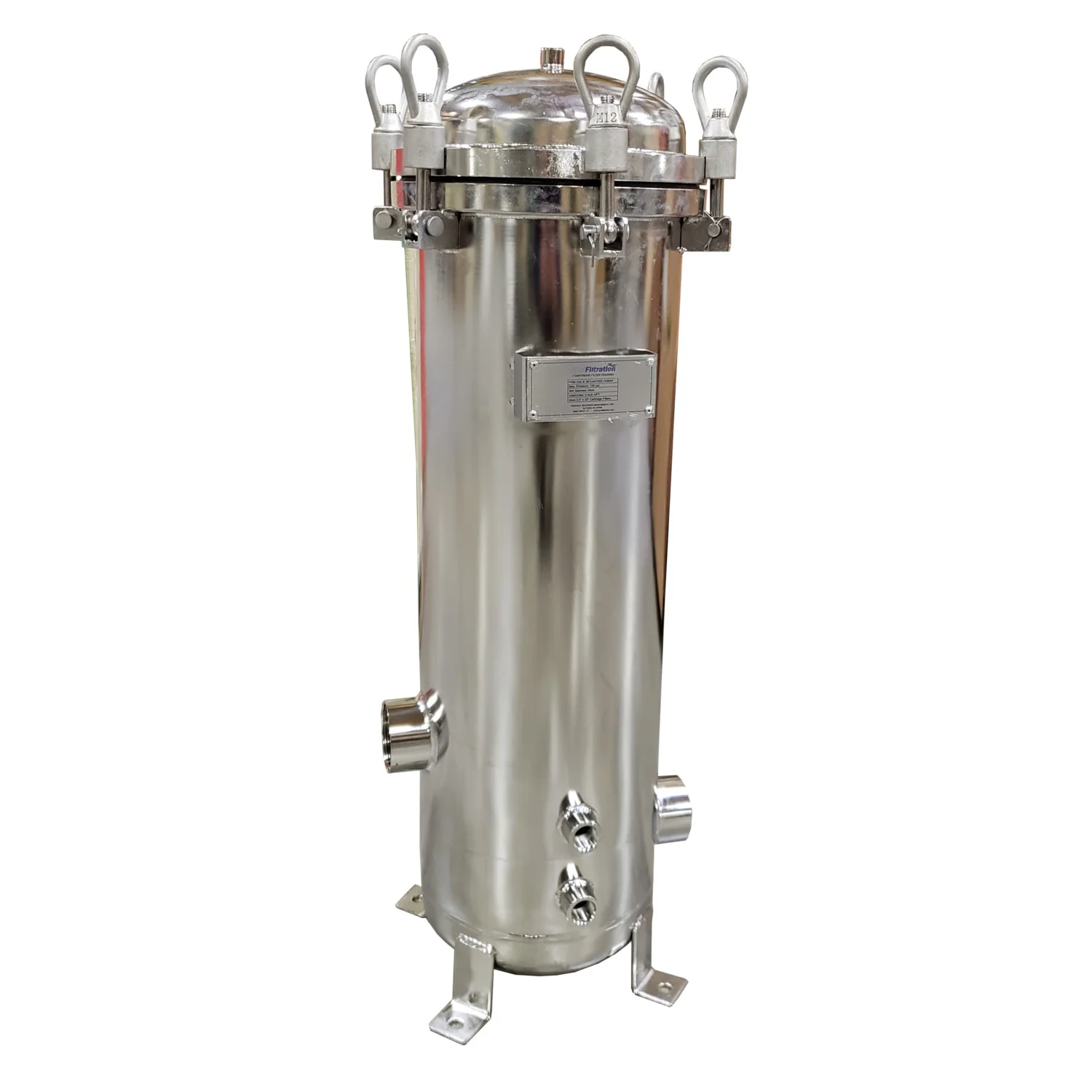

PRM 304 Stainless Steel 4 Cartridge Filter Housing, Uses 20 Inch Cartridges, 2 Inch NPT In/Out

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 2 INCH NPT INLET/OUTLET

PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x  20 Inch cartridge filters.

Features:

• 304 SS construction for corrosion resistance
• Uses (4) 20 Inch Cartridge Filters
• Flow Capacity 48 gpm
• 2 Inch FNPT Inlet/Outlet
• Silicone O-Ring
• 1/2” NPT drains

• Top vent port for pressure gauge or relief valve
• Max. Operating pressure: 108 psig
• Operating temperature: 40°-140°F

BFCARTSSC8304X Datasheet

BFCARTSSC8304X Drawing

Replacement Parts for BFCARTSSC8304X

Replacement Silicone O-Rings (BFSSCHPTORSIL800X)
Replacement Threaded Rod (BFSSCHPT20RODX)
Replacement Hold Down Plate (BFSSCHPTHDP8004X)
Replacement Cartridge Retainer and Spring Assembly (MGBFCUPANDSPRINGSET)
Replacement Lid (BFSSCHPTLID800X)
Replacement Clamp Bolt Assembly (BFSSCHPTCBAX)
