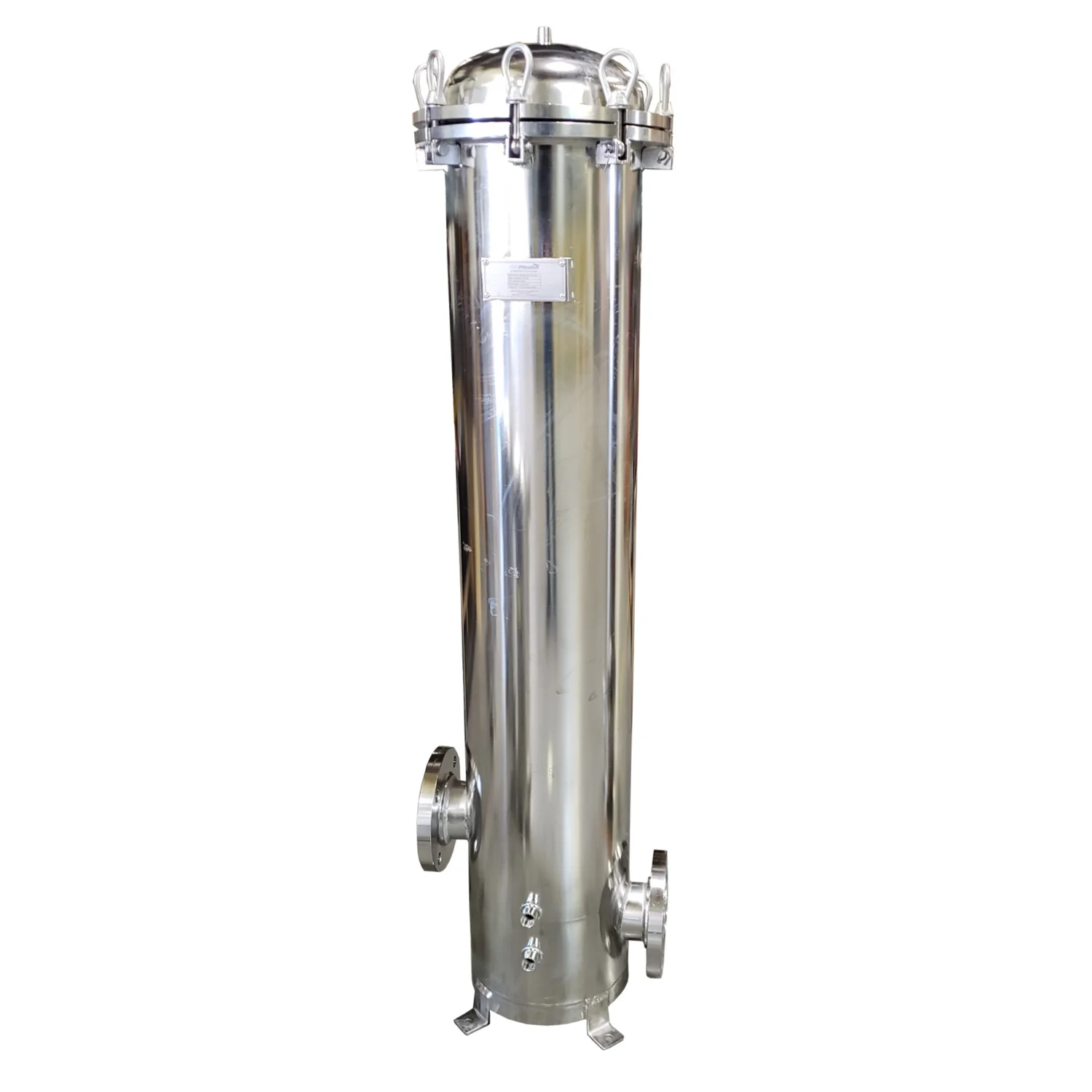

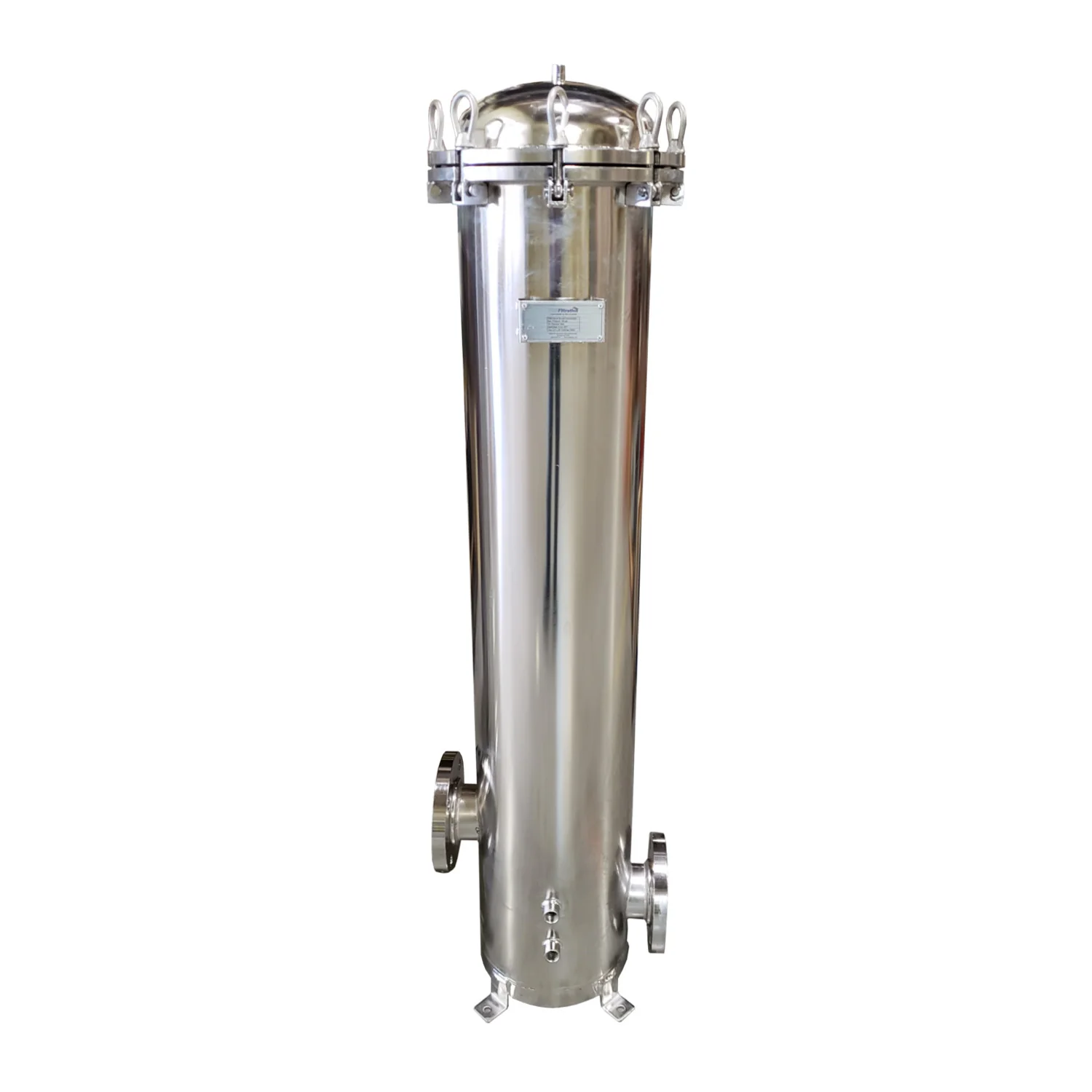

PRM 304 Stainless Steel 6 Cartridge Filter Housing, Uses 40" Cartridges, 3 Inch Flange In/Out

PRM 304 Stainless Steel 6 Cartridge Filter Housing, Uses 40" Cartridges, 3 Inch Flange In/Out

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 3 INCH FLANGE INLET/OUTLET

PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x  40 Inch cartridge filters.

Features:

  • 304 SS construction for corrosion resistance
  • Uses (6) 40 Inch Cartridge Filters
  • Flow Capacity 144 gpm
  • 3 Inch 150# Flange Inlet/Outlet
  • EPDM O-Ring
  • 1/2” NPT drains
  • Top vent port for pressure gauge or relief valve
  • Max. Operating pressure: 145 psig
  • Operating temperature: 40°-140°F

BFCARTSSC24304X Datasheet

BFCARTSSC24304X Drawing

**3D models are for visualization. Details and dimensions may vary.
$1,499.99
PRM 304 Stainless Steel 6 Cartridge Filter Housing, Uses 40" Cartridges, 3 Inch Flange In/Out—
$1,499.99
Product image 1
Product image 2
Product image 3

Description

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 3 INCH FLANGE INLET/OUTLET

PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x  40 Inch cartridge filters.

Features:

  • 304 SS construction for corrosion resistance
  • Uses (6) 40 Inch Cartridge Filters
  • Flow Capacity 144 gpm
  • 3 Inch 150# Flange Inlet/Outlet
  • EPDM O-Ring
  • 1/2” NPT drains
  • Top vent port for pressure gauge or relief valve
  • Max. Operating pressure: 145 psig
  • Operating temperature: 40°-140°F

BFCARTSSC24304X Datasheet

BFCARTSSC24304X Drawing

**3D models are for visualization. Details and dimensions may vary.
