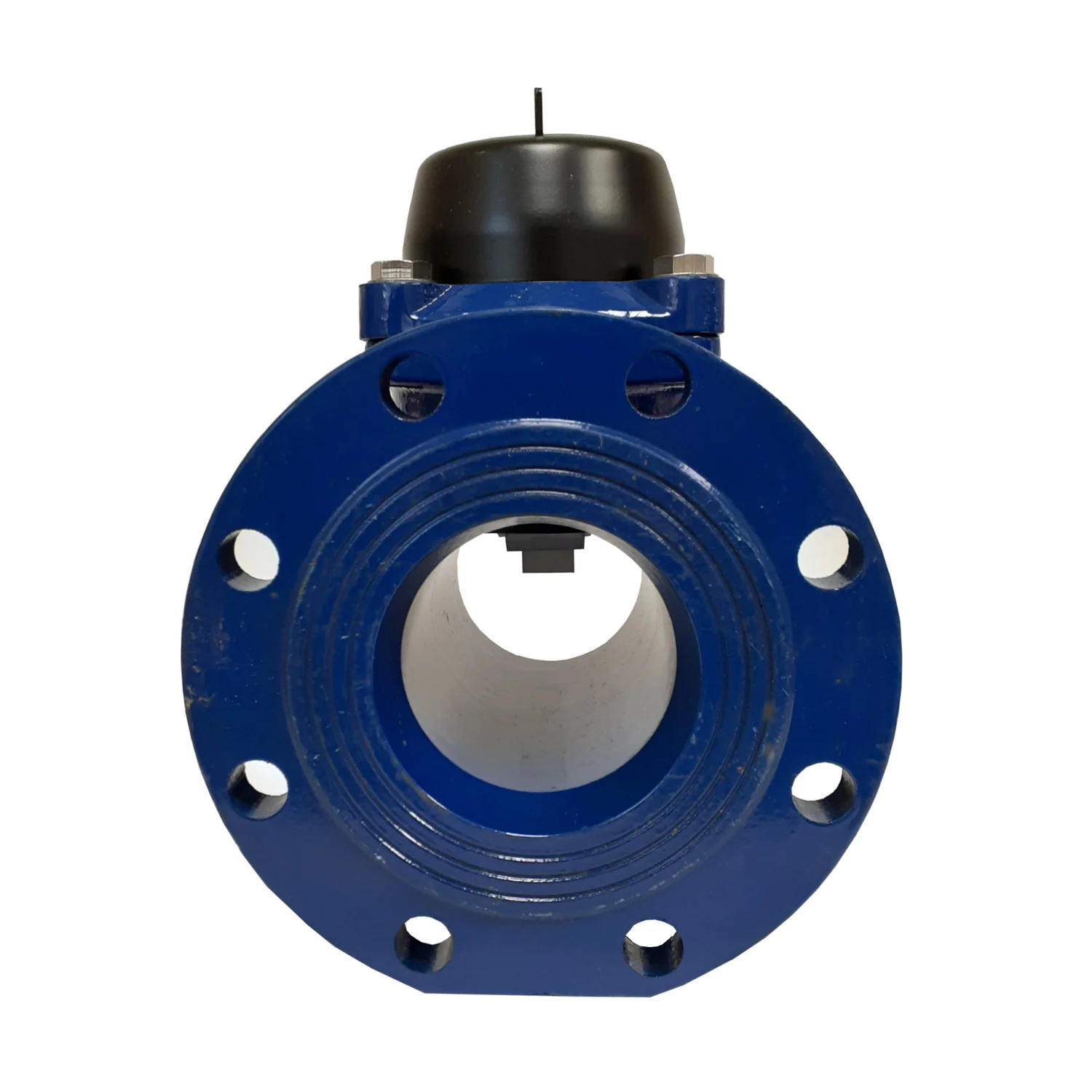

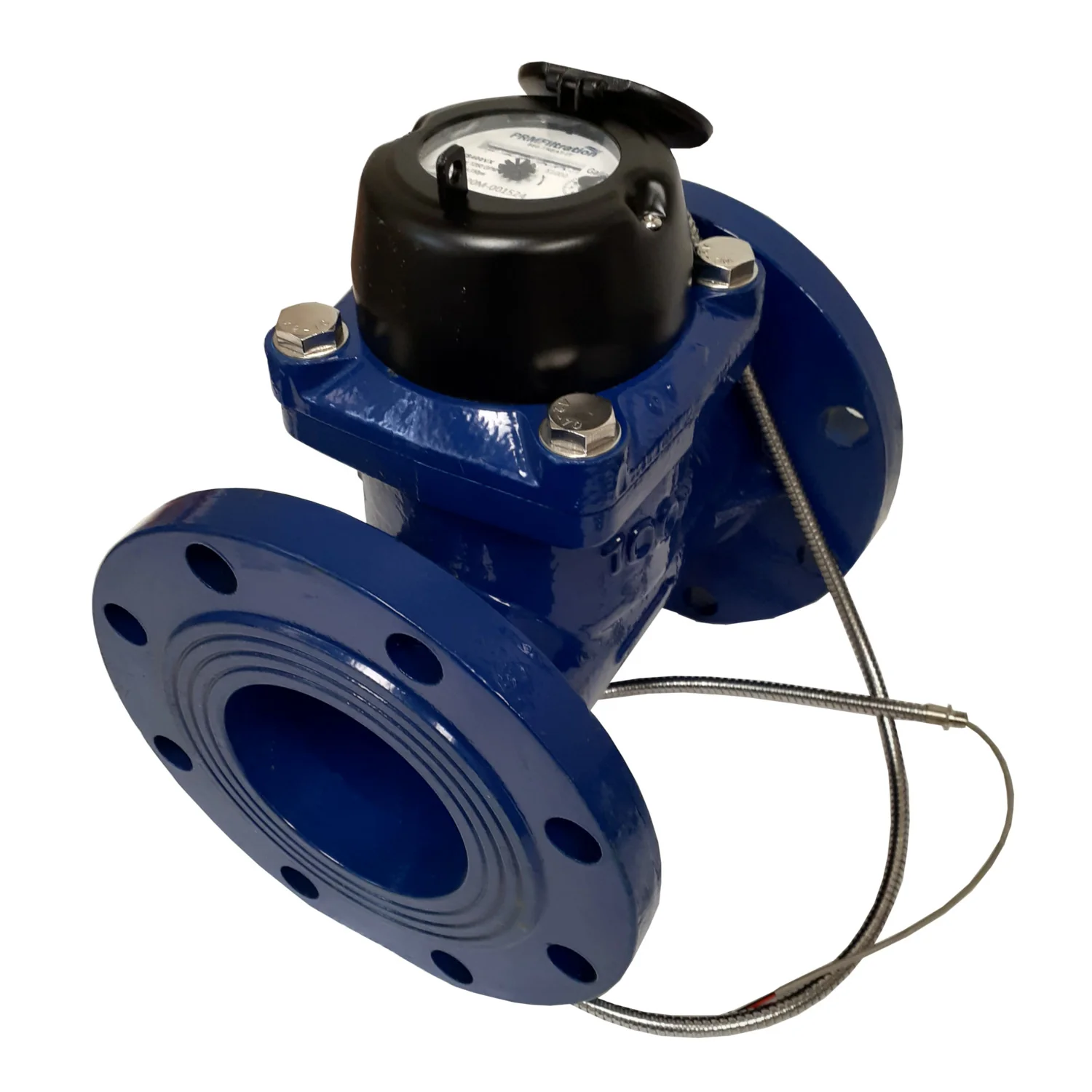

PRM Wastewater/ Irrigation 4 Inch Flanged Totalizing Water Meter with Pulse Output

PRM Wastewater/ Irrigation 4 Inch Flanged Totalizing Water Meter with Pulse Output

Cast Iron Flanged Water Meters for wastewater or irrigation indicating flow totalization of water with pulse output. Paddlewheel style water meter tolerates moderate particulate loads.

Features:

• Pulse Output Components
• Simplicity in operation and installation make the paddlewheel flowmeter popular in applications such as irrigation, aquaculture, aquariums, and swimming pools.
• Paddlewheel flowmeters use the mechanical energy of the fluid to rotate a paddlewheel in the flow stream. Paddles on the rotor are inserted into the flow to transform energy from the flow stream into rotational energy. When the fluid moves faster, the paddlewheel spins proportionally faster.
• Meter must be filled with water to accurately measure flow

Specifications:

• Paddle Wheel Style Wastewater/ Irrigation Water Meter
• Large Flow Capacity, Low Pressure Loss
• 150# Flange
• Pulse Rate: 1000 gal/pulse
• Accuracy Class: B
  Transitional Flow: ± 5%
  Nominal Flow: ± 2%
• 6 Digit Mechanical Roller Counter
• Maximum Water Temperature: 140°F
• Maximum Water Pressure: 150 psi
• Mounting Orientation: Horizontal

Flow Specifications:
Conforms to AWWA Standards
Low Flow: 10 GPM
Normal Flow: 20-1250 GPM
Continuous Flow: 1000 GPM
High Flow: 1250 GPM

Materials:
Body: Cast Iron Body, Epoxy Coated
Measuring Components: Polyethylene
Seals: Viton


Not for use with Potable Water

Spec Sheet
Wiring Diagram
PRM Water Meter Manual
Pair it with pre-wired junction box and digital counter
