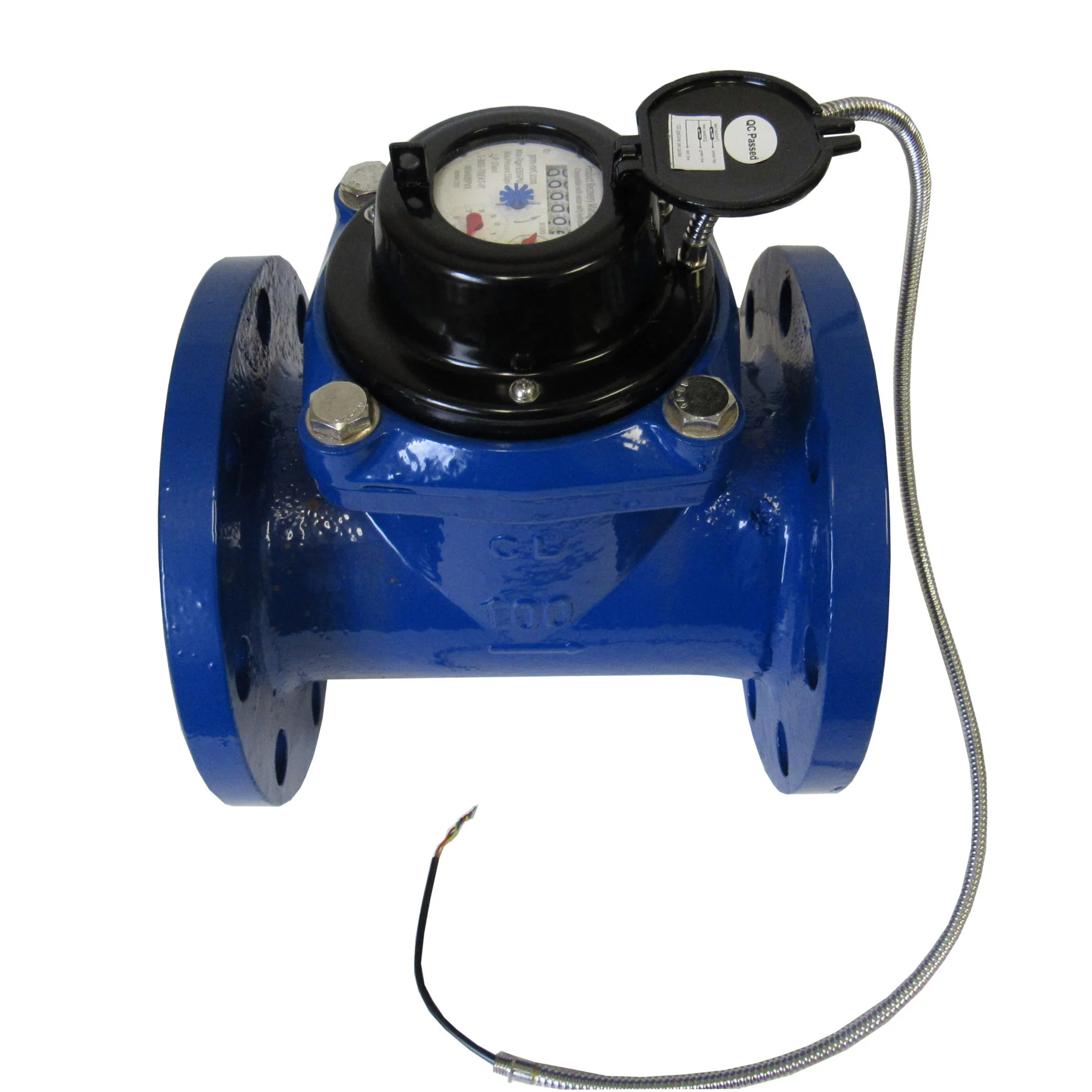

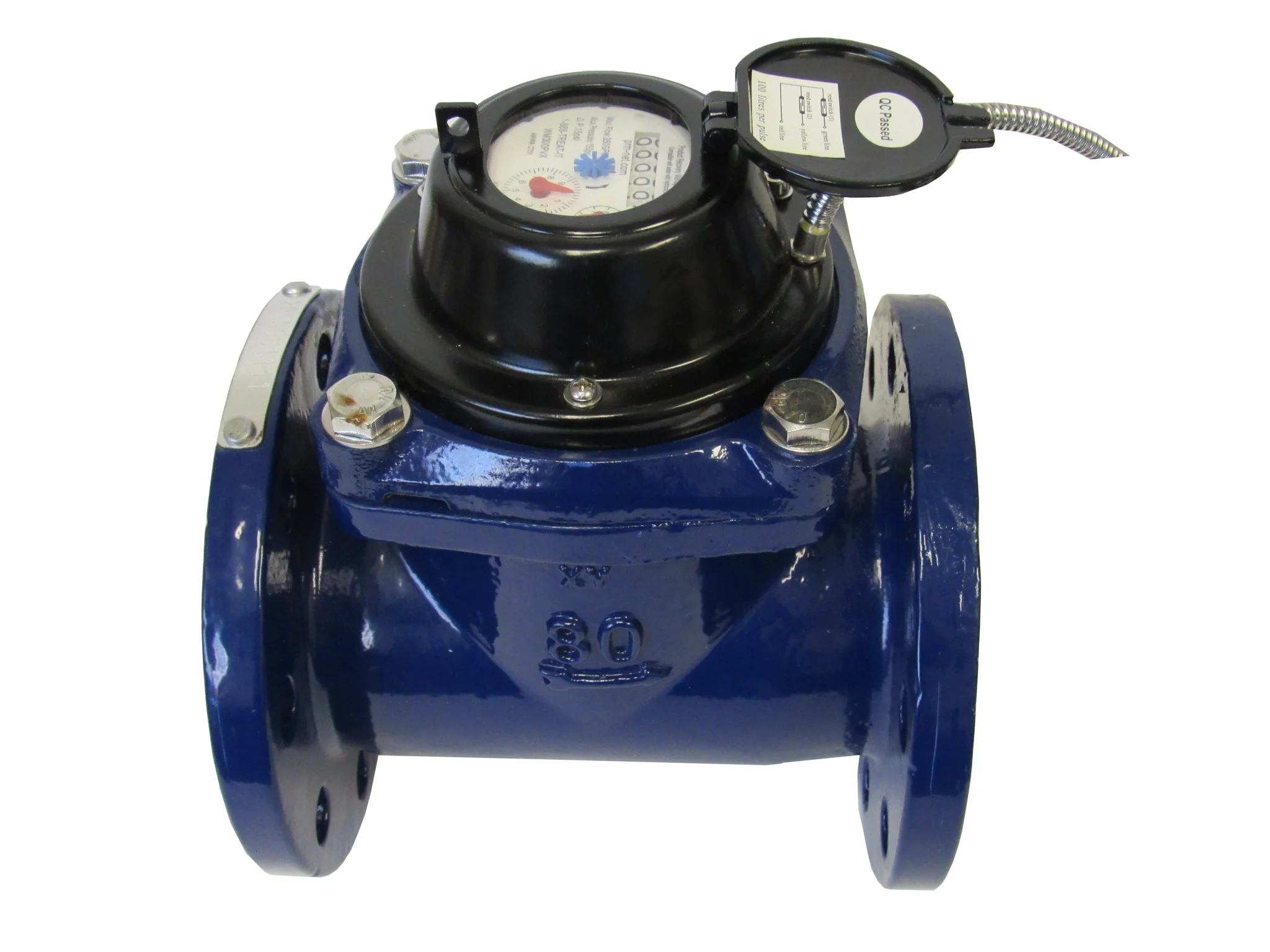

PRM Woltmann Helix Style 4 Inch Flanged Totalizing Water Meter with Pulse Output

PRM WOLTMANN HELIX STYLE 4 INCH WATER METER FOR TOTALIZATION AND RATE INDICATION WITH PULSE OUTPUT

PRM carries 3", 4", and 6" flanged Woltmann helix style water meter for industrial use.

Features:

• Pulse Output Components
• Hydrocarbon Resistant Seals

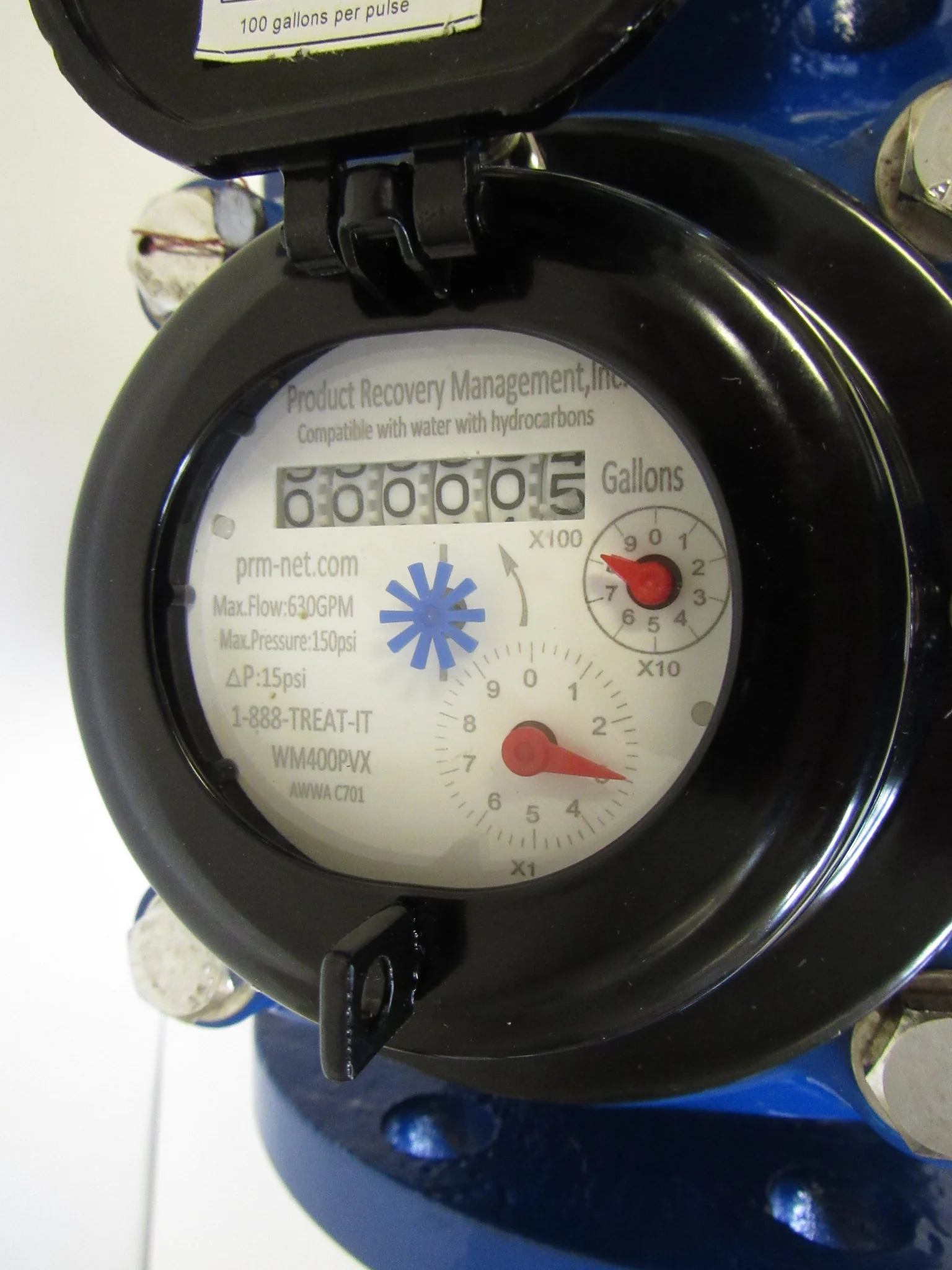

• Sealed Dry Dial for Clear Readings

Specifications:

• Woltmann helix style water meter
• Cast iron meter body, epoxy coated
• Accuracy class B
• 6 digit mechanical roller counter
• Reads in Gallons
• 4 INCH: Nominal Flow 350 gpm, Max. Flow 528 gpm
• Pulse: 100 gal/pulse

Accuracy:

Transitional Flow: ±5%
Nominal Flow: ±2%

Maximum Water Temperature: 86°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal

Materials:

Body: Cast Iron
Measuring Chamber: Polyethylene
Paint: Epoxy Coated
Seal: Viton

Not for use with Potable Water

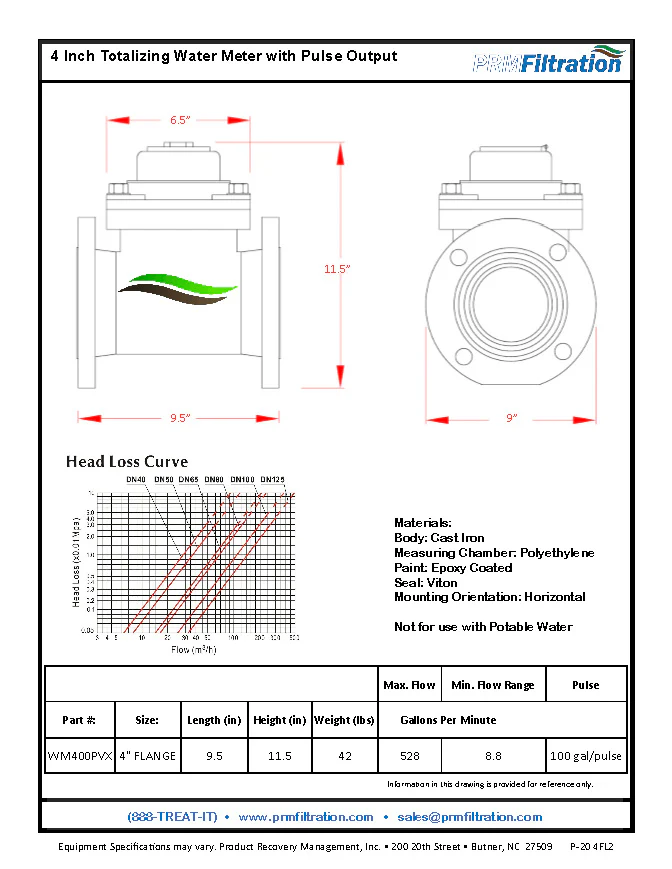

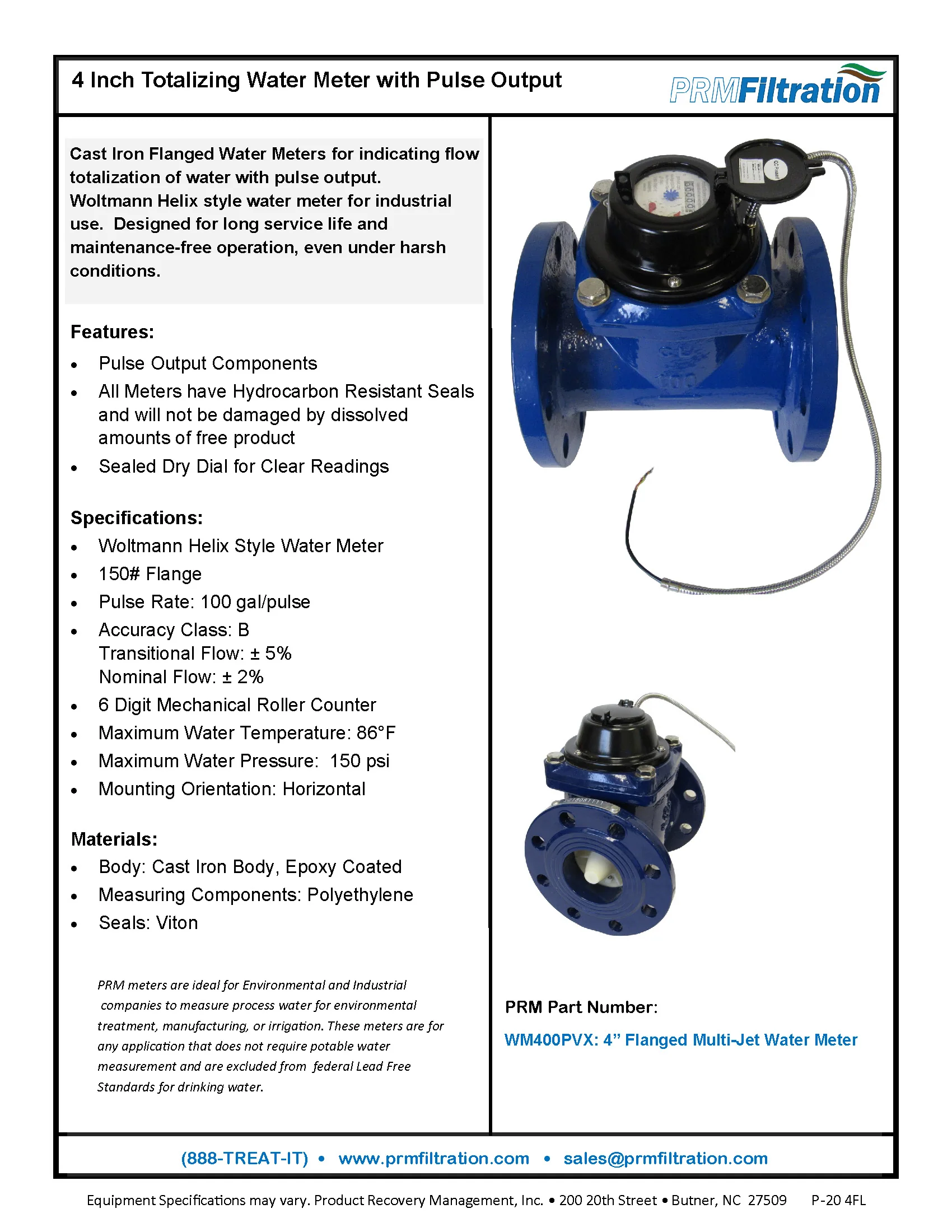

Spec Sheet
Wiring Diagram
PRM Water Meter Manual
Pair it with pre-wired junction box and digital counter
