Pump Skid Additions for Dual Bag Filter Skid

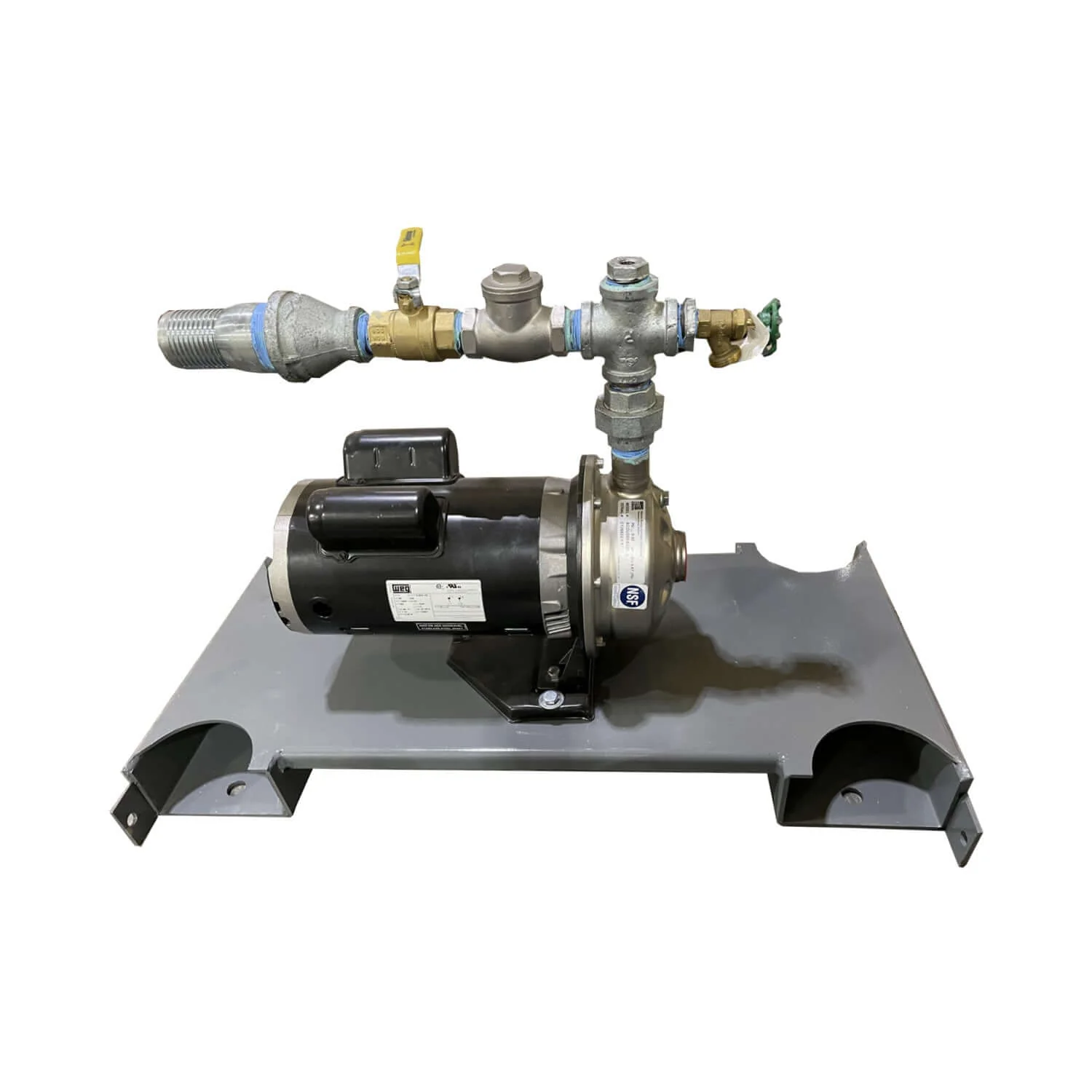

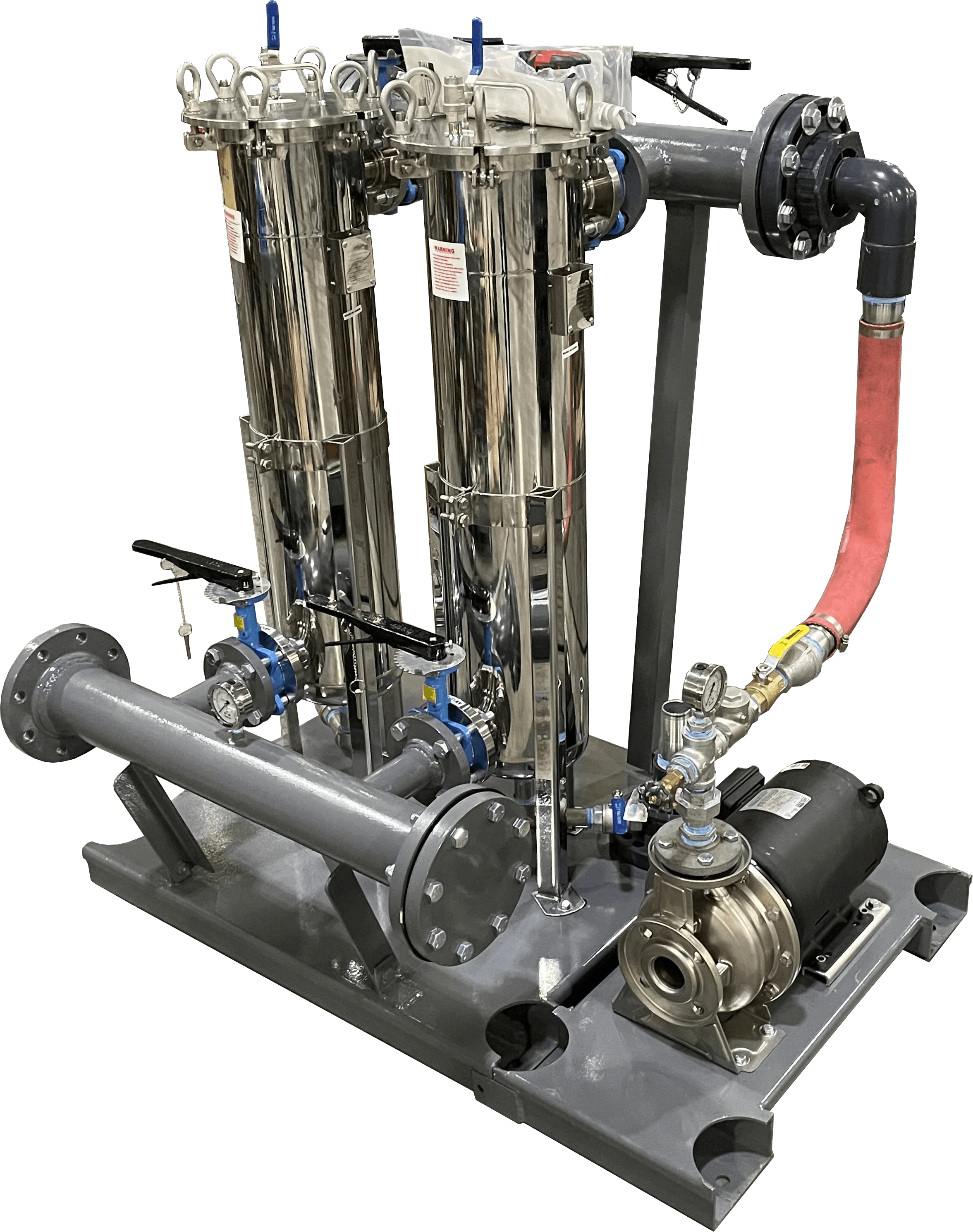

Pump Skid Attachment for Dual Bag Filter Skid (BFSFGX2HBFH2)

3HP Pump Skid Addition

• 12" x 32" Carbon Steel Skid
• 1 Phase: 3 hp TEFC Ebara Pump ACDU200/530T1C (230V only in this HP) or
• 3 Phase: 3 hp TEFC Ebara Pump ACDU200/530T3C
• Pump Capabilities:
  84 GPM@40 psi
  105 GPM@28 psi (Max. Flow)
  15 GPM@55 psi (Max. Pressure)

5HP Pump Skid Addition

• 12" x 32" Carbon Steel Skid
• 1 Phase: 5 hp TEFC Ebara Pump A3U-32-160A50T1C or

• 3 Phase: 5 hp TEFC Ebara Pump A3U-32-160A50T3C
• Pump Capabilities:
  95 GPM@40 psi
  138 GPM@34 psi (Max. Flow)
  11 GPM@58 psi (Max. Pressure)

7.5HP Pump Skid Addition

• 12" x 32" Carbon Steel Skid
• 1 Phase: 7.5 hp ODP Ebara Pump A3U-50-12575D1C (230 V Only, No TEFC available in 7.5HP, 1PH) or

• 3 Phase: 7.5 hp TEFC Ebara Pump A3U-50-12575T3C
• Pump Capabilities:
  95 GPM@40 psi
  138 GPM@18 psi (Max. Flow)
  11 GPM@60 psi (Max. Pressure)



These Pump Skid Additions are customized to clients needs, please contact PRM for a quote on your particular unit requirements.
