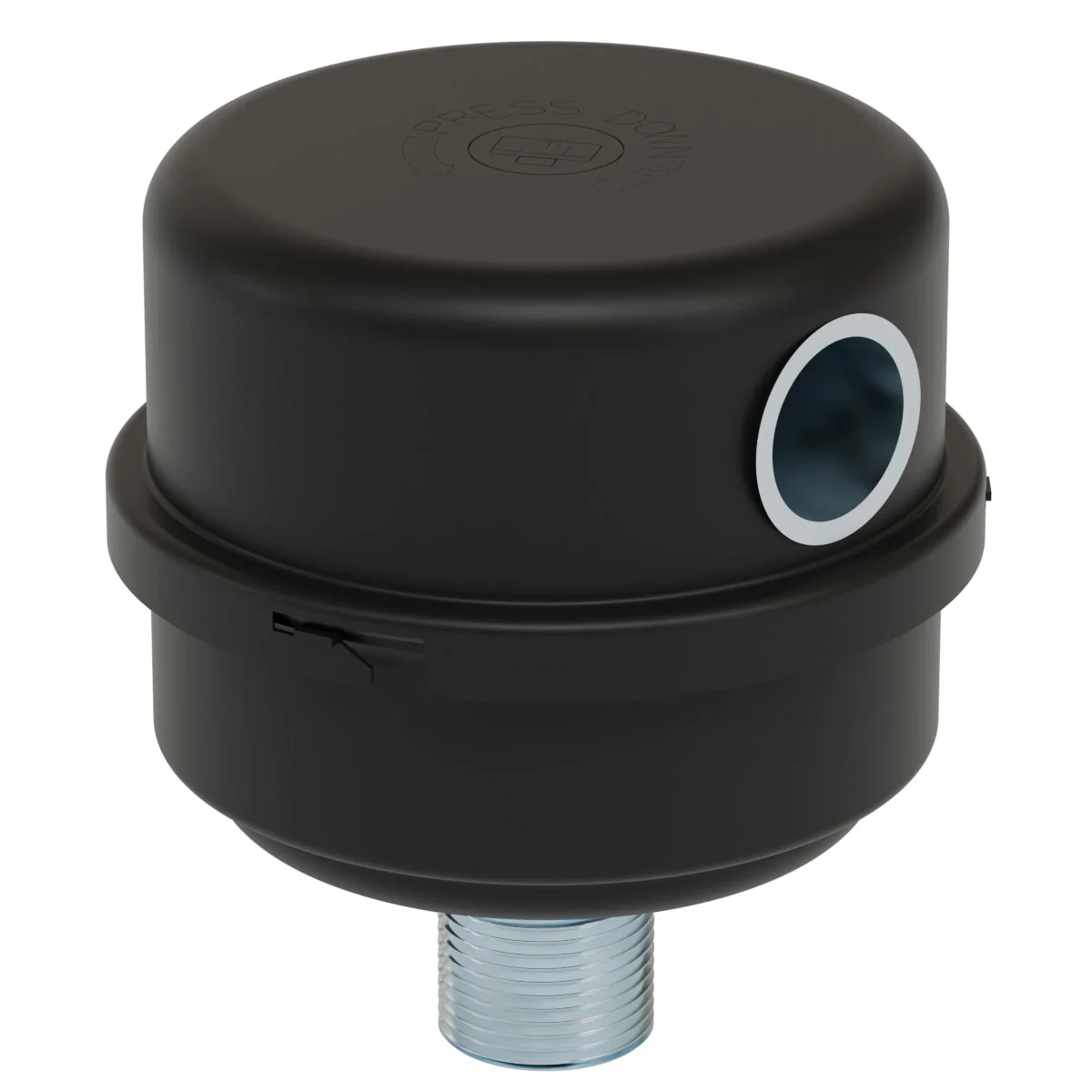

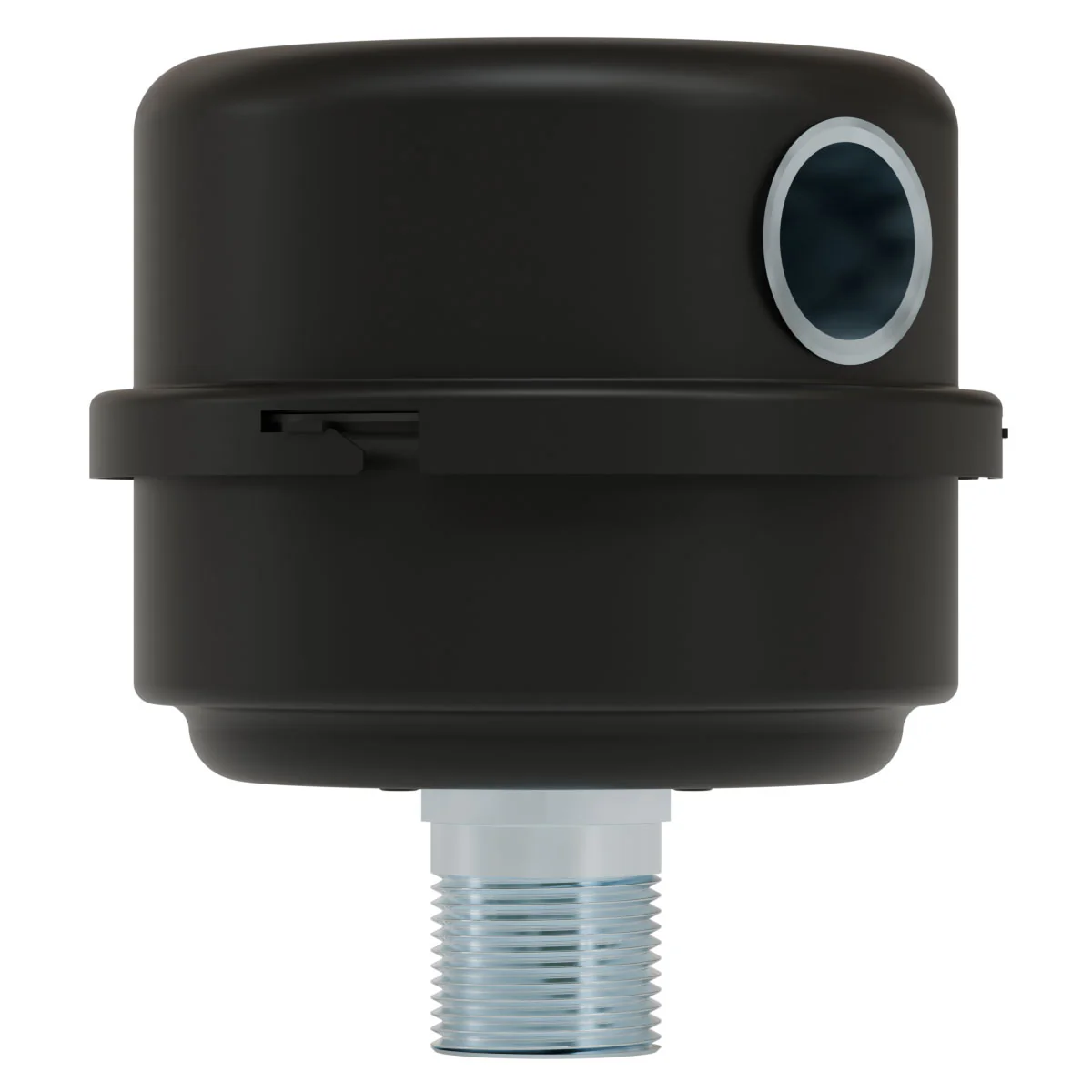

Solberg 1 Inch Compact Filter Silencer, FS-11-100

FS Series Compact Filter Silencer

Features:

• High grade filter element with integrated gasket seal (1/4" - 1" connections)
• Fully drawn weatherhood
• Tubular silencing design: tube maximizes attenuation and air flow while minimizing pressure drop
• Corrosive resistant black powder coat carbon steel
• Ability to mount vertically and horizontally (1/4" - 1" connections)

Technical Specifications:

• Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
• Filter change out differential: 15-20” H2O over initial ΔP
• Polyester: 99%+ removal efficiency standard to 10 micron
• Pressure drop graphs available upon request

Solberg FS Datasheet

Outlet Connection Size (in.): 1
Connection Type: MPT
Flow (SCFM): 35
Dim A (in.): 4.51
Dim B (in.): 1.24
Dim C (in.): 4.15
Dim E (in.): 2
Weight (lbs.): 1
Media: Polyester
Micron Rating: 10.0
Finish: Black Powder
Replacement Element: 11™
