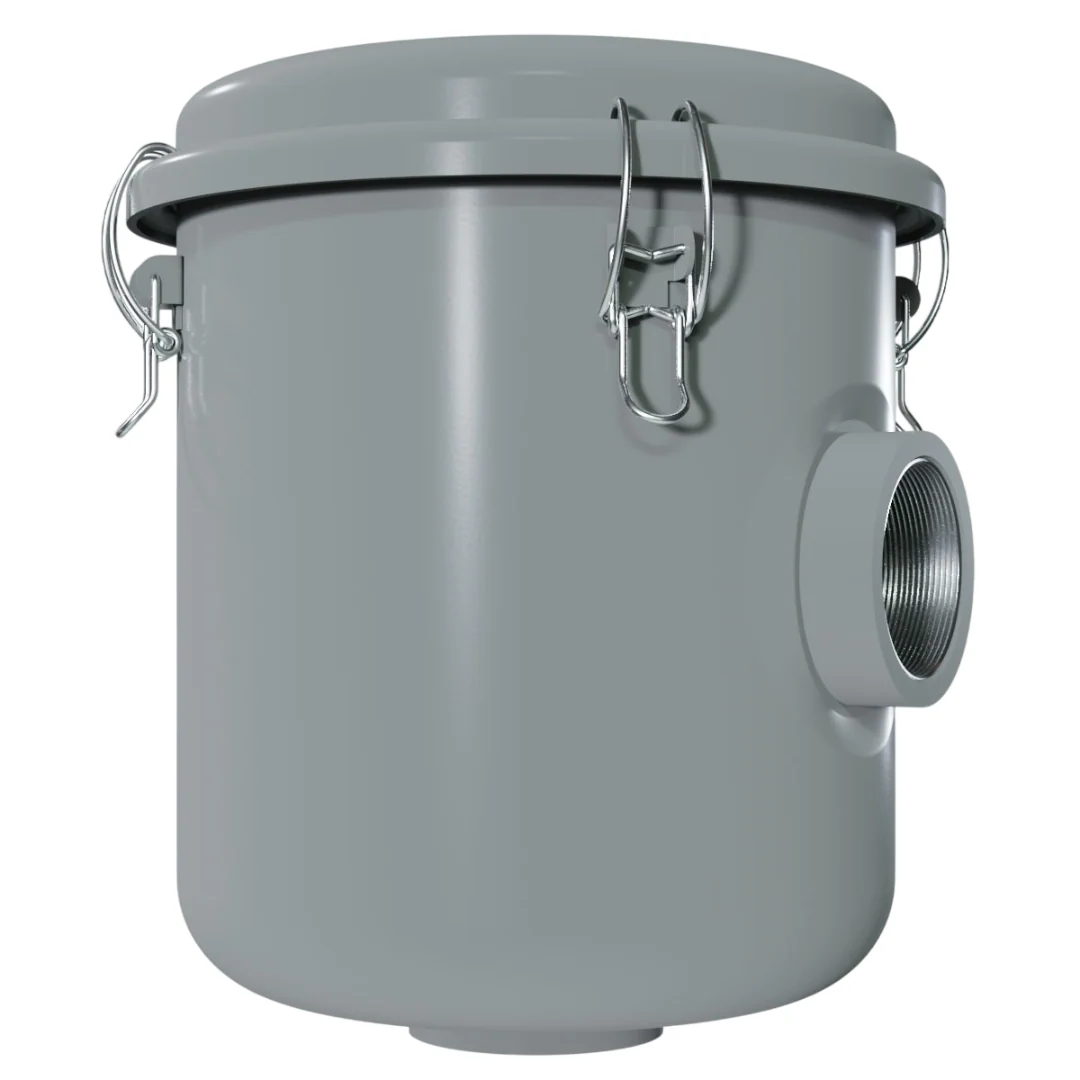

Solberg CSL-851-250HC 2-1/2 Inch Inline Right Angle Vacuum Filter

Solberg CSL-851-250HC 2-1/2 Inch Inline Right Angle Vacuum Filter

Solberg’s CSL Series Inlet Filters for vacuum pumps are designed for various industrial vacuum processes where harmful particulates are present. Ideal for protecting the inlet of most vacuum pumps, our CSL Series comes standard with a variety of replaceable filter element options that offer superior protection and longevity for the vacuum system.

Features:

• Seamless drawn housings
• O‐ring seal
• Corrosive resistant powder coat carbon steel
• Stainless steel torsion clips
• Vacuum Rating: medium vacuum service
• Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
• Filter change out differential: 15-20"H₂O (37‐50 mbar) over initial Δ P
• Polyester: 99%+ removal efficiency standard to 5 micron
• Paper: 99%+ removal efficiency standard to 2 micron

Specifications:

• Model: CSL-851-250HC
• Inlet Connection Size (in.): 2.5
• Outlet Connection Size (in.): 2.5
• Connection Type: FPT
• Flow (SCFM): 210
• Media: Polyester
• Micron Rating: 5.0
• Finish: Gray Powder

Resources:

Solberg CSL Datasheet
