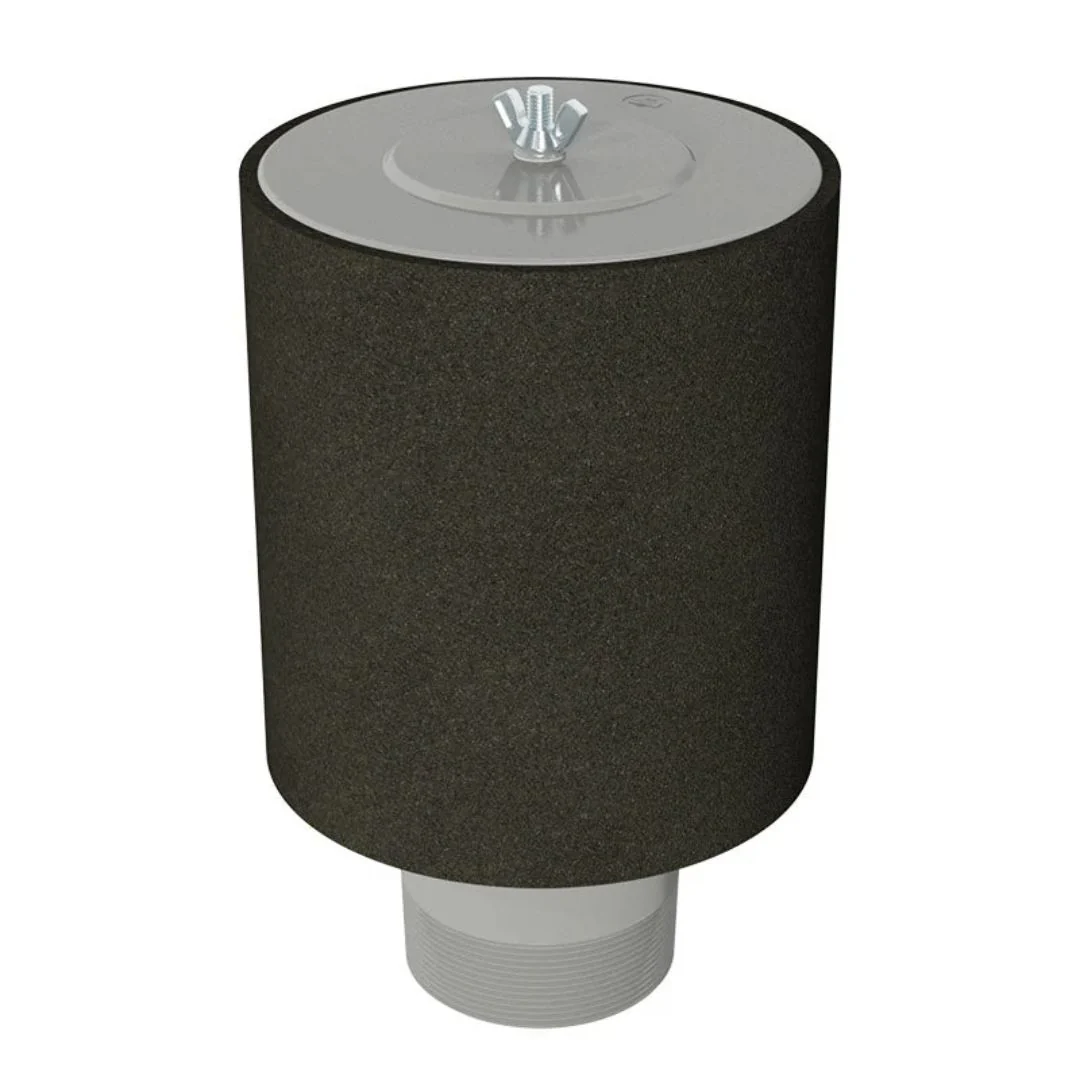

Solberg FT-235P-400 Exposed Inlet Filter

Solberg FT-235P-400 Exposed Inlet Filter

Exposed inlet filter for blowers, fans or compressors. 5 Micron, Polyester element.



Features:

• Exposed element for optimal air flow & low restriction
• Heavy gauge base with low pressure drop outlet pipe and center bracket design
• Corrosive resistant gray powder coat carbon steel
• Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
• Filter change out differential: 15-20" H₂O (37‐50 mbar) over initial Δ P
• Pressure drop graphs available upon request
• Polyester: 99%+ removal efficiency standard to 5 micron



Specifications:

Height	14 in
Width	4 in
Neck Length	8 in
Connection Type	MNPT
Connection Size	4 in
Outlet Size	4 in
Micron Rating	5.0
Media	Polyester
Finish	Gray Powder
Selector Connection Type	Threaded
Selector Media Type	Polyester
Case Quantity	4
Qty Per Box	1
Replacement Element	235P™
Flow (SCFM)	520
Weatherhood	false
