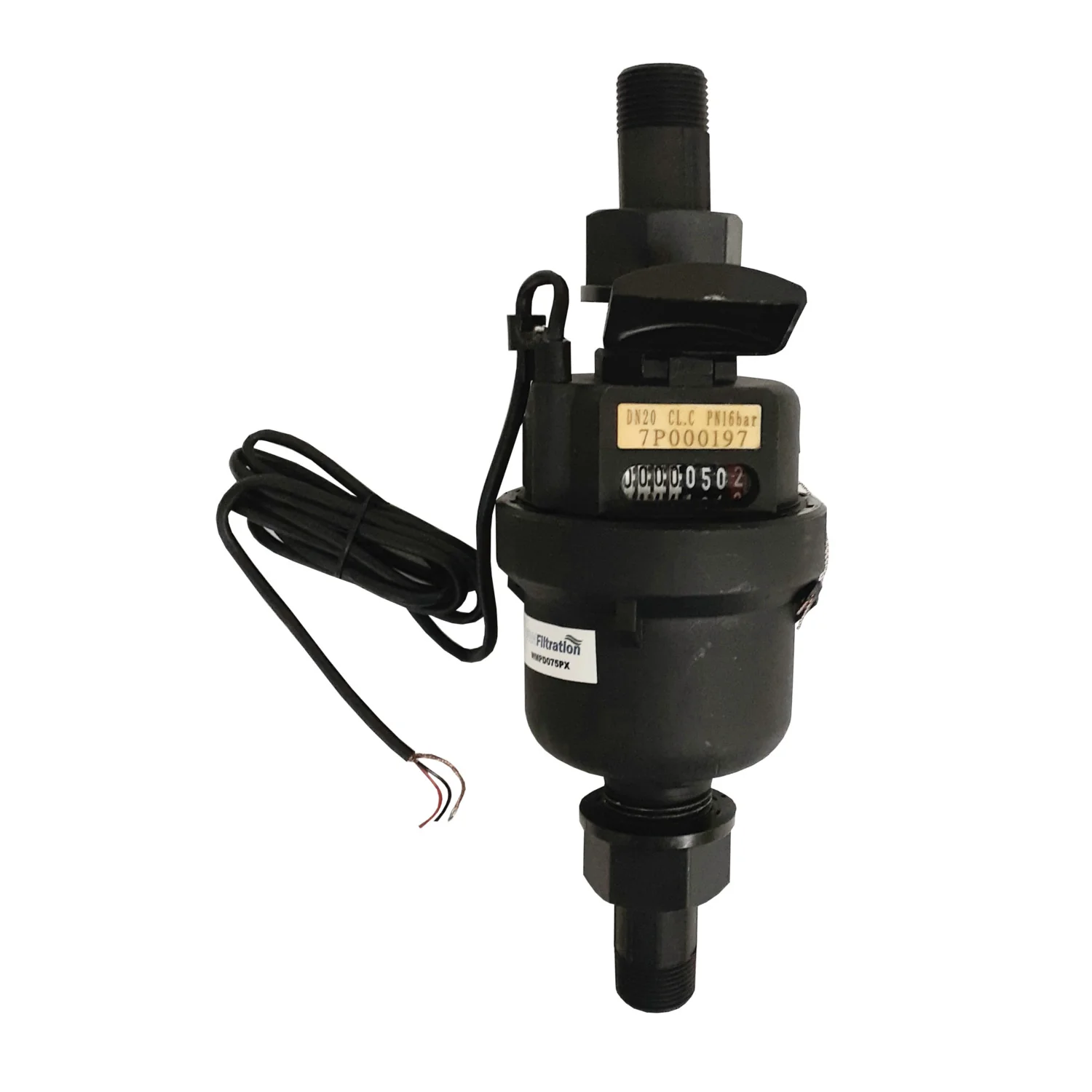

Vertical Positive Displacement Nylon 3/4 Inch Water Meter With Pulse

Vertical Positive Displacement Water Totalizing Meters display total water usage in gallons. Available in a 1/2” and 3/4” and include NPT couplings.

The PRM vertical oscillating piston meter is made of nylon and thermoplastic polymer for durability in harsh environmental environments.
The piston displacement technology results in accurate and reliable operation in either vertical or horizontal mounting as long as the meter remains full of water.
Adapter couplings included to convert BSPP threads on the meter to NPT.

Specifications:

• Maximum Pressure: 232psi
• Temperature Range : 33° to 122° F (Protect the Meter from Freezing)
• Flow Range: 0.1 to 22 GPM, Continuous 16 GPM
• Pulse Rate: 1 Gallon Per Pulse
• Accuracy: +/- 2.0%
• Rotary Piston
• Back flow prevention – internal no-return valve
• Register is liquid filled and sealed for easy reading and long term clarity
• Magnetic Drive
• Integrated Strainer
• Reads in U.S. Gallons

Materials:
Body: Nylon
Couplings: Nylon
Measuring Chamber: PPS
Silicone O-Ring standard, Optional Viton O-ring (self-install)

Spec Sheet
Wiring Diagram
Pair it with pre-wired junction box and digital counter
