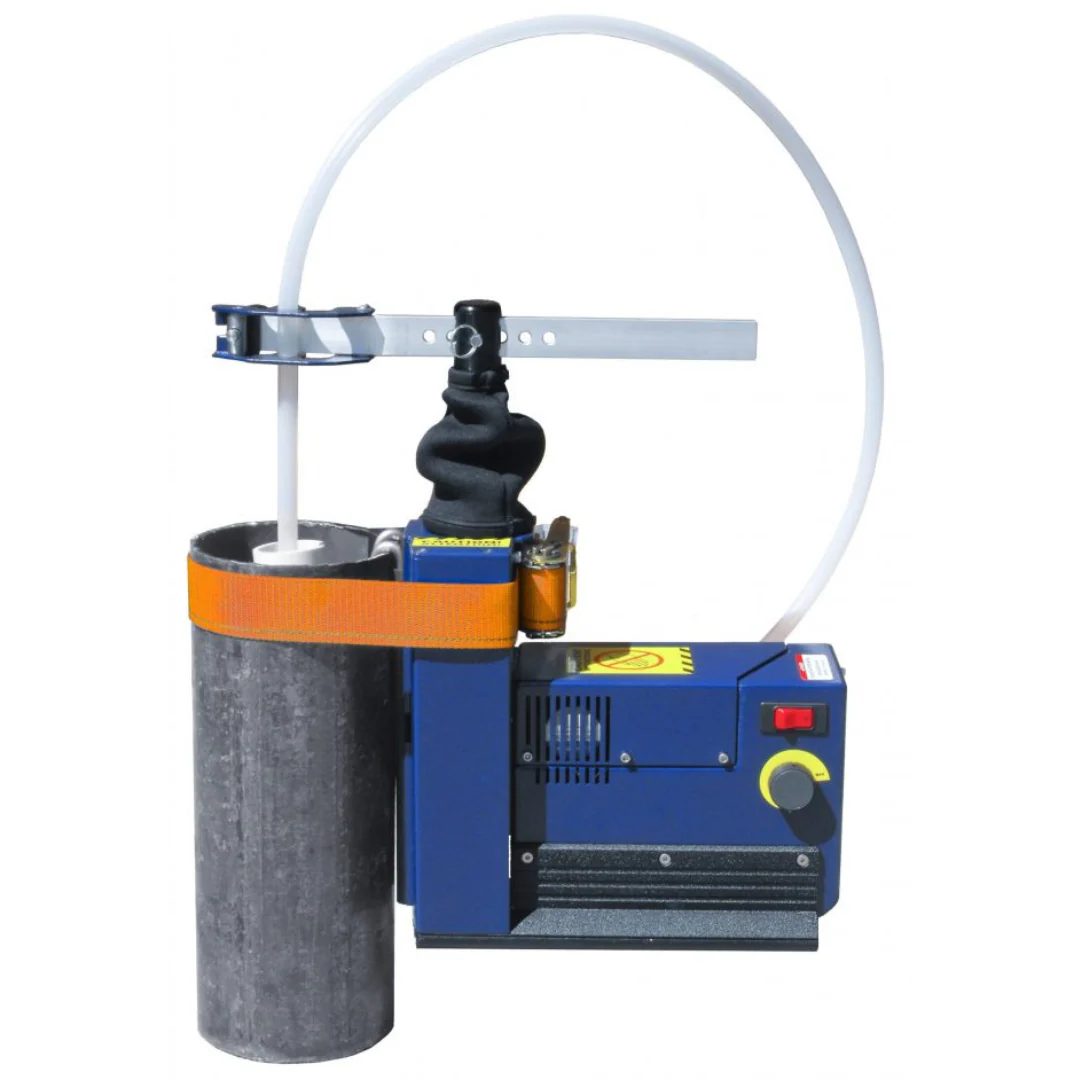

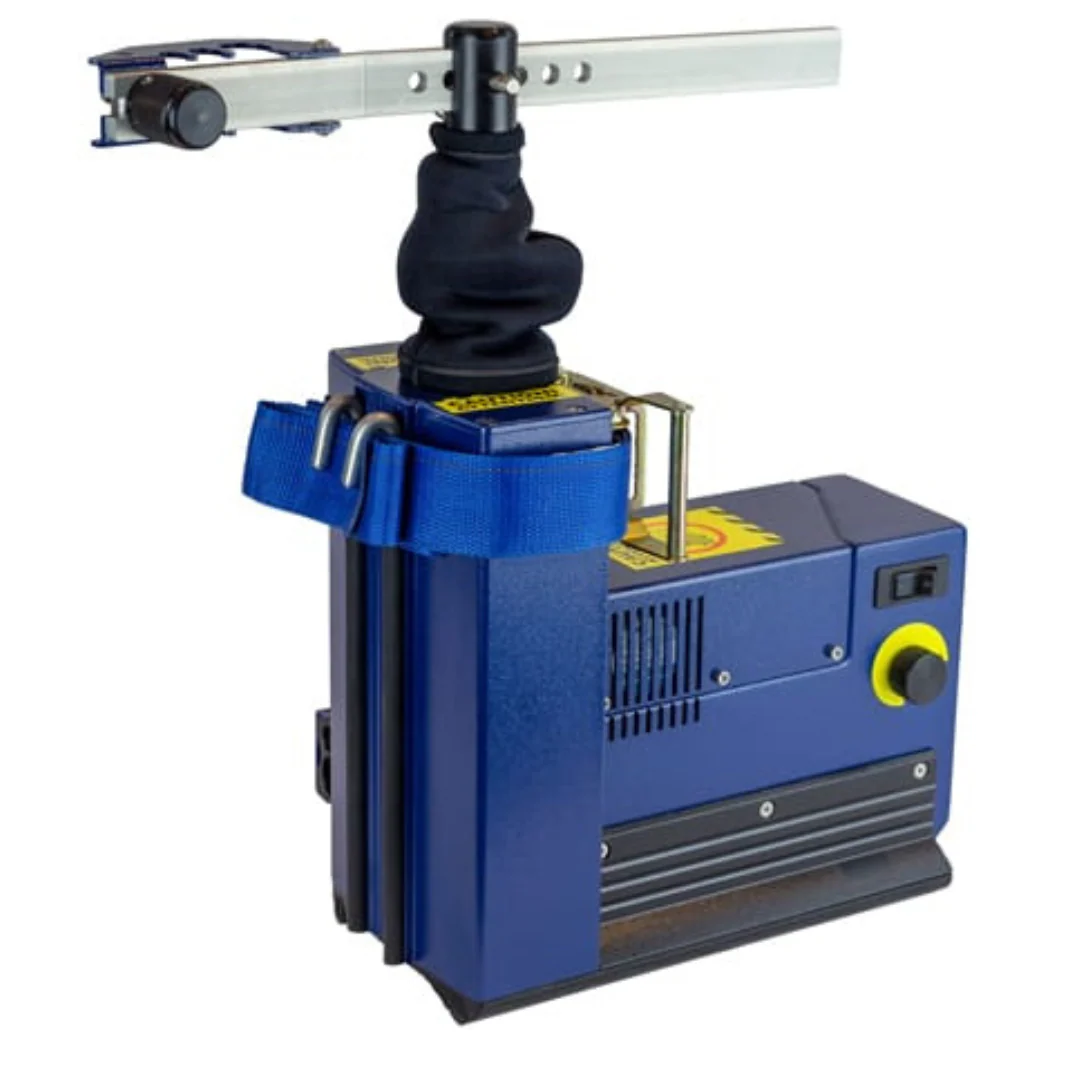

Waterra Hydrolift-2 Pump - Tubing Actuator

The Waterra Hydrolift-2 Inertial Pump Actuator is a portable, electrically operated tubing actuator designed specifically for use with the Waterra Inertial Pumping System. The Hydrolift-2 is capable of operating the Standard Flow Inertial Pump in any monitoring well up to depths of 150 to 200 feet and the Waterra High Flow Inertial Pumps up to 150 feet.

The Hydrolift is a useful tool, especially at sites with multiple monitoring wells. The low cost of dedicated inertial pumps and the simplicity of their operation makes the Hydrolift-2 and Inertial Pumps an interesting option for larger programs.

Weighing just under 40 lbs, the Hydrolift requires a 110 volt source, a 1500 watt generator is typically sufficient. The Hydrolift can be suspended on above ground well completions or it can sit on the ground at flush mount installations.

Features:

• fully adjustable — the Waterra Hydrolift Pump -Tubing Actuator is fully adjustable and will adapt to almost any size casing or protective well casing and can also be used with flush grade well completions.
• anchored discharge end of tubing — the Hydrolift supports the Waterra Tubing and also anchors the discharge end of the tubing facilitating sample collection.
• available in either 110 volt or 220 volt AC
• great for use when developing monitoring wells
• reduces fatigue — the use of this automated Waterra Pump System Tubing Actuator will eliminate the fatigue that can be experienced on large monitoring programs.
• hinged tubing clamp
• suitable for use with  Low, Standard Flow and High Flow Waterra Pumping Systems
• adapts to almost any size casing or protective well casing
